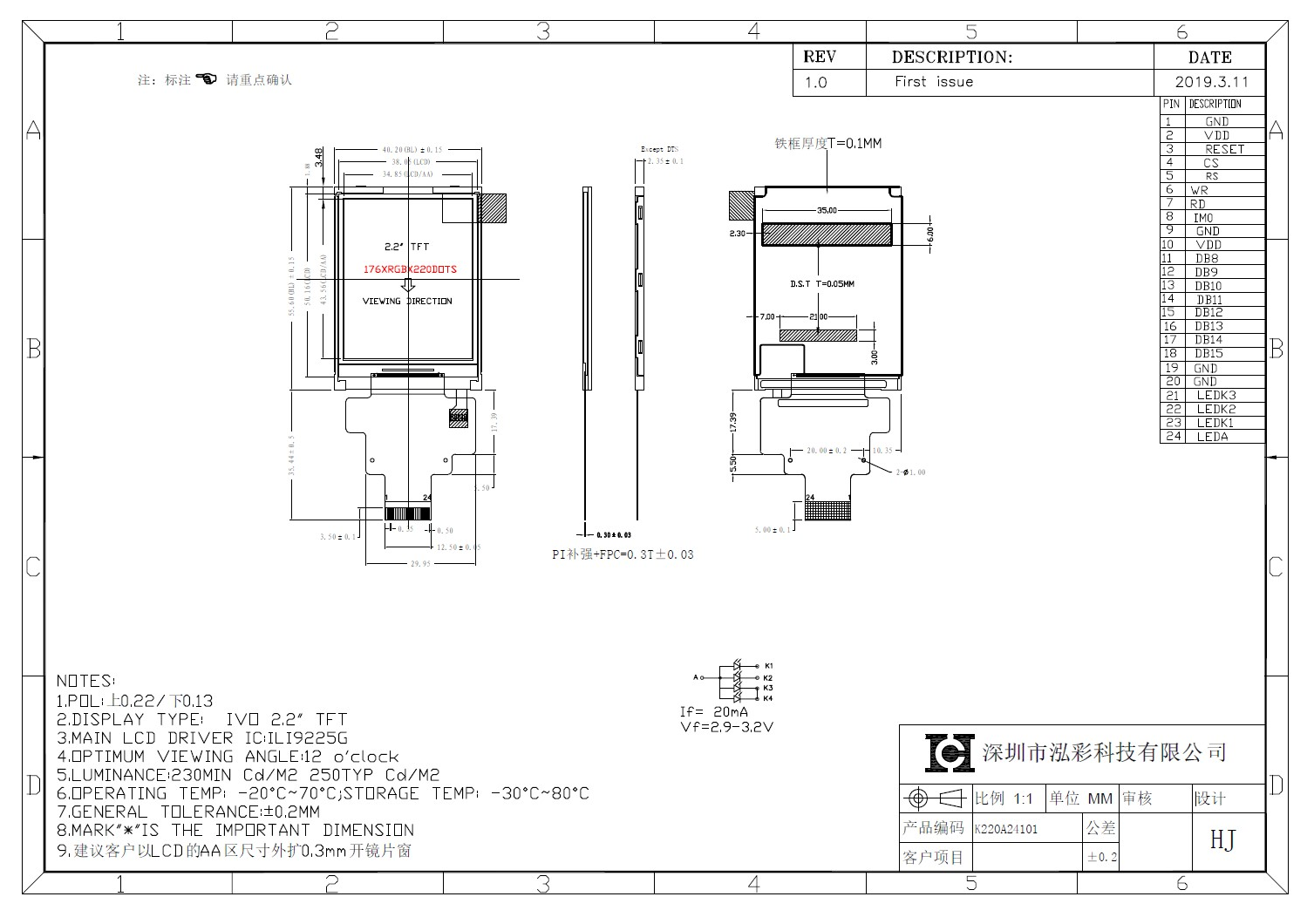

2.2inch tft lcd display
| Item | Contents | Unit |
| Size | 2.2inch lcd module | inch |
| LCM Dimension | 40.2（W）* 55.6（H） * 2.35(T) | mm |
| LCD Active Area | 34.85* 43.56 | mm |
| Resolution | 176 * RGB * 220 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 0′CLOCK | |
| Driver IC | ILI9225G | |
| Interface Type | MCU | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight Type | 3 LEDs | |
| Weight | 350-400 | Cd/m2 |
