Parking sensor system is supplementary safety equipment that is specially designed for car reversing.There is hidden trouble while reversing because of blind zone behind the car.After installing parking sensor,when reversing:
*LCD system displays the distance on the screen and sends out four beeping tone as a reminder.
So that it is more relax and safety while reversing.

Through the pressure sensors installed in the four tires of the car,achieve automatic and real-time monitoring the car tire pressure and temperature.Provide guarantee for the safe running.

Features:

• Anti-jamming technology ,low error report.
• Ergonomic design, brake-ready operation.
• Power supply reversal protection with built-in automatic recovery.

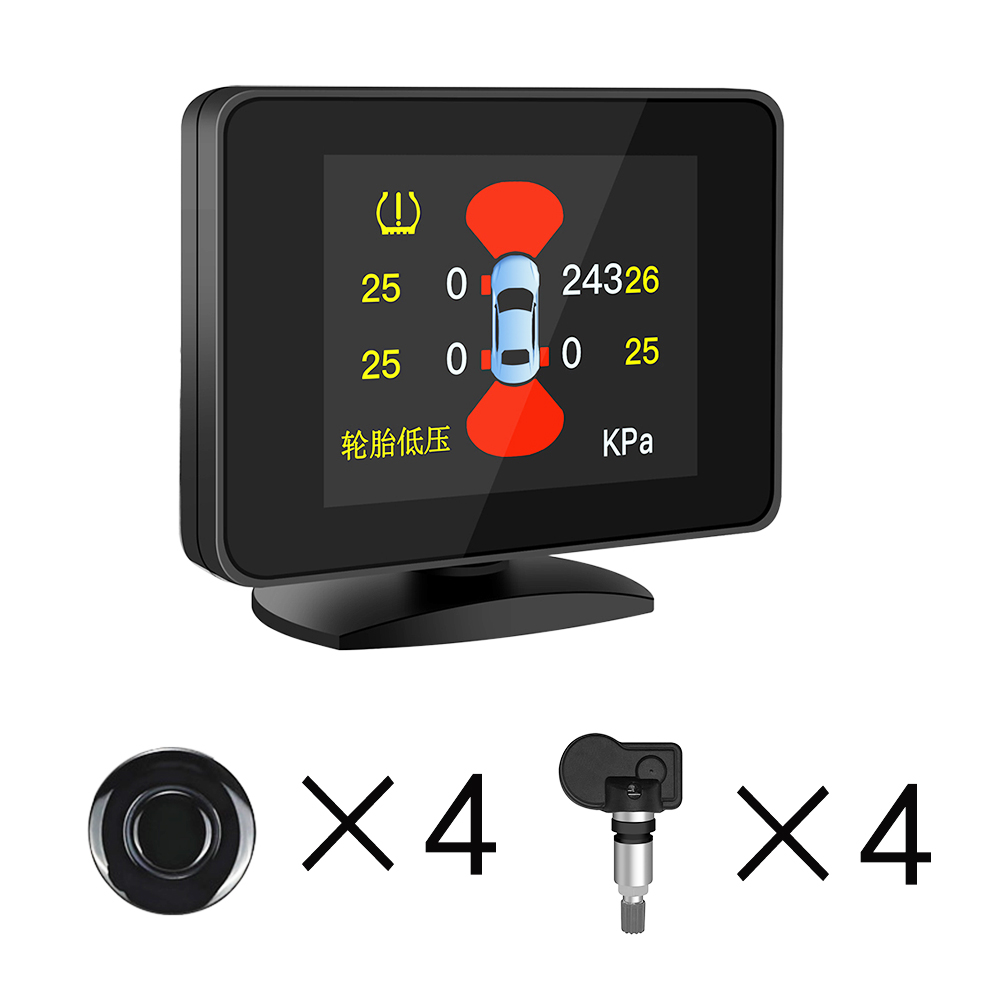

• Super wide TFT display, real-time monitoring of Tire Pressure and Radar.
• Wide operating temperature range, Radar system 4/6/8 sensors optional.
• The TPMS sensor is AEC-Q100 certified and designed for long life.

Technical PARAMETER

Display
Working frequency：433.90MHz
Working temperature：-30~80℃
Working current：<120mA
When rest display<1mA
Temperature display range：-40~105℃
Tire pairing （Sensors are factory paired）
Tire pressure display range：0~350KPa

Main box
Working voltage：DC9~16V

Working Current：<50mA

Working temperature：-40~80℃

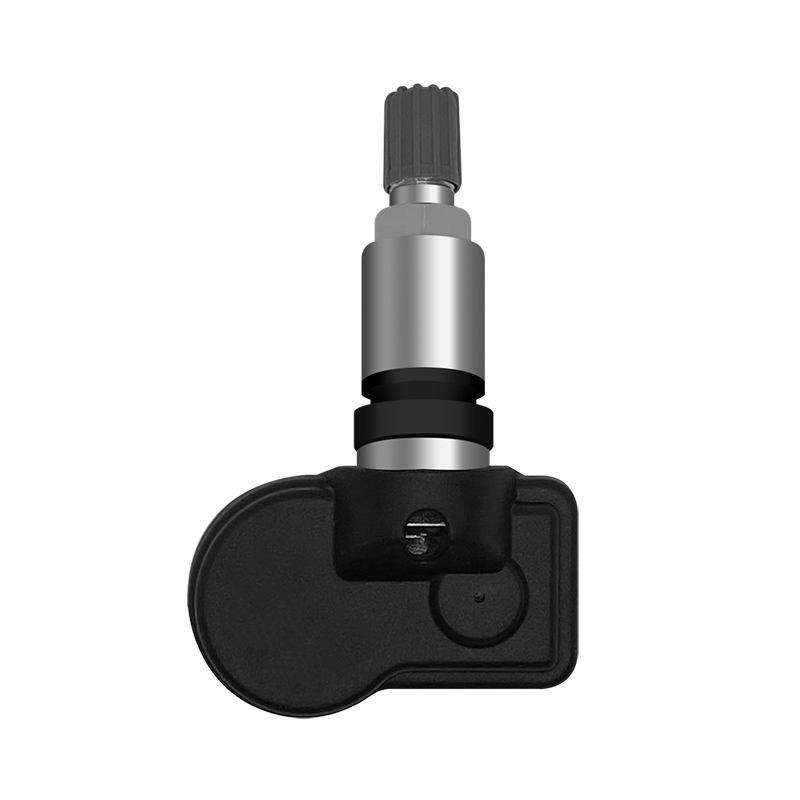

TPMS Sensor

Working frequency：433.90MHz Working voltage：2.4~3.4V
Working current：Static＜1uA
Peak emission＜15mA
Working temperature：-40~105℃
Tire temperature monitoring range：-40~105℃
Tire pressure monitoring range：0~350KPa
Temperature precision：±3℃（-20~75℃）
±5℃（-40~125℃）
Tire pressure precision：±7kPa(0~50℃)
±17.5kPa(-40~125℃)
Max torque：12N.m
Battery capacity：210mAh Design life：6 year

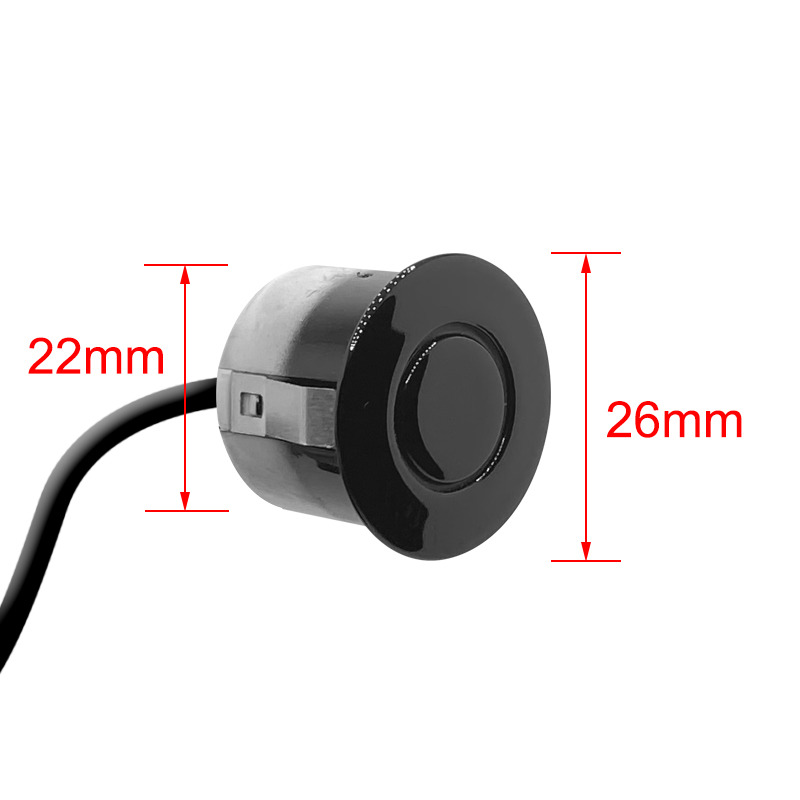

Radar Sensor

Working frenquency：40K±2K

Working Temperature：-40~80℃
