Short Description:

Product Series: DPL High Pressure Dewar

Model Number: DPL450-80L~232L

Working Pressure(MPa): 2.3MPa

Usage: Storing liquefied gas

Application Medium: LOX,LNG,LAr,LCO2,LN2O,LN2

Dimension(L*W*H): Dia 505*1916mm

Send email to us Product Detail Product Tags

DPL series container is a kind of high-performance vacuum insulated container, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications, can provide up to 9.2 cubic meters per hour continuous flow with a delivery pressure of approximately 100psig (6.9bar/690Kpa).

VideoParameter

Product No.

DPL450- 80-2.3Ⅰ

DPL450- 100-2.3Ⅰ

DPL450- 150-2.3Ⅰ

DPL450- 175-2.3Ⅰ

DPL450- 195-2.3Ⅰ

DPL450- 210-2.3Ⅰ

DPL450- 232-2.3Ⅰ

Dimension mm (OD×Height)

Φ505×951

Φ505×1076

Φ505×1391

Φ505×1557

Φ505×1672

Φ505×1766

Φ505×1916

Wright(Empty cylinder) kg

88

98.5

126

140

149

157

168

Working pressure MPa

2.3

Normal working pressure MPa

0.52~2.3

Design pressure MPa

1.03~2.41

Safety valve open pressure Mpa

2.76

Bursting pressure of bursting disc Mpa

3.9

VolumeL

80

100

150

175

195

210

232

effective volume  L

72

90

135

158

176

189

209

Maximum filling volume Kg

O2

75

93

140

163

182

195

216

Nitrogen

52

66

98

115

128

138

152

Argon

90

113

170

198

221

238

263

LCO2

76

95

143

168

187

200

222

Gas flow Nm3/hr

9.2

Static evaporation rate of liquid nitrogen %/d

≤2.9

≤2.8

≤2.5

≤2.1

≤2.02

≤1.99

≤1.9

Liquid level gauge form

Liquid Level Gauge

surface treatment

Polishing

Understructure

Rubber ring

Feature

1.Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas

2. Adopted high multi-layer insulation method to ensure the low evaporation rate.

3. Inner vaporizer provides a 10Nm3/h stable continuous gas.

4. Solar installation use in the priority of gas-pressure and gas space.

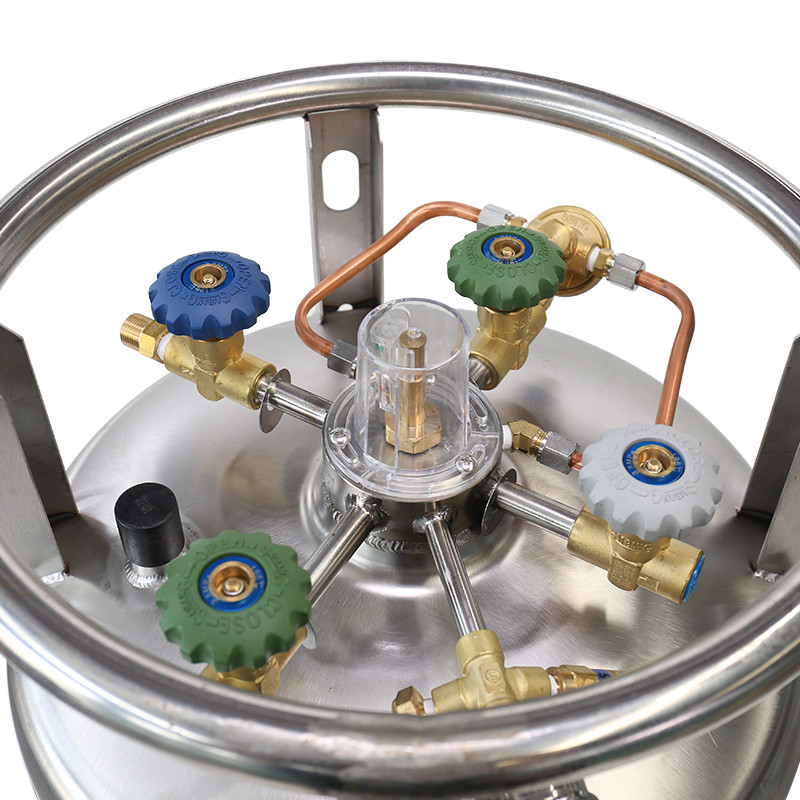

5. Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)

6.Unique design of damping ring meets the needs of frequent transportation.

7.Suitable for electronics, research, chemical industry, welding, and LNG supply industries.

Detail Display

①Large store capacity

Our Dewar cylinder=499LO2, Common Cylinder=16.7LO2

②Automatic pressure relief and MCR system

Relief valve will closed automatically when the pressure recover to the safe valve.

Deliver Goods

We suggest a carton or nets. a carton for smaller models, nets for bigger models as usual. Also can provide a pallet if you like it.

1. Packaging with nude

2. Packaging with a nylon bag.

3. Packaging with wooden pallets.

4. Packaging as you required.

FAQWhat is your delivery time?

We promise 20-25 days once deposit paid and workshop drawings confirmed.

What is your payment terms?

We accept TT and L/C at sight.

What is your packing for all cylinders?

We can pack all Containers by pallet , also no pallet is available for different type container.

Can you provide OEM design?

Yes, we can, we are factory under our own R&D team, so custom container is welcome.

and we can make customer brand name on cylinder shoulder, color, printing, etc…

What is your MOQ?

Our MOQ is 10 pcs.

Do you have any protection for the head of the cylinder?

Yes, in our factory, each cylinder is protected by standard cap which can make sure the safety

of torch during the transportation.

What is your advantage with other competitors?

We are factory with excellent equipment and high quality control system, and our factory price is more competitive, fast shipment with high quality, our service is also best with 24 hours on line for fast reply your requirements.
