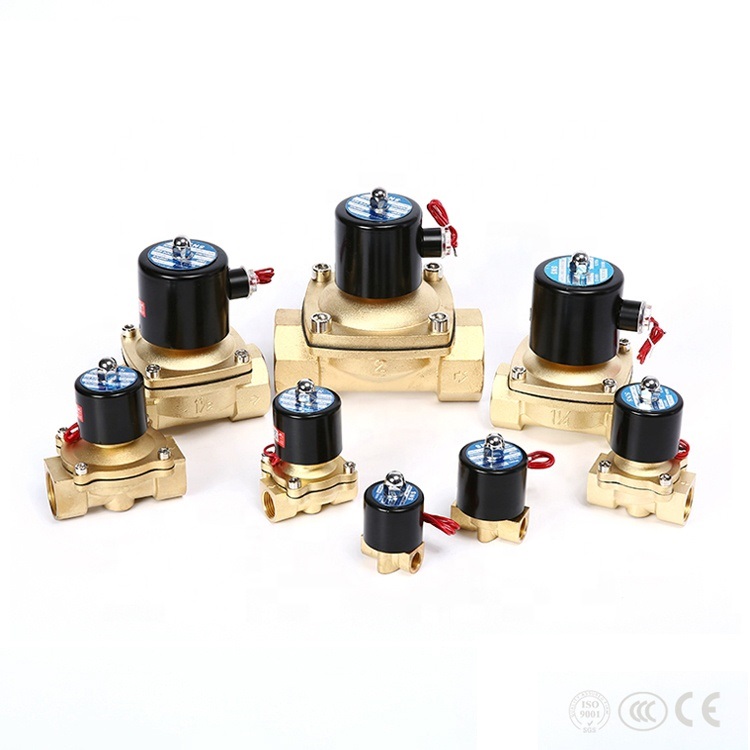

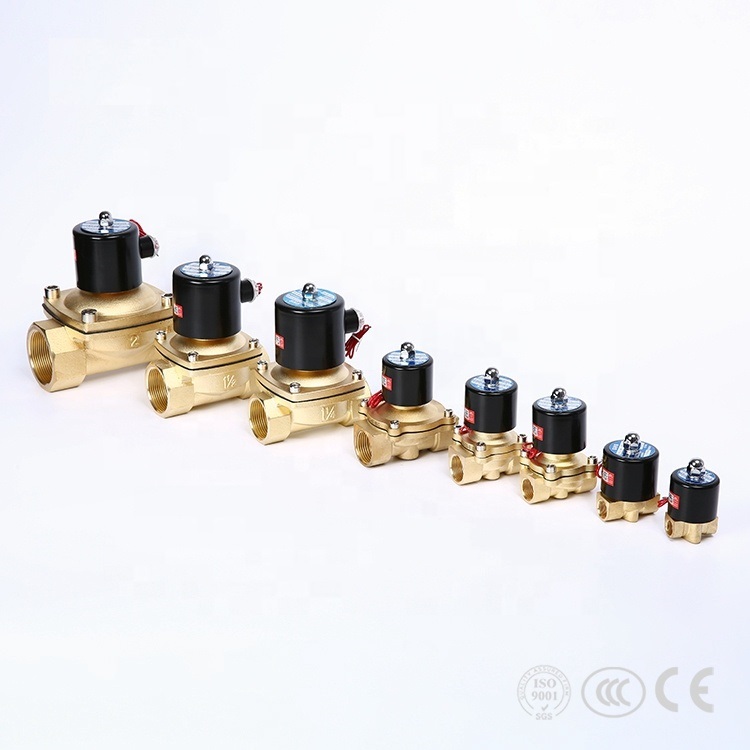

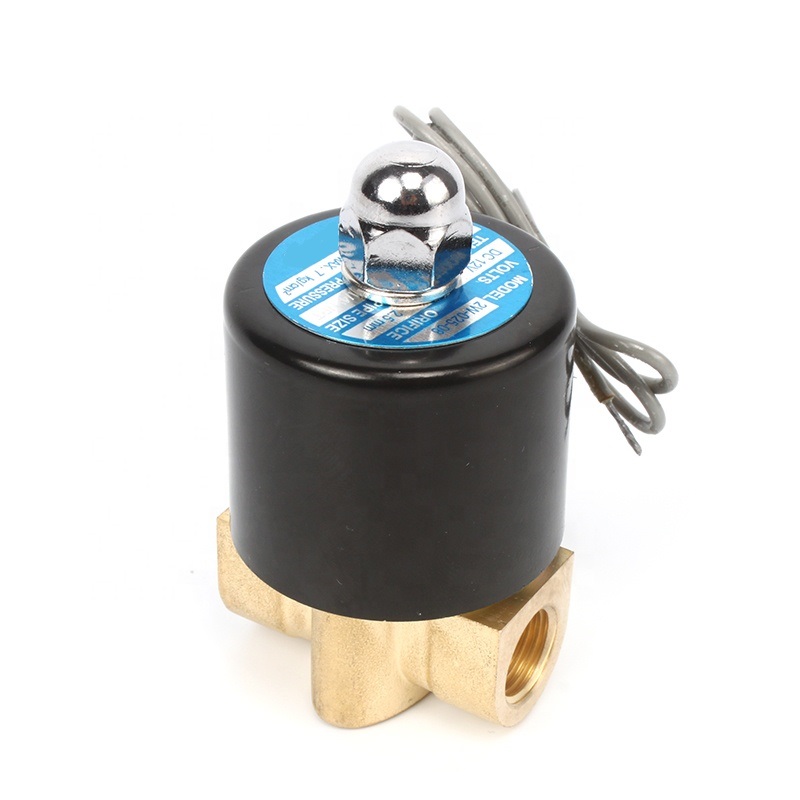

2W series control element direct-acting type brass solenoid water valve

Short Description:

Constructed of industrial grade brass, this valve is corrosion resistant, more conducive for welding, and can be used with gasoline, diesel fuel, kerosene oil, natural gas, air etc. Due to the chemical composition of brass, this valve should NOT be used with projects involving drinking water or other water projects.It’s applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. and air controls ( lab, factory, etc.)We have solenoids available in AC/DC and various size NPT threads as well.


Product Detail

Product Tags

 src= src=
Model 2W025-08 2W040-10 2W160-15 2W200-20 2W250-25 2W350-35 2W400-40 2W500-50
Fluid Air/Water/Oil
Action Mode Direct-acting Type Pilot-operated Type
Type Normal Closed
Port Diameter(mm^2) 2.5 4.0 16 20 25 35 40 50
CV Value 0.23 0.60 4.8 7.6 12 24 29 48
Port Size G1/4 G3/8 G1/2 G3/4 G1 G 1/4 G1 1/2 G2
Fluid Viscosity Under 20CS
Working Pressure Water/Oil: 0.1-0.5MPa Air: 0.1-0.7MPa
Proof Pressure 1.0MPa
Temperature -5-85℃
Working Voltage Range ±10%
Material Body Brass
Seal NBR
Coil Power 15VA 20VA 50VA

2W4

Model

A

B

C

D

K

2W160-10

93

55.5

106.5

67.5

G3/8

2W160-15

93

55.5

106.5

67.5

G1/2

2W200-20

97

55.5

113

73

G3/4

2W250-25

102.5

72.5

121

94

G1

2W350-35

134.5

92.5

159

120

G1 1/4

2W400-40

137.5

92.5

165

122

G1 1/2

2W500-50

151.5

123

188

170

G2
