3.5inch tft lcd display

Short Description:

ItemContentsUnitSize3.5 inch moduleinchLCM Dimension54.48(W)* 84.71(H) * 2.30(T)mmLCD Active Area48.96* 73.44mmResolution320 * RGB * 480pixelLCD Typea-Si TFTViewing DirectionALLDriver ICST7796SInterface TypeRGBOperating Temperature-20℃~ 70℃Storage Temperature-30℃~ 80℃Backlight Type6 LEDsWeight300-350Cd/m2


Product Detail

Product Tags



Item Contents Unit
Size 3.5 inch module inch
LCM Dimension 54.48(W)* 84.71(H) * 2.30(T) mm
LCD Active Area 48.96* 73.44 mm
Resolution 320 * RGB * 480 pixel
LCD Type a-Si TFT
Viewing Direction ALL
Driver IC ST7796S
Interface Type RGB
Operating Temperature -20℃~ 70℃
Storage Temperature -30℃~ 80℃
Backlight Type 6 LEDs
Weight 300-350 Cd/m2

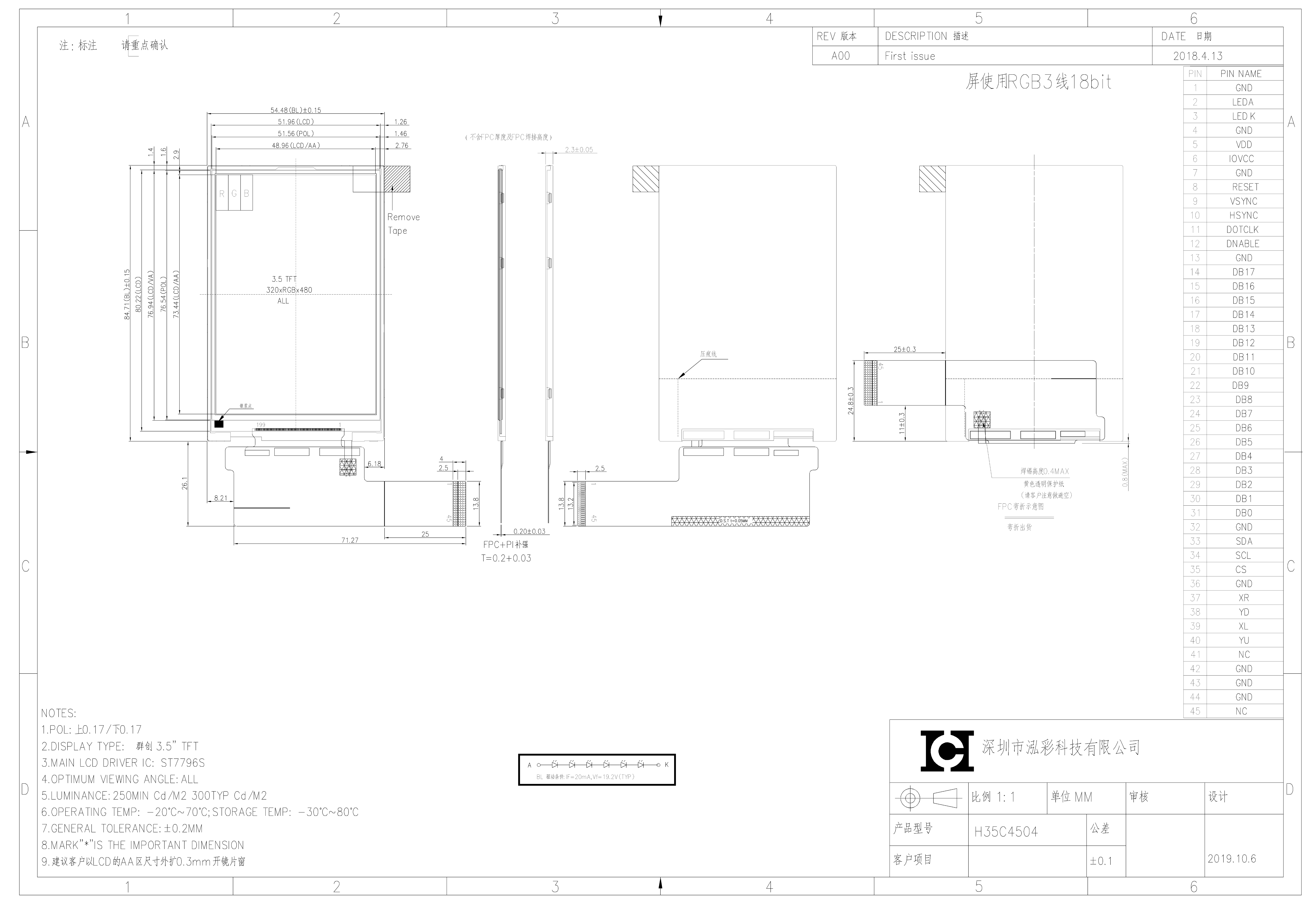

35lcd spec

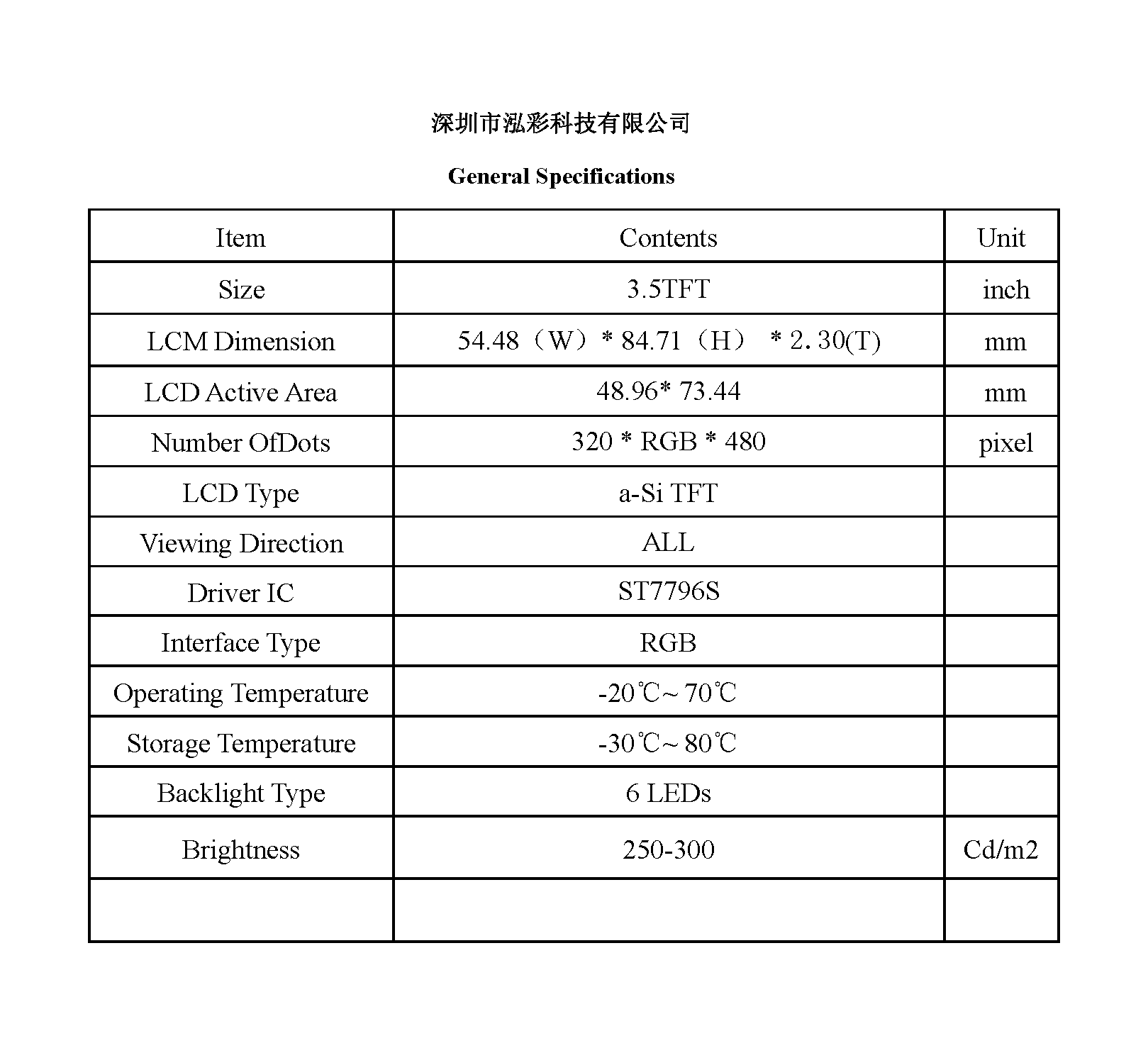

35lcd display
