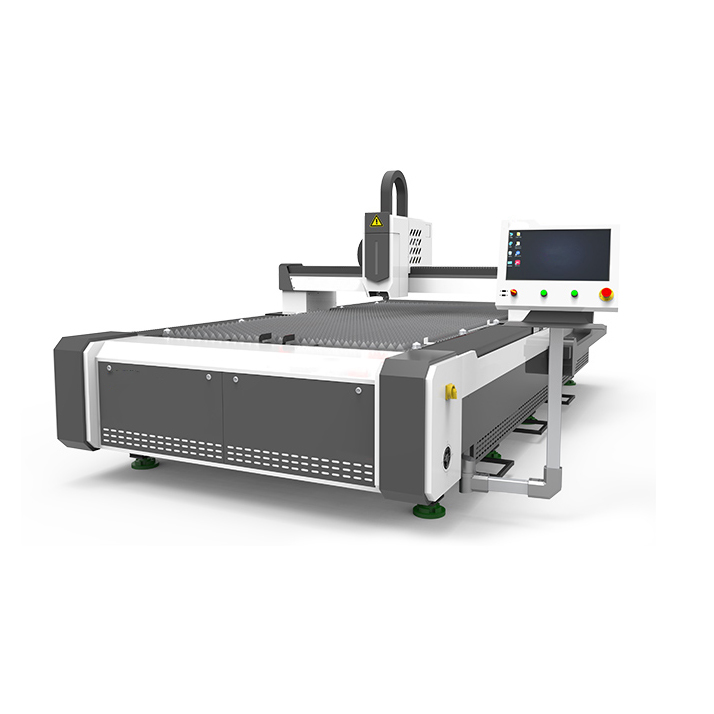

3015 fiber cutting machine for metal sheet
F-3015A
F-3015B
| Model | F-3015A> | F-3015B |
| Cutting working area | 3000x1500mm | |
| Laser Generator | Raycus / IPG /MAX | |
| Transmission system | Gear + rails | |
| Fiber Laser Power | 1000W | |
| X.Y axis location accuracy | ±0.01mm | |
| X.Y axis repeat location accuracy | ±0.01mm | |
| X.Y axis max moving speed | 120m/min | |
| Laser wave length | 1064nm | |
| Machine color | Support custom made | |
| Gross weight | 3500KG | |
| Machine Warranty | 2 years | |
* Every machine parts must be quality assurance!
* Every machine parts must be tested well!
Fiber laser cutting machine head
Raytools Laser CuttingHead, Optimized optical configuration and smooth and efficient airflow design. Au3tech, Pretic, WSX, can be optional.
1000W Raycus Laser Generator
Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results
Yaskawa Or Panasonic servo motor and driver
Yaskawa Or Panasonic servo motor and driver, Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.
MORE Cost-saving! MORE Flexible! MORE Safer!
Consider Everything for Customers, Create More Value for Customers!
Automatic oiling system:
More cost-saving
DSP Controller:
More flexible operation
Alarm light:
More safer operation
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
LASER Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
The laser head is made of high quality materials in accordance with advanced technology. It is strcng and curable it can achieve ‘onine’ measure ment during the production process, and the measurement is accurate and rapid.
Auto-focus laser head
The laser head is made of high quality materials in accordance with advanced technology. It is strcng and curable it can achieve ‘onine’ measure ment during the production process, and the measurement is accurate and rapid.
Cypcut plane control system(2000)
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry,easy to use, rich in functions, suitable for various processing occasions.
Edge finding aid
Dual-drive deviation self-correcting two-stage capacitive edge seeking
The cast iron bed (custom)
Flake graphite cast iron with a minimum tensile strength of 200 MPa.
Keep the accuracy of the machine tool for a long time, unchanged for 50 years
Yaskawa Servo Moto
1. Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
2. Rotating speed: high speed performance, general rated speed can reach 2000~3000 rpm;
1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
2.Rotating speed: high speed performance, general rated speed can reach 2000~3000 rpm;
Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results
