315 Electrofusion Welding Machine , HDPE PP PP – R Water Gas Fire Sprinkler Tube Machine

Short Description:

1. Modle :ELEKTRA315

2. Working range: 20-315mm

3. Supply power: 3500W

4. With Scanner

Send email to us

Product Detail

Product Tags

Detail Information

Input Voltage:

Power:

Maximum Output Corrent:

Protection Degree:

Dimensions Carrying Case(WxDxH):

Weight Machine:

110V-230V	4000W
100A	IP 54
405285340mm	16kg

Product Description

Electrical Welding HDPE PP PP – R Water Gas Fire Sprinkler Tube Machine

Electrical welding machine- ELEKTRA 315Description

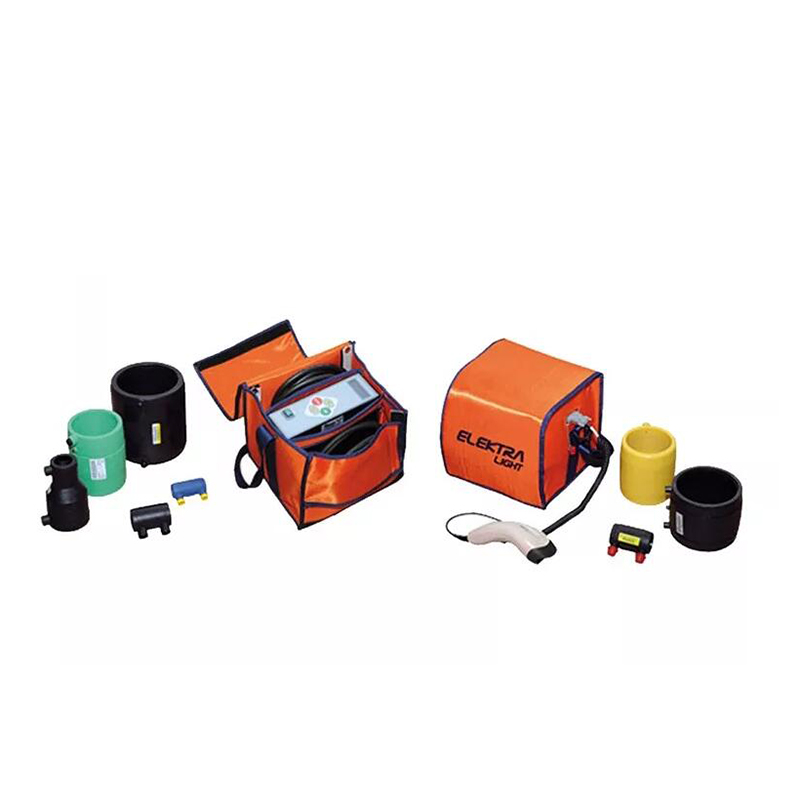

ELEKTRA 315 is an universal electrofusion machine,suitable for welding pipe/fittings for the transport of gas, water and for welding fire sprinkler system (HDPE,PP,PP-R,couplings for 8 to 48 V).The Elektra 315 machine is made in compliance with international standard. Composed of:machine body and carring case,intuitive control panel an in built memory with 500 welding cycles,featuring the possiblity of transferring data to a Pc/Laptop and an laser scanner-barcode reading system that allows the automatic setting of the welding parameters.

Stand composition:

1. Universal

2. Laser scanner

3. Pen Drive

4. Manual scraper

On request:

1. Software Ritmo Transger

2. Adapter DB9M-USB

Electrical welding machine- ELEKTRA 315Technical Features

Working range	20-315mm
Power supply	110/230V Sihgle Phase 50/60 Hz
Absorbed power	4000W
Max.output curent	100A
60% Duty Cycle output	60A
Memory capacity	500 report
Protection degree	IP 54
Weight machine body	~16 kg (35.5lb)
Dimensions machine body	263×240×300mm;10.3″×9.4″×1.8″
Dimensions transport case	405×285×340mm; 16″×11.2″×13.4″

Electrical welding machine- ELEKTRA 315 Packing
Normal export packing:Inner packing is aluminum case, outside is carton

Dimensions:40.5×28.5×34mm

N.W:16kg

G.W:20kg

Electrical welding machine- ELEKTRA 315Applications

Before performing fusions and before connecting to power outlet, check the following:

NOMINAL TENSION AND FREQUENCY : see technical features (page 7)

OUTLETS AND EXTENTION CABLES: they must be suitable for the power absorbed by machine ( see page 7, 10)

CABLES: isolation has to be intact, they have to be placed away from places where vehicles transit and where they can be damaged .

MACHINE BODY: it has to be isolated and placed steadily.

Keep machine and cables clean and dry. Before cleaning operations disconnect machine from power supply. Use a humid soft cloth with water and alcohol (avoid any kind of solvent).

ELEKTRA is an electronic equipment therefore it has to be handled safely avoiding impacts and sudden temperature changes.

To guarantee correct functioning for as long as possible, operators has to perform frequent checks to the following components :

Connectors and adapters
Power cables and fusion cables
Display
Mechanical structure (frame, box).

In case of any anomaly machine has to be checked by manufacturer or by an authorized service centre.

In any case machine has to be serviced every 2 years by manufacturer or by an authorized service centre.
