3D welded wire mesh fence
3D curved panel fence :
This kind of fencing trellis have 2 – 4 lines of bending triangular area ( reinforcing fold) , to strengthen the wire mesh panel.
Wire diameter provide 3mm, 3.5mm , 4mm, 4.5mm, 5mm, 6mm, 7mm, 8mm, holes usually are 55 x 200mm, but other customized specifications also okay.
Height 1M – 2.5M, length 2M -3M. customized size is okay to produce too.
Surface treatment offer galvanized, powder coating, PVC coating
|

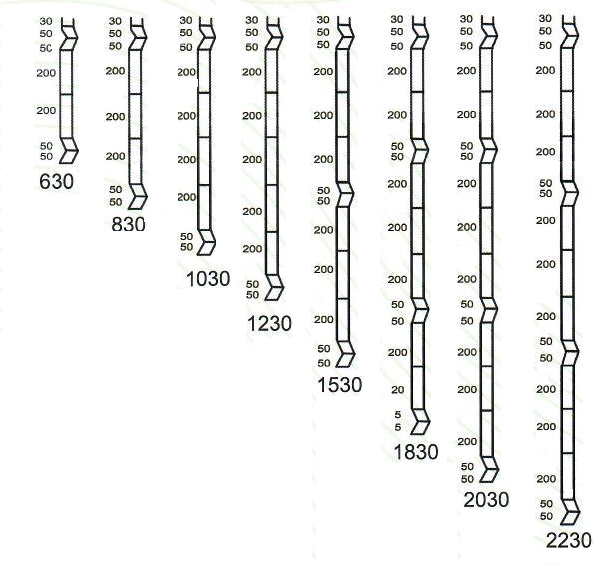

3D Panel Fence ( Galvanized + Powder Coated ) |
||||
|
Panel Height mm |
Panel Length mm |
Wire Dia. |
Mesh Size |
V Folds No. |
|
H = 630 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
2 |
|
H = 1030 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
2 |
|
H = 1230 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
2 |
|
H = 1530 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
3 |
|
H = 1730 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
3 |
|
H = 1930 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
3 |
|
H = 2030 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
4 |
|
H = 2230 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
4 |
|
H = 2430 |
L = 2000 / 2500 |
4.0mm / 5.0mm |
55 x 200 |
4 |
According to safety requirements, barbed wire and razor concertina can be added on the top of fence.
Mainly usage:

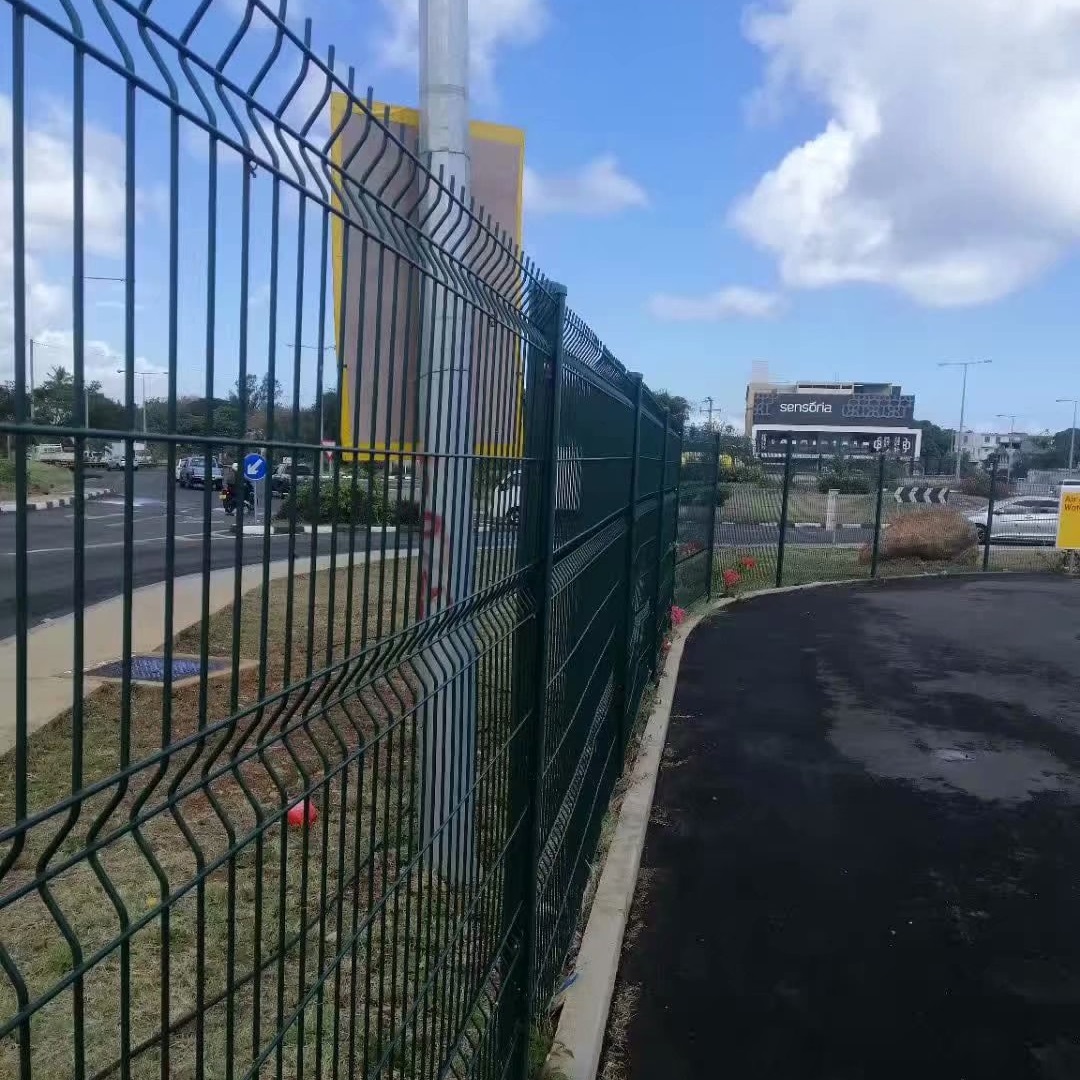

garden fence, residential fence, factory fence, construction site guardrail fence, road insulation fence.

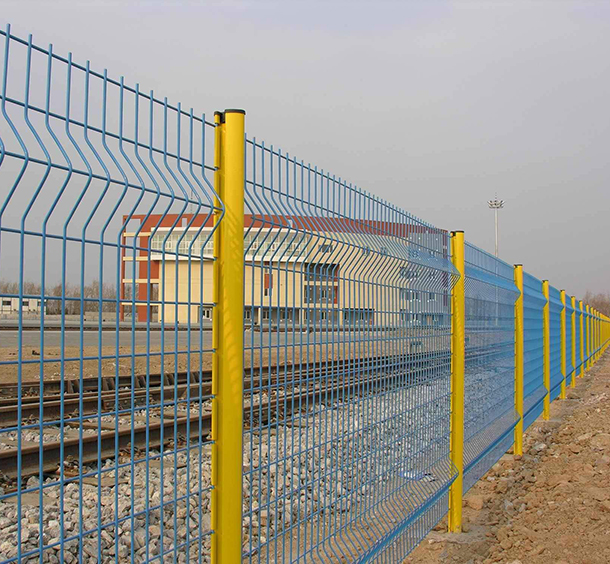

Proper bending creates the unique effect of this product, and the surface is treated with a variety of colors, such as yellow, green, and red. The combination of different colors of the column and the mesh is even more pleasing. Most of these products use a column, and the installation only needs to be installed with e x pansion bolts, which is very fast.
