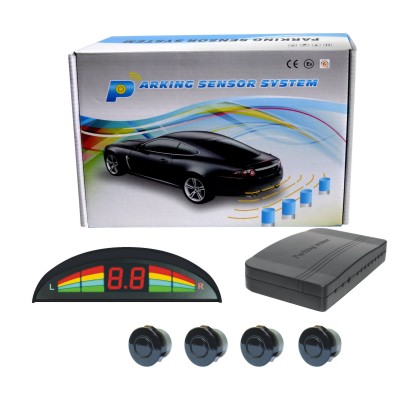

4 Sensors Car Reverse Backup Parking Radar System Buzzer Alarm Sound Warning 12V Universal

Short Description:

4 Sensors Car Reverse Backup Parking Radar System Buzzer Alarm Sound Warning 12V Universal


Product Detail

Product Tags

Model No: MP-216LED-F4

Technical Parameter:

Working Voltage: 10.5-15.5V

Buzzer Volume: ≥70dB

Sensor Mounting Height: 0.5-0.7M

Detection Range: 0.3-2M

Working Temperature: -40℃~+85℃

2/4/6/8 sensors are optional.

Product derails:

SPECIFICATIONS:

1. Innovative design, artistic shape.

2. Super bright digital LED display.

3. Built in buzzer, four beeping sounds as a reminder.

4. Anti-jamming technology, low error report.

5. Human voice module optional

6. 2/4/6/8 sensors are optional.

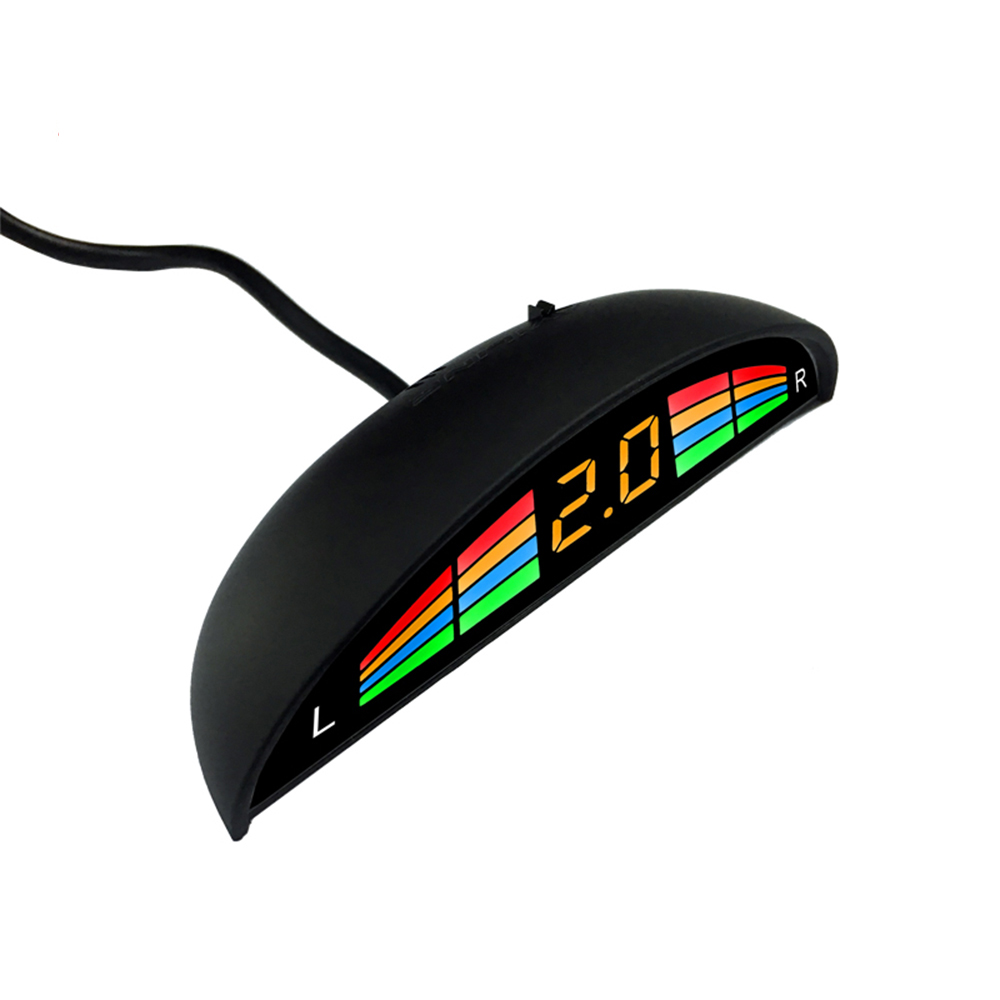

 LED Display Specification

Model Number

  MP-216LED-F/-4

Working voltage

  9-16.0 V

LED DISPLAY SIZE

   9.1 *2.7 * 2.5cm(Thickness)

ECU Size

   4Sensors:10.5*7.5*2.1 cm(Thickness) ;  8sensors:14*9*2.5cm(Thickness)

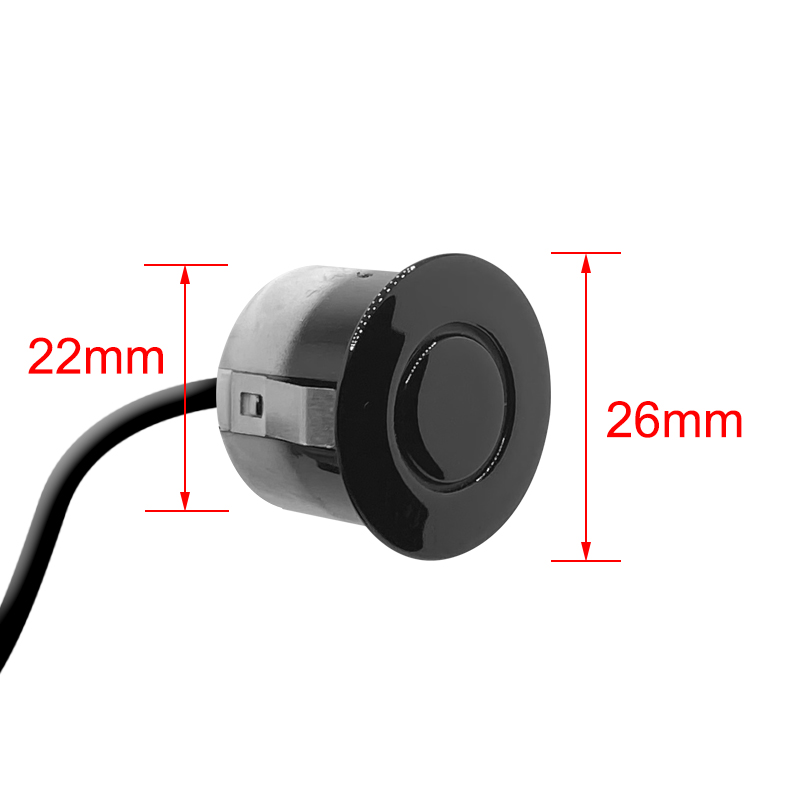

Sensor Diameter

   22mm

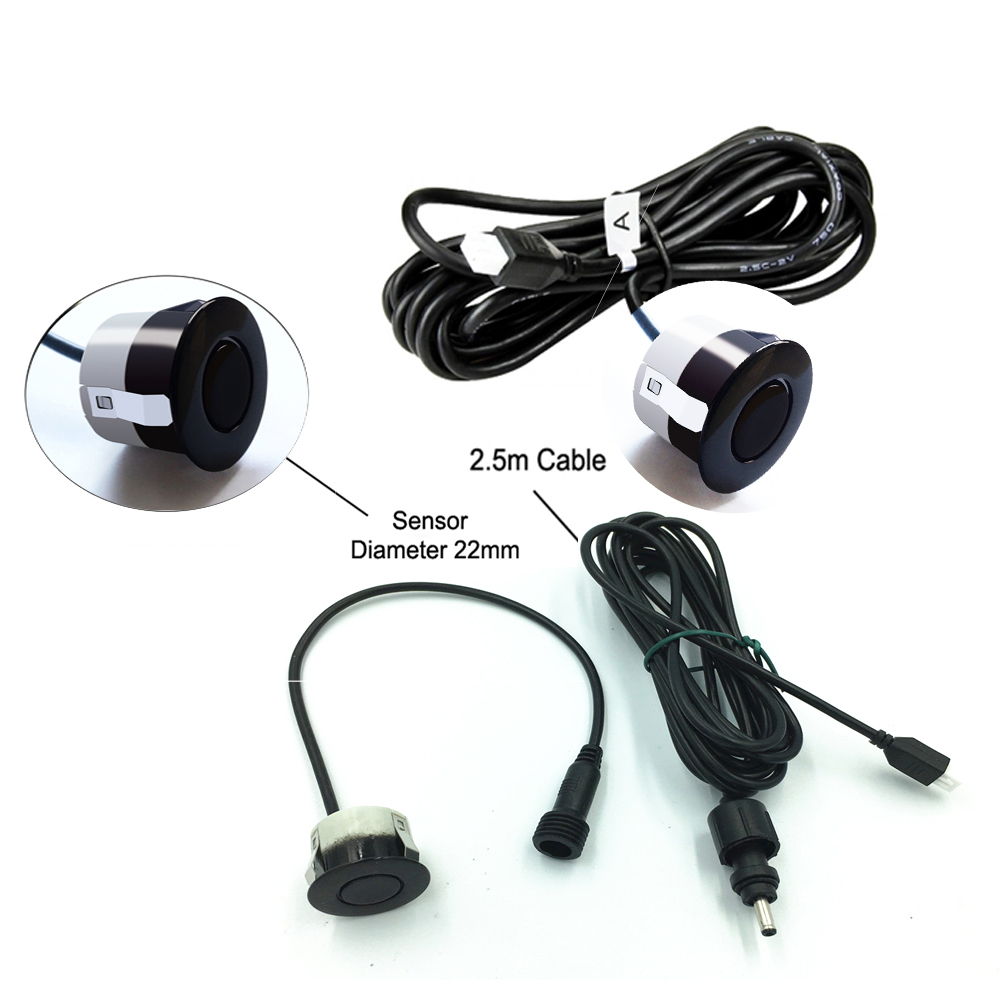

Sensor Cable Length

   2.5m for Rear Sensors (Customized 4.5m is available)

   7.6m for front Sensors (Optional, extra charge)

5ce51392074ea

What are the characteristics of the 4 reversing monitoring sensors?

Thecar reversing radar system installs 4 high-quality dual-CPU sensor systems on the rear bumper of the car. It uses an advanced chipset to enhance the coverage and detection capabilities, which can effectively monitor the distance between the vehicle and the obstacle within the range of 0.3-2.0m. The sensor is made of high-quality materials and built-in protection circuit and high-quality components can prevent the product from overheating or overloading to ensure durability and service life. It has certain resistance to wind, water and thawing. It can adapt to the environment and can always be in bad weather conditions. Monitor to ensure driving safety.
