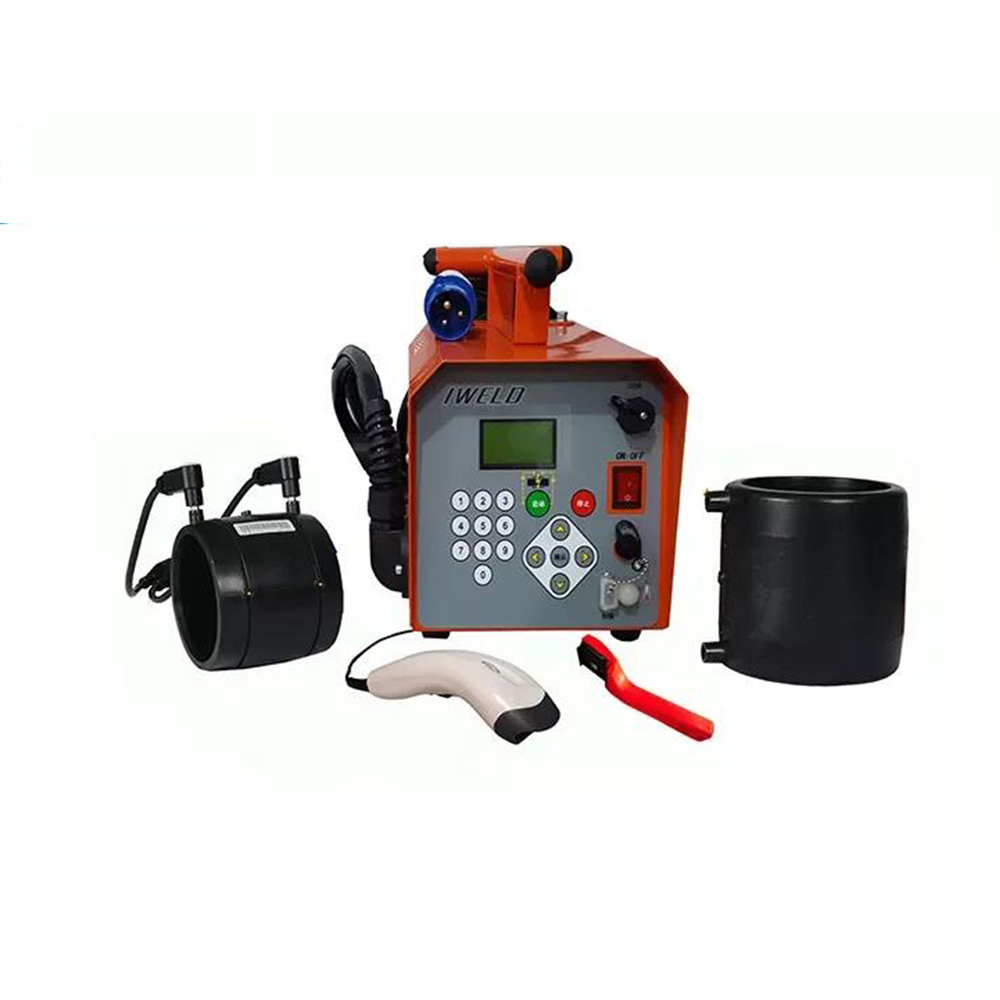

400/630 Welding Electricfusion Machine For Gas , Water Plastic Pipe Fitting
Detail Information
| Pipe Fitting Electric Fusion Machine | Submerged Arc Welding Equipment |
| 20/400 | 1 Year |
| 110-230V Single Phase, 50/60Hz | 23kg |
Product Description
ZDRJ is an electrofusion machine operating with different brands of electrofusion fittings, manually. WelderZDRJ controls , with a microprocessor, output of energy according to operators parameters. Welder ZDRJ can weld all kinds of fittings in PE and PP-R that can be used with welding voltages between 8 / 44 V with an input of 75 A (peak 100 A ).
Welding program
NOTE
This short description, represents a typical sequence of a welding process. In case of problems, refer to use and maintenance manual.
WE RECOMMEND THE READING OF ENTIRE MANUAL IN ORDER TO BECOME FAMILIAR AND GET TO KNOW PROPERLY MACHINE’S FEATURES.
Technical Features
| Working Range | 20-400mm |
| Welding output voltage | 8-44V |
| Single phase | 220v |
| Power supply | 50-60Hz |
| Max.absorbed power | 3500W |
| Max.output current | 80A |
| 60%Duty cycle output | 48A |
| Memory Capacity | 4000 |
| Protection degree | IP 54 |
| Dimensions machine (WxDxH) | 358*285*302mm |
| Weight | 23Kg |
Safety Regulations
- Before using the welder carefully read instructions for use and relative prescriptions.
- WARNING! When using electric devices, follow safety regulations against fire and shocking hazard.
- KEEP WORKPLACE CLEAN. Untidy workplaces are cause of accidents.
- PAY ATTENTION TO ENVIRONMENTAL CONDITIONS. Do not expose tools or welders to the rain. Do not use tools or welders in humid environment. Use a good lighting. Do not use tools or electric welders near liquids or flammable gases.
- PROTECT YOURSELF FROM SHOCK HAZARD. Avoid any contact with objects connected to the earth. Be careful to electrical wires.
- KEEP AWAY FROM WORKPLACE UNAUTHORIZED PEOPLE. Only authorized people are allowed to use tools and welders. Keep strangers out of workplaces.
- KEEP TOOLS AND WELDERS IN SAFE PLACES. Welders and tools in general must be kept in dry places and not accessible to unauthorized people.
- DO NOT STREES TOOLS TOO MUCH. Keep within limits given by manufacturer to get best performances, longer and safer.
- ALWAYS USE THE PROPER TOOLS. Always use accessories compatible with the welder (careful with generators, electrical and welding extensions, adapters). Let electrical tools to cool down especially after long use. Use of different accessories and tools from those indicated by manufacturer can cause injuries to operator, damage welder and other tools and cancel the warranty.
- DO NOT USE WELDER CABLES OR OTHER TOOLS’ CABLES FOR IMPROPER USES. Do not use cables to carry the machine or to extract plug from outlet. Protect welder and cables from contact with sharp objects.
- ALWAYS USE SPECIAL ALIGNERS. Always lock pipe and fittings in the special aligner. This method guarantee a good weld and safety of the operator .
- WARNING! TRY TO AVOID ACCIDENTAL STARTING OF WELDER AND TOOLS. When turning on generator, welder must always be disconnected from it and connected only after a few minutes, since generator during starting phase and until it has reached a steady condition, can generate peaks that may permanently damage board and electronic components of welder. Keep welder disconnected during positioning of adapters pins. When starting electrical tools, make sure switch is not in position 1 (ON) when connecting plug to electrical line or to generator (especially if the tool is not equipped with a safety switch ). Never carry tools connected to electrical line, they could accidentally start.
- BEFORE STARTING WELDING PROCEDURES MAKE SURE THE WELDER IS NOT DAMAGED. Before using the welder make sure safety devices work perfectly (circuit breaker cannot be turned off). Also check, there aren’t any; check that adapter pins and terminals perfectly fit one another and that surfaces in contact are clean. Check that the welder’s frame has not been permanently damaged (water infiltration may occur).
- REPAIRS AND PERIODICAL REVISIONS ARE OF EXCLUSIVE COMPETENCE OF SERVICE CENTERS AUTHORIZED BY MANUFACTURER. This equipment follows safety laws in force for this reason service and repairs can only be done by authorized service centers; on the contrary the manufacturers refuses any responsibility.
- DO NOT MAKE ANY MODIFICATION ON THE MACHINE.
- OPERATORS MUST BE PROPERLY PREPARED ON THE USE OF THE EQUIPMENT.
- ONLY USE NEW EQUIPMENT, REVISED OR CHECKED BY CERVICE CENTER.
- FOLLOW LAW D.L. 12.11.94 n° 626 REGARDING SAFETY IN WORK PLACE.
- DO NOT USE THE MACHINE IF THE AREA IS AT RISK OF EXPLOSION DUE TO THE PRESENCE OF FLAMMABLE GASES ETC..
Advantages
1. Fully automatic electric melting machine
2.Multifunctional body
3. The scanner automatically reads and scans the QR code
4.Built-in memory, can perform 4000 welding
5. Data transfer software to USB device, laptop or printer
