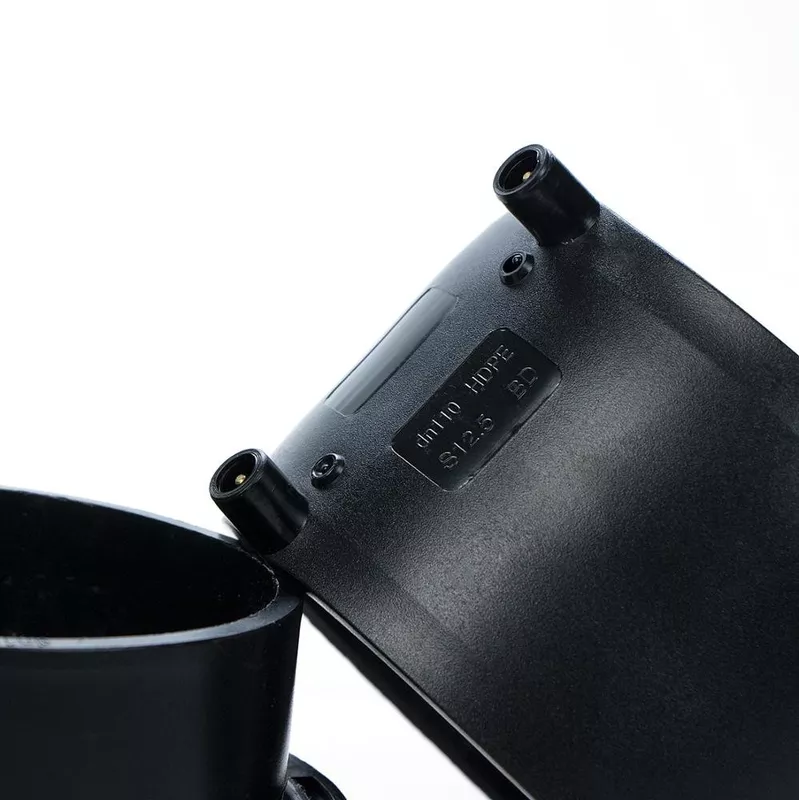

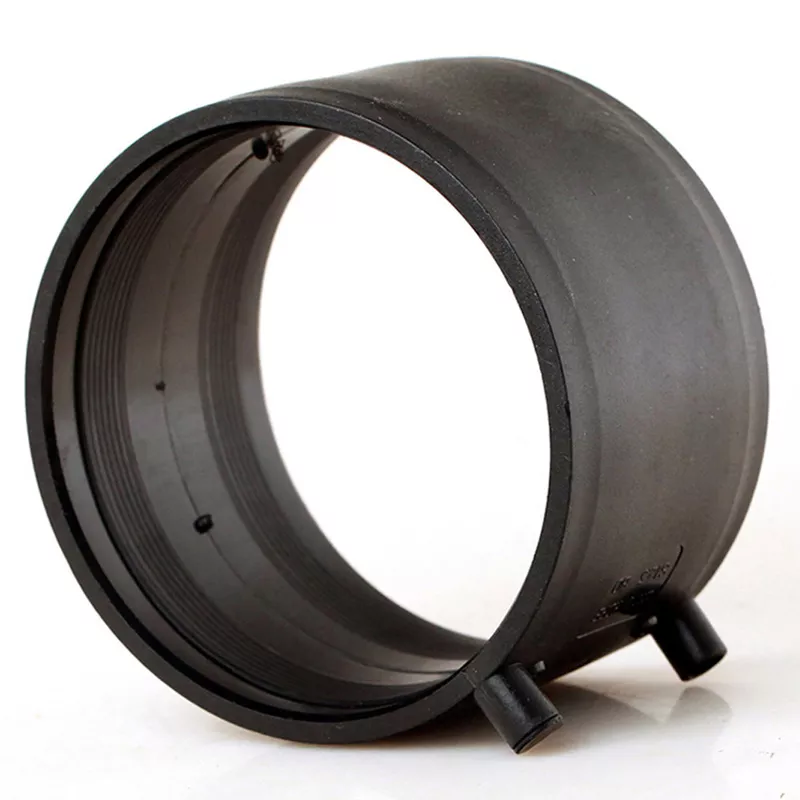

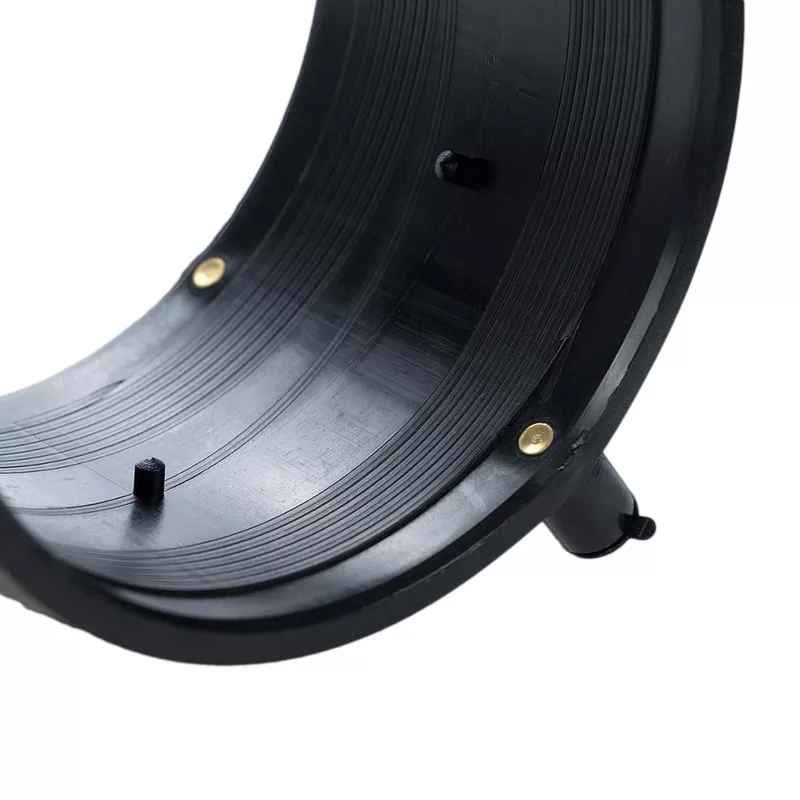

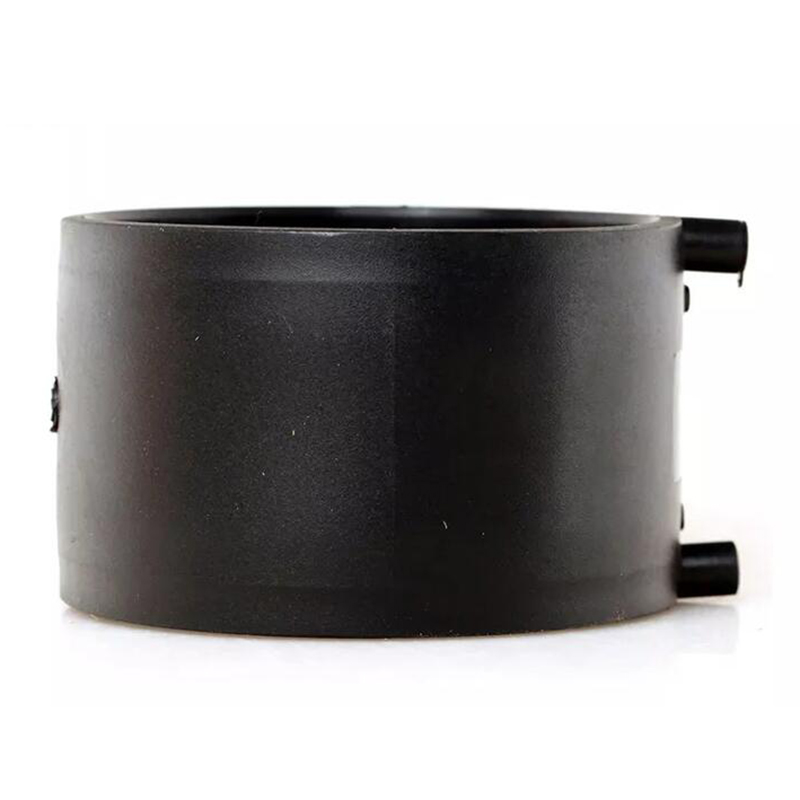

50mm-315mm HDPE Draining Fittings Siphonic Electrofusion Coupler PN6 PE100

Short Description:

1. Name: EF Sleeve( Coupler)

2. Size:50-315mm

3. PE100 SDR26/ PN6

4. HDPE siphonic fittings

Send email to us

Product Detail

Product Tags

Basic Information

Product Name:

Application:

Technics:

Connection:

Certificate:

Port:

HDPE Draining Fittings Syphon Electrofusion Coupler	Drainage,Sewage
Injection	Electrofusion
ISO9001-2008, BV ,SGS, CE Etc Certification.	China Main Port(Ningbo,Shanghai Or As Required)

Product Description

CHUANGRONG HDPE siphon pipes provide a one-stop solution for drainage. Contains HDPE siphon pipes, fittings, and metal fittings for fixing HDPE piping systems

One of the most effcient and cost-effective solutions available, siphonic system is based on the ingenious gravity-induced vacuced principle, ideal for building with low profiles and large footprints, such as aimport,sport stadiums,entertainment venues, convention centers, retail outlets, warehouses and factories. CHUANGRONG siphonic drainage system consists of anti-vortex roof outlets, HDPE and fittings ,an enegineered fastening system and a professional support package.

With the CHUANGRONG drainage system, at design flow values, the roof outlets prevent air from entering and forming a vortex thus ensuring the system works at full capacity. The rainwater are conveyed the water straight into a collection tank or municipal storm water mains.

Siphonic Pipewore

1. Siphonic roof outlet

2. Over flow system

3. Tail pipe

4. Fastening system

5. Hanged pipe

6. Transition section

7. Over flow

Specification

SpecificationOD(mm)

110

125

160

200

250

315

Advantages

1.CHUANGRONG High Density Polyethylene HDPE: Density 951 – 955 kg/m³The density of polyethylene can be 910 – 960 kg / m3. The fittings and pipes weighing 955.29 kg / m3, its characteristics not only have durability. And light weight, very convenient for transportation and installation.

2.Reduced reversionReduce shrinkage and improve installation strength. The HDPE replica produced by CHUANGRONG manufacturing process is less than 15mm.

3.Resistance to cold CHUANGRON siphon pipeline has anti-freezing performance. When the water in the pipeline is frozen, Ordinary pipeline will freeze and crack, but CHUANGRONG HDPE will not.

4.Elasticity In some applications, especially when the pipeline is exposed to vibration, earthquake or ground movement subsidence, the flexibility of the pipe material prevents the pipe from breaking.

5.Resistance to radioactive effluents There is no risk of damage caused by medical waste. However, for more information on specific applications, ask the manufacturer.

6.Resistance to abrasion HDPE is highly abrasion resistant; its extra thick wall provides additional protection. Pipe abrasion resistance is a particularly important factor in branch pipes and sewers Chimney and ground pipes. HDPE is highly abrasion resistant; its extra thick wall provides additional protection.

7.Heat expansion The thermal expansion of HDPE also needs to be considered in the design and installation. As a rule Thumb, for every 50 ° C increase in temperature, 15 mm expansion per meter of pipe can be expected.

8.Resistance to hot water Geberit HDPE allows temperatures up to 100 ° C for short periods of time (such as steam surges), and can be safely used as wastewater pipes without mechanical load up to 80 ° C.

9.Resistance to impact CHUANGRONG HDPE is also very suitable for installation in

The parking lot and pedestrian zone are indestructible at room temperature. Its impact resistance is very high. Even at extremely low temperatures (down to about -40 ° C).

10.Non-conductive Plastic has good electrical insulator properties.

ELECTRO FUSION

Pre parations:

Check if the resistance wies are covered by the inserted pipe or fiting to guarantee a proper working. Check if the wedling machine functions properly.

Welding process

Cut pipe square

Scrape pipe and mark insertion depth(mark insertion depth +10mm removing the oxidized layer)

Mark the depth of the insertion ( Scrape the outer surface of pipe that will be covered by the coupler appx.0.2mm)

Cleaning (Clean the coupler with cloth to ensure that all surfaces are clean and dry)

Insrtion (Push the pipe /fititng into the coupler as straight as possible and up to marked insertion depth)

Application

Application	CHUANGRONG HDPE
Siphonic and Conventional rainwater pipes	✓
Trade waste	✓
Concrete embedded pipes	✓
Industrial applications	✓
Pump pressure pipes	✓

1. Warehouse

2. Distribution Units

3. Airports Terminals

4. Aircraft Hangers

5. Office Complexes

6. Convetntion Centers

7. Train Stations

8. Sports Stadia

9. Shopping Malls

10. Factories

Certification

We can supply ISO9001-2008, BV ,SGS, CE etc certification.All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
