5m3 5000 Liters 1.6Mpa Vertical Cryogenic Storage Tank

Short Description:

  • Capacity: 3000Liters
  • Inner Material: SUS304
  • Outer Material: Q245, Q245-R
  • Working Temperature: -196 – 60 ℃
  • Design Pressure(MPa): 0.8/1.6MPa
  • Send email to us Product Detail Product Tags

    Cryogenic storage tank is a vertical or horizontal double-layer vacuum adiabatic storage tank for storage of liquid oxygen, nitrogen, argon, carbon dioxide and other media, the main function is to fill and store cryogenic liquid. The storage tank is composed of a carbon steel or stainless steel shell and a pressure vessel placed in it. The interlayer is multi-layer winding insulation and maintains a high vacuum state. The site is operated under design pressure according to the actual situation.

    Parameter

    Type

    Volume

    Effective volume(m³)

    Effective volume(m³)

    Working Pressure

    Weight

    Maximum Filling Volume(Kg)

    Size(mm)

    O2,N2,Ar

    LNG

    (MPa)

    (kg)

    LNG

    LO2

    LN2

    LAR

    L*W*H

    Vertical

    3m³

    2.72

    2.58

    0.8

    1740

    1099

    3101

    2203

    3835

    φ1816*3000

    1.6

    2000

    2.16

    2165

    5m³

    4.47

    4.49

    0.8

    2290

    1913

    5404

    3839

    6683

    φ1916*3842

    1.6

    2875

    2.16

    3205

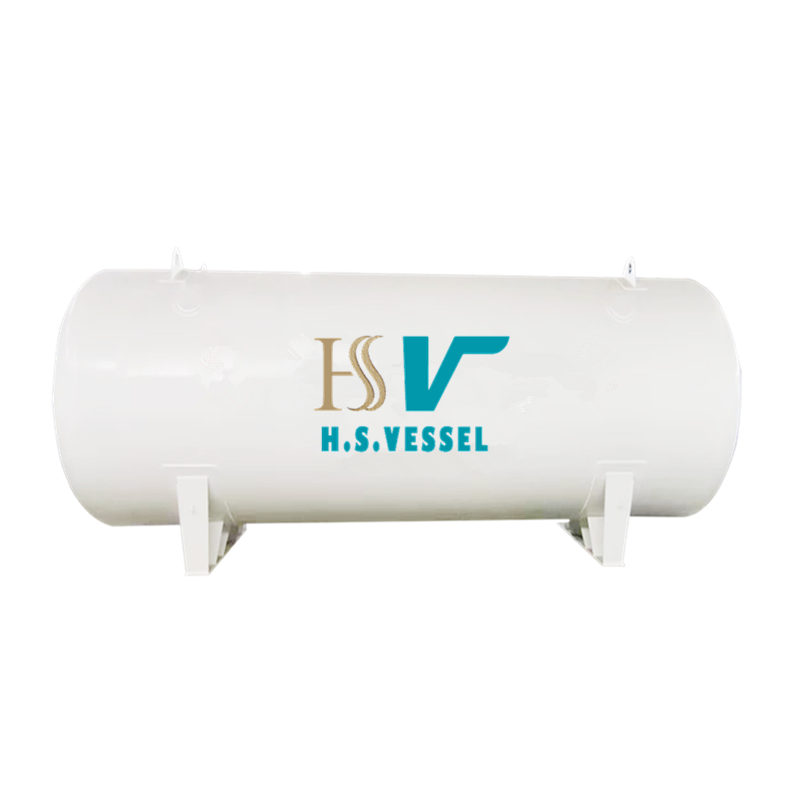

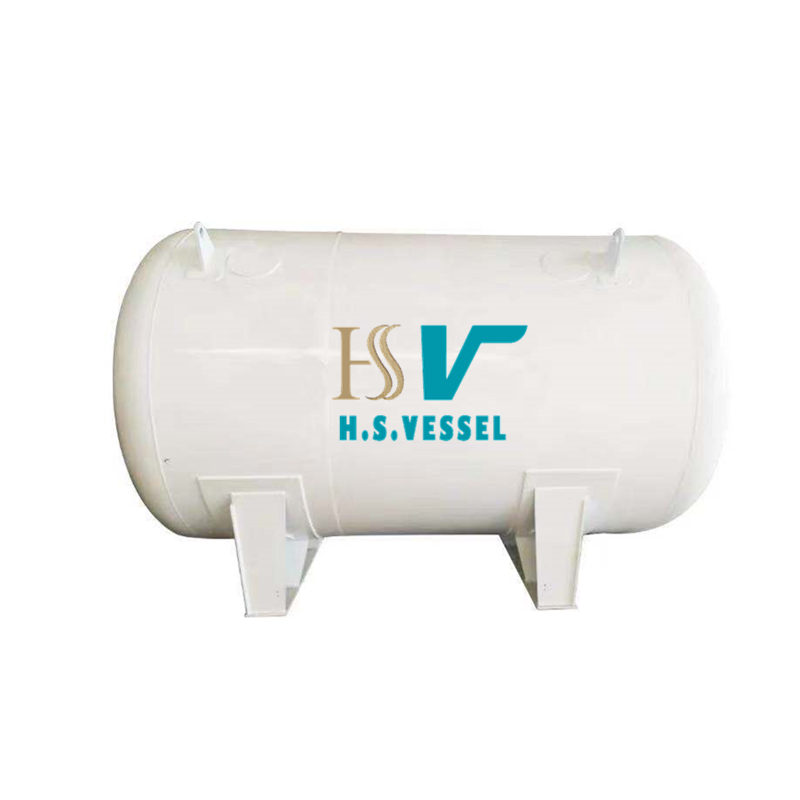

    Horizontal

    3m³

    2.72

    2.58

    0.8

    1650

    1099

    3101

    2203

    3835

    3305*1512*1754

    1.6

    1910

    2.16

    2085

    5m³

    4.47

    4.49

    0.8

    2180

    1913

    5404

    3839

    6683

    3900*1916*2162

    1.6

    2765

    2.16

    3095

    Advantages

    1. The main performance indicators of MicroBulk Tank (small cryogenic storage tanks) are not lower than the technical level of conventional fixed-mode liquid storage tanks.

    2. The process uses a monolithic pipe and container structure, which is most suitable for use in a limited space.

    3. Gas purity can be reliably guaranteed.

    4. The cryogenic liquid filling can be completed on site, which better solves the shutdown caused by the gas supply.

    Production Site Package&Delivery FAQCan I have custom made structure and size of machine to adopt to my workplace?

    Yes, sure.

    What about the warranty?

    Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 14 months from the date on which the equipment has been delivered, whichever comes first. Generally speaking, our cryogenic storage tanks can work normally for 15-20 years if it is maintained properly.

    Do you provide after-sale service?

    Yes, we do. This product is guaranteed up to one year from purchase unless manmade damage. If there is anything wrong with the product itself quality problem, we will change or repair it at our charge. If not, we will provide an after-sale service at your charge.
