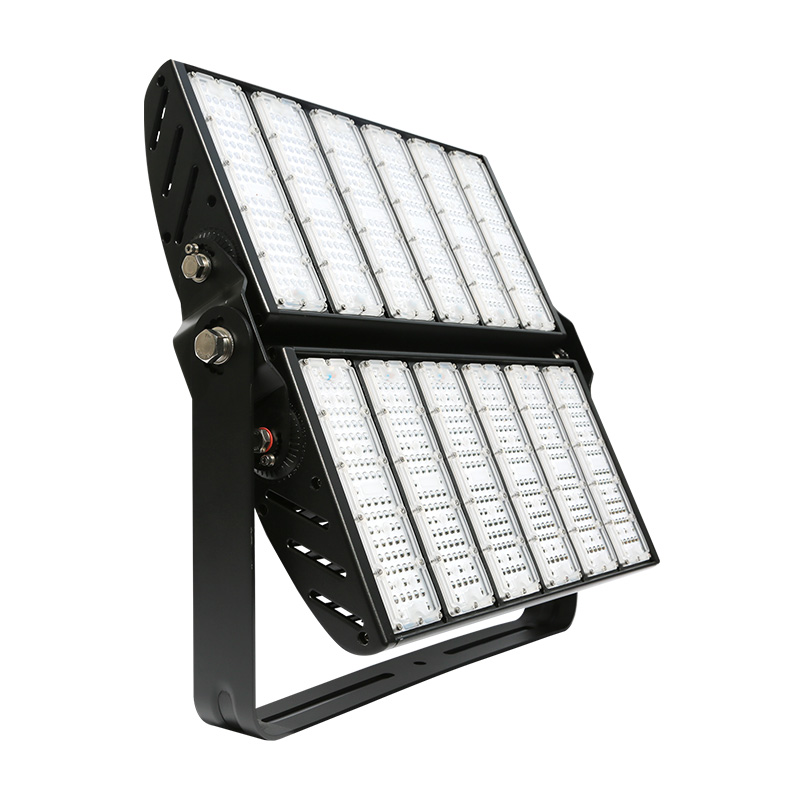

600W Outdoor LED High Mast Lighting

Short Description:

600W Outdoor LED High Mast Lighting This 600W outdoor high mast flood lighting is a super luminaire to illuminate a large area from a high installation height, for port, airport, storage, transportation, pedestrian use and safety. High mast fixtures are usually installed on poles that are 40 feet to 150 feet tall, with 4 to 16 fixtures on each pole. This type of outdoor lighting is usually used in municipalities, ports, municipalities, and parking lots of large stadiums, such as stadiums and sports facilities.Features√ Lumileds LUXEON 3030 2D LEDs and 5050 LEDs optional√ Colour Temperature 2200-6500k, CRI >74,80,92√ Modular design, Easy assembly and maintenance√ >75,000 life time to 70% lumen maintenance√  Excellent thermal management√ Ultra-low glare and flicker free√ Zigbee wireless, 0-10V, DALI and DMX dimming models optional√ Daylight&Microwave sensor, glare shield and slip fitter are available√ Marine grade coating plus 316 stainless steel components available for corrosive environments such as swimming pools and coastal regions.√ Housing color: Black, Grey, White, Silver


Product Detail

Product Tags

Overview

High-mast lighting is a tall pole with lighting attached to the top pointing towards the ground, usually but not always used to light a highway or recreational field. It is used at sites that require lighting over a large area. The pole that the lighting is mounted on is generally at least 30 m (98 ft) tall (under this height it is referred to as conventional lighting system), while the lighting consists of a luminaire ring surrounding the pole with one or several independent lighting fixtures mounted around it. Most units have four, six or eight lights in the ring, with three, five, ten, twelve and sixteen lights used in rarer instances. While most high-mast lights are high-pressure sodium, other types such as mercury vapor, metal halide and LED, have also been used. Some units have the lighting surrounded by a circular shield to prevent or reduce light pollution or light trespass from affecting neighbourhoods adjacent to the highway. Maintenance of these systems are done by lowering the luminaire ring from the mast head to the base using a winch and motor to the ground or at a height accessible by a cherry picker and located in areas to allow for easier access without disrupting traffic.

-Input Power: 600W

-Light efficacy: 130lm/W, 150lm/W

-10KV 20KV surge protection

-Beam angle: Symmetric & Asymmetric available

-LM80, ISTMT, and TM21 tested

-5/7 years warranty optional for luminaire body, LED modules and driver

-Certificates: CE, RoHS, SAA, IP67, IK10

Optical Beam Angles

Various Installation Conditions

Excellent Cooling System

The proprietary patented thermal management design and fully intergrated heatsink ensures low junction temperature and maximise heat dissipation performance.

Free DIALux Lighting Design

Our 8 years experienced lighting designers can provide you professional DIAlux simulations and constructive LED lighting solutions. We know lighting standards of all applications well and we care about all of your projects. Not matter your case is big or small, we will always provide you solutions.

Applications
