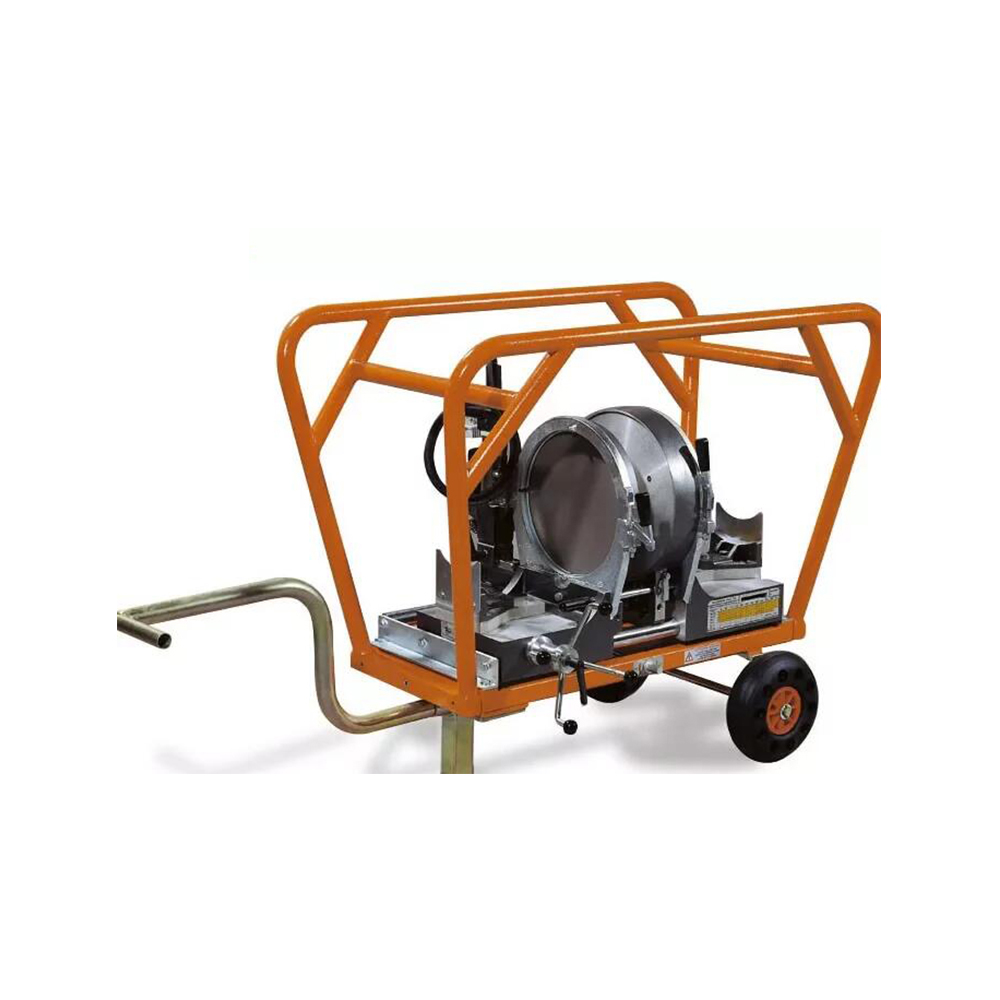

90 – 315 Mm Wheels Butt Fusion Welding Machine With Wyes Clamps Steel Frame
Basic Information
| Model | MAXI 315 AC |
| Working Range(mm) | 90-315mm |
| Material | HDPE/PP/PB/PVDF |
| Dimensions | 1200*680*1045mm |
| Rated voltage | 220VAC- 50/60HZ |
| Weight control unit | 183kg |
| Rated power | 4200W |
| Rated power heating plate | 3000W |
| Rated power milling cuter | 1200W |
| Weight | 183kg |
| Welding Temperature | 180-280℃ |
| Time to reach welding temperature | ＜20 min |

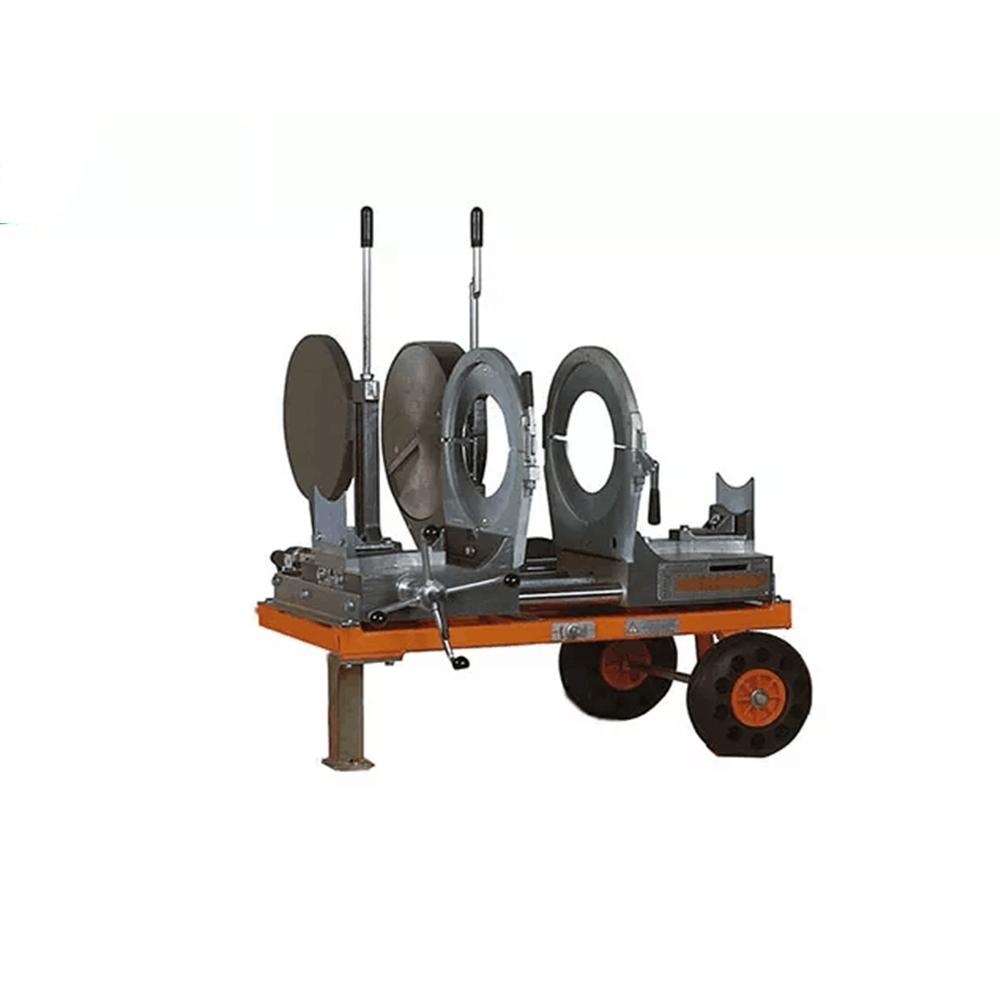

Butt Fusion Welder Machine Standars composition

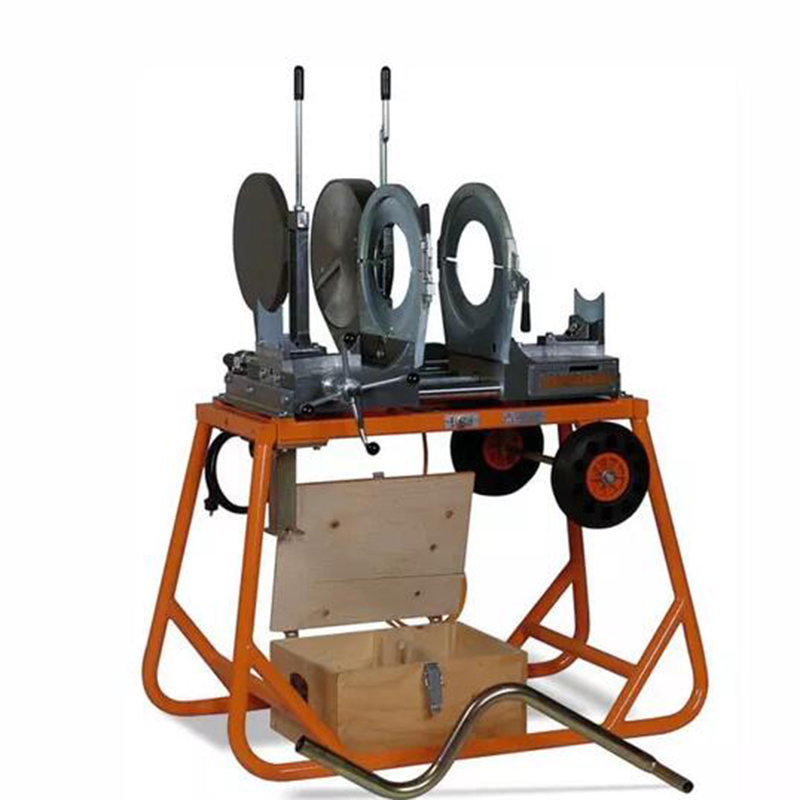

1. Steel frame on wheels(for transporting and for use as a work)
2. Heating plate
3. Milling cutter
4. AC clamps
5. Wooden case
On request:
1. Wyes clamps
2. High workbench suppot
Product Description
The MINI, and MAXI are portable welding machines for PE drainage conduits. They welds also other thermoplastic pipes (PP, PB, PVDF and PVC).
In function of the clamps supplied, the machine is signed “P” or “Y” (valid only for MINI models).
Example of feasible welding with MINI-MAXI
|
Pipe – Pipe |
Pipe – Bend |
Pipe-Tee |
Pipe – Branches |
Thanks to the special clamps form, the MINI Y is able to block also the branches fitting on all its derivations.
In the MAXI315 machines is necessary to mount special devices on request to weld all the derivations.
in the MAXI315 there are special extractable single clamps
FEATURES
|
MINI 160 |
MAXI 315 |
|
| Working range |
Ø 40 ÷ Ø 160 |
Ø 90 ÷ Ø 315 |
| Weldable materials |
HD-PE |
HD-PE, PP, PB, PVDF |
| Ambient temperature |
-5 ÷ +40 °C |
-5 ÷ +40 °C |
| Power supply |
230VAC 50/60Hz |
230VAC 50/60Hz |
| Working temperature |
180¸280 °C |
180¸280 °C |
| Power absorbed by the Heating element |
1200 W |
3000W |
| Power absorbed by the Milling cutter |
760W |
760W |
| Total absorbed power |
1960W |
3760W |
| Machine being used [ W × D × H ] |
800×930×1140 mm |
1420×1300×1570 mm |
| Machine being used [W × D × H] |
525×480×710 mm |
1200×680×1045 mm |
| Weight of Heating element |
3,21 kg |
10,56 kg |
| Total weight (standard composition) |
50,6 kg (P) 54 kg (Y) |
183 kg |
* On request is available a Heating element with an adjustable electronic thermoregulator (TE) (180÷280°C ) to weld other thermoplastic materials (HD-PE PP, PB, PVDF and PVC).
|
MINI 160 |
MAXI 315 |
|
| Working range |
Ø 40 ÷ Ø 160 |
Ø 90 ÷ Ø 315 |
| Weldable materials |
HD-PE |
HD-PE, PP, PB, PVDF |
| Ambient temperature |
-5 ÷ +40 °C |
-5 ÷ +40 °C |
| Power supply |
230VAC 50/60Hz |
230VAC 50/60Hz |
| Working temperature |
180¸280 °C |
180¸280 °C |
| Power absorbed by the Heating element |
1200 W |
3000W |
| Power absorbed by the Milling cutter |
760W |
760W |
| Total absorbed power |
1960W |
3760W |
| Machine being used [ W × D × H ] |
800×930×1140 mm |
1420×1300×1570 mm |
| Machine being used [W × D × H] |
525×480×710 mm |
1200×680×1045 mm |
| Weight of Heating element |
3,21 kg |
10,56 kg |
| Total weight (standard composition) |
50,6 kg (P) 54 kg (Y) |
183 kg |
* On request is available a Heating element with an adjustable electronic thermoregulator (TE) (180÷280°C ) to weld other thermoplastic materials (HD-PE PP, PB, PVDF and PVC).
Specification
MINI 160 P
Weight P clamp adapters (4 pieces/Æ)
|
Ø 40 |
Ø 50 |
Ø 56* |
Ø 63 |
Ø 75 |
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140* |
|
1,43 kg |
1,41 kg |
1,34 kg |
1,33 kg |
1,28 kg |
1,16 kg |
0,91 kg |
0,78 kg |
0,60 kg |
| Total weight = 10,24 kg | ||||||||
Weight lateral support adapters (2 pieces/Æ)
|
Ø 40 |
Ø 50 |
Ø 56* |
Ø 63 |
Ø 75 |
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140* |
|
0,35 kg |
0,34 kg |
0,33 kg |
0,32 kg |
0,30 kg |
0,28 kg |
0,24 kg |
0,21 kg |
0,16 kg |
| Total weight = 2,53 kg | ||||||||
* on request
MINI 160 Y
Weight extractable upper jaws (2 pieces/Æ)
|
Ø 40 |
Ø 50 |
Ø 56* |
Ø 63 |
Ø 75 |
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140* |
Ø 160 |
|
0,90 kg |
0,90 kg |
0,90 kg |
1,14 kg |
1,12 kg |
1,14 kg |
1,10 kg |
1,22 kg |
1,12 kg |
1,10 kg |
| Total weight = 10,64 kg | |||||||||
Weight clamp adapters (2 pieces/Æ)
|
Ø 40 |
Ø 50 |
Ø 56* |
Ø 63 |
Ø 75 |
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140* |
|
0,72 kg |
0,71 kg |
0,67 kg |
0,66 kg |
0,64 kg |
0,58 kg |
0,46 kg |
0,39 kg |
0,30 kg |
| Total weight = 5,13 kg | ||||||||
Weight lateral support adapters (2 pieces/Æ)
|
Ø 40 |
Ø 50 |
Ø 56* |
Ø 63 |
Ø 75 |
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140* |
|
0,35 kg |
0,34 kg |
0,33 kg |
0,32 kg |
0,30 kg |
0,28 kg |
0,24 kg |
0,21 kg |
0,16 kg |
| Total weight = 2,53 kg | ||||||||
* on request
MAXI 315
Weight clamp adapters (4 pieces/Æ)
|
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140 |
Ø 160 |
Ø 180 |
Ø 200 |
Ø 225 |
Ø 250 |
Ø 280 |
|
6,30 kg |
6,10 kg |
5,90 kg |
5,50 kg |
5,20 kg |
4,80 kg |
4,70 kg |
3,70 kg |
3,00 kg |
2,00 kg |
| Total weight = 47,20 kg | |||||||||
Weight lateral support adapters (2 pieces/Æ)
|
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140 |
Ø 160 |
Ø 180 |
Ø 200 |
Ø 225 |
Ø 250 |
Ø 280 |
|
1,10 kg |
1,00 kg |
1,00 kg |
0,90 kg |
0,80 kg |
0,70 kg |
0,60 kg |
0,50 kg |
0,40 kg |
0,30 kg |
| Total weight = 7,30 kg | |||||||||
Weight wyes (Y) clamps (single clamps) (2 pieces/Æ)
|
Ø 90 |
Ø 110 |
Ø 125 |
Ø 140 |
Ø 160 |
Ø 180 |
Ø 200 |
Ø 225 |
Ø 250 |
Ø 280 |
Ø 315 |
|
5,56 kg |
6,28 kg |
6,74 kg |
7,20 kg |
7,62 kg |
9,06 kg |
9,70 kg |
9,50 kg |
9,54 kg |
13,42 kg |
14,14 kg |
| Total weight = 98,76 kg | ||||||||||
