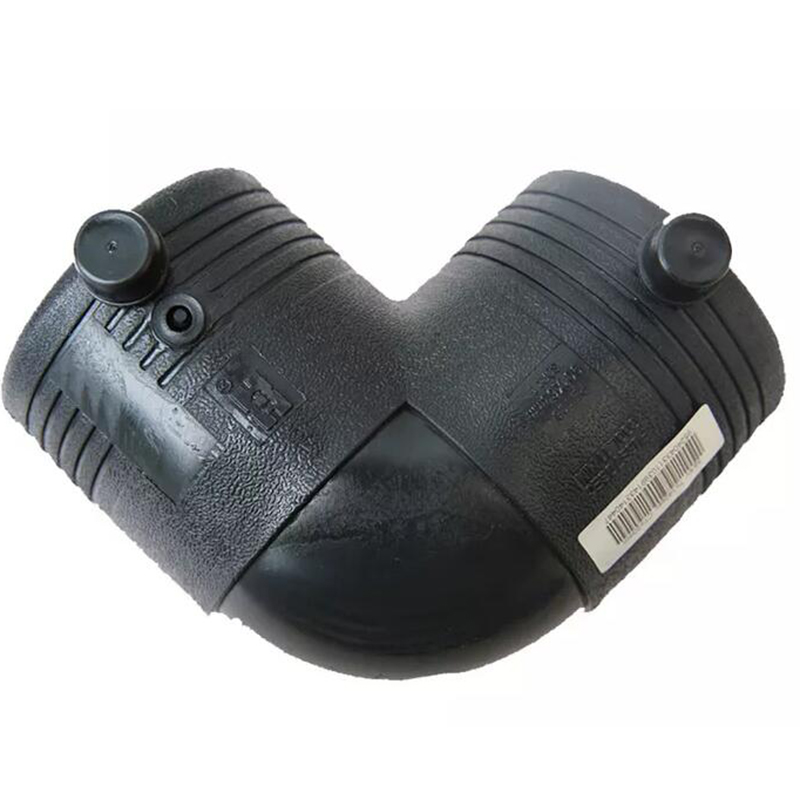

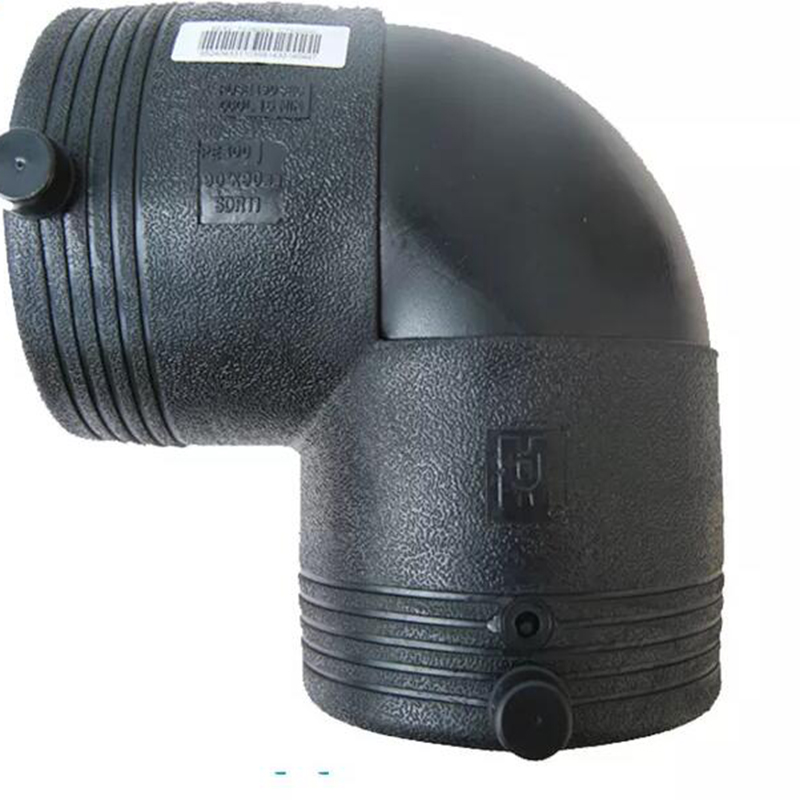

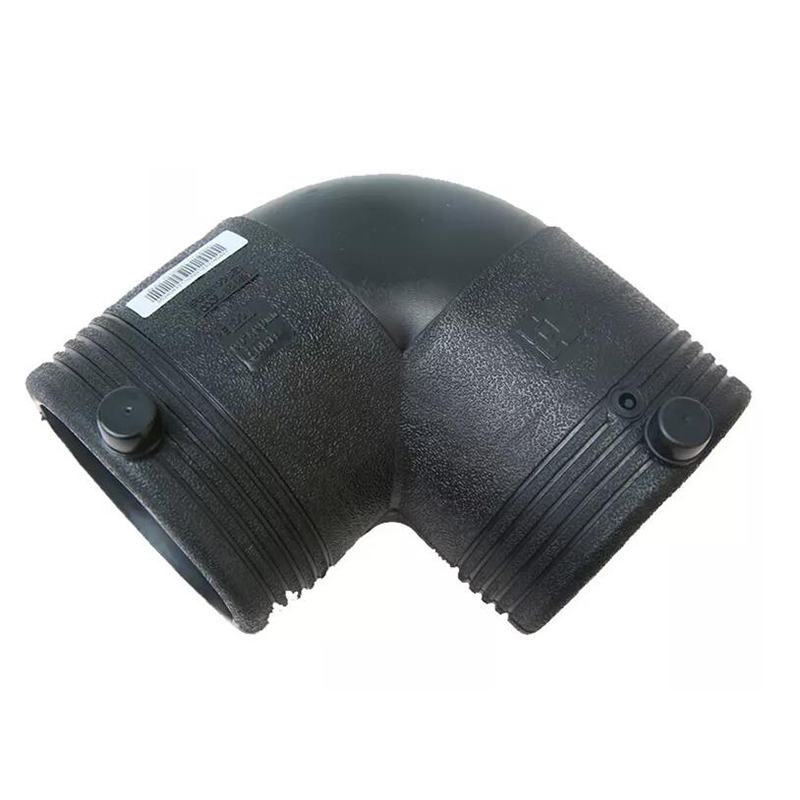

90 Degree Elbow Electrofusion HDPE Fittings For Water Supply PN16 SDR11 PE100

Short Description:

1. Name: EF 90 Degree Elbow

2. Size: 50-630mm

3. PE100 SDR11/ Water PN16 /Gas 10 Bar

4. ISO4427 EN12201/ ISO4437, EN1555

Send email to us

Product Detail

Product Tags

Detail Information

Product Name:

Application:

Material:

Standard:

Specification:

Port:

OD63 90 Degree Elbow Electrofusion HDPE Fittings For Water Supply PN16 SDR11 PE100	Gas,Water,Oil Etc
PE100 Virgin Raw Material	EN 12201-3:2011,EN 1555-3:2010
OD63 90 110 160 200 250 400	China Main Port

Product Description

Electrofusion HDPE fittings arewelded by electrofusion machine to connect HDPE pipes together: Afterelectrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Specification

specifications φD×90°	L mm	A mm	Φd mm
25×90°	85	45	4.7
32×90°	95	45	4.7
40×90°	95	50	4.7
50×90°	110	50	4.7
63×90°	130	55	4.7
75×90°	155	60	4.7
90×90°	170	64	4.7
110×90°	195	70	4.7
125×90°	225	80	4.7
160×90°	265	80	4.7
180×90°	295	85	4.7
200×90°	330	102	4.7
250×90°	395	113	4.7
315×90°	485	129	4.7
400×90°	590	140	4.7
