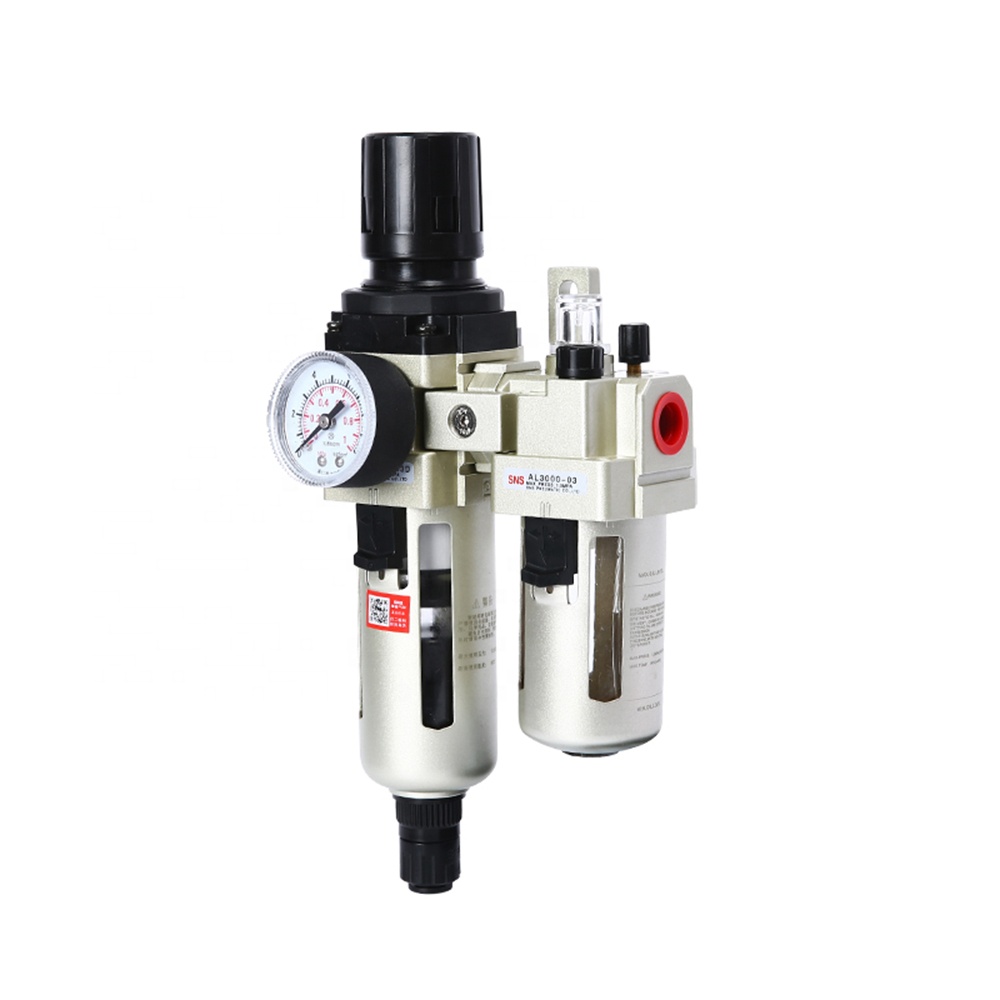

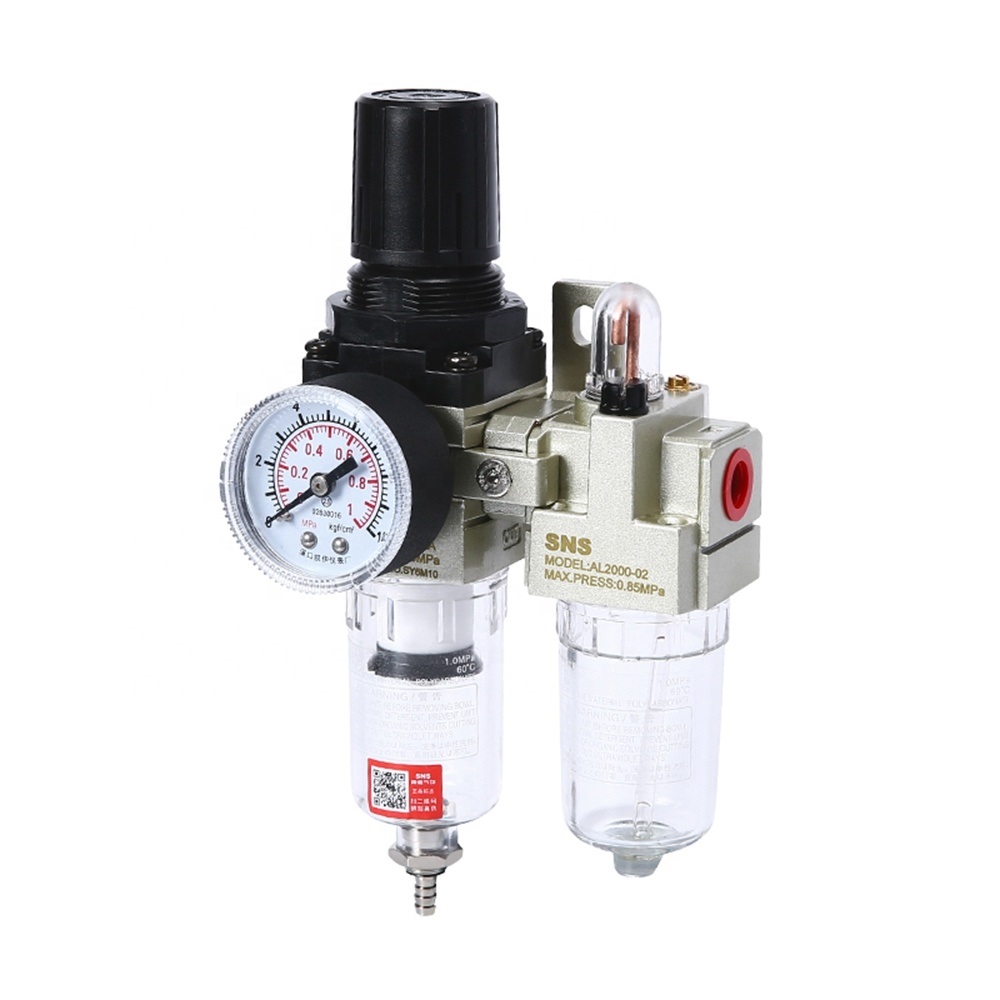

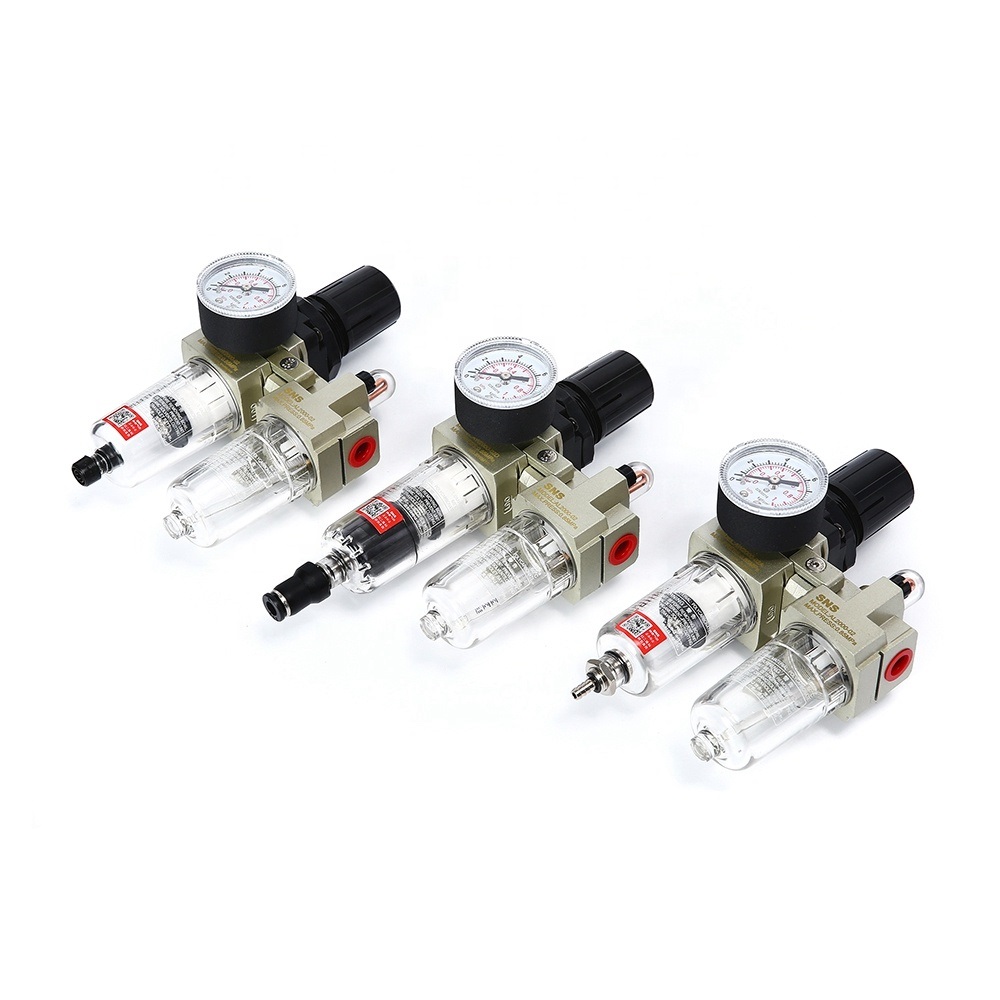

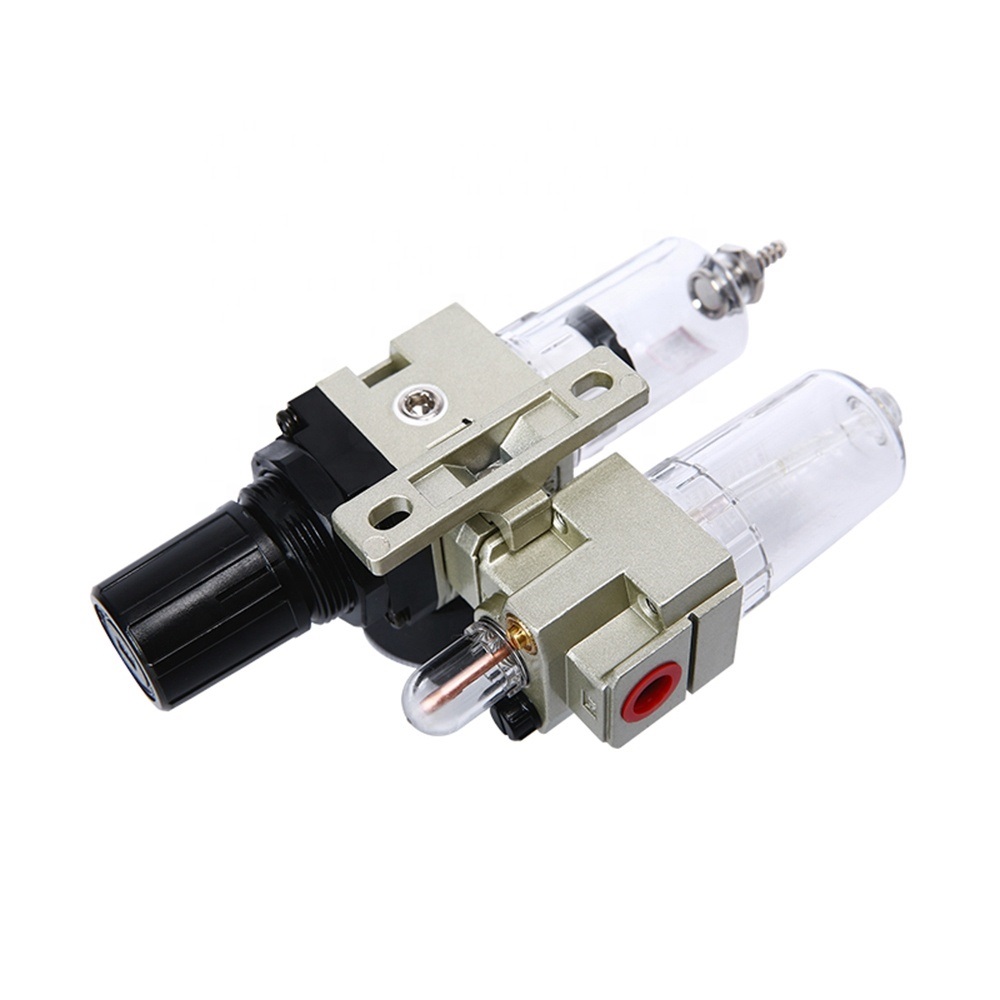

AC Series pneumatic air source treatment unit FRL combination air filter regulator lubricator

Short Description:

1,The working medium of gas source processor should use clean and dry compressed air, and the air in the piping should be fully blown to prevent impurities from bringing into the system and causing bad action of cylinders and valves. The fuel mist in the piping system should be lubricated. 2,After the air source processor maintains the normal operation of the system, it is necessary to check the working conditions of air filters and oil mists regularly, and to discharge and refuel water in time. 3,Often check the operation of various pneumatic components, check whether the fastening bolts are loose? Is there any damage or leakage in the seal of the element? 4,When maintaining, it is necessary to shut down the gas source beforehand and empty the compressed air in the pipeline system before carrying out maintenance work. 5,Components must be cleaned when repairing and reassembling, and impurities must not be brought into the system.


Product Detail

Product Tags

 src=
Model AC1010-M5 AC2010-01 AC2010-02 AC3010-02 AC3010-03
Module Filter Regulator AW1000 AW2000 AW2000 AW3000 AW3000
Lubricator AL2000 AL2000 AL2000 AL3000 AL3000
Port Size M5×0.8 PT1/8 PT1/4 PT1/4 PT3/8
Pressure Gauge Port Size M5×0.8 PT1/8 PT1/8 PT1/8 PT1/8
Rated Flow(L/Min) 90 500 500 1700 1700
Working Media Compressed Air
Proof Pressure 1.5Mpa
Range of Regulation 0.05~0.7Mpa 0.05~0.85Mpa
Ambient Temperature 5~60℃
Filter Precision 40 μ m(Normal)or 5 μ m(Customized)
Suggested Lubricating Oil Turbine NO.1 Oil(ISO VG32)
Bracket(one) Y10T Y20T Y30T
Pressure Gauge Y25-M5 Y40-01
Material Body Material Aluminum Alloy
Cup Material PC
Cup Cover AC1010~AC2010:without     AC3010~AC5010:with(Steel)



Model AC4010-03 AC4010-04 AC4010-06 AC5010-06 AC5010-10
Module Filter Regulator AW4000 AW4000 AW4000 AW5000 AW5000
Lubricator AL4000 AL4000 AL4000 AL5000 AL5000
Port Size PT3/8 PT1/2 G3/4 G3/4 G1
Pressure Gauge Port Size PT1/4 PT1/4 PT1/4 PT1/4 PT1/4
Rated Flow(L/Min) 3000 3000 3000 5000 5000
Working Media Compressed Air
Proof Pressure 1.5Mpa
Range of Regulation 0.05~0.85Mpa
Ambient Temperature 5~60℃
Filter Precision 40 μ m(Normal)or 5 μ m(Customized)
Suggested Lubricating Oil Turbine NO.1 Oil(ISO VG32)
Bracket(one) Y40T Y50T Y60T
Pressure Gauge Y50-02
Material Body Material Aluminum Alloy
Cup Material PC
Cup Cover AC1010~AC2010:without     AC3010~AC5010:with(Steel)

Note:Rated flow should be under the pressure of 0.7Mpa.

 src=

Model Port Size A B C D E F G H J K L M N P
AC1010 M5×0.8 58 109.5 50.5 25 26 25 29 20 4.5 7.5 5 17.5 16 38.5
AC2010 PT1/8,PT1/4 90 164.5 78 40 56.8 30 45 24 5.5 8.5 5 22 23 50
AC3010 PT1/4,PT3/8 117 211 92.5 53 60.8 41 58.5 35 7 11 7 34.5 26 70.5
AC4010 PT3/8,PT1/2 154 262.5 112 70 70.5 50 77 40 9 13 7 42.2 26 88
AC4010-06 G3/4 164 267 114 70 70.5 50 82 40 9 13 7 46.2 36 88
AC5010 G3/4,G1 195 345 115 70 70.5 50 95 45 12 16 10 51 46 98

Note: B value will be different with different draining module, more details please contact sales.
