Adjustable Steel Prop for Shoring & Reshoring Applications

Short Description:

Steel Prop is a vertical support system that can be applied to any jobsite.Surface treatment: electrical-galvanized, pre-galvanized, hot-dip galvanized, painting.1. Light load and high carrying capacity2. On-site installation is simple, fast and safe3. Quick and accurate height adjustment4. Widely used in support systems


Product Detail

Product Tags

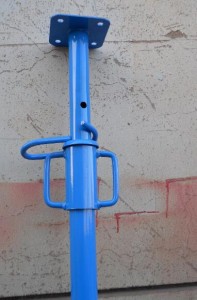

Sampmax-construction-post-shore-manufacturing_cup-types-picture

Spanish Prop

Adjustable Length Outer Tube Inner Tube Wall Thickness
0.8-1.4m
1.6-3.0m
1.8-3.2m
2.0-3.Sm
2.2-4.0m
48mm 40mm 1.5-2.5mm
Surface Treatment: Painting, Powder Coated, Electro galvanized Pre-galvanized, or Hot Dipped Galvanized

Italian Prop

Adjustable Length Outer Tube Inner Tube Wall Thickness
1.6-2.9m
1.8-3.1m
2.0-3.6m
2.0-4.0m
56mm 48mm 1.5-2.75mm
Surface Treatment: Painting, Powder Coated, Electro galvanized, Pre-Galvanized, or Hot Dipped Galvanized
Sampmax-Construction-Steel-Props

Steel prop is an adjustable vertical pipe support system for concrete formwork support systems. The rough height adjustment is performed by a high-strength steel pin passing through a groove in the outer tube and a hole in the interior. Use the nut under the pin to fine-tune the leveling or height.

Surface treatment of steel support: electro-galvanized, pre-galvanized, hot-dip galvanized, painting.
According to the strength of the support, the types of steel prop: light steel prop, heavy-duty steel prop.
According to the region, the types of steel prop: Italian steel prop, Spanish steel prop, Middle East or German steel prop, and push-pull steel prop.

Sampmax-Construction-Steel-Props-Middle-East

Middle East & German (Heavy Duty Prop)

Adjustable Length Outer Tube Inner Tube Wall Thickness
1.4-2.7m
1.6-2.7m
1.62-2.64m
2.0-3.9m
2.2-4.1m
2.5-4.Sm
3.0-5.0m
60.3mm 48.3mm 1.6-4.0mm
Surface Treatment: Painting, Powder Coated, Electro galvanized, Pre-Galvanized, or Hot Dipped Galvanized

Push-Pull Prop

Adjustable Length Outer Tube Inner Tube Wall Thickness
1.4-2.7m
1.6-2.7m
1.62-2.64m
2.0-3.9m
2.2-4.1m
2.5-4.5m
3.0-5.0m
60.3mm 48.3mm 1.6-4.0mm
Surface Treatment: Painting, Powder Coated, Electro galvanized, Pre-Galvanized, or Hot Dipped Galvanized
Sampmax-Construction-Steel-Props-push-pull-prop

Sampmax-construction-post-shore-manufacturing_cup-types-picture (2)

Sampmax-construction-post-shore-manufacturing_cup-types-picture-warehouse

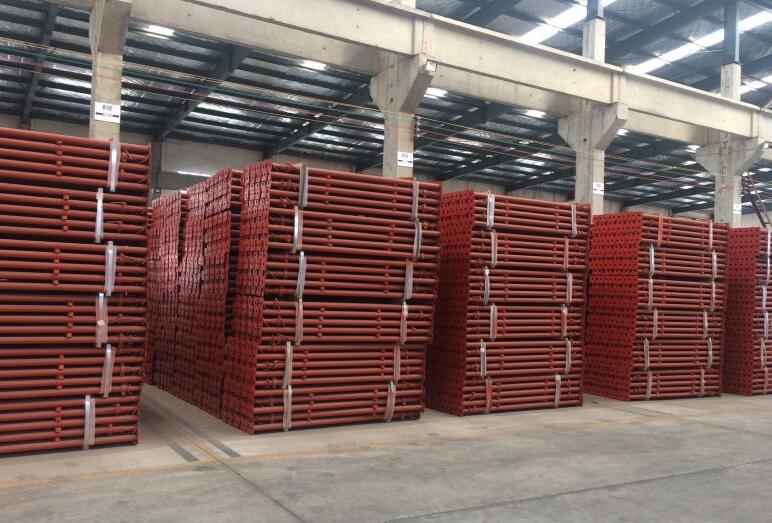

Sampmax-construction-post-shore-manufacturing_cup-types-picture-warehouse (2)

Sampmax-Construction-Steel-Props-push-pull

Sampmax-Construction-Steel-Props-Spanish

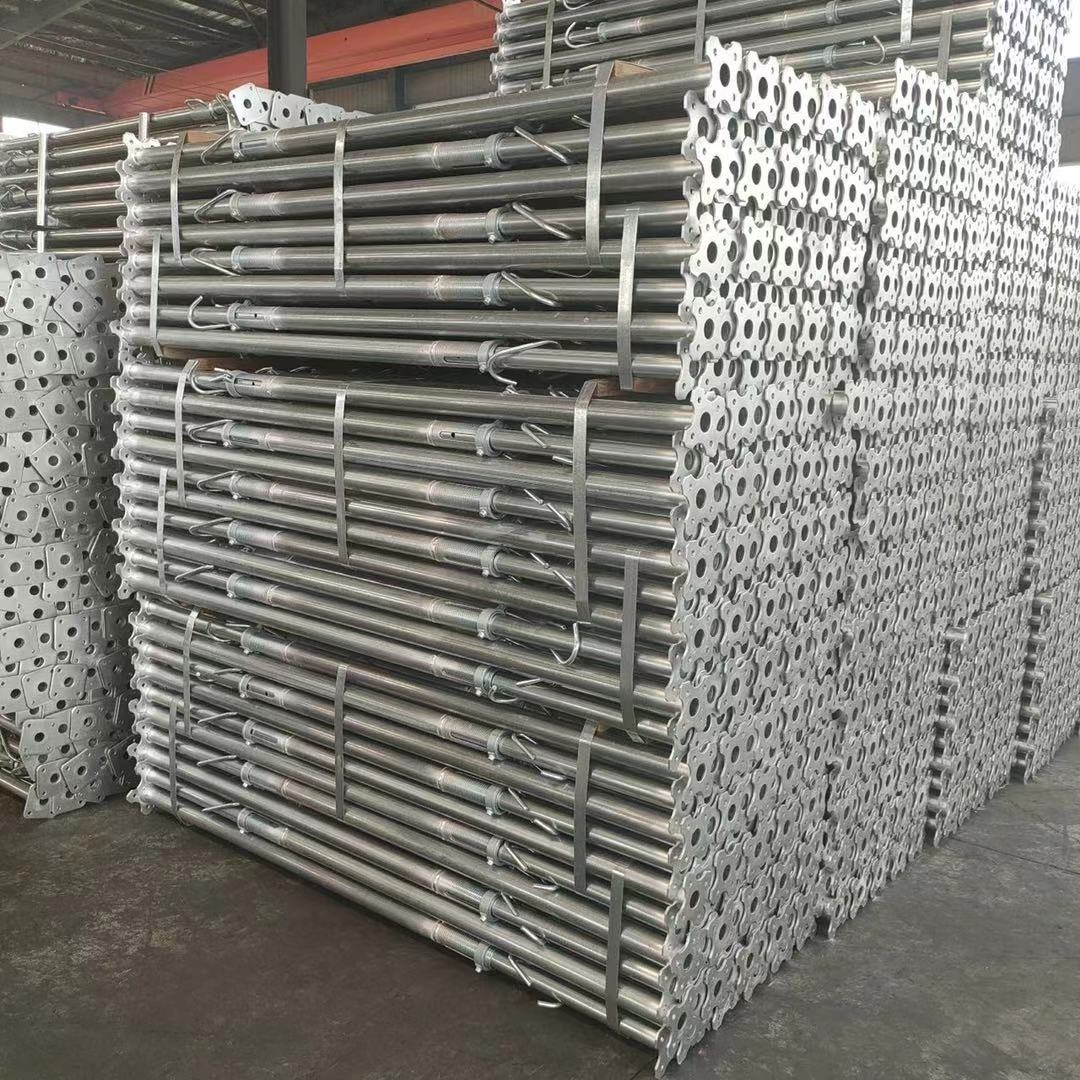

Sampmax-Construction-Steel-Props-ME

Sampmax-construction-post-shore-manufacturing_19

/uploads/Sampmax-construction-post-shore-manufacturing_cup-types-picture-Props-video-3.mp4
/uploads/Sampmax-construction-post-shore-manufacturing_cup-types-picture-Props-video-2.mp4
/uploads/Sampmax-construction-post-shore-manufacturing_cup-types-picture-Props-video-1.mp4
