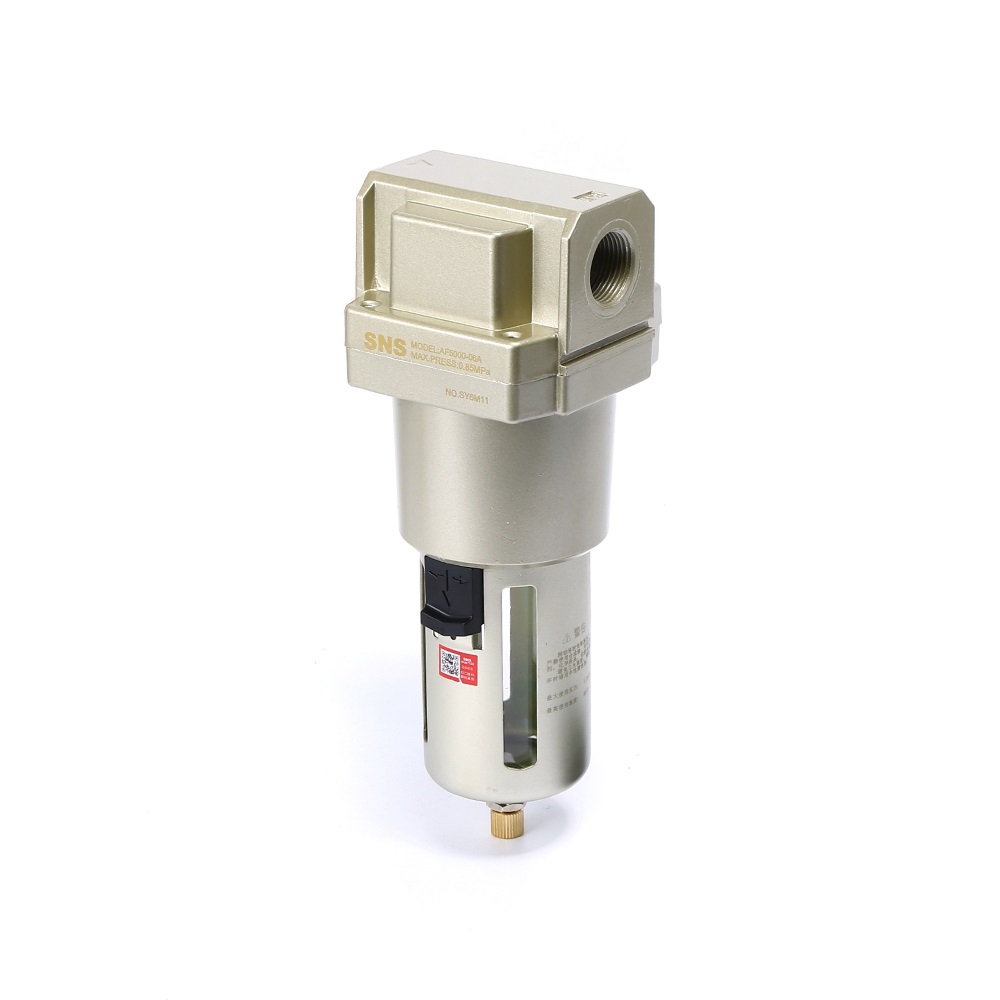

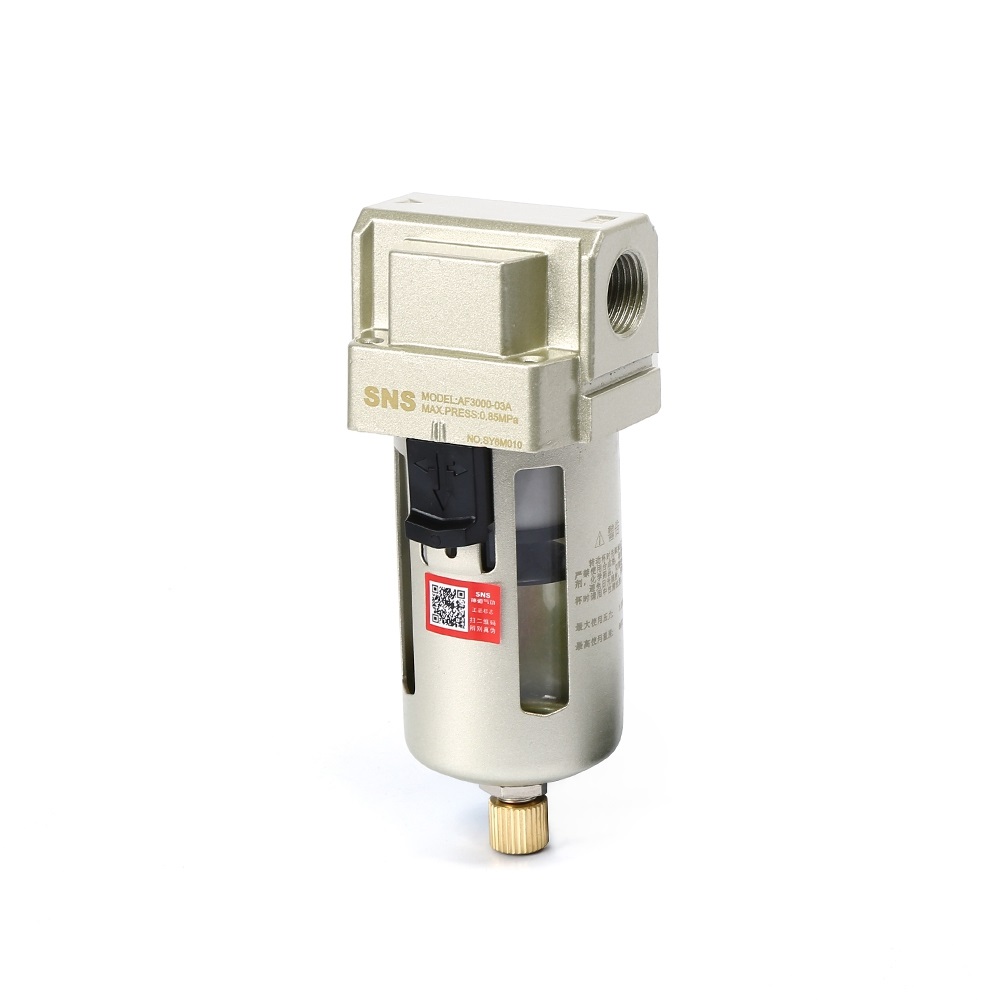

AF Series high quality air source treatment unit pneumatic air filter AF2000 for air compressor

Short Description:

Stable performance and durability.Cost effective, clean looking solution to your filtration needs.The light weight and small design, easy installation, suitable for various installation environments.This filter removes liquid and debris from your compressed air line to extend the life of your tools and compressor accessories.

Send email to us

Product Detail

Product Tags

Model		AF1000-M5	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10
Port Size		M5*0.8	PT1/8	PT1/4	PT1/4	PT3/8	PT3/8	PT1/2	G3/4	G3/4	G1
Water Cup Capacity		4	15	15	20	20	45	45	45	130	130
Rated flow(L/Min)		110	750	750	1500	1500	4000	4000	6000	7000	7000
Working Media		Compressed Air
Proof Pressure		1.5Mpa
Max. Working Pressure		0.85Mpa
Ambient Temperature		5-60℃
Filter Precision		40μm(Normal)or 5μm(customized)

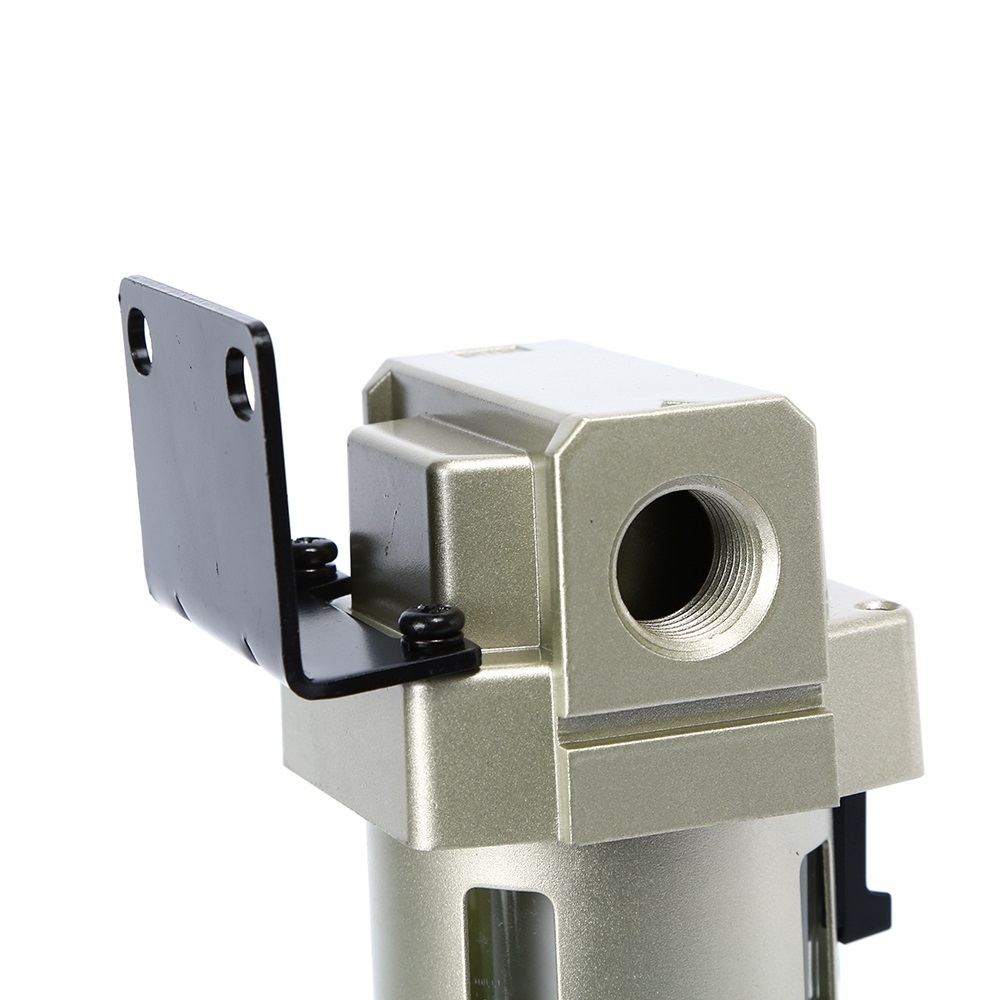

Bracket(one)		-	B240A		B320	B340A	B440A		B540A	B640A
Material	Body materiral	Aluminum Alloy
	Cup materiral	PC
	Cup Cover	AF1000-AF2000: without AW3000-AW5000: with(Steel)

Model	Port Size	A	B	C	D	E	F	G	H	J	K	L	M	P
AF1000	M5×0.8	25	66	7	25	-	-	-	-	-	-	-	-	26.5
AF2000	PT1/8,PT1/4	40	97.5	11	40	17	30	27	22	5.4	8.4	40	2.3	40
AF3000	PT1/4,PT3/8	53	132.5	14	53	16	41	40	23	6.5	8	53	2.3	56
AF4000	PT3/8,PT1/2	70	168.5	18	70	17	50	54	26	8.5	10.5	70	2.3	73
AF4000-06	G3/4	85	172.5	20	70	14	50	54	25	8.5	10.5	70	2.3	73
AF5000	G3/4,G1	90	247.5	24	90	23	70	66	35	11	13	90	2.3	90
