ALC Series Automatic Capping Machine

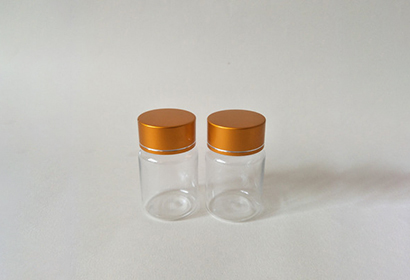

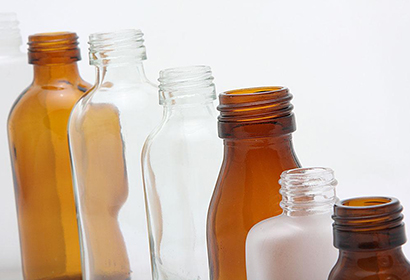

ALC Automatic chuck capping machine for the application of plastic/glass bottles capping. The machine is composed by a conveyor, bottle index wheel, cap unscrambler, cap chute &placer, screwing capper. The bottle loading/unloading through conveyor manually, or automatic directly from an production line. It is designed and made accordance to GMP regulation.
| Die Amount | ALC/4 | ALC/6 | ALC/8 | ALC/12 | ALC/18 |
| Applicable Bottle Size | Φ20-φ150mm | ||||
| Cap Size Range | Φ12-φ70mm | ||||
| Production Capacityr | 60-80Bmp | 80-100Bmp | 100-130Bmp | 130-160Bmp | 160-210Bmp |
| Yield of Capping | ≥99% | ||||
| Power Supply | 220/380V 50Hz | ||||
| Power Consumption | ≤2KW | ||||
| Air Pressure Range | 0.4-0.6Mpa | ||||
| Speed Control | Frequency Conversion Adjustable Speed | ||||
| Single Machine Noise | ≤70DB | ||||
| Net Weight | ≈2000KG | ||||
| Overall Dimensions | 2000×1100×1600 | ||||

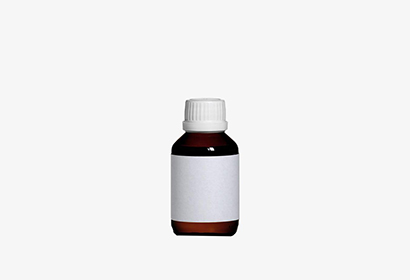

This capping machine is suitable for the capping process of syrup, oral liquid, cough suppressant, lotion, external use and other liquids in the pharmaceutical, food, health care and other industries, and it fully meets the requirements of the new version of GMP. The capping machine adopts air claw capping head to automatically grasp the cap, the torque is adjustable, and it has the characteristics of stable capping and high pass rate of capping. The capping adopts two-knife sealing and two-knife thread rolling, flexible design, convenient adjustment, high pass rate of capping, and can be designed as a roller-type rolling cap cutter head. The bottle feeding adopts the form of continuous bottle feeding by turntable. The equipment can be used as a stand-alone machine or in series. The equipment occupies a small area, has high production efficiency, stable operation, and is economical and practical.

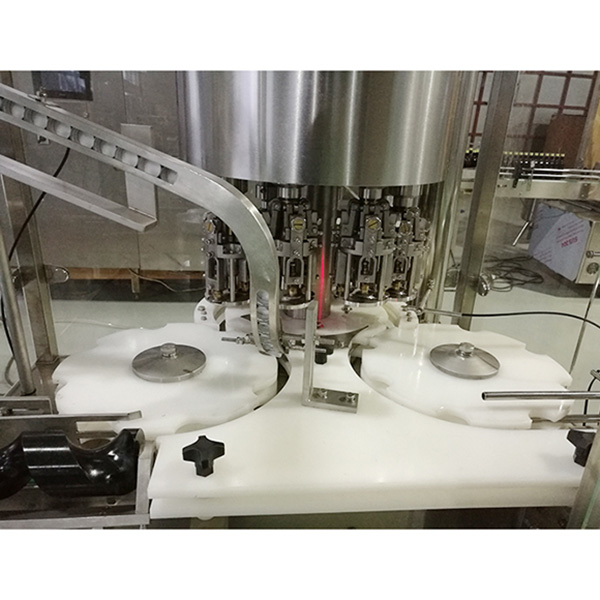

1. The capping head automatically opens and closes. The vertical capping, capping and upper caps are stable and reliable, without oblique caps, adjustable torque, and high pass rate;
2. The flexible design of the capping head is convenient to adjust and can be designed as a pull-drum cap;

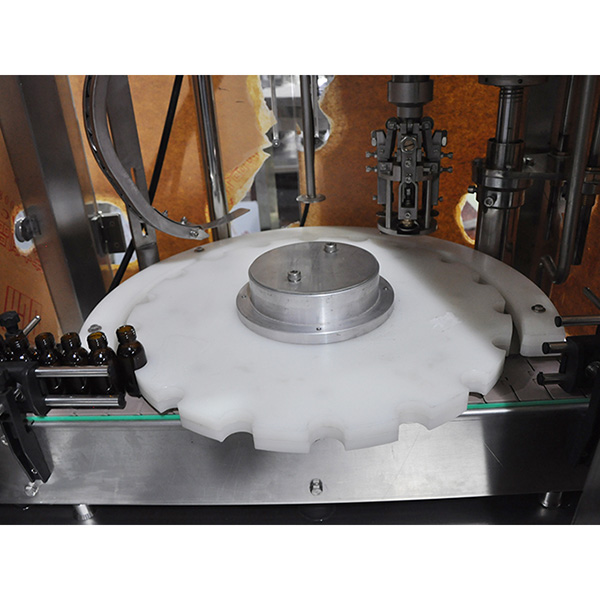

3. Continuously move the bottle, the dragon enters the bottle, there is no bottle jam or bottle inverted phenomenon;
4. Rotary operation mechanism, higher efficiency, centralized lubrication system, light operation, stable and reliable;
5. PLC control system, no bottle without cover, front and rear machine connection protection system, frequency conversion speed regulation;

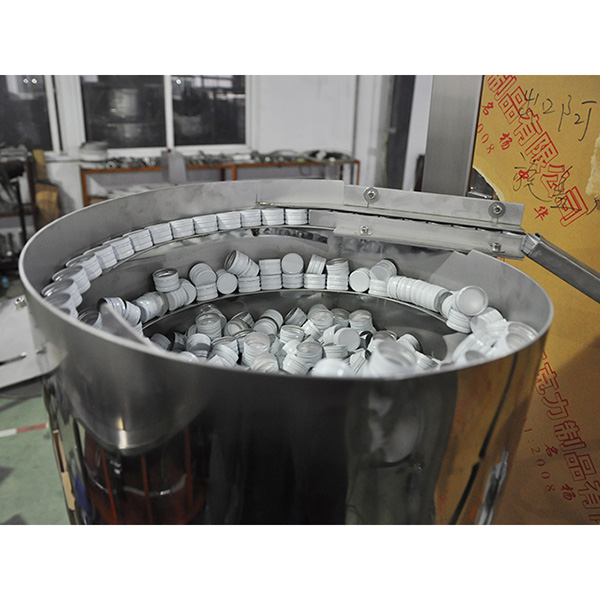

6. Equipped with lid storage and lifting mechanism, diversified forms of lid arrangement;
7. It has the functions of reverse cover identification and rejection of unqualified products;
8. It is simple, convenient and easy to change specifications.
Rotary capping machine series (4 heads, 6 heads, 8 heads, 12 heads, 16 heads, 18 heads, 20 heads) Filling machine series for plastic bottles and glass bottles
