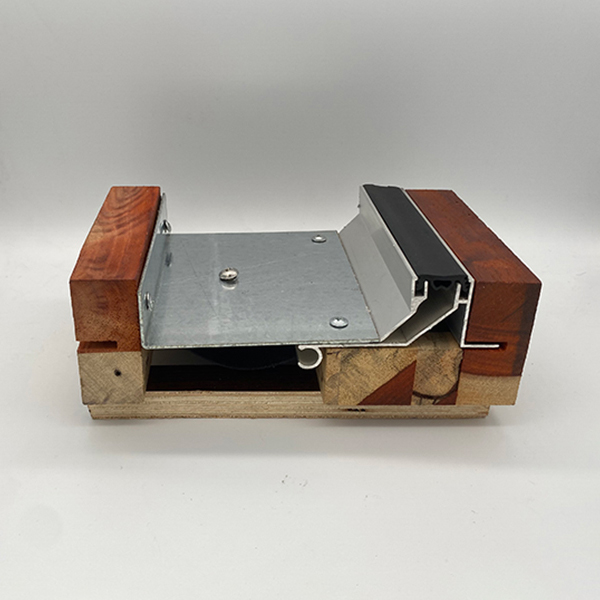

Aluminum Roof Expansion Joint Covers

Short Description:

Metal cover type roof deformation joints have better durability. Corresponding to the marble slider, the rivet base has stronger tensile resistance and stronger wind load resistance.


Product Detail

Product Tags

Ideal for roof to roof applications

Suitable for joint width 50-500mm

Featuring Neoprene weather washers that prevent leaking where fasteners penetrate frames/covers

Gasketed fasteners resist water and air passage

Surface mount system accommodates uneven expansion joint widths

Anodised Aluminum, sprayed Aluminum, Stainless steel plate and Brass plate can be chosen

Aluminum covers may be engineered to resist snow and wind loads

Accompanied by the rapid progress and development momentum of our construction industry. After many years of production experience, we have absorbed and digested the advanced production technology and production technology of foreign products, and then developed, developed and produced various advanced expansion joint cover devices, which can deal with the displacement caused by various reasons such as temperature difference, settlement, earthquake, etc. It has a good protection and decoration effect, especially for larger public buildings, such as airports, exhibition centers, industrial and mining enterprises, etc., making the buildings more perfect and almost perfect.

Anyone who has knowledge of the construction industry should know that under the influence of certain external factors, buildings usually deform to varying degrees, leading to cracking or even damage. Expansion joint covers are foreseen for such situations. Leave the structural seam.

Settlement joints: between the various parts of the superstructure, there will be large differences in the number of layers, or the use of loads, or the compressibility of the foundation. In short, when uneven settlement of the foundation may occur, joints are required. Divide the structure into several parts so that the settlement of each part is relatively uniform to avoid additional stress in the structure. This joint is called a “settlement joint”.

Anti-seismic joints: The purpose of anti-seismic joints is to divide large buildings into smaller parts to form a relatively independent earthquake-proof unit, so as to avoid damage caused by the uncoordinated overall vibration of the building due to earthquakes.

Specification

 metal roof slab expansion joint covers

Material Aluminum Alloy
Aluminum ASTM6063-T5
Type roof expansion joint covers
Thickness of Oxide film 8-12μm
Length 3 meter or cut to size
Certificate ISO9001-2008; SGS
Color Customized Color
MOQ 100m

Drawing

Standard Dimensions

We can also customize based on your joint width.

Packing & Delivery

Three steps of packages,pearl cotton,carton and plywood for stable transportation

Item shipped in about 15 working days against payment depends on the quantity

Tracking number will be sent to you as soon as we ship the products.
