Angle Shelving

Short Description:

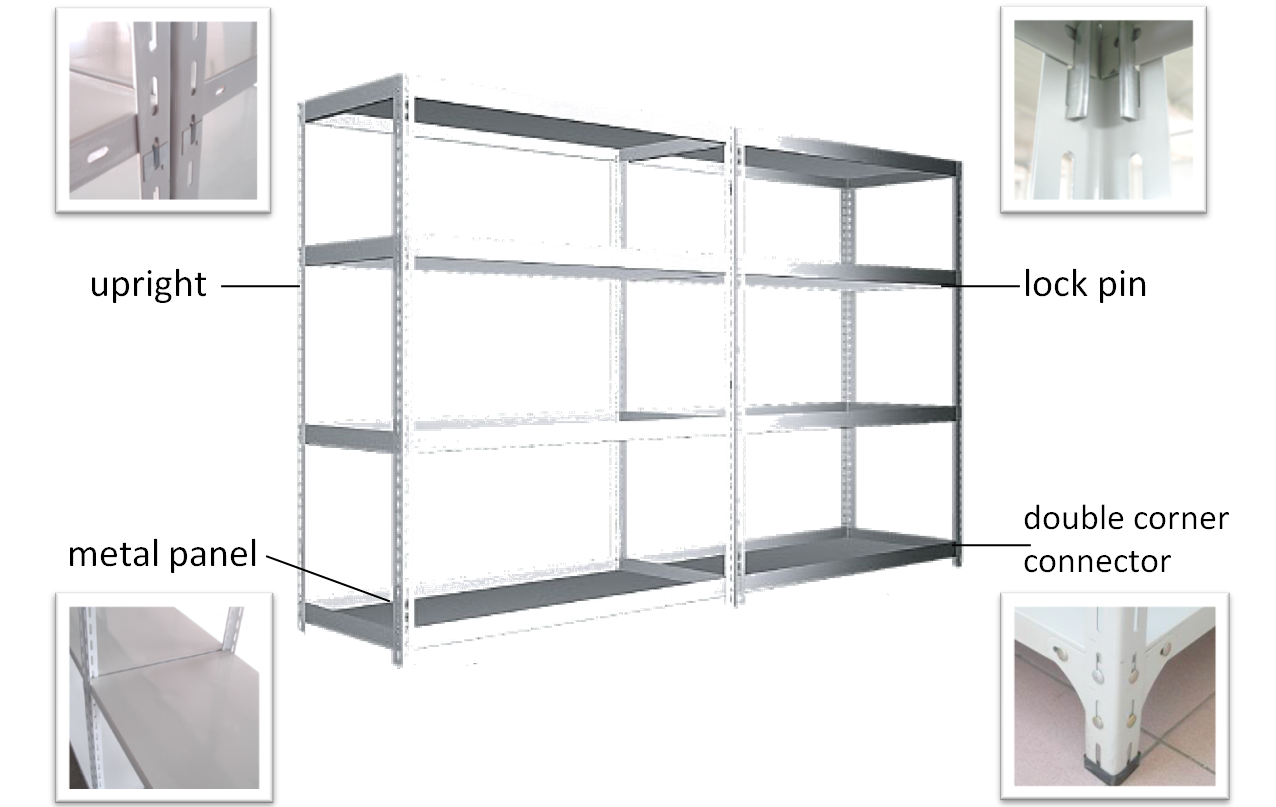

1. Angle shelving is an economical and versatile shelving system, designed to store small and medium size of cargoes for manual access in wide ranges of applications.2. The main components include upright, metal panel, lock pin and double corner connector.


Product Detail

Product Tags

Racking Components

ae579b2b4

Product Analysis

Racking type: Angle shelving
Material: Q235 Steel Certificate CE, ISO
Size: Height: 2000mmWidth: 2000mmDepth: 600mm Loading: 50-100kg/level
Surface treatment: powder coating/galvanized Color: RAL color code
Pitch 50mm Place of origin Nanjing, China
Application: widely used in electronic parts and other small parts warehouse

①Easy assembly

Metal panel of angle shelving is supported by lock pin, that makes assembly quite easy, and shelf adjustment quite convenient to meet the unique storage needs.

②Low cost

The components of angle shelving are very simple, like upright, metal panel, lock pin and double corner connector, so it’s quite cost-effective. In addition to the main components, there are other accessories for option, such as: side mesh, back mesh, side cladding, back cladding, divider and etc.

③Safe and reliable, easy extension

◆Structured by the simple components, angle shelving is a safe and reliable unit, adapted to various application.

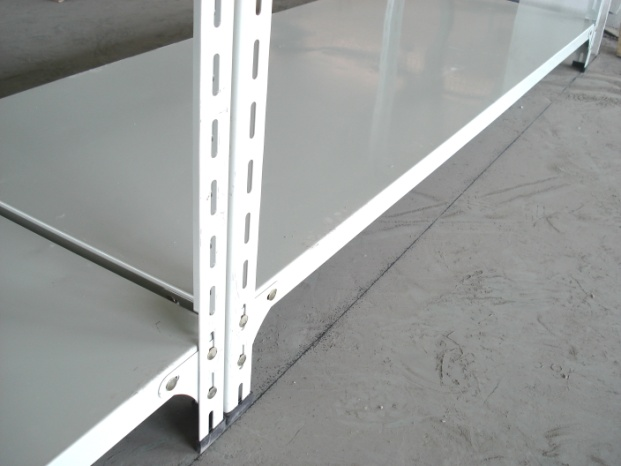

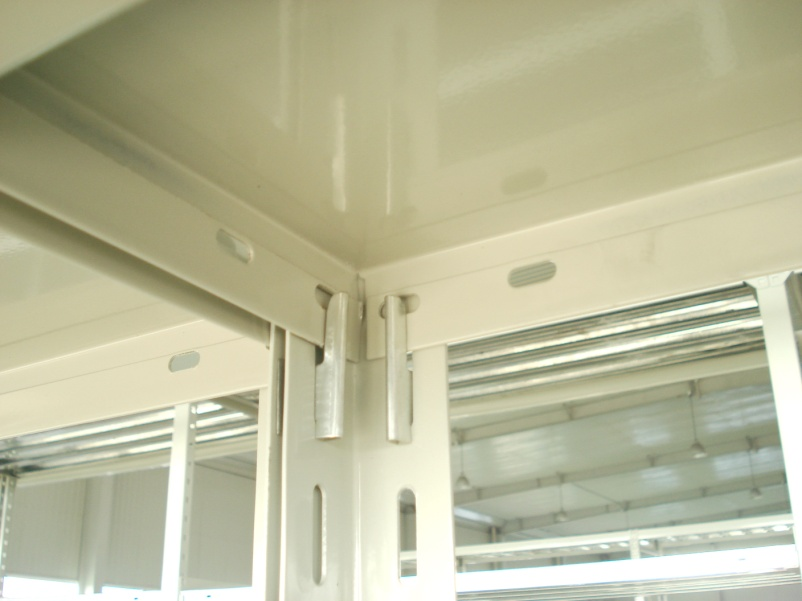

◆Metal panel on the top and bottom level are fixed with upright and double corner connecter by bolts&nuts, to make the whole structure stands stably. Then it allows to place or adjust other levels freely..

f632e87a3 6ea4250c 12d3915d

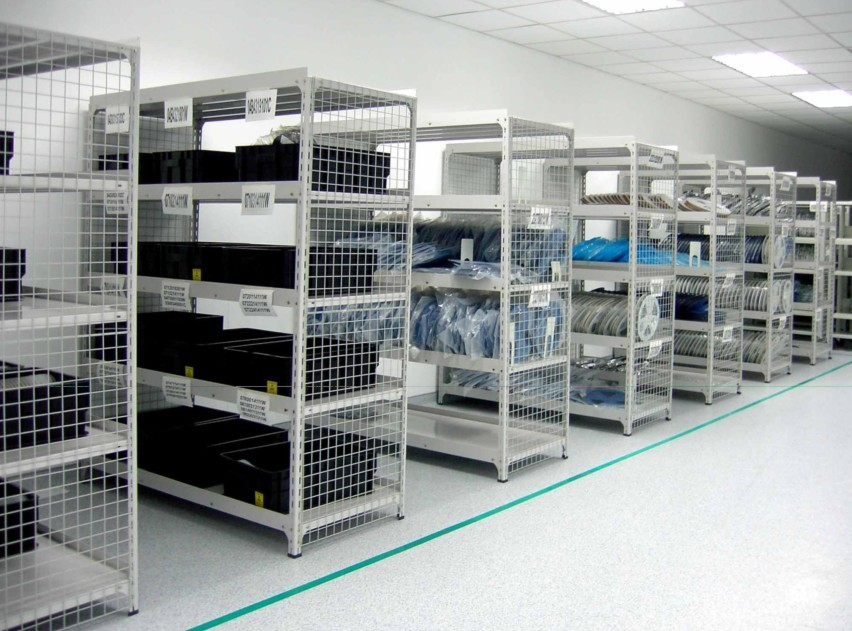

◆According to different storage situation, additional units can be easily added for more depth or width. Only small size of aisles are required for people going through, that is able to make full use of warehouse space.

④4-sides access

Angle shelving is designed as open structure. The big benefit is ideal for packaged stock, offering high visibility for items from the all four sides, without assigned shelf locations. That organizes the operator for space efficiency and quick access.

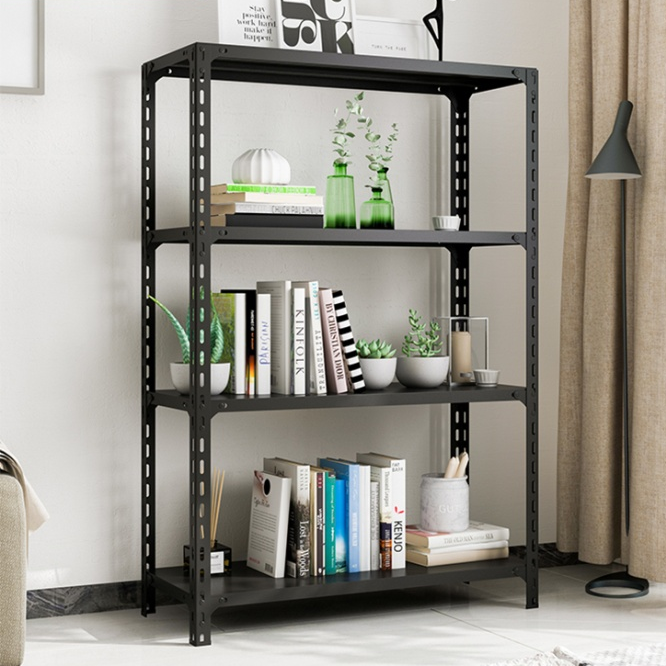

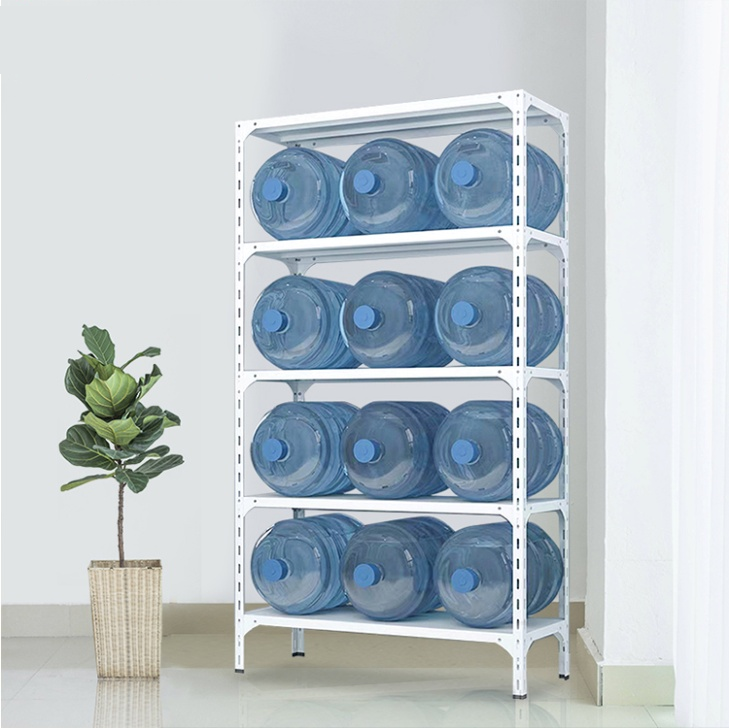

Project cases

52a78825 140678282
