Anti Skid Perforated Metal Aluminum Grip Strut

Short Description:

Grip strut grating as walkway flooring or stair steps. Main function is anti-skid and safety. Material offer carbon steel, aluminum and stainless steel.

Send email to us

Product Detail

Product Tags

Product Details

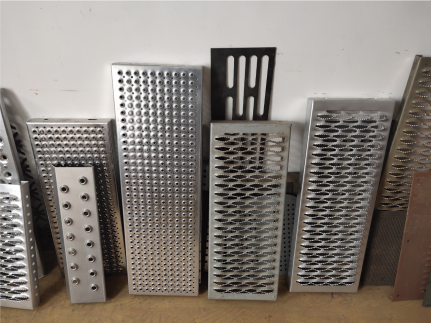

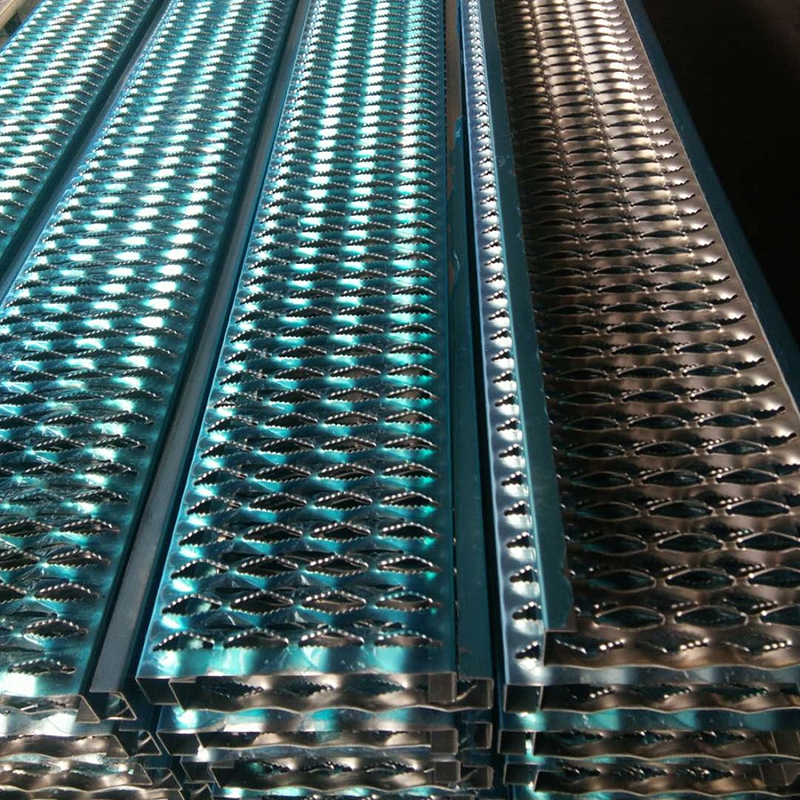

Grip Strut is mainly as decking and steps. For it’s wonderful anti skid performance. Material offer mid carbon steel, aluminum and stainless steel. Anti-corrosion surface treatment.

The anti skid hole is effective and also allow the dirt leak out of the grip strut. Light weight with high load-bearing capacity and have longer lifespan than other kinds of anti slip gratings

application

Anti-skid plates are widely used in work platforms, equipment platforms, stair treads, trench covers, bridge walkways in petroleum, chemical, mining, electric power, ocean exploration, electroplating, ships, water and waste water treatment, paper making, wine making, pharmaceuticals and other industries. , Filter plates, packing brackets, etc., are ideal load-bearing materials in corrosive environments.

Aluminum grip strut also can be used as steps for ladders and vehicle / truck, for peoples walking safety.

Specifications

Usually width is 4”, 4-3/4”, 7”, 9.5”, 11-3/4”, height 1-1/2”, 2” and length (clear span) as customer’s request. Specifications as below:

Structure	Plank thickness	Width	Channel height	Clear span
2-diamond	14G	4-3/4″	1-1/2″	2′; 2′-6″; 3′
	14G		2″	2′; 2′-6″; 3′; 4′
	12G		1-1/2″	2′; 2′-6″; 3′
	12G		2″	2′; 2′-6″; 3′; 4′
3-diamond	14G	7″	1-1/2″	2′; 2′-6″; 3′
	14G		2″	2′; 2′-6″; 3′; 4′
	12G		1-1/2″	2′; 2′-6″; 3′
	12G		2″	2′; 2′-6″; 3′; 4′
4-diamond	14G	9-1/2″	1-1/2″	2′; 2′-6″; 3′
	14G		2″	2′; 2′-6″; 3′; 4′
	12G		1-1/2″	2′; 2′-6″; 3′
	12G		2″	2′; 2′-6″; 3′; 4′
5-diamond	14G	11-3/4″	1-1/2″	2′; 2′-6″; 3′
	14G		2″	2′; 2′-6″; 3′; 4′
	12G		1-1/2″	2′; 2′-6″; 3′
	12G		2″	2′; 2′-6″; 3′; 4′
8-diamond	14G	18-3/4″	2″	2′; 2′-6″; 3′; 4′
8-diamond	12G	18-3/4″	2″	2′; 2′-6″; 3′; 4′
10-diamond	14G	24″	2″	2′; 2′-6″; 3′; 4′
10-diamond	12G	24″	2″	2′; 2′-6″; 3′; 4′
