ASRS Racking

Short Description:

1. AS/RS(Automated Storage and Retrieval System) refers to a variety of computer-controlled methods for automatically placing and retrieving loads from specific storage locations.2.An AS/RS environment would encompass many of the following technologies: racking, stacker crane, horizontal movement mechanism, lifting device, picking fork, inbound & outbound system, AGV, and other related equipments. It is integrated with a warehouse control software (WCS), warehouse management software (WMS), or other software system.


Product Detail

Product Tags

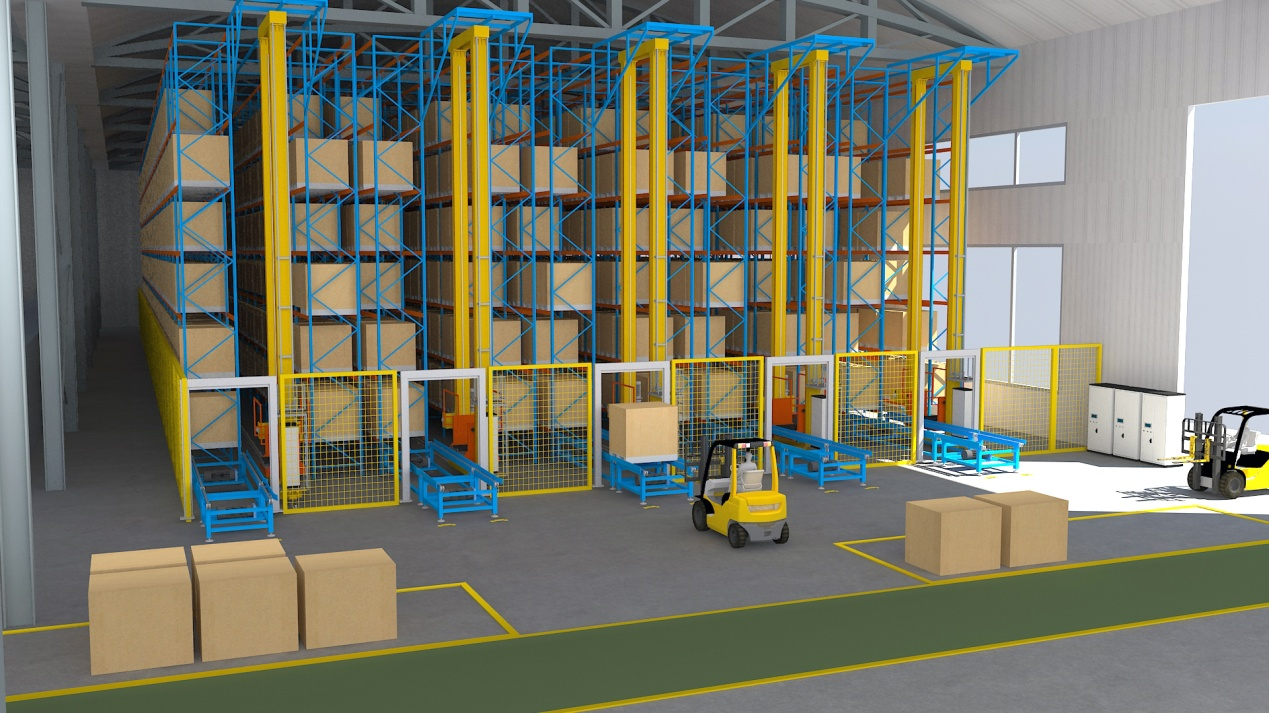

Racking Components

3b7bce09

Product Analysis

Racking type: AS/RS (Automated Storage and Retrieval System)
Material: Q235/Q355 Steel Certificate CE, ISO
Size: customized Loading: 1000-3000kg/pallet
Surface treatment: powder coating/galvanized Color: RAL color code
Pitch 75mm Place of origin Nanjing, China
Application: industrial production, logistics, commodity manufacturing , military applications industries

① High space Utilization

The space utilization of AS/RS is 2-5 times than common storage. The racking can be designed as single-depth or double-depth to improve storage capacity, also compatible with any size pallet.

② Improving efficiency of storage and picking

AS/RS is dynamic storage and advanced logistics system, improving production management level. Compared with static racking system, the storage and picking efficiency is much improved.

③ Labor-saving operation

The pallet moving is handled by equipment, and controlled by software system. So it requires minimum labor and allows to operate unattended around the clock.

④Mini Load AS/RS

In addition to regular pallet storage, there is the other AS/RS racking type, suitable for carton/box/bin storage, called Mini Load AS/RS. Similar as AS/RS, mini load is a combination of shelving, equipments and software system.

⑤ High adaptability with other automated storage robots

AS/RS is able to work with other automated storage robots, like shuttle car, shuttle mover, four way shuttle and so on, to meet diversified storage requirement and increase efficiency.

Project cases

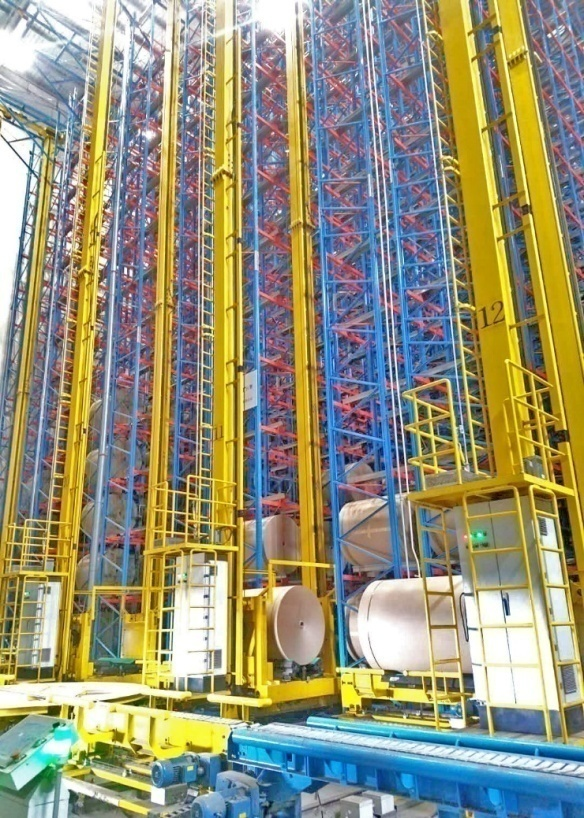

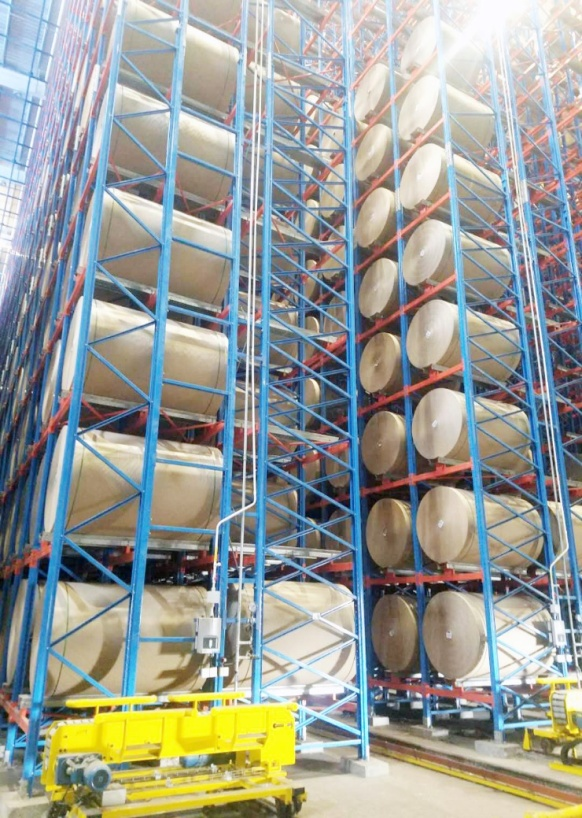

f632e87a 25c75e48Industry: Paper / Pallet Positions: around 60,000 / Height: 24m

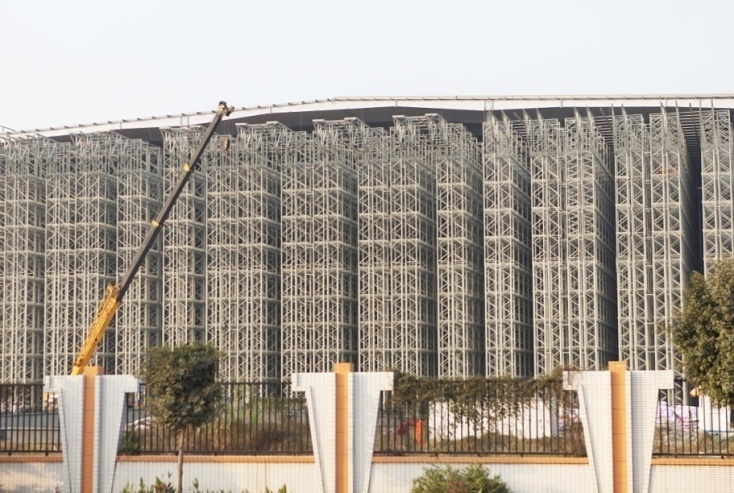

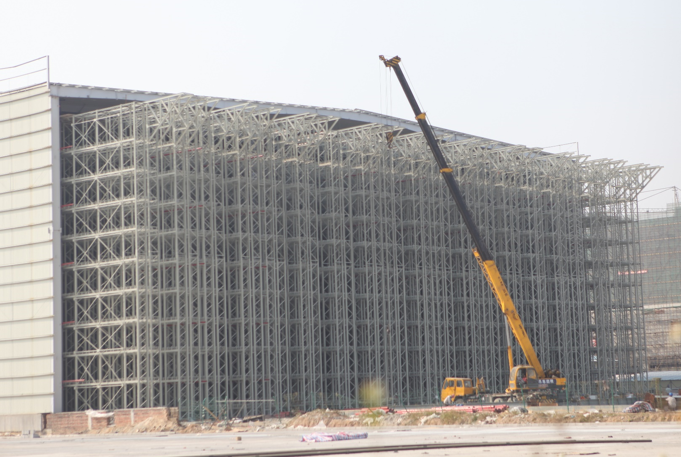

Picture-2 dcbe1c621Industry: Soy Sauce Pallet Positions: around 31,000 Height: 32m

bd590d1e

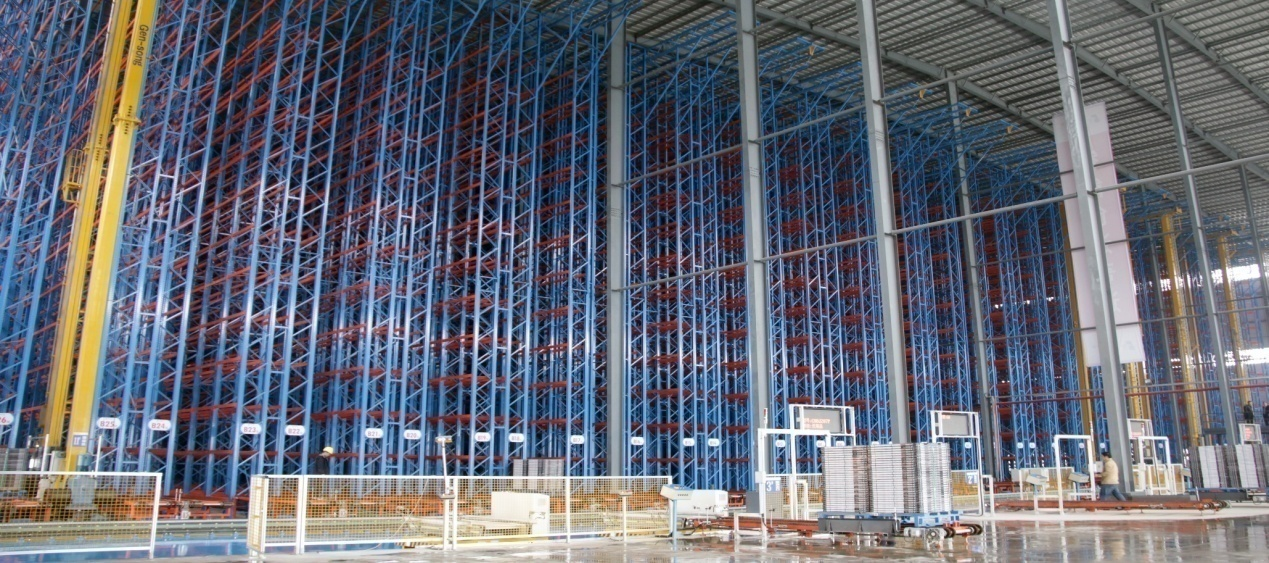

Industry: Industry: Ceramics Pallet Positions: around 52,000 Height: 26m

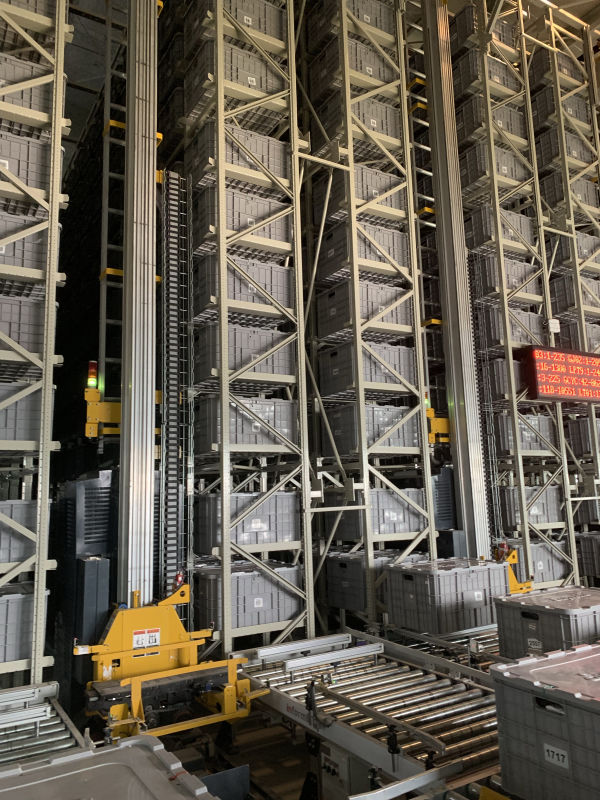

Miniload ASRS racking

Industry: Garments

Carton Positions: 30,000

Height: 9m

92980bb3
