Automatic Powder Bottle Filling Machine Model SPCF-R1-D160
Main features
Stainless steel structure, level split hopper, easily to wash.
Servo-motor drive auger. Servo-motor controlled turntable with stable performance.
PLC, touch screen and weighing module control.
With adjustable height-adjustment hand-wheel at reasonable height, easy to adjust the head position.
With pneumatic bottle lifting device to assure the material not spilling out when bottle filling.
Weight-chosen device, to assure each product be qualified, so to leave the latter cull eliminator.
To save all product’s parameter formula for later use, save 10 sets at most.
When changing the auger accessories, it is suitable for materials ranging from super fine powder to small granule
Main technical data
|
Bottle Size |
φ30-160mm , H50-260mm |
|
Bottle Filling Weight |
10 – 5000g |
|
Bottle Filling Accuracy |
≤ 500g, ≤±1%; >500g, ≤±0.5% |
|
Bottle Filling Speed |
20 – 40 bottles/min |
|
Power Supply |
3P AC208-415V 50/60Hz |
|
Air Supply |
6 kg/cm2 0.05m3/min |
|
Total Power |
2.3Kw |
|
Total Weight |
350kg |
|

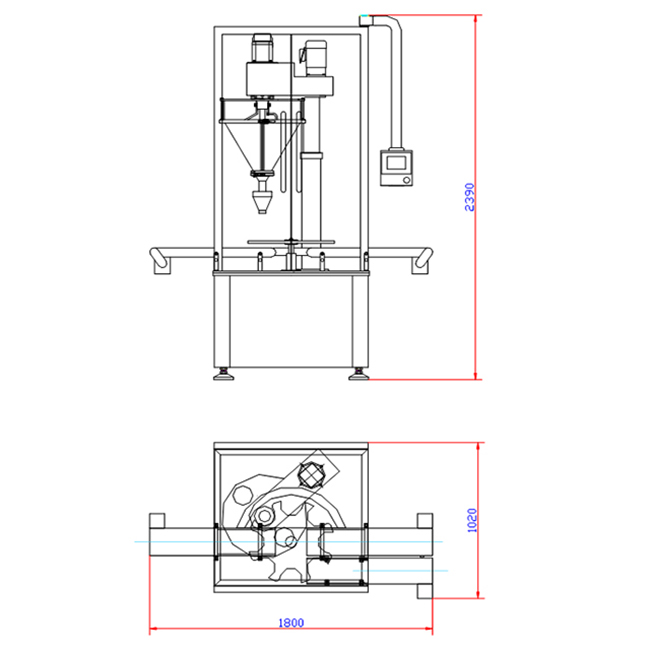

Overall Dimensions |
1840×1070×2420mm |
|
Hopper Volume |
50L(Enlarged Size 65L) |

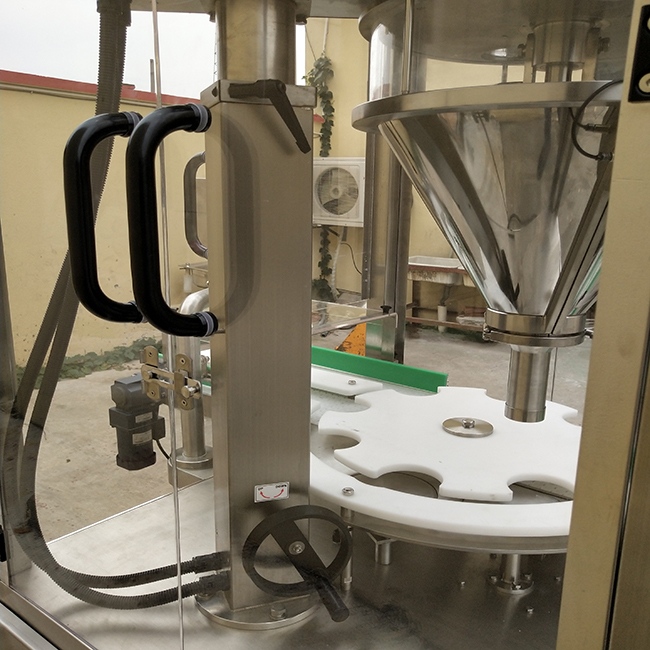

Equipment details
