China Automatic Powder Can Filling Machine (1 line 2fillers) Model SPCF-W12-D135 Manufacturer and Supplier

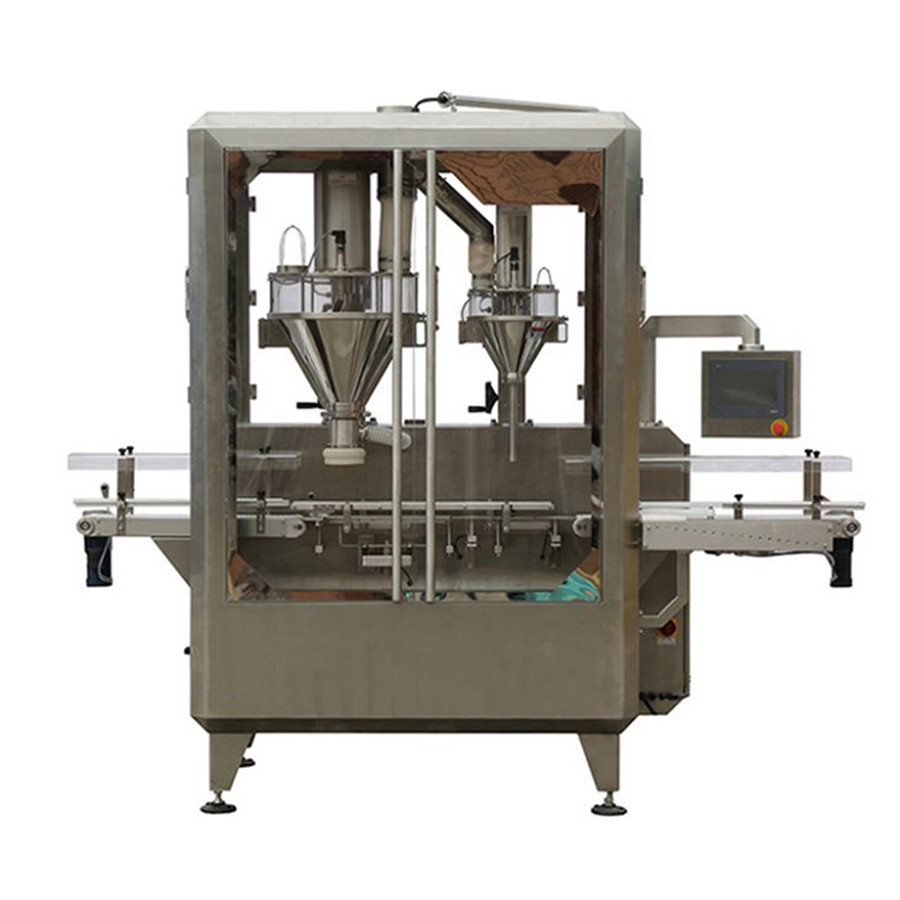

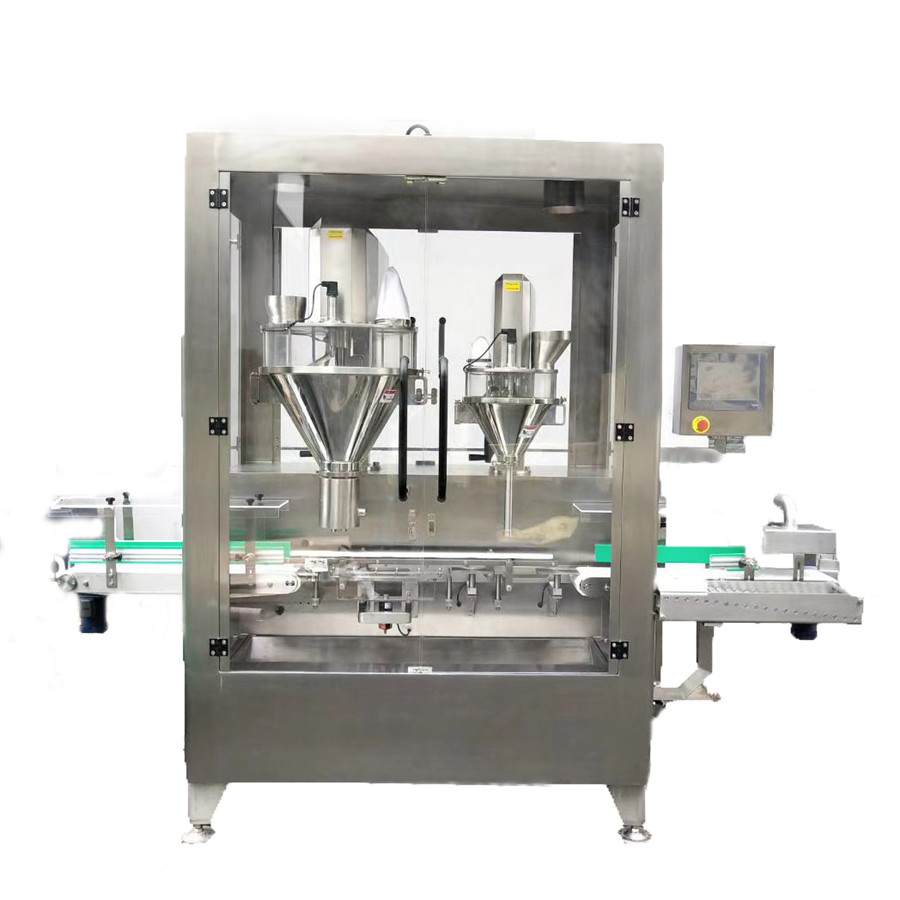

Automatic Powder Can Filling Machine (1 line 2fillers) Model SPCF-W12-D135

Short Description:

This series can filling machine is a new-designed that we make it on placing the old Turn plate Feeding on one side. Dual auger filling within one line main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate can weighing & can filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.

本系列机器是一种新设计的机器，它是在原来转盘式奶粉充填机基础上发展设计的，直线式双螺杆充填机加辅助螺旋计量机和送料系统，保持高精度，免去了转台繁琐的清洗工序。可进行精确的称量充填工作，也可与其它机器如螺旋计量机，封罐机等组合成一条完整的奶粉罐装线。该机适用于奶粉、蛋白粉、调味品、葡萄糖、米粉、可可粉、固体饮料等物料的灌装或充填。

Send email to us

Product Detail

Product Tags

Main features

One line dual fillers, Main & Assist can filling to keep work in high-precision.
Can-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, more speed.

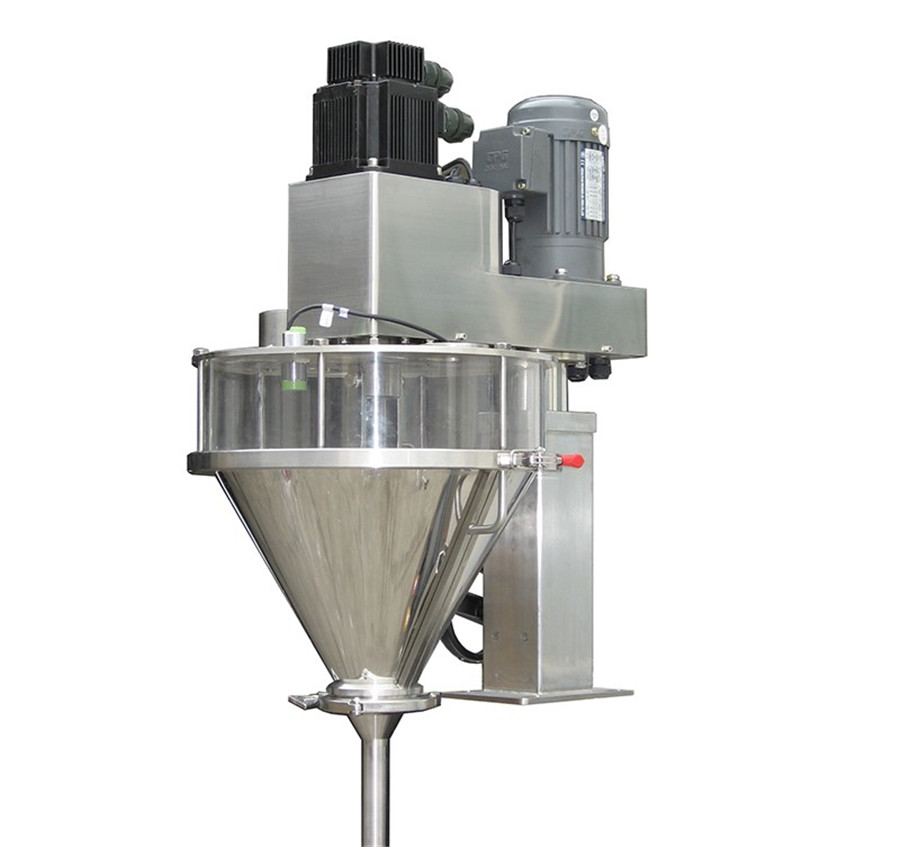

Servo motor and servo driver control the screw, keep stable and accurate
Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.
PLC & touch screen make it be easy of operation.
Fast-respond weighing system make the strongpoint to real
The handwheel make the exchange of different filings to be easily.
Dust-collecting cover meet the pipeline and protect environment to pollution.
Horizontal straight design make the machine in little area
Settled screw setup make no metal pollution in producing
Process: can-into → can-up → vibration →can filling → vibration → vibration → weighing & tracing → reinforce → weight checking → Can-out
With whole system central control system.

Main technical data

Dosing mode	Dual filler can filling with online weighing
Can Filling Weight	100 – 2000g
Container Size	Φ60-135mm; H 60-260mm
Can Filling Accuracy	100-500g, ≤±1g; ≥500g,≤±2g
Can Filling Speed	Above 50 cans/min(#502),Above 60 cans/min(#300 ~ #401)
Power Supply	3P AC208-415V 50/60Hz
Total Power	3.4 kw
Total Weight	450kg
Air Supply	6kg/cm 0.2cbm/min
Overall Dimension	2650×1040×2300mm
Hopper Volume	50L(Main) 25L (Assist)
