Benzene washing and desulfurization light or all porcelain packing

Short Description:

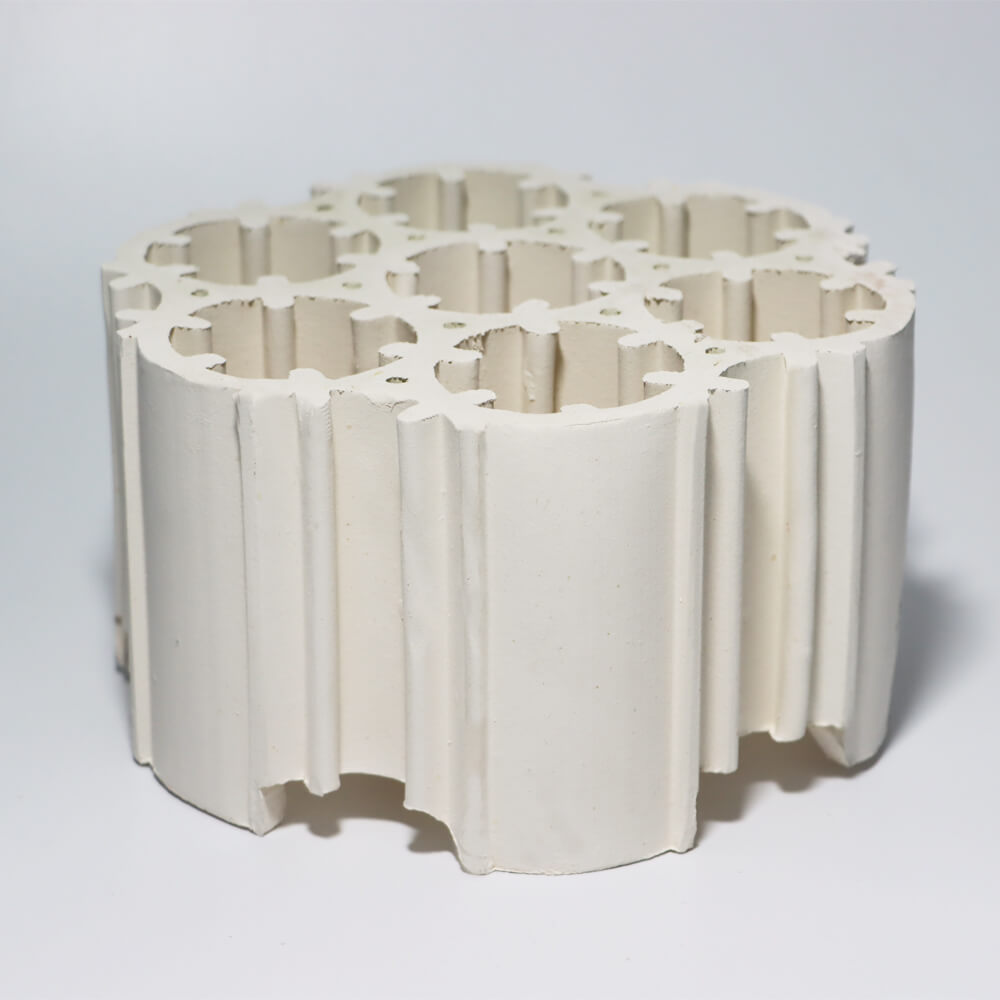

Owing to Ceramic Corrugated plate packing’s weight is very heavy and easy broken, in 1980s ending,our Scientists change clay’s composition to produce Light porcelain packing. Light Porcelian packing surface has many micropores, which can be fully soaked by liquid  so as to prolong gas-liquid exchange time. However, If compared with all-ceramic fillers,no matter in terms of compressive strength, water absorption, wettability, maintenance, replacement, production process, etc., the performance of all-porcelain pakcing is much better than that of light porcelain packing. Therefore, On the issue of choosing light porcelain or all porcelain packing, please consider the actual operation enviroment carefully. Generally speaking, Both of them are widely used in the processes of coking desulfurization,washing benzene,naphthalene and ammonia sulfuric acid drying,chemical fertilizer hot water saturation tower,electric power plant tricking water colling tower, absorbing tower and on.


Product Detail

Product Tags

Technical Parameter of Light Porcelain packing

Opposite margin Model

Support beam height mm

Accumulation gap mm

Pore Diameter mm

Surface area m²/m³

Void ratio

%

Bulk Density Kg

Number

/cbm

Pcs/m³

ATLC-4415

15

22

30

84.5

60.2

410

163

ATLC-6210

10

20

26

78.5

45

517

145

ATLC-7210

10

11

20

94.3

41

577

144

ATLC-4210

10

11

18

102.3

48

546

180

ATLC-5615

15

22

32

82

62

404

147

Technical Parameter of All Porcelain packing

Opposite margin Model

Support beam height mm

Accumulation gap mm

Pore Diameter mm

Surface area m²/m³

Void ratio %

Bulk Density Kg

Number

/cbm

Pcs/m³

Seven Ring

220±2.5 mm

20

65

118

85

320

206

Seven Ring with Veins

220±2.5 mm

20

65

128

75

350

206

Lozenge ring

220±2.5 mm

20

65

135

72

360

206

Lozenge ring with veins

220±2.5 mm

20

65

145

75

380

206

Gear ring

220±2.5 mm

20

65

148

79

350

206

Trade Details

Related Trade Information

HS Code

6914100000

Package

1: 500*500*500 mm carton on Fumigation Pallet

2: Be tied by plastic rope on wooden pallet

3: Upon your requirement

Process Method

High temperature firing

Material

Al2O. SiO2,Fe2O3 and so on

Typical Application

coking desulfurization,washing benzene,naphthalene and ammonia sulfuric acid drying,chemical fertilizer hot water saturation tower,electric power plant tricking water colling tower, absorbing tower and on.

Production time

7 days against one 20GP container loading quantity

Executive standard

HG/T 4278-2011 or refer to your detailed requirement

Sample

Free samples within 500 Grams

Other

Accept EPC turnkey,OEM/OEM,Mold Customization,Installation&Guidance,Test, Entrusted design service etc.

Typical Application

in the processes of coking desulfurization,washing benzene,naphthalene and ammonia sulfuric acid drying,chemical fertilizer hot water saturation tower,electric power plant tricking water colling tower, absorbing tower and on.

Light Porcelain Packing Feature

1: Weak compressive strength

2: Light weight.

3: High water absorption

4: Excellent mass transfer performance

5: Low operating cost

All Porcelain packing Feature

1: Outstanding compressive strength

2: Low water absorption

3: Heavy Weight

4: Large operating flexibility
