BS 6008 Standard Thermoplastic Road Marking Paint

Short Description:

  • Brand Name: customized
  • Main Raw Material: Glass beads, Pigment ,C5 resin, Caco3
  • Application Method: Hot melt and Screed
  • Color: White, Yellow
  • Standards: BS6008
  • Glass bead content: 30%~34%
  • Feature: Highly reflective and Weather resistant
  • Drying time: Within 3 minutes
  • Shelf life: 1 Year
  • Package: 25 Kg/ bag
  • MOQ: 1 ton

  • Product Detail

    Product Tags

    Company Profile

    photobank (4)

    Advantage

    微信图片_20210805163824

    Contrast

    2

    Product Description

    Introduction:

    Thermoplastic reflective road marking paint is made of thermoplastic petroleum resin, high-quality pigments and additives. Using it to mark line, the thermoplastic road marking paint has the advantages of quick drying, easy construction, good light reflection and long service life.

    Application:

    It can be used in asphalt or concrete road for long-acting marking.

    Technical Data:

    We can produce different standards of thermoplastic road marking paint, such as Chinese standard (JT/T280-04 and GB16311-09), BS standard, AASHTO standard and so on. The contents and raw materials are different with different standards. We can also produce according to customers’ non-standard customization.

    Raw  Material C5  Petroleum Resin, CaCO3, Glass Beads, DOP, PE, etc.
    Gravity,  g/m3 2.1  g/ml
    Color white,  yellow,  etc.
    Heating  Temperature 180℃-2220℃
    Softening  Point, ℃ 110℃
    Coating  Appearance No  wrinkles, dots, blisters, cracks, fall-out & stick tyres
    Drying  Time, min Within  3 minutes
    Compressive  Strength, MPa 26
    Abrasive  Resistance, mg 42
    Water  Resistance Great(in  water for 24 hours)
    Alkali  Resistance Great(in  saturated solution of calcium hydroxide for 24 hours)
    Glass  Beads, % 30~34%
    Fluidity,  s 40s
    Coating  Resisitance Resist  -10℃ for 4 hours
    Heat  Resistance Under  0℃-2℃ for 4 hours

    Package & Use:

    Package 25kg/bag,  by plastic woven bag. One ‘ container can load Max. 25 tons.
    Storage dry, cool,  avoid direct sunlight
    Expiration  date 365  days
    Theoretical  spray rate 4-5kg/㎡

    Features

    1. Cohesiveness

    Specific formula, of good cohesiveness with road, pre-mark with our company’s dedicated primer (especially for concrete base) will strengthen the cohesiveness.

    2. Anti-slipperiness

    Our paint has anti-slipping material. On condition of good flowability, the anti-slipping material can ensure good anti-slipperiness and maximize the traffic safety.

    3. Reflective effect

    According to the settling rate of the glass beads, properly choose stable refractive and high quality coating type glass beads with different particle ratio. Mix them evenly inside the paint and dispense mixed type glass beads when executing will ensure new and old marking always to be in high reflection.

    4. Dry fast

    Use different formula to produce the paint according to temperature, humidity and roadbed condition when executing, ensure fast drying speed and antifouling property of the marking.

    5. Stability

    Choose excellent light and heat stability raw material ratio, add ultraviolet-proof additives at the same time, to make sure the long-acting color and luster even under strong sunshine.

    6. Anti hair-cracking

    Hair-cracking of the marking is a technical problem in road marking material industry home and abroad. After long-term research and by way of adding high temperature resistance lipid material and functional filler, our company completely solved the hair-cracking problem during executing.

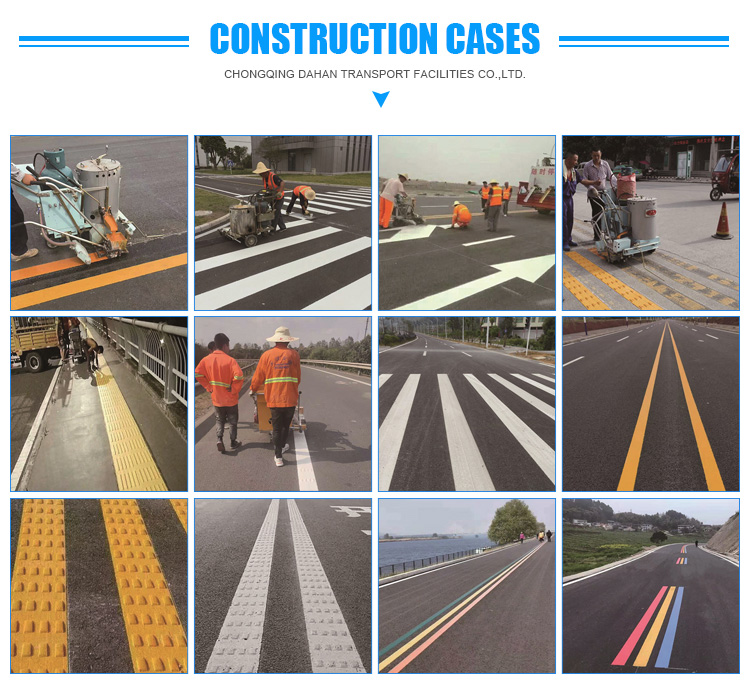

    Engineering Case

    详情页_07

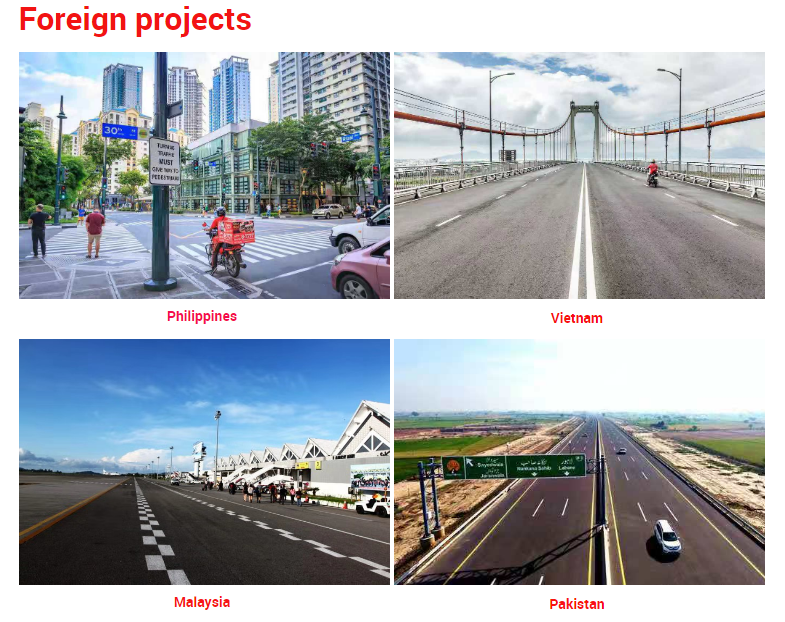

    foreign projects
