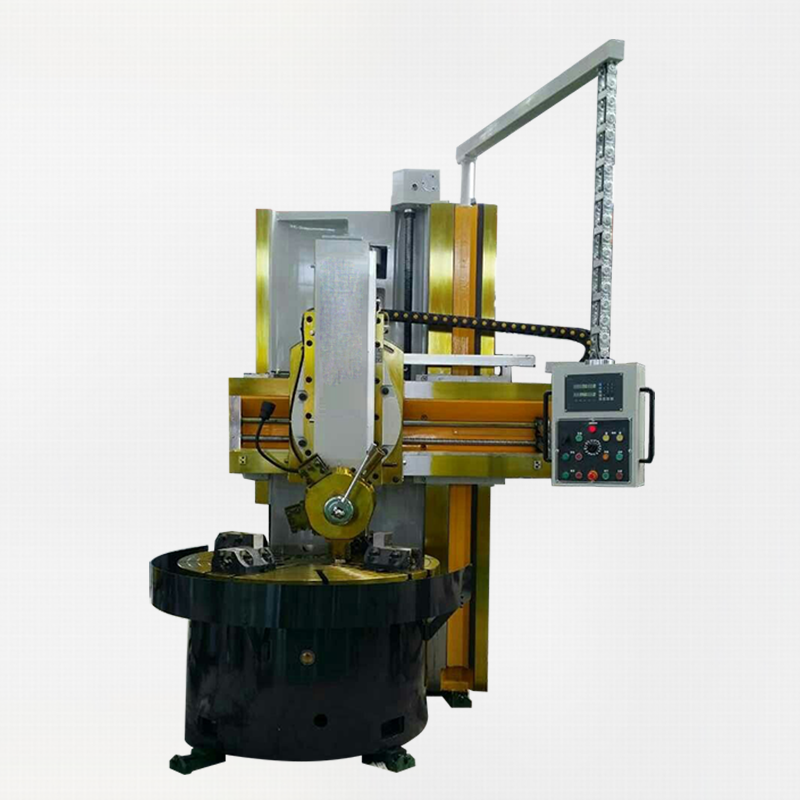

Single column vertical lathe machine |
||||||
ITEMS |
UNIT |
C5112 |
C5116 |
C5120 |
C5123 |
C5126 |
Max. turning diameter |
mm |
1250 |
1600 |
2000 |
2300 |
2600 |
Max. height of workpiece |
mm |
1000 |
1200 |
1250 |
1350 |
1350 |
Max. weight of workpiece |
tons |
3.2 |
5 |
8 |
8 |
8 |
Worktable diameter |
mm |
1000 |
1400 |
1800 |
2000 |
2300 |
Worktable speed series |
step |
16 |
16 |
16 |
16 |
16 |
Worktable speed range |
r/min |
6.3-200 |
5-160 |
4-125 |
3.2-100 |
2.5-80 |
Main motor power |
KW |
22 |
30 |
30 |
30 |
37 |
Beam travel |
step |
650 |
900 |
900 |
1000 |
1000 |
Machine weight |
tons |
8.5 |
12.5 |
17.5 |
18.5 |
19.5 |
The beam guide and ram guide are treated by super audio quenching (HRC≥50), and the sliding surface of guide is treated with plastic (including inclined iron surface and pressing plate surface), so that the product precision can be maintained for a long time and the overhaul cycle can be extended for more than 10 years at least. |
High quality castings and domestic dafang matching castings (HT300), artificial heat aging treatment. Castings do not do weight reduction treatment, the machine weight and standard weight. |
The five-point knife table adopts high precision mouse tooth disc positioning, 120 equal parts positioning, strong rigidity (not comparable to the traditional five-part positioning plate). |
Standard equipped with 2-axis digital display. |
The electric adopts Japan omron PLC control, the electrical parts adopt high quality components, standard (CE standard) wiring process, the whole electric machine has high reliability. |
Advanced and perfect processing and assembly technology, casting high quality.High-precision gear grinding and gear grinding umbrella (grade 6 precision), low noise, operation translation. |
NO |
ITEMS |
QTY |
1 |
Vertical column |
1 set |
2 |
Speed changing box |
1 set |
3 |
Worktable |
1 set |
4 |
Feeding box |
2 sets |
5 |
Cross beam |
1 set |
6 |
Vertical toolpost |
1 set |
7 |
Beam lifting mechanism |
1 set |
8 |
Hydraulic control unit |
1 set |
9 |
Main motor |
1 set |
10 |
Hanging button station |
1 set |
