China Cantilever Racking Manufacturer and Supplier

Cantilever Racking

Short Description:

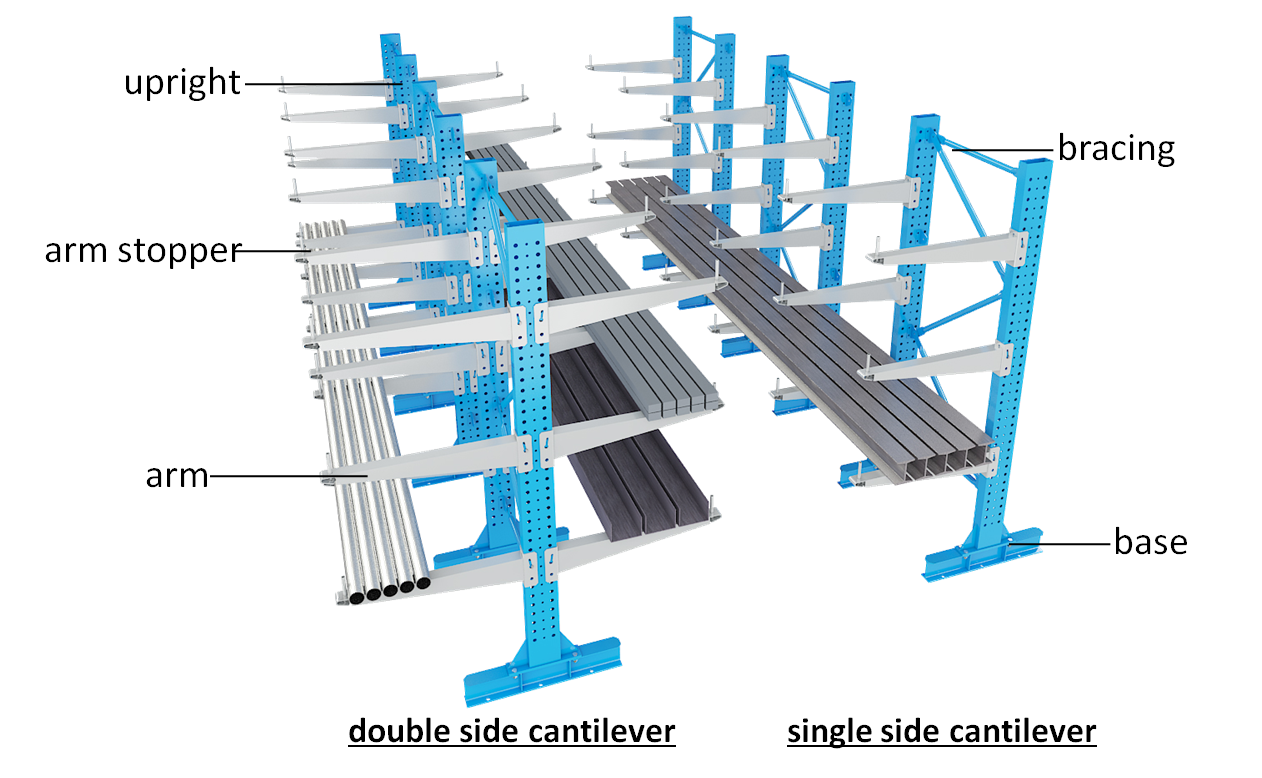

1. Cantilever is a simple structure, composed of upright, arm, arm stopper, base and bracing, can be assembled as single side or double side.2. Cantilever is wide-open access at the front of the rack, especially ideal for long and bulky items such as pipes, tubing, timber and furniture.

Send email to us

Product Detail

Product Tags

Racking Components

Product Analysis

Racking type:	Cantilever Racking
Material:	Q235/Q355 Steel	Certificate	CE, ISO
Size:	customized	Loading:	300-1500kg/arm
Surface treatment:	powder coating/galvanized	Color:	RAL color code
Pitch	100mm/50mm	Place of origin	Nanjing, China
Application:	mechanical manufacture and architecture material supermarket enterprises

① Storage method
Cantilever racks can be placed indoors or outdoors. For light duty cargo, it can be stored by manual easily. For heavy duty cargo, generally there are two storage methods: one is forklift, the other is bridge crane. Forklift storage is suitable for warehouse with large area, that allows forklift moves freely. While bridge crane storage is for warehouse with limited space, that is not available for forklift operation.

② Three categories
Based on loading requirement, cantilever is classified into four categories:

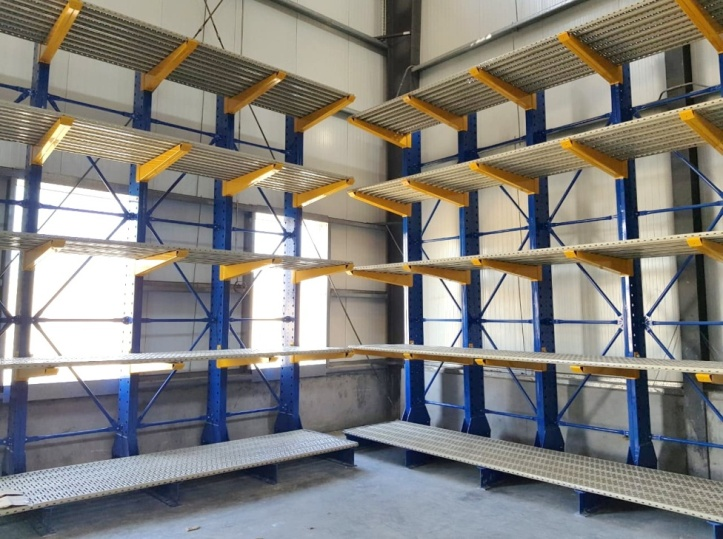

◆Light Duty Cantilever Racking
Upright: 150*60*2.5, adjusted by 50mm pitch.
Base: 12# I-steel
◆Medium Duty Cantilever Racking
Upright: 200*60*2.5, adjusted by 50mm pitch.
Base: 14# I-steel

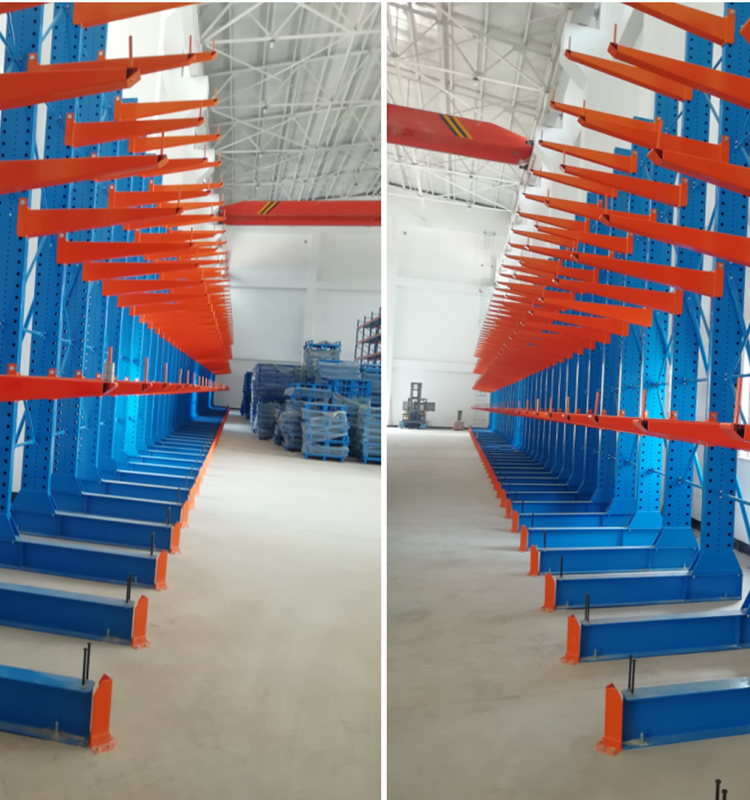

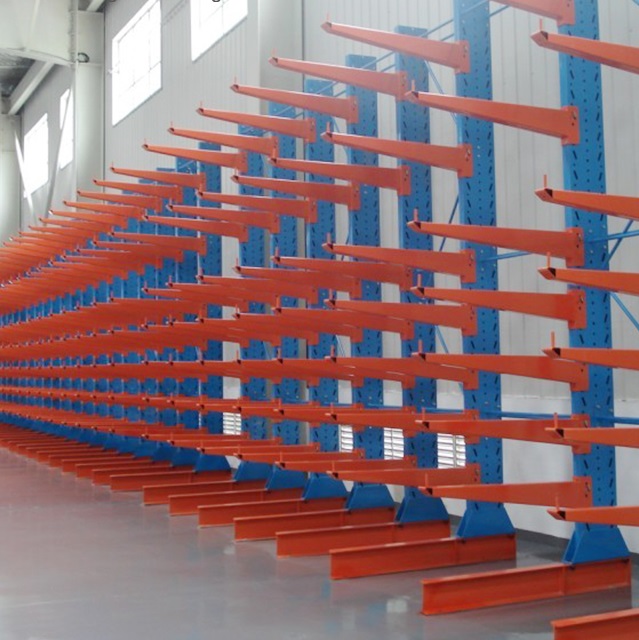

◆Heavy Duty Cantilever Racking (most commonly used)
Upright: 300*90*3.0, adjusted by 100mm pitch
Base: 20# I-steel
◆H profile Cantilever Racking
Upright, base and arm specification are decided by loading requirement.

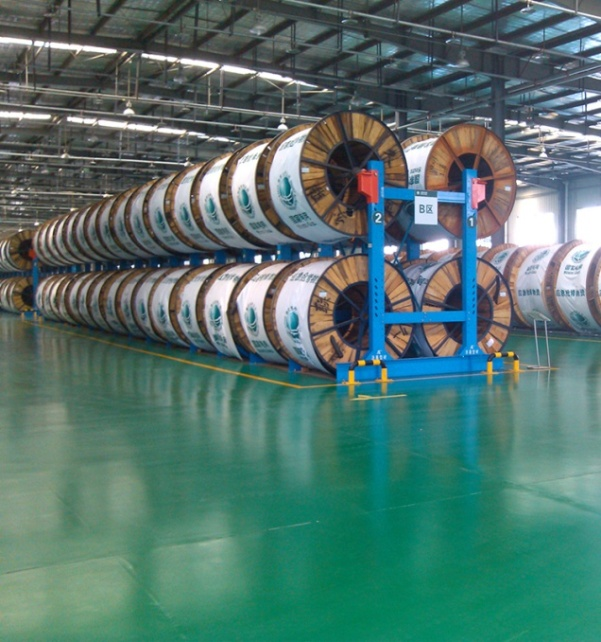

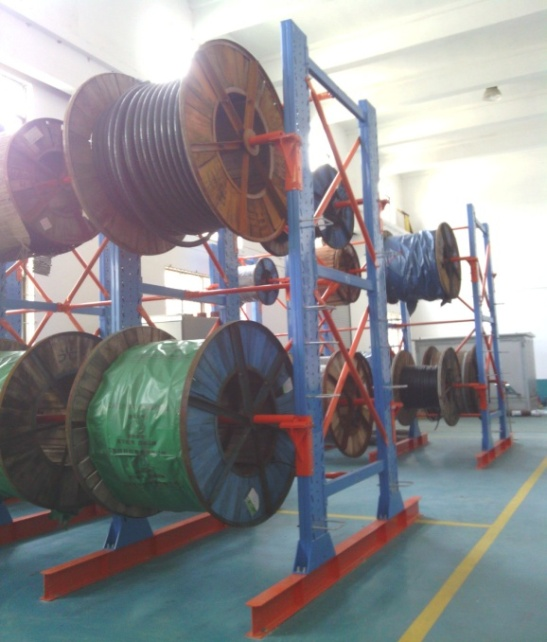

③ Cable Drum Racking
Cantilever racking structure can be specially designed as cable racking. In a cable racking system, a steel rod is placed through the centre of the drum to allow for horizontal storage. This also allows the cable to unravel when pulled on. Cable racking increases storage capacity by stacking cable drum on racking one by one.
