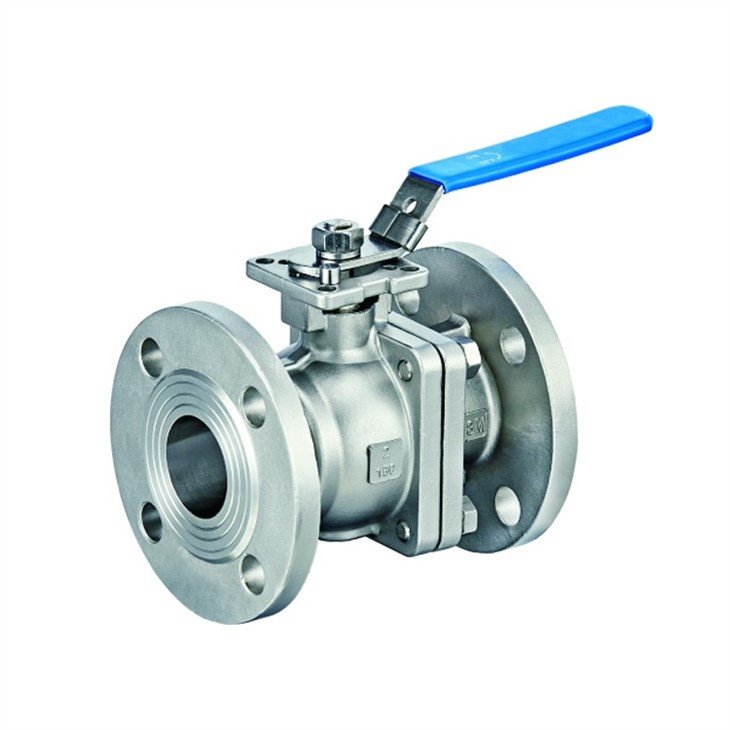

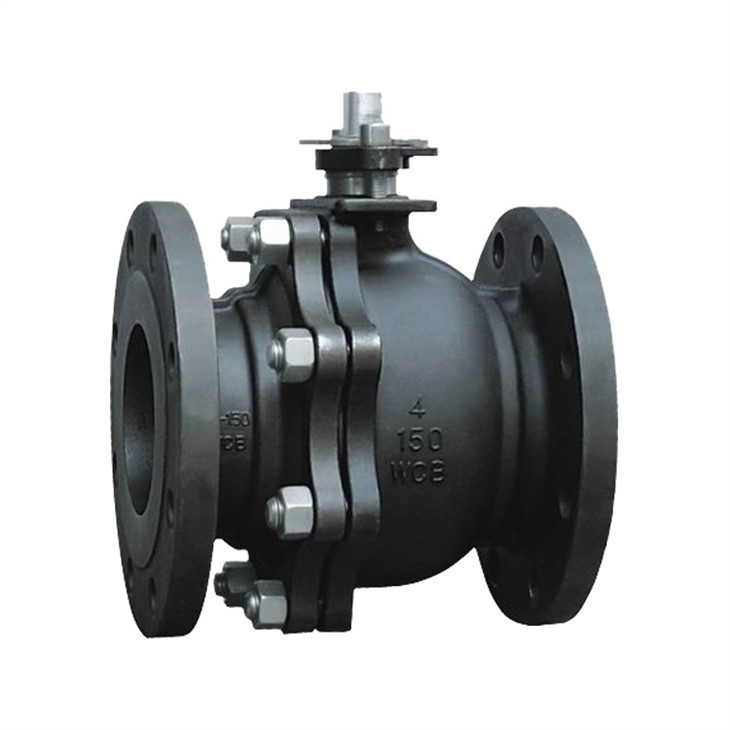

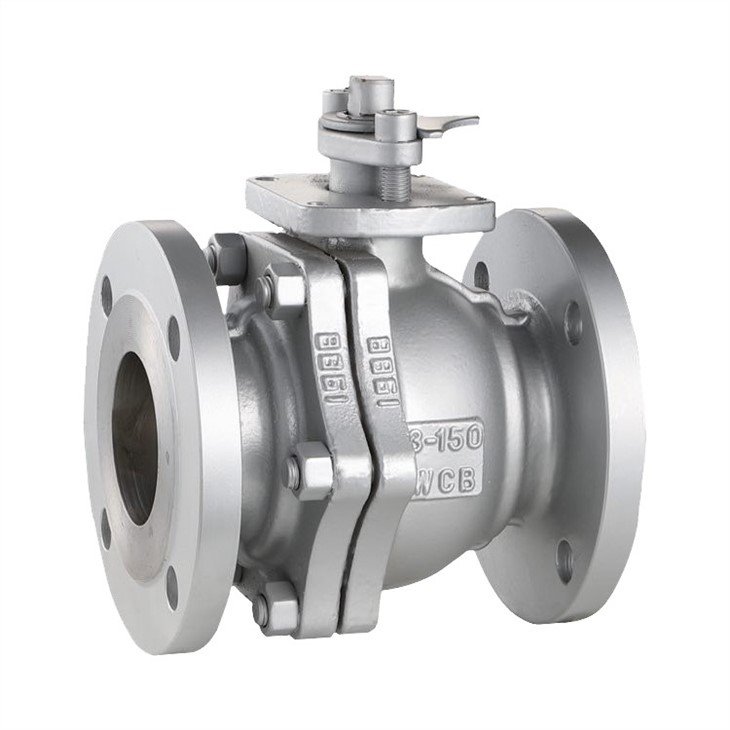

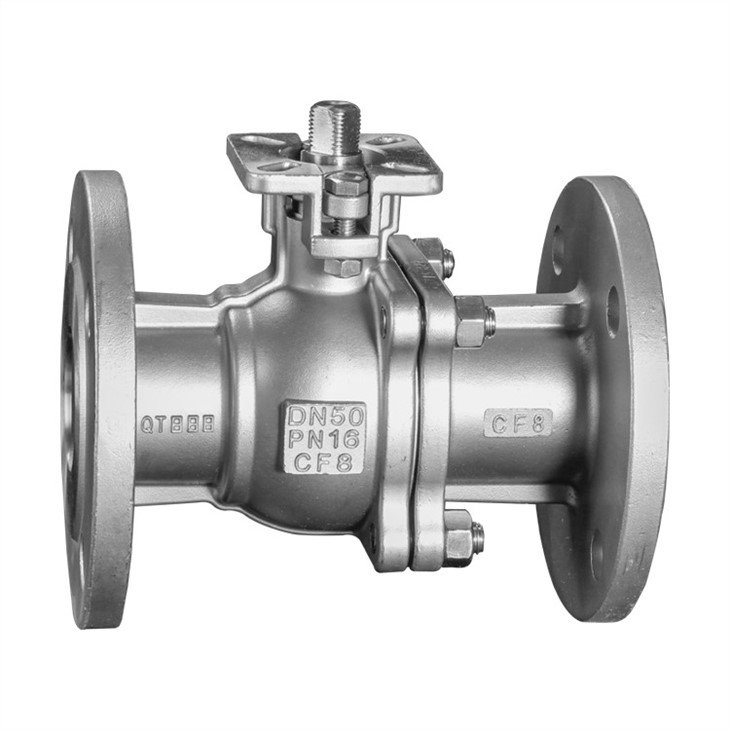

Design advantages for GZP Casted Floating Metal Seat BALL VALVE
● ① Fire safe, ② Antistatic, ③ Anti-blowout stem, ⑤ Low fugitive emission packing. ⑥ Hand lever with locking device
● Metal Seat: A105+ENP, SS304, SS316,SS321, SS316L
Design of top connection for actuator:
● Bare shaft with ISO 5211 top flange (Yoke can round or squre according to clients request)
● Extended Stem and stem cover The stem extension can be available according to different installation requirement or cryogenic service.

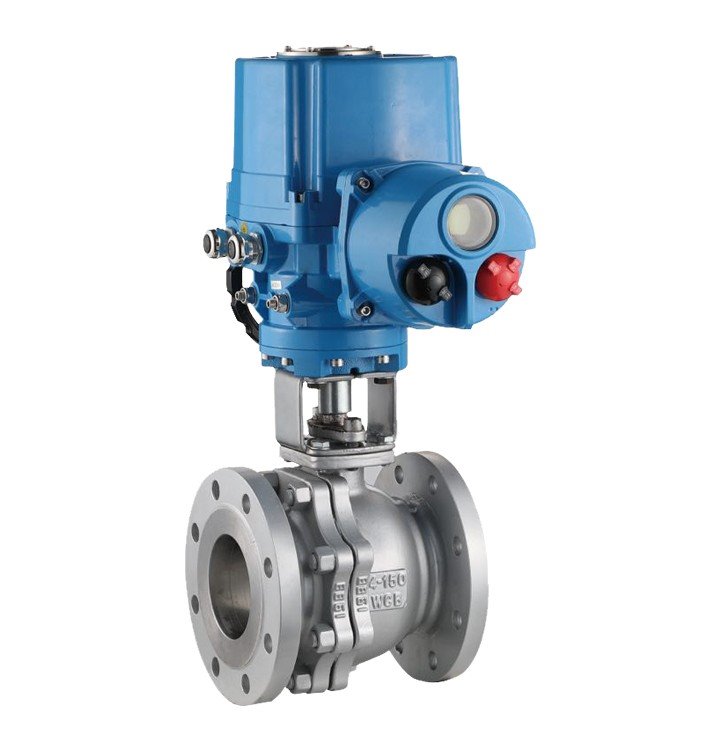

● Actuator Available: Hand Lever, Gearbox, Pneumatical Actuator with Manual Operator, Electrical Actuator With SIL certificate
Technical data | ||||||||||
Design | API 6D, ASME B16.34, | |||||||||
Pressures range | ANSI 150 ~ANSI 600 ,PN10~PN100 | |||||||||
Size range | 2"-10" / DN50~DN250 | |||||||||
Body Material | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
NACE MR-01-75/NACE MR-01-03 Special Requirements | ||||||||||
Face to face | API 6D, ASME B 16.10, | |||||||||
Fanged RF, FF, RTJ Ends | ASME B16.5 | |||||||||
BS 4504, | ||||||||||
Butt-Weld BW Ends | ASME B16.25 ,DIN 3239, | |||||||||
Temperature range | -196°~ 650°C | |||||||||
Design feature | ||||||||||
Construction | One,Two or Three piece body and Welded body | |||||||||
Port | Full bore and Reduced bore | |||||||||
Ball Type | Floating ball and fixed ball | |||||||||
Stem | Blowout-proof stem | |||||||||
Seat Sealing | Front-seat sealing, Back-seat sealing, bi-directional sealing | |||||||||
Valve Operation | Gear,pneumatic,Hydraulic,Electric actuators. | |||||||||
By passes,locking devices,extended stem,etc | ||||||||||
Fire Safe | API 607 | |||||||||
Other design | Anti-static design, automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design,etc | |||||||||
Inspection and Test | ||||||||||
Visual Inspection | MSS SP-55 | |||||||||
Material Inspection | PMI Test—-Chemical Analysis | |||||||||
HB Test—Hardness Test | ||||||||||
UT—Ultrasonic Test | ||||||||||
RT—Radio-graphic Test | ||||||||||
MT—Magnetic Test | ||||||||||
NDT Test Non-destructive | ||||||||||
Dimension inspection | According to drawings | |||||||||
Valve Inspection and Test | API 598,DIN 3230 |
Cavity Pressure Relief Seat
