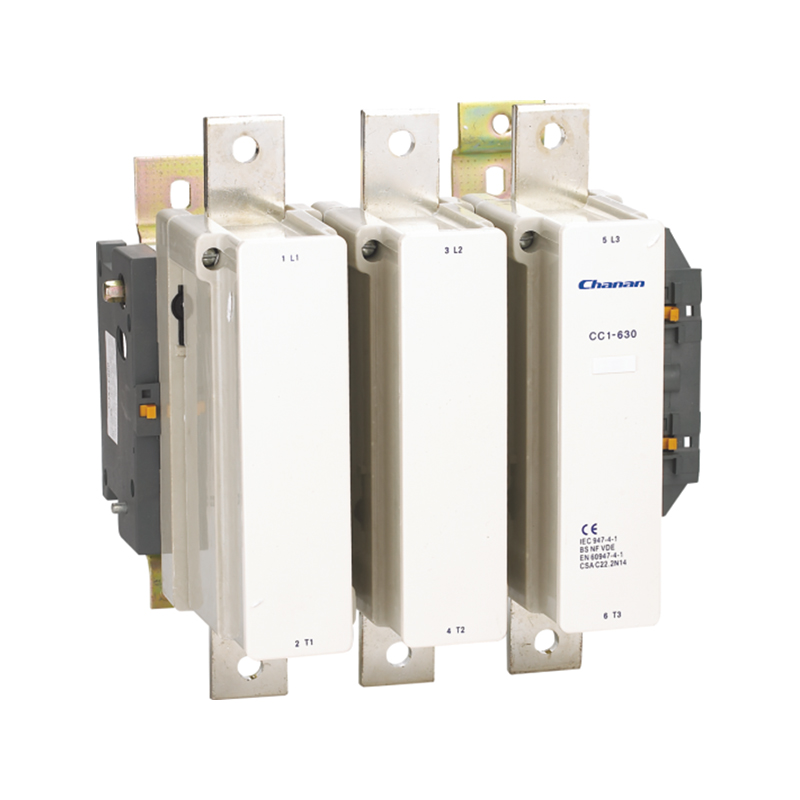

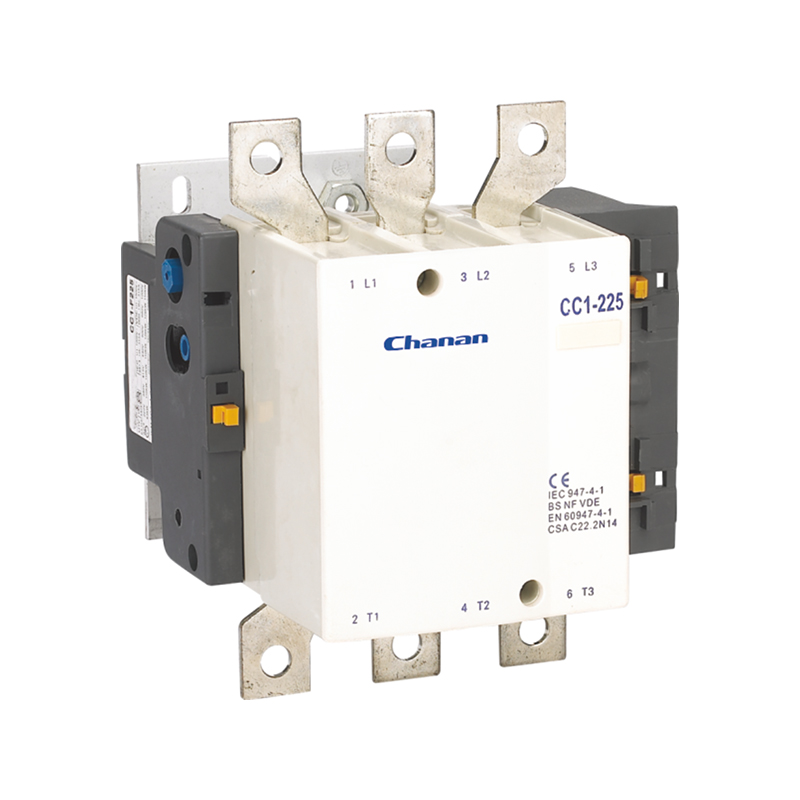

CC1 AC Contactor for 115-1000A

Short Description:

AC contactors are used in connecting/disconnecting the line and frequently controlling motors and other equipment.It controls the large current with small current and plays a certain role in overload protection when working with the thermal relay.

Send email to us

Product Detail

Product Tags

Description

Application: remote making & breaking circuits; protect circuit from over-load when assembling with thermal over-load relay; frequent start-up and control of AC contactor;
Electric value: AC50/60Hz, 690V, up to 800A; Utilization category: AC-3, AC-4;
Altitude: ≤2000m;
Ambient temperature: -5℃~+40℃; Mounting category: Ⅲ;
Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°;
Standard: IEC/EN 60947-4-1

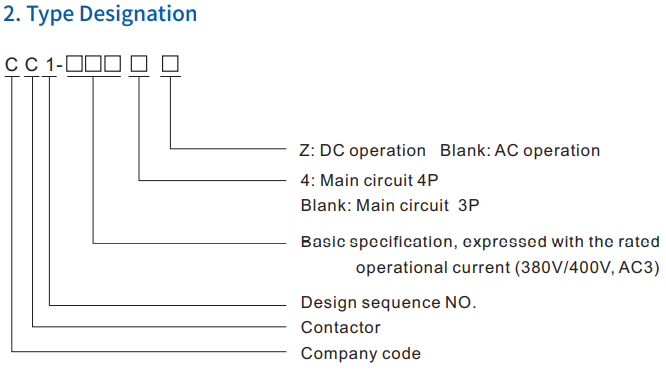

Control Coil Voltage(AC Coil Operation)

Volts(VAC)		24	36	42	48	110	127	220	230	240	380	415	440	480	500	600
Code	50Hz	B5	C5	D5	E5	F5	G5	M5	P5	U5	Q5	N5	R5	-	S5	Y5
	60Hz	B6	-	D6	E6	F6	G6	M6	-	U6	Q6	-	R6	T6	-	-
	50/60Hz	B7	-	D7	E7	F7	-	M7	P7	-	Q7	N7	R7	-	-	-

Control Coil Voltage(DC Coil Operation)

Volts(VDC)	12	24	36	48	110	220
Code	JD	BD	CD	ED	FD	MD

Technical Specification

Standard	IEC/EN60947-4-1
Model No.		CC1-115	CC1-150	CC1-185	CC1-225	CC1-265	CC1-330
Rated Conventional Heating Current	Ith (A)	200	200	275	275	315	380
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Ie(A)	115	150	185	225	265	330
	AC-4 Ie(A)	52	60	79	86	105	117
Power Controlled 3ph cage Motor AC-3	380/415V KW	55	75	90	110	132	160
	660/690V KW	80	100	110	129	160	220
Electrial life (x103 operations)	AC-3	600	600	300	300	300	300
	AC-4	100	100	100	100	100	100
Mechanical life (x106 operations)		6	6	3	3	3	3
Matched Fuse	Size	RT16-1	RT16-2	RT16-2	RT16-2	RT16-2	RT16-3
	A	200	225	315	315	355	450
Main circuit	3P or 4P

Standard	IEC/EN60947-4-1
Model No.		CC1-400	CC1-500	CC1-630	CC1-780	CC1-800	CC1-1000
Rated Conventional Heating Current	Ith (A)	460	580	850	1200	850	1200
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Ie(A)	400	500	630	780	800	1000
	AC-4 Ie(A)	138	147	188	240	195	320
Power Controlled 3ph cage Motor AC-3	380/415V KW	200	250	335	400	400	500
	660/690V KW	280	335	450	475	475	560
Electrial life (x103 operations)	AC-3	300	300	300	200	200	200
	AC-4	100	100	100	50	50	50
Mechanical life (x106 operations))		3	3	3	2	3	2
Matched Fuse	Size	RT16-3	RT16-4	RT16-4	RT16-4	RT16-4	RT16-4
	A	500	630	800	1250	800	1250
Main circuit	3P or 4P

4. Terminal CModel	onnection Cabling(Cu)			Screw size	Tightening torque (N·m)
	Number of piece	Cable Cross section(mm)²	Cu busbar Cross section(mm)²
CC1-115	1	70~90	-	M6	3
CC1-150	1	70~90	-	M8	6
CC1-185	1	95~150	-	M8	6
CC1-225	1	95~150	-	M10	10
CC1-265	1	120~185	-	M10	10
CC1-330	1	185~240	-	M10	10
CC1-400	1(2)	240(150)	30×5	M10	10
CC1-500	2	150~185	40×5	M10	10
CC1-630	2	185~240	50×5	M12	14
CC1-800	2	185~240	50×5	M12	14

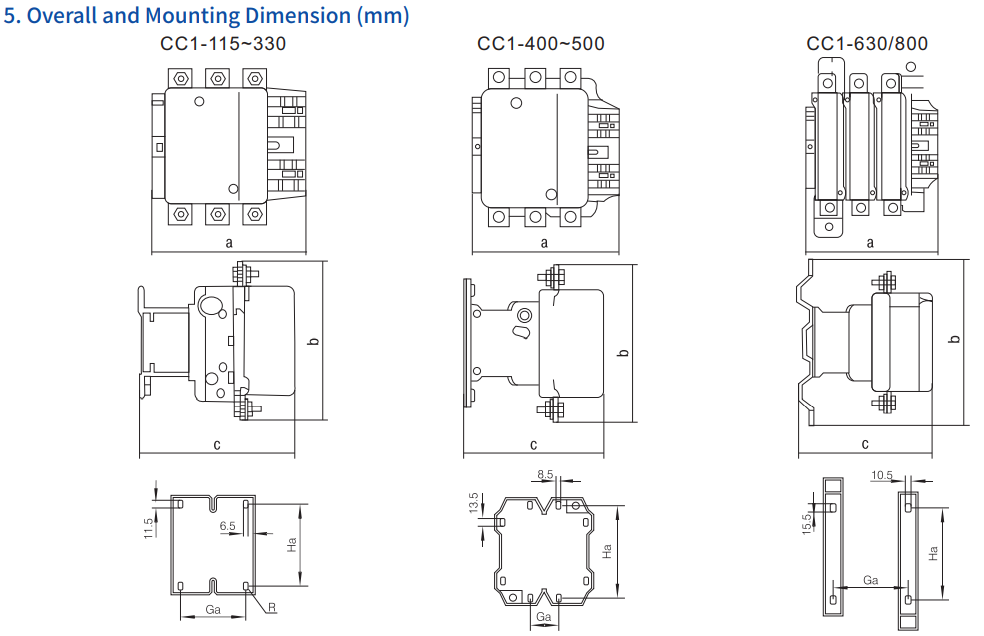

Model	A max	B max	C max
CC1-115	163.5	162	171
CC1-150	163.5	170	171
CC1-185	168.5	174	181
CC1-225	168.5	197	181
CC1-265	201.5	203	213
CC1-330	213	206	219
CC1-400	213	206	219
CC1-500	233	238	232
CC1-630/800	309	304	255
