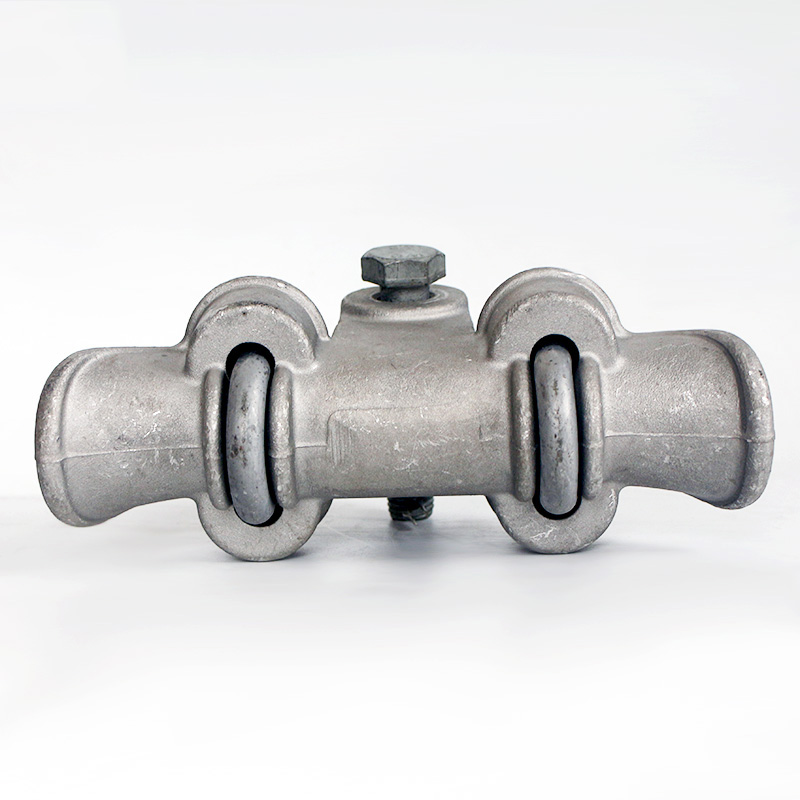

CGF-5C Malleable Iron Suspension Clamp For Electric Power Accessories
Products Parameter
| Product name | Socket eye /Insulator end fittings | ||||||
| Color | Sliver | ||||||
| Delivery time | Quantity | ||||||
| Usage | The last part of an insulator in transmission line strings | ||||||
| OEM/ODM | Customization Service Provided | ||||||
| Malleable Iron Suspension Clamp For Electric Power Accessories | |||||||
| Basic Data | |||||||
| Type | Equal type | Main Diamensions（mm） | Nominal damage load（kN) | ||||
| H | L | R | C | M | |||
| CGH-2 | Φ7.0-12.4 | 60 | 146 | 9 | 19 | 16 | 40 |
| CGH-3 | Φ12.4-17.0 | 65 | 200 | 11 | 22 | 16 | 40 |
| CGH-4 | Φ19.0-21.5 | 70 | 220 | 12 | 28 | 16 | 40 |
| CGH-5 | Φ24.2-33.0 | 85 | 250 | 18 | 37 | 16 | 70 |
| CGH-6 | Φ34.0-45.0 | 90 | 300 | 23 | 48 | 16 | 70 |
| Power fittings are metal accessories that connect and combine various devices in the power system and play a role in transmitting mechanical load, electrical load and some protection. The suspension clamp is primarily used to fix conductors to insulator string or hang lighting conductor s on straightline towers. Moveover, it also can be used for transposition towers to support transposition conductors and tension towers or angle poles to fix the jumper wires. |
|||||||

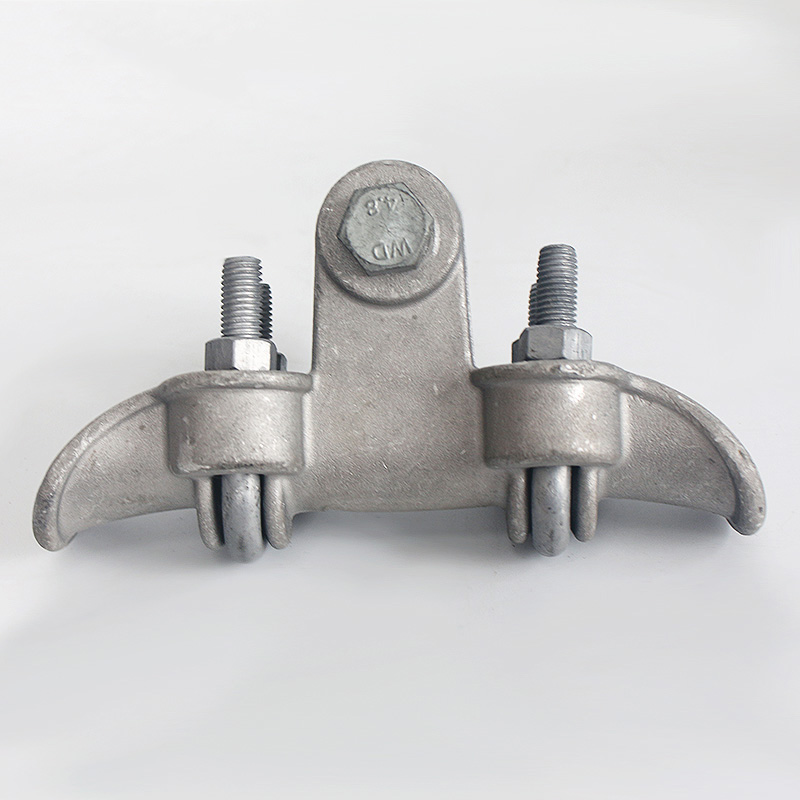

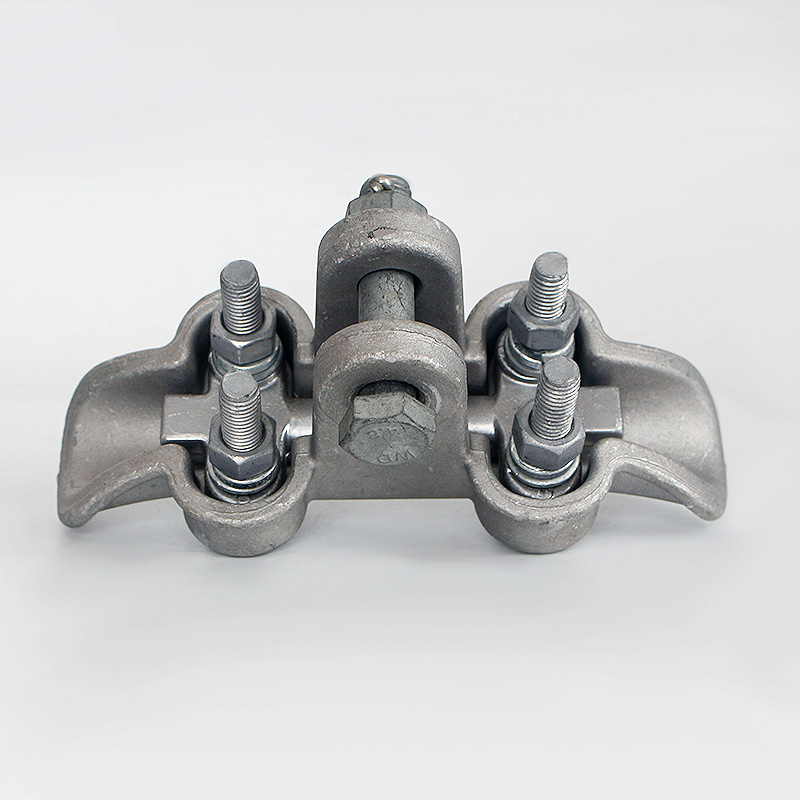

Product Details
The suspension clamp is used for binding aluminum belts or wire protective bars outside the conducting wires when laying aluminum strand cable.
The clamp body and keepers are aluminum alloy.
Cotter-pin is stainless steel.
The other parts are steel and hot-dip galvanized.
Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.
Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.
When the suspension clamp is used for aluminum stranded wire and steel core aluminum stranded wire, it can be wrapped with aluminum sheathing or protective wire to protect the wire. The applicable outer diameter of the wire includes wrappings.
