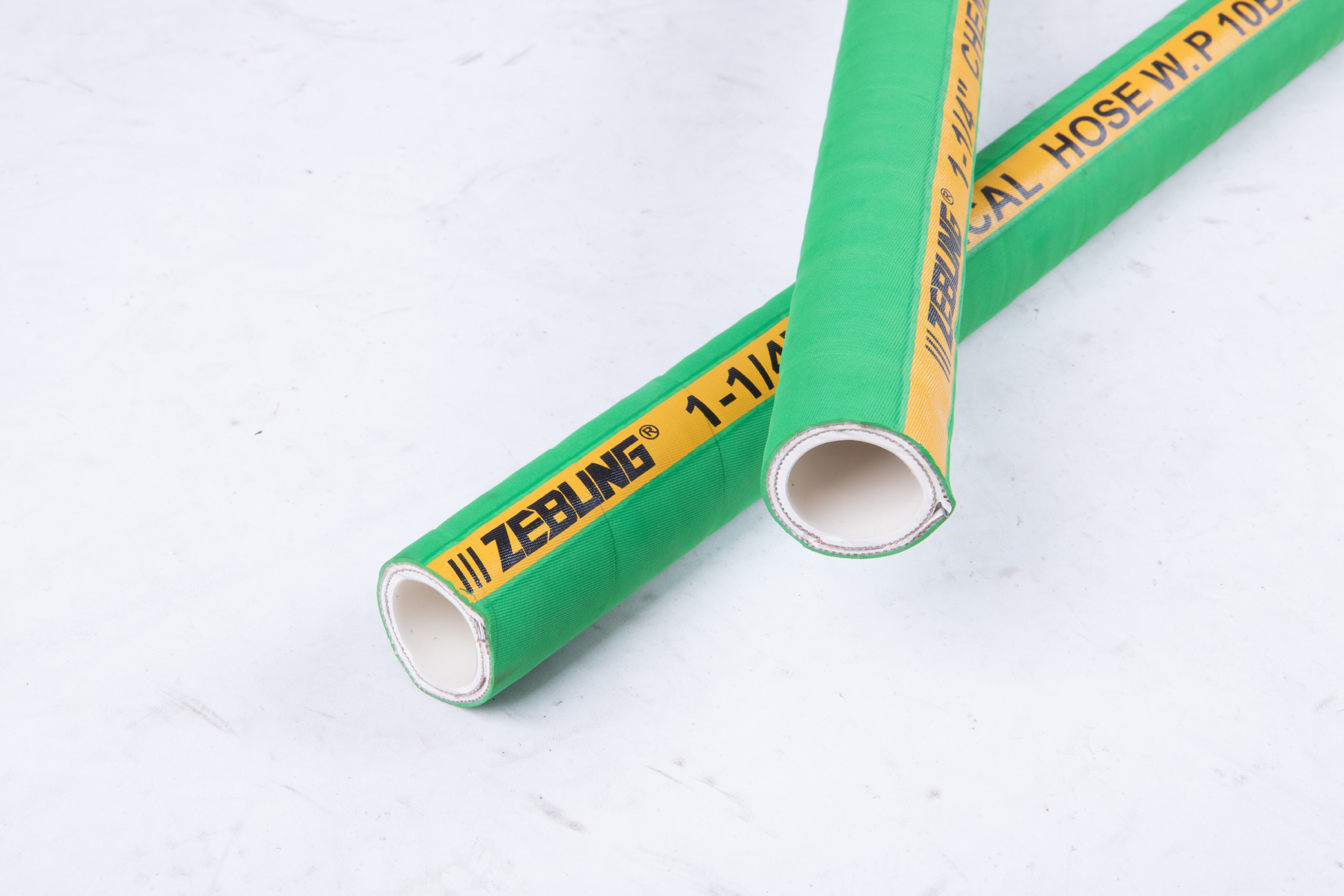

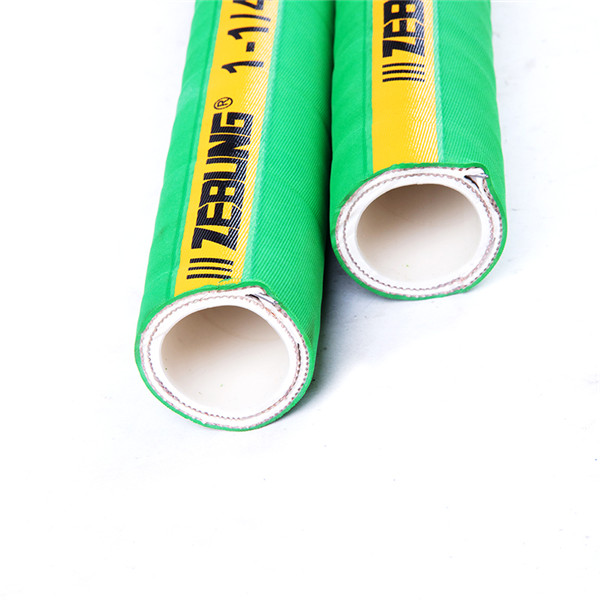

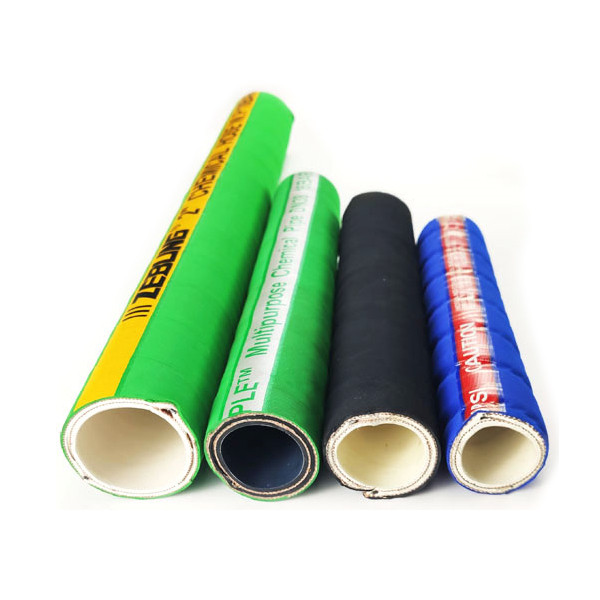

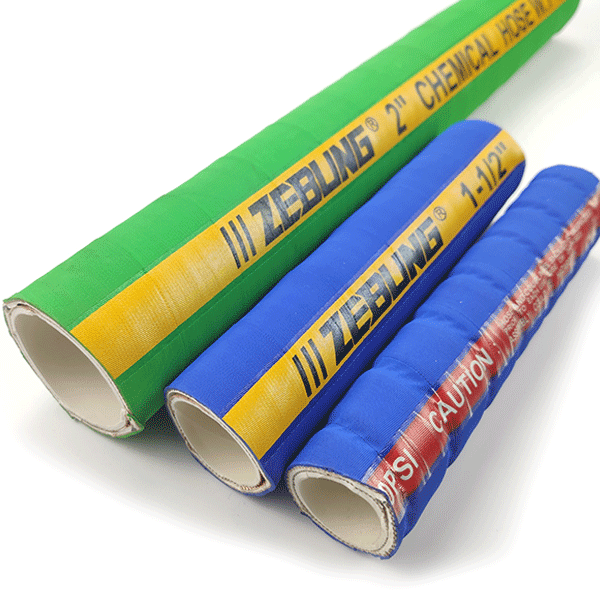

Chemical Hose
Chemical hose with good price
Construction
Tube: White,Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), EPDM
Reinforcement: High tensile textile cord with helix steel wire
Cover rubber:EPDM resistant to chemical,weathering and ozone,blue,green wrapped or corrugated.
Ideal working temperature:—40℃~120℃(-72℉ to +248℉).
Safety factor:3:1.
![[副本][副本][副本][副本][副本][副本][副本][副本]未命名](/uploads/副本副本副本副本副本副本副本副本未命名.jpg)
Application
Flexible UHMWPE chemical hose are widely used in suction and discharge strong acids and alkali and all kinds of industry liquid. The main characteristics are more flexible, aging-resistance abrasion-resistance, oil-resistance and water & ozone resistance.
![[副本][副本][副本][副本][副本][副本]未命名](/uploads/副本副本副本副本副本副本未命名2.jpg)
Handle 98% of the chemical/acid
Heat,weather,abrasion resistant EPDM cover.
Construction for 150psi,250psi,300psi working pressure
Packaging Details:We Could Design Package According To Customer’s Desire.
|
I.D. |
O.D. |
W.P. |
B.P. |
B.R. |
Weight |
Length |
||||
|
mm |
inch |
mm |
psi |
bar |
psi |
bar |
mm |
kg/m |
ft |
m |
|
19 |
3/4″ |
30 |
150 |
10 |
450 |
30 |
100 |
0.67 |
200/130 |
61/40 |
|
25 |
1″ |
36 |
150 |
10 |
450 |
30 |
150 |
0.84 |
200/130 |
61/40 |
|
32 |
1-1/4″ |
44 |
150 |
10 |
450 |
30 |
190 |
1.2 |
200/130 |
61/40 |
|
38 |
1-1/2″ |
51 |
150 |
10 |
450 |
30 |
220 |
1.5 |
200/130 |
61/40 |
|
45 |
1-3/4″ |
58 |
150 |
10 |
450 |
30 |
270 |
1.75 |
130 |
40 |
|
51 |
2″ |
64 |
150 |
10 |
450 |
30 |
300 |
1.93 |
200/130 |
61/40 |
|
57 |
2-1/4″ |
71 |
150 |
10 |
450 |
30 |
340 |
2.32 |
130 |
40 |
|
64 |
2-1/2″ |
78 |
150 |
10 |
450 |
30 |
380 |
2.55 |
200/130 |
61/40 |
|
76 |
3″ |
90 |
150 |
10 |
450 |
30 |
450 |
3.08 |
200/130 |
61/40 |
|
102 |
4″ |
120 |
150 |
10 |
450 |
30 |
550 |
4.97 |
200/130 |
61/40 |
|
152 |
6″ |
171 |
150 |
10 |
450 |
30 |
750 |
8.17 |
200/130 |
61/40 |
Own film production base
The quality of film directly determines the quality of hose. Therefore, zebung has invested a lot of money to build a film production base. All hose products of zebung adopt self-produced film.
Multiple production lines to ensure production progress
Our factory has many modern production lines and a large number of experienced technical engineers. It not only has high quality production quality, but also can ensure the customer’s requirements for the supply time of products.
Each pipeline product is subject to strict inspection before leaving the factory
We have established a high-tech product and raw material testing laboratory. We have been committed to the digitization of product quality. Each product needs to go through a strict inspection process before it can leave the factory after all product data meet the requirements.
Covering the global logistics network and strict finished product packaging and delivery process
Relying on the distance advantages of Tianjin port and Qingdao port, Beijing Capital International Airport and Daxing International Airport, we have established a fast logistics network covering the world, basically covering 98% of countries and regions around the world. After the products are qualified in the off-line inspection, they will be delivered at the first time. At the same time, when our products are delivered, we have a strict packing process to ensure that the products will not cause losses due to logistics during transportation.
WHY CHOOSE US
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
