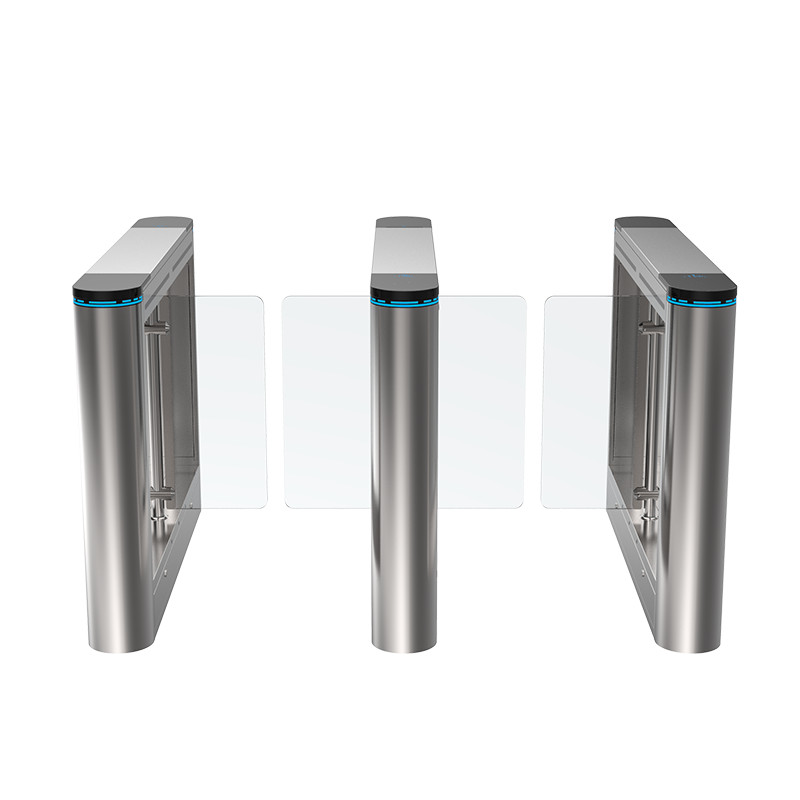

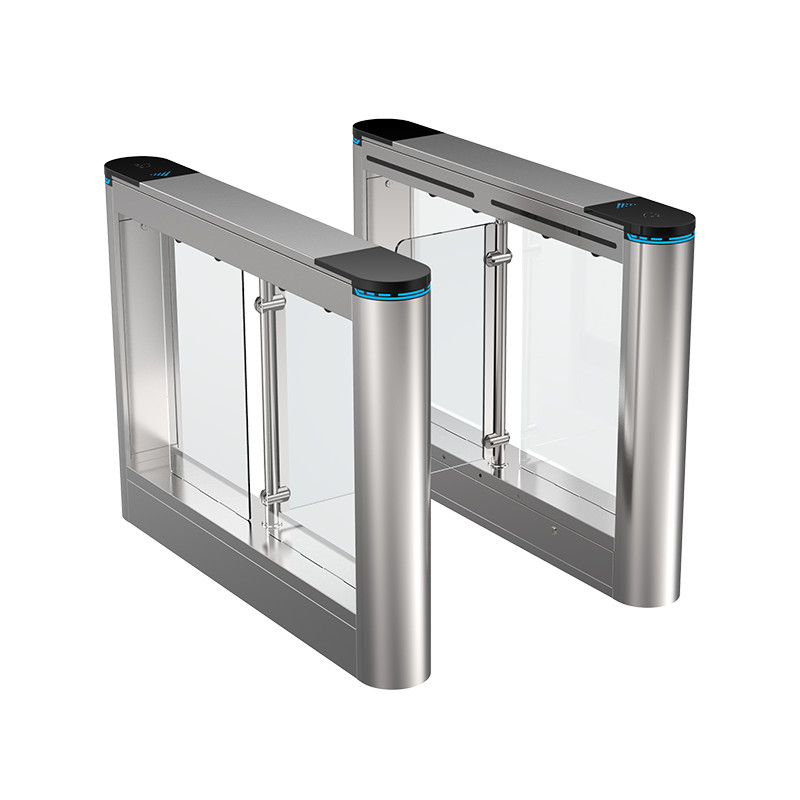

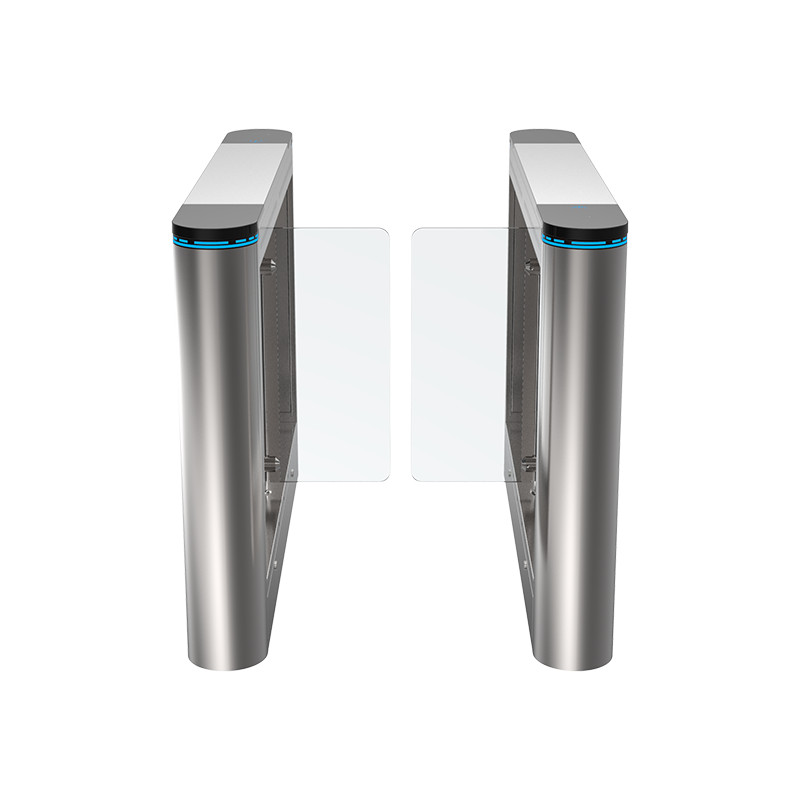

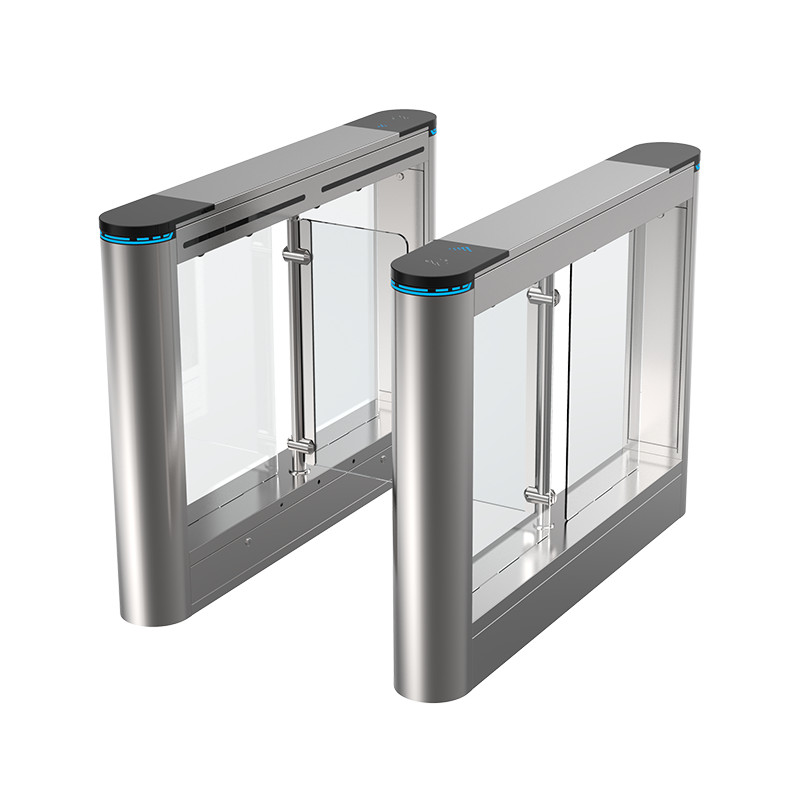

China Supplier Access Control System Swing Barrier Turnstile Gate with Large Wide Passage Acrylic Wing Arm for School
Working Video
Product Parameters
| Item | China Supplier Access Control System Swing Barrier Turnstile Gate with Large Wide Passage Acrylic Wing Arm for School |
| Size | 1400x185x1020mm |
| Main Material | 1.5mm imported SUS304 Top cover + 1.2mm Body + 10mm transparent Acrylic barrier panels |
| Pass Width | 600mm for normal pedestrian lane, 1100mm for handicapped lane |
| Pass Rate | 35-50 person/min |
| Working Voltage | DC 24V |
| Power | AC 100~240V 50/60HZ |
| Communication Interface | RS485 |
| Open signal | Passive signals (Relay signals, Dry contact signals) |
| MCBF | 3,000,000 Cycles |
| Motor | 30K 20W Brushed DC motor |
| Infrared Sensor | 5 pairs |
| Working Environment | ≦90%, No condensation |
| Applications | Campus, Office buldings, Airports, Railways,Hotels, Governemnt Halls, etc |
| Package Details | Packed into wooden cases Single: 1485x270x1220mm, 85kg Double: 1485x270x1220mm,105kg |
Product Descriptions
Function Features
·Varied pass mode can be chosen flexibly
·Standard signal input port, can be connected with most of the access control board, fingerprint device and scanner other equipment
·The turnstile has automatic reset function, if people swipe the authorized card, but don’t pass through within the settled time, it need to swipe card again for entry
·Card-reading Recording function: single-directional or bi-directional access can be set by the users
·Automatic opening after emergency fire signal input
·Pinch protection
·Anti-tailgating control technology
·Automatic detection, diagnosis and alarm, sound and light alarm, including trespassing alarm, anti-pinch alarm and anti-tailgating alarm
·High light LED indicator, displaying passing status
·Self diagnostic and alarm function for convenient maintenance and use
·The Swing barrier gate will automatically open when power failure (connect 12V battery)
Applications: Campus, Office buldings, Airports, Railways, Hotels, Governemnt Halls, etc
Product Descriptions
Mechanical Swing gate PCB board
Features:
1. Arrow + three-color light interface
2. Double anti-pinch function
3. Memory mode
4. Multiple traffic modes
5. Sound and light alarm
6. Dry contact / RS485 opening
7. Support fire signal access
8. LCD display
9. Support secondary development
Product Descriptions
·Molding: Die-cast aluminum one-piece molding, Special surface spray treatment
·High Efficient: High precision 1:3.5 spiral bevel gear bite transmission
·Mechanical anti-pinch: Built-in special asbestos friction sheet
·High strength: The drive wheel is made of bearing steel, Hardened surface nitriding treatment
·Long life time: Measured 5 millions times
Mould made Mechanical Swing gate Machine Core
·Made of mould, which is much more stable, unity of quality
·1400mm length design housing, can be used for most sites
·185mm width enough housing, can put large mini PC access controller inside
·Two types, can be used for both indoor and outdoor
·Mechanical Swing gate PCB board made of mould
·5 pairs high safety Infrared Sensors
·Best seller of Mechanical Swing gate, 3-5 days fast delivery
·Customization is acceptable
·Can satisfy with 80% customer’s requirements
Product Dimensions
Project Cases
Our Swing Barrier Turnstile Gates installed in New Delhi Airport, India
