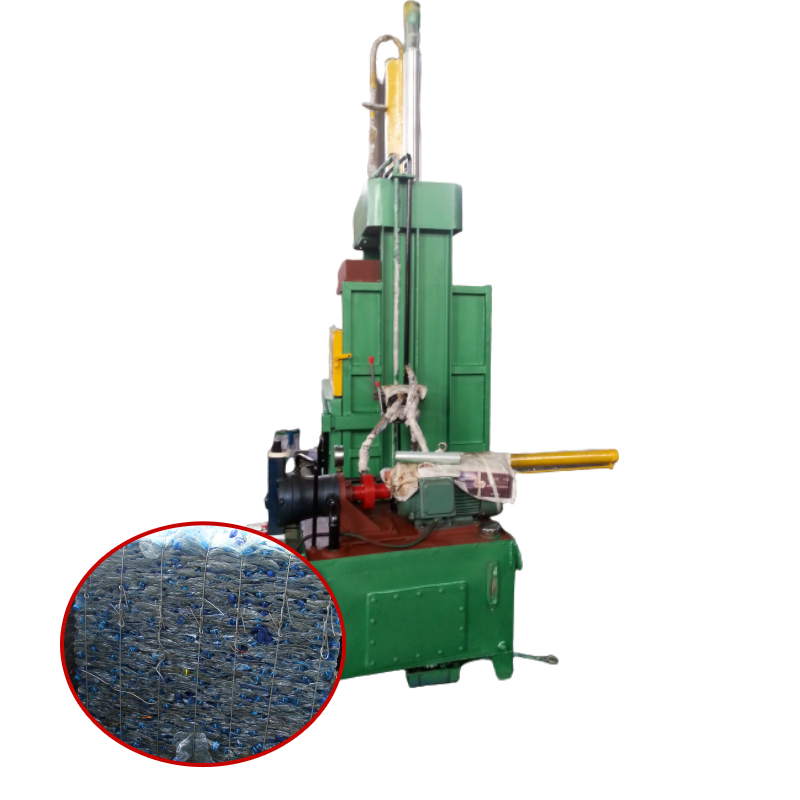

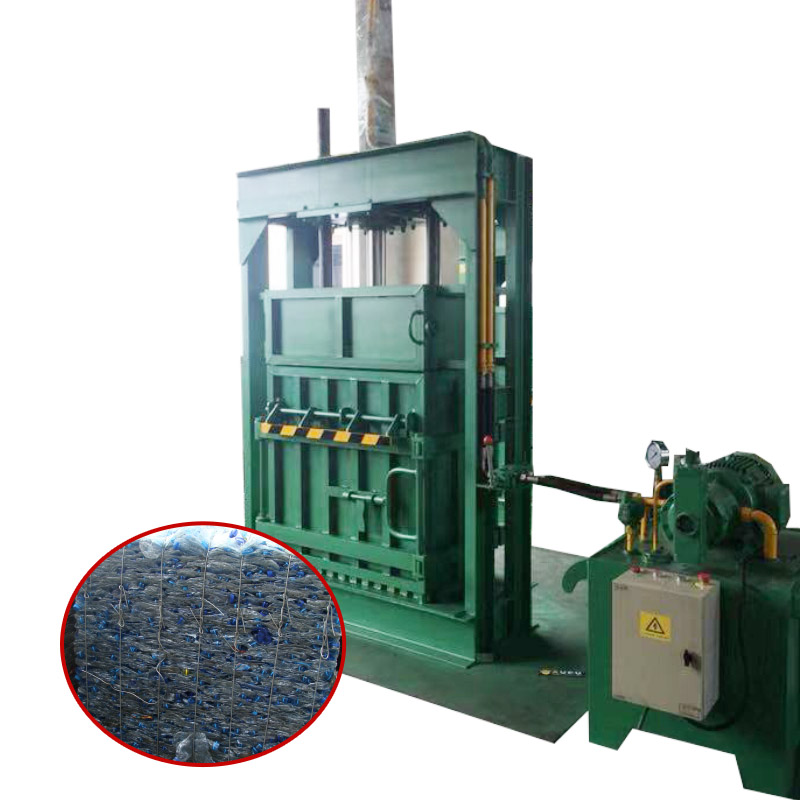

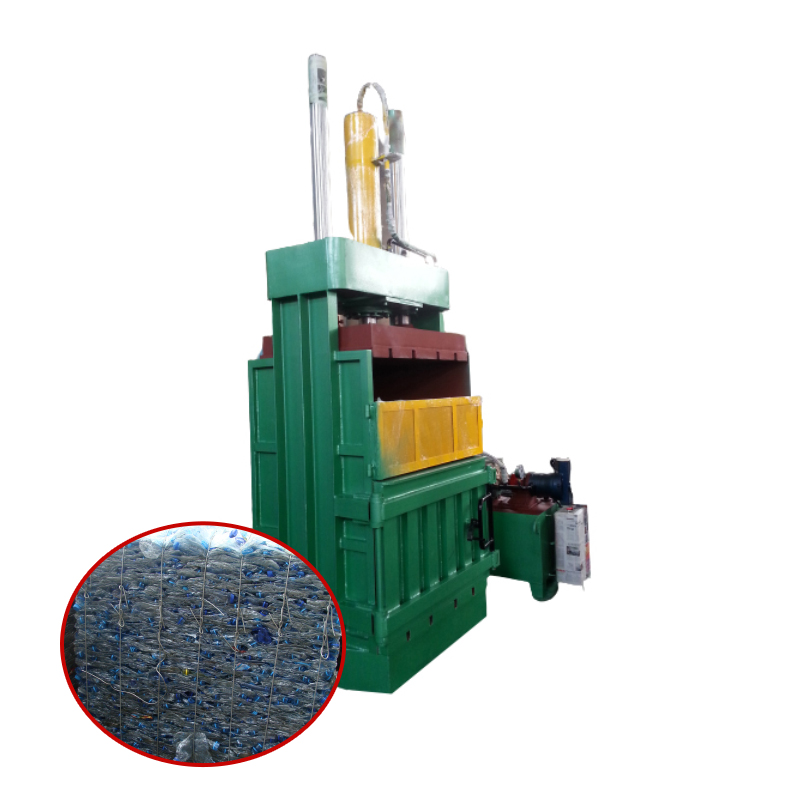

Chinese Manufacture Manual Control Y82 Series Vertical Hydraulic non-metal Press Baler Machine

Short Description:

This kind of hydraulic vertical non-metal press baler machine is widely used for pressing waste paper, waste carton box, waste pet bottles ,  waste plastic , film, used clothes, wool and some other light and thin metal.


Product Detail

Product Tags

More than 25+ years of production experience, providing customized more than 3000+ sets scrap metal recycling schemes.

INTRODUCTION

Place of Origin JIANGYIN, CHINA
Model Y82 Series
Hydraulic pressure 25-1000 Tons
Bale size 700 *400 mm or Custom
Chamber size 700*400*1200 mm or Custom
Motor 7.5kw or custom
Color Custom
Operation Manual control

PRODUCT INTRODUCTION

Production detail:

Y82 series vertical hydraulic non-metal press baler machine has good benefits for non-metal recycling industry. Nowadays, the shortage of available resources is a problem that every country is facing. No matter developing or developed countries, how to do best recycle is always a hot topic. So we design all kinds of hydraulic non-metal vertical baler machine for our clients to deal with their scrap non-metal to meet our clients’ requirements.

This kind of hydraulic vertical non-metal press baler machine is widely used for pressing waste paper, waste carton box, waste pet bottles ,  waste plastic , film, used clothes, wool and some other light and thin metal.



Features:

Hydraulic drive, smooth operation and no noise, fast extrusion speed, large extrusion force, compact block, not easy to disperse.
●The cylinder seal adopts imported GRAI ring, which has good sealing performance and strong pressure resistance.
●Easy installation, small footprint, no foundation, foundation, etc. Simple operation, detachable
●Compression chamber size and package size can be customized according to customer requirements.
●Our hydraulic vertical non-metal baler press machine has mobile type chamber box, is easy to tie up the scrap



Benefits:

●PLC control, push button operation is easy to operate and maintain.
●Clients can choose electric power or diesel-driven generator machine, diesel drive machine can help you achieve mobile pressing non-metal.
●Our hydraulic vertical non-metal baler press machine can help you save labor, improve non-metal recovery, increase the selling price and improve the profit.
●It can help you save working place area, is beneficial to site management.
●Clients can customize packaging specifications and sizes according to their own  needs for transportation or storage.
●It can help you reduce transportation cost, improve your working efficiency

DETAILS

PRODUCT DETAILS

2.CONTROL BUTTON

Manual control, convenient operation, simple maintenance.

4. MOBILE CHAMBER

Mobile chamber, easy operation, Manual strapping.



1.PRESS CYLINDER
Main pressure for pressing the waste material, this can make the waste into the bale.

3. HYDRAULIC SYSTEM
We can custom the all-in-one machine hydraulic system for this hydraulic vertical non-metal baler press machine.

TECHNICAL PARAMETER

Model

   Application

Chamber size  (L x W x H/ mm Bale weight(KG)

Power(kw

Y82-25T

used clothes/ waste paper

1000 x 450

≥100

7.5

Y82-25T

pet bottle / waste paper

1100 x 750

≥200

15

Y82-80T

pet bottle / waste paper

1100 x 1100

≥200

18

Y82-100T

cardboard / waste paper

1100 x 1100

≥300

18

APPLICATION CASES

Our hydraulic vertical non-metal press baler machine are widely used in waste paper recycling, plastic recycling, used clothes recycling, carton box recycling, wool, pet bottles recycling, and some other light metal recycling.

COOPERATIVE SUPPLIERS

Our hydraulic vertical non-metal baler press machine provide custom famous brand machine parts, we have been cooperating with many world-famous brand supplier, like SIEMENS, NOK OMRON, SCHNEIDER, CHINT, MITSUBISHI and so on for more than 10 years

PRODUCTIVE PROCESS

SHIPMENT

We will use wrapped film packaging and wooden packaging to protect Our hydraulic vertical non-metal baler press machine, we will make good protection for Our hydraulic vertical non-metal baler press machine before loading container.

Watch Vertical Watch Vertical Y82 Series Vertical Hydraulic non-metal Press Baler Machine in Action! in Action!
