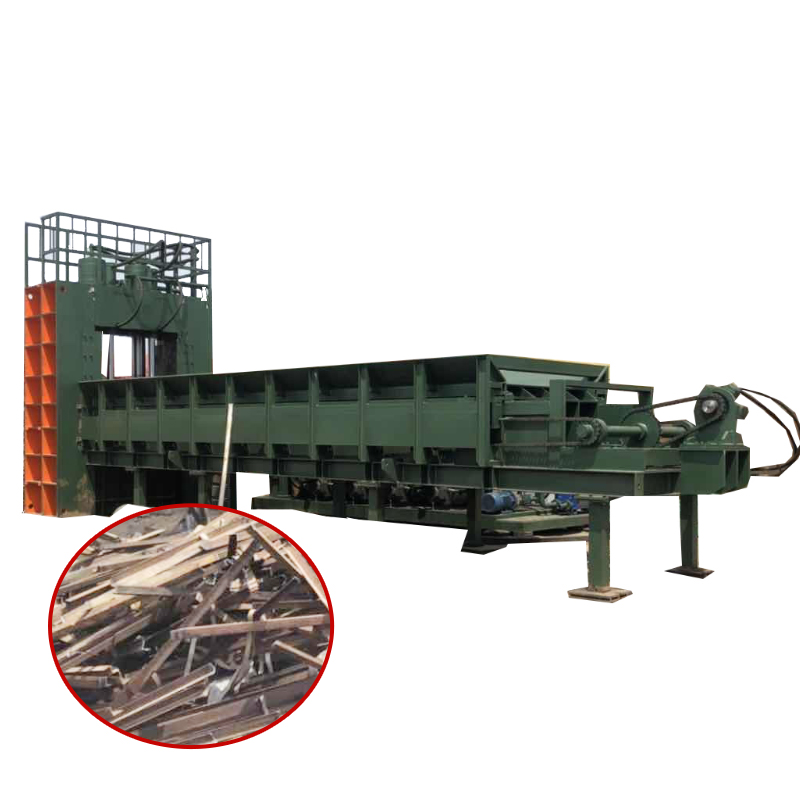

Chinese Manufacture Q91Y Series Hydraulic scrap metal heavy duty shear machine
| Place of Origin | JIANGYIN, CHINA |
| Model | Q91Y Series |
| Max Cutting Force | 250-1250Tons |
| Blade length | 1600-2000mm |
| Motor | 60kw-315kw |
| Color | Custom |
| Operation | Automatic control |
Production detail：
Our Q91Y series hydraulic heavy duty scrap shear machine is widely used in all kinds of solid waste scrap iron, heavy waste, light and thin scrap steel, scrap car shell, steel made of light metal structure large, profile, production and life scrap steel, all kinds of plastic non-ferrous metal (stainless steel, aluminum alloy, copper, etc.) compression packaging and shearing to meet the applicable specifications of the charge, Q91Y series hydraulic heavy duty scrap metal shear machine is an ideal equipment for steel mills, nonferrous metal smelting industry, foundry industry and raw material manufacturers.
Q91Y hydraulic heavy waste shearing machine also has the extrusion function, which can extrude a number of irregular small scrap steel in the material box for shearing, after the extrusion and shearing of the broken scrap steel, the surface rust layer and other harmful substances can be partially peeled off, improving the purity of scrap steel. It can be used to shear the heavy waste of various sizes. Q91Y series hydraulic heavy duty scrap shear machine can completely replace the flame cutting. It is safe and efficient to feed with steel grasping machine or forklift truck.
Features:
●Q91Y series hydraulic Heavy duty scrap metal shear machine adopts steel plate combined welding structure, the machine has a high rigidity, the welding parts by artificial aging annealing treatment, eliminate the welding stress, machine precision good, stable.
● The blade made of cutting tool steel has long life and durability.
● The clearance of the blade is adjustable, which improves the working accuracy of the machine tool and the service life of the blade.
●The main frame of the material box is made of welded structural steel, and the inner box wall is made of NM500 steel plate with ultra-high wear resistance, which mentions the wear resistance of the material box. The movement of the pushing head of the material box is driven by an independent hydraulic system, through the hydraulic motor and the chain. The size of the pushing material is automatically controlled smoothly, and it has the characteristics of high and reliable anti-overload protection.
●Hydraulic system with independent intellectual property rights and independent design. The main shear cylinder adopts the differential circuit to give full play to the function of the kinetic energy system. The whole hydraulic system is compact and the piping arrangement is reasonable, which reduces the usage of hydraulic pipe joints and elbows, thus reducing the heating factor of the hydraulic system and effectively ensuring the normal and reliable operation of the hydraulic system.
●The oil tank design, reasonable volume, high structure rigidity, oil return port and oil suction port is separated by a partition, effectively reduce the heat of hydraulic oil.
Benefits:
●Q91Y series hydraulic heavy duty scrap metal shear machine use the upper compression and compression of both sides of the scrap integral and segmented feeding way, the design of the wide material box, so the applicability of scrap raw material is good, high density after shear.
●The opening area of the material box is large, suitable for machining materials, loose heavy waste, light and thin steel scrap, automobile shell, large irregular light steel structure, steel pipe, steel plate, channel steel, I steel, steel bar and other profiles shearing, easy into the material box, fully magnify the utilization rate of the equipment.
●PLC automatic control touch screen control panel automatic integrated control, and multi-angle whole-process monitoring system, convenient for users to control and whole-process tracking equipment usage. Stable and reliable operation, optional wireless remote control device, single operator production line supporting equipment.
●Q91Y series hydraulic heavy duty scrap metal shear machine use reliable large flow logic valve control, independent filtration and cooling system, can ensure the system efficient and stable operation. The comprehensive application of constant power variable and differential fast technology can save about 30% while ensuring the output, and the energy consumption per ton of scrap steel processing is lower than the industry standard requirements.
|
Model |
Max Cutting Force(Ton) |
Chamber size(mm) |
Blade Length(mm) |
Capacity(T/H) |
Shearing Frequency（times/min） |
Power(Kw) |
|
Q91Y-2500 |
250 |
3000×1200×900 |
1200 |
2-3T |
3-5 |
2×30 |
|
Q91Y-3150 |
315 |
5000×1400×1200 |
1400 |
3-4T |
3-5 |
45+22 |
|
Q91Y-4000 |
400 |
6000×1400×1200 |
1400 |
5-6T |
3-5 |
2×45 |
|
Q91Y-5000 |
500 |
6000×1600×900 |
1600 |
6-8T |
3-5 |
3×45 |
|
Q91Y-6300 |
630 |
8000×1800×1200 |
1800 |
12-15T |
3-5 |
4×45 |
|
Q91Y-8000 |
800 |
8000×1800×1200 |
1800 |
16-18T |
3-5 |
5×45 |
|
Q91Y-10000 |
1000 |
8000×1800×1200 |
1800 |
18-22T |
3-5 |
6×45 |
|
Q91Y-12500 |
1250 |
10000×2000×1400 |
2000 |
20-25T |
3-5 |
7×45 |
Our Q91Y series hydraulic heavy duty scrap shear machin provide custom famous brand machine parts, we have been cooperating with many world-famous brand supplier, like SIEMENS, NOK OMRON, SCHNEIDER, CHINT, MITSUBISHI and so on for more than 10 years
The minimum model Q91Y hydraulic heavy duty scrap metal shear machine can be protected well in one 40 HQ container. If ship by boat, we will cover the poncho and Load deck to protect our Q91Y hydraulic heavy duty scrap metal shear machine.
Watch Q91Y series Hydraulic heavy duty scrap metal shear Machine for Cutting Metal in Action!
