Combined Non Solid Tantalum Capacitors|CBEI
SPECIFICATIONS
Operating Temperature：-55℃ to +125℃ (to +125℃, with rated
Storage Temperature：-62℃ ~ +130℃
Capacitance Tolerance：Q: (-10%~+30%), K: (±10%), M: (±20%)
Lead Length：(110±20)mm

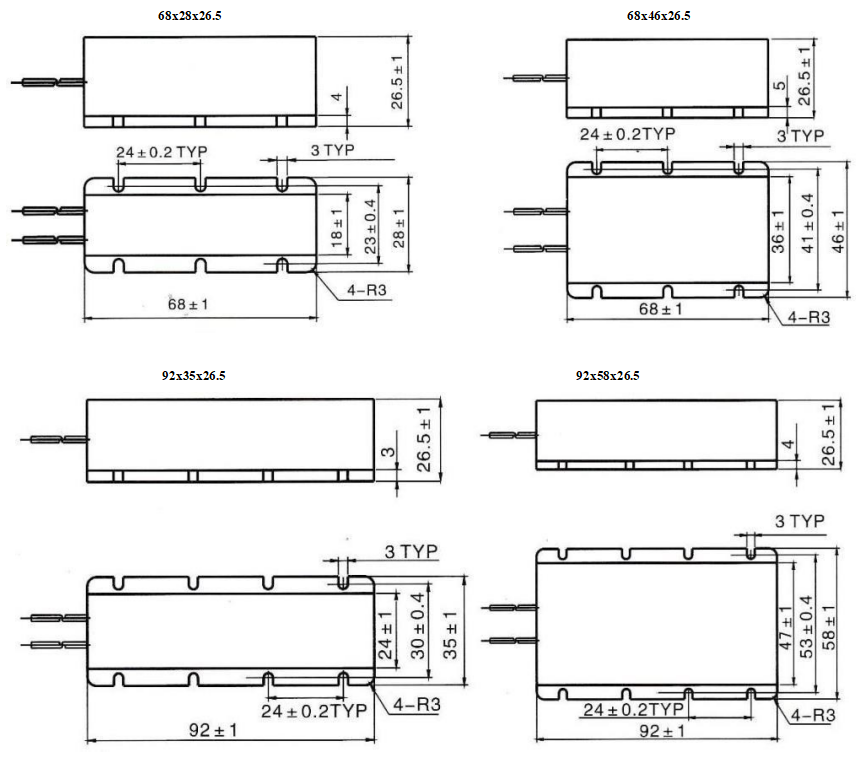

Dimensions (unit: mm)
Note
1.Please do not use multimeter through the measuring procedures (may cause irreversible damage and lead to discard).
2.Capacitance and DF measured at 100Hz, U_=2.200-1.0V, U~=1.00-0.5V Test only applied in series equivalent circuit.
3.Voltage derating is applied at +125℃. (The DCL parameter should be read after 5 minutes when it connected to the circuit).
4.Special size and demand could consult with us.
