CW61125M Conventional Lathe Heavy Duty Lathe

Short Description:

CW-M series Mature structure, large power, strong rigidity, wide range of spindle speed regulation, suitable for strong force or high speed cutting, can complete the various shaft and disk parts of the inner and outer cylindrical surface, cone surface, end face, groove cutting, chamfering, drilling and tapping processes, and can process common metric thread. Ink thread, module thread, diameter thread and taper thread (special thread to consult), small tool rest can motor turning short cone, longitudinal feed to small tool rest feed compound movement can motor turning long cone, to large complex parts can show superiority.

Send email to us

Product Detail

Product Tags

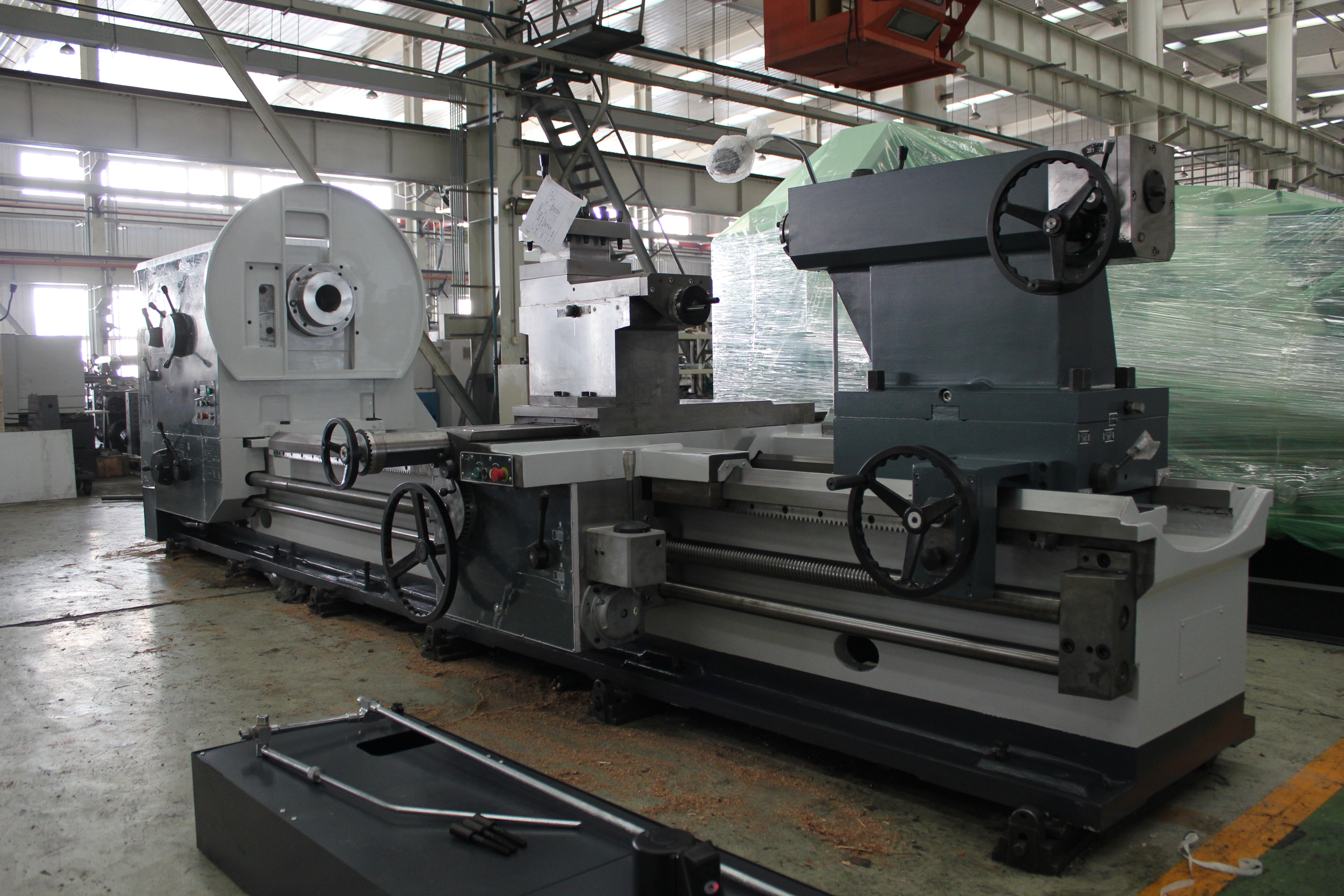

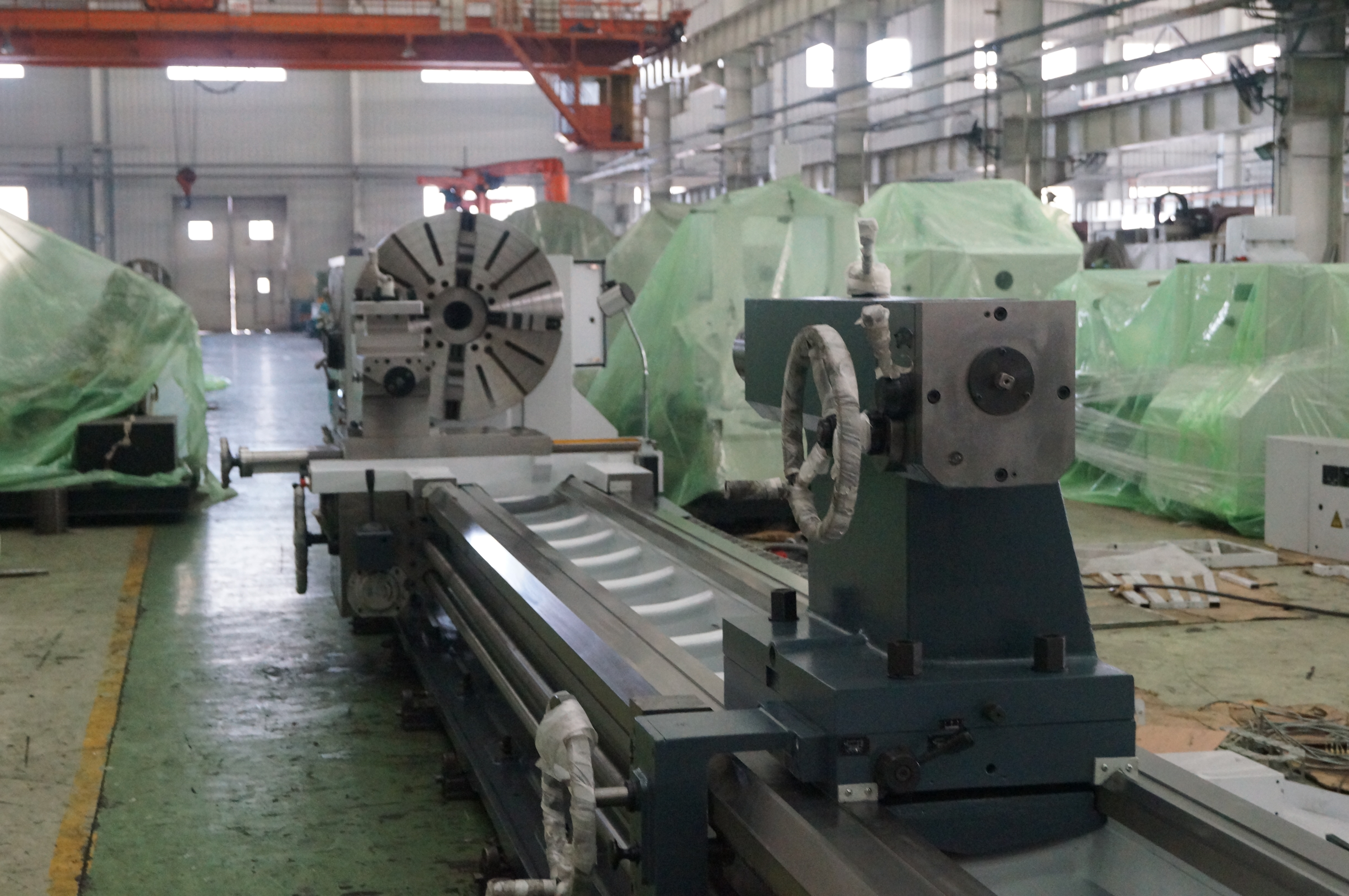

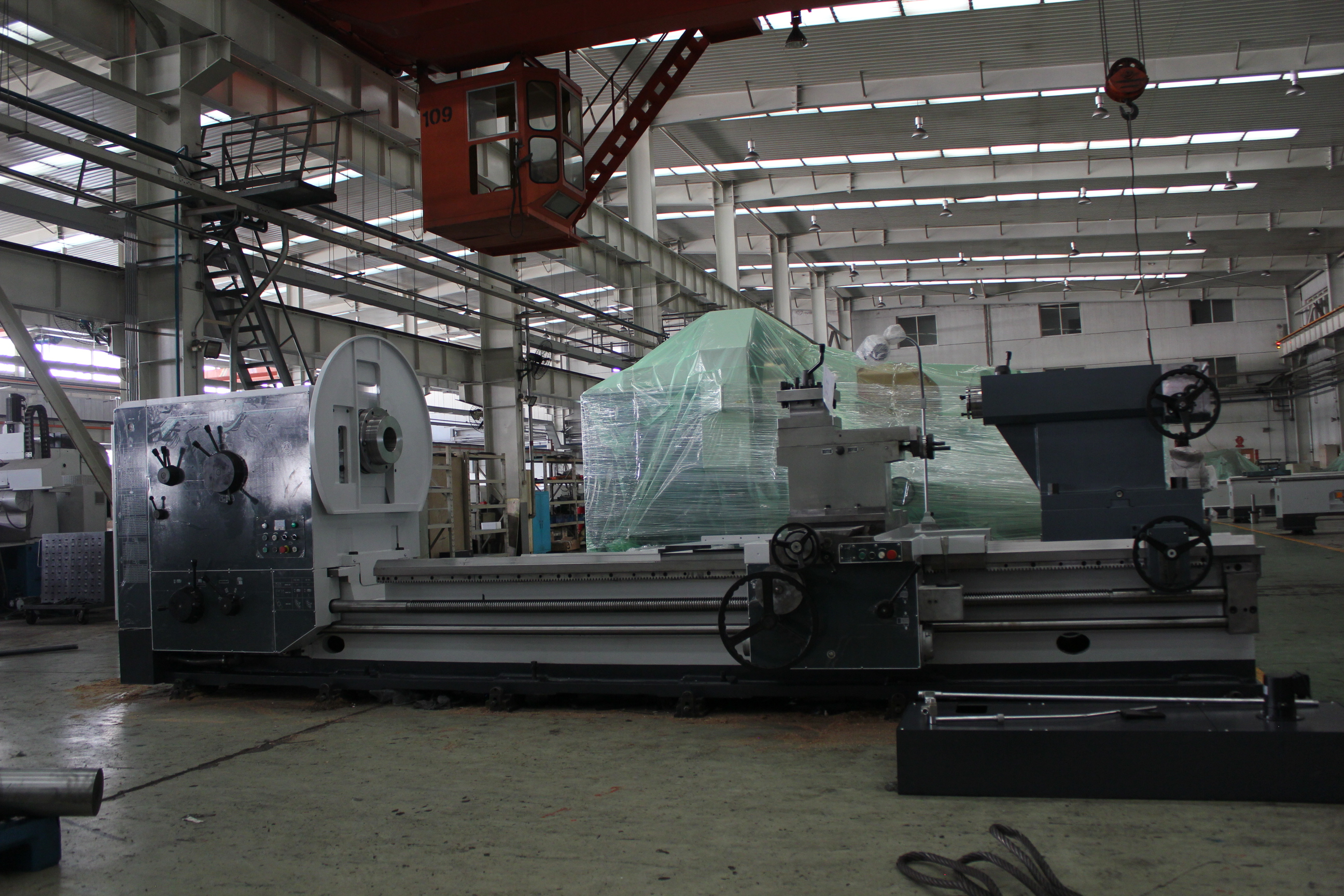

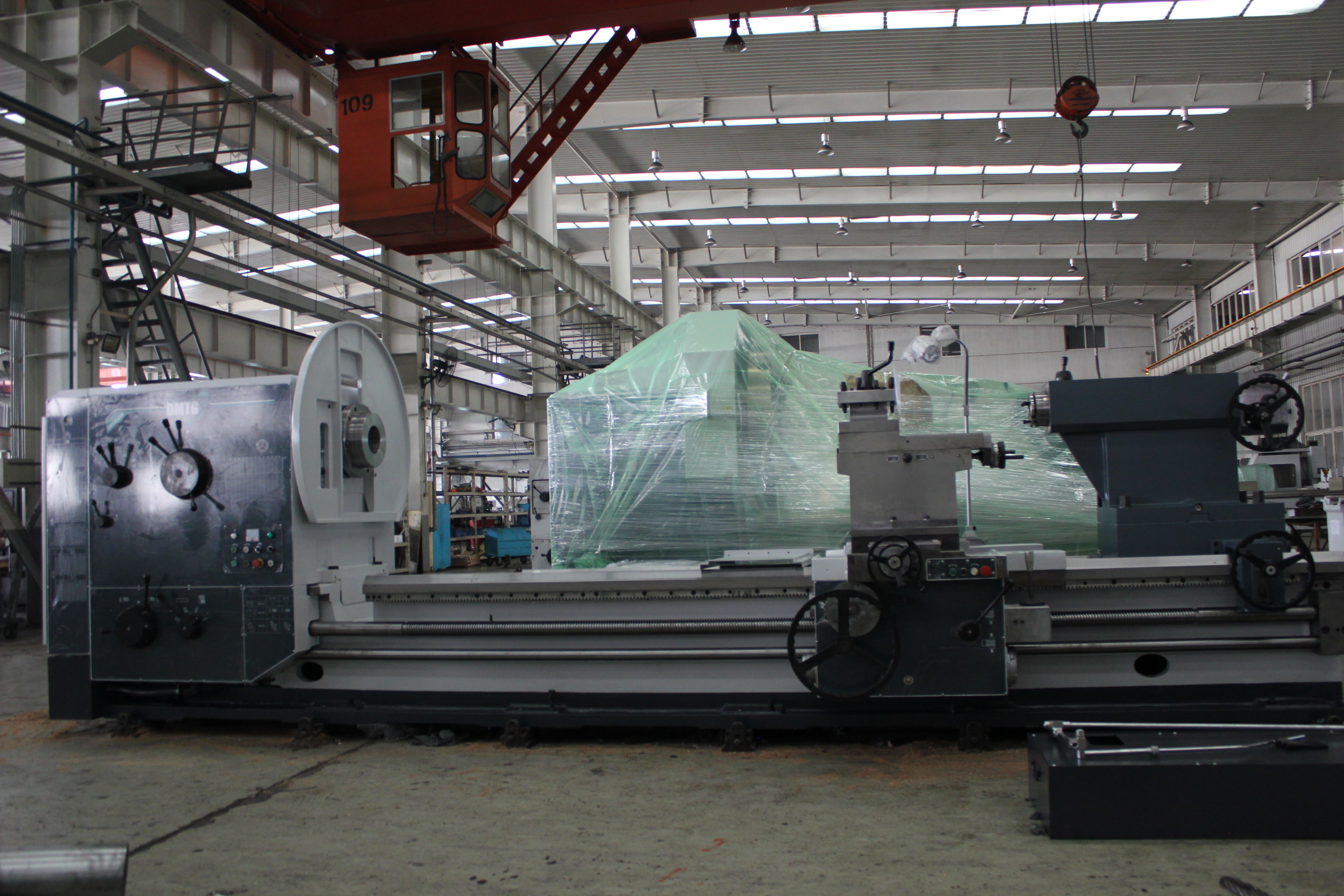

1. MACHINE PICTURES

2. SPECIFICATION

CW-M SEIRES HEAVY DUTY LATHE—(6T)
ITEM	UNIT	CW61100M CW62100M	CW61125M CW62125M	CW61140M CW62140M	CW61160M CW62160M
Swing diameter over bed	mm	1000	1250	1400	1600
Swing diameter over carriage	mm	630	880	1030	1230
Swing diameter in gap	mm	1400	1650	1800	2000
Max workpiece length	mm	1500/2000/3000/4000/5000/6000/8000
Max. Loading Capacity	kg	6000
Spindle bore	MM	130
Spindle hole Taper		A2-15
Spindle Speed	rpm	3.15～315
Tailstock Sleeve Diameter	mm	160
Tailstock sleeve travel	mm	300
Tailstock sleeve taper		Metric 80

NO.	ITEMS
1	4-Jaw Chuck
2	Horizontal and Vertical Copper Nut
3	Fast moving Motor
4	4 station toolpost
5	Exchange Gear
6	Manual Tailstock
7	Tool kits
8	Cooling system
9	Hydraulic Motor
10	Working light
11	Foundation Bolt

3. MACHINE DETAILS

HIGH RIGID STRUCTURE DESIGN
	The main basic parts of bed and head of the bed are all cast in resin sand, the artificial aging treatment and the stability of the whole machine are superior.The bed body adopts HT300 material, the guide rail of the bed is hardened by high frequency, the guide rail is G50, and guide track life is improved.
HIGH EFFICIENCY, MULTI-PURPOSE DESIGN
	Classes can be done for a variety of shaft and disc parts inside and outside the cylinder, cone surface and face, cutting and chamfering, drilling and tapping process of machining, and can process commonly used metric thread, imperial thread and thread, the modulus pitches, the taper thread (special thread must consulting).
HIGH RIGIDITY SPINDLE
	Machine tool headstock control handle adopts centralized operation, convenient and flexible manipulation, using three bearing spindle system, front and rear bearing of high precision, high rigidity and main shaft brake and the positive and negative changes is the hydraulic control
ELECTRIC CABINET
	A simple and neat electric cabinet.
