CW6263E Horizontal Lathe 2t Loading Weight Machine

Short Description:

CW-E series general lathe is a new generation of general lathe with friendly personality, the appearance of the popular rectangular plane modeling, front and hind legs wide. The bed has undergone surface high-frequency quenching and grinding, and the quenching hardness is G50.The gear of the headbox has been processed by high frequency quenching and precision grinding, and the precision of the gear can reach 7 levels.Dimensional accuracy of parts processed on this machine can reach IT7 level, surface roughness can reach 1.6 level

Send email to us

Product Detail

Product Tags

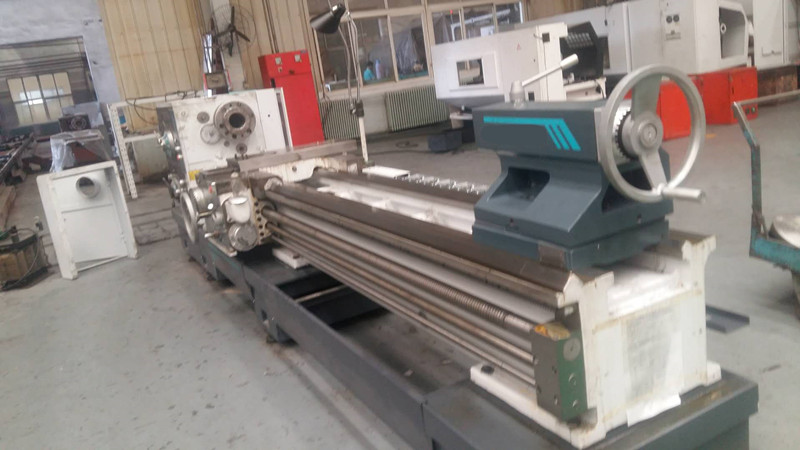

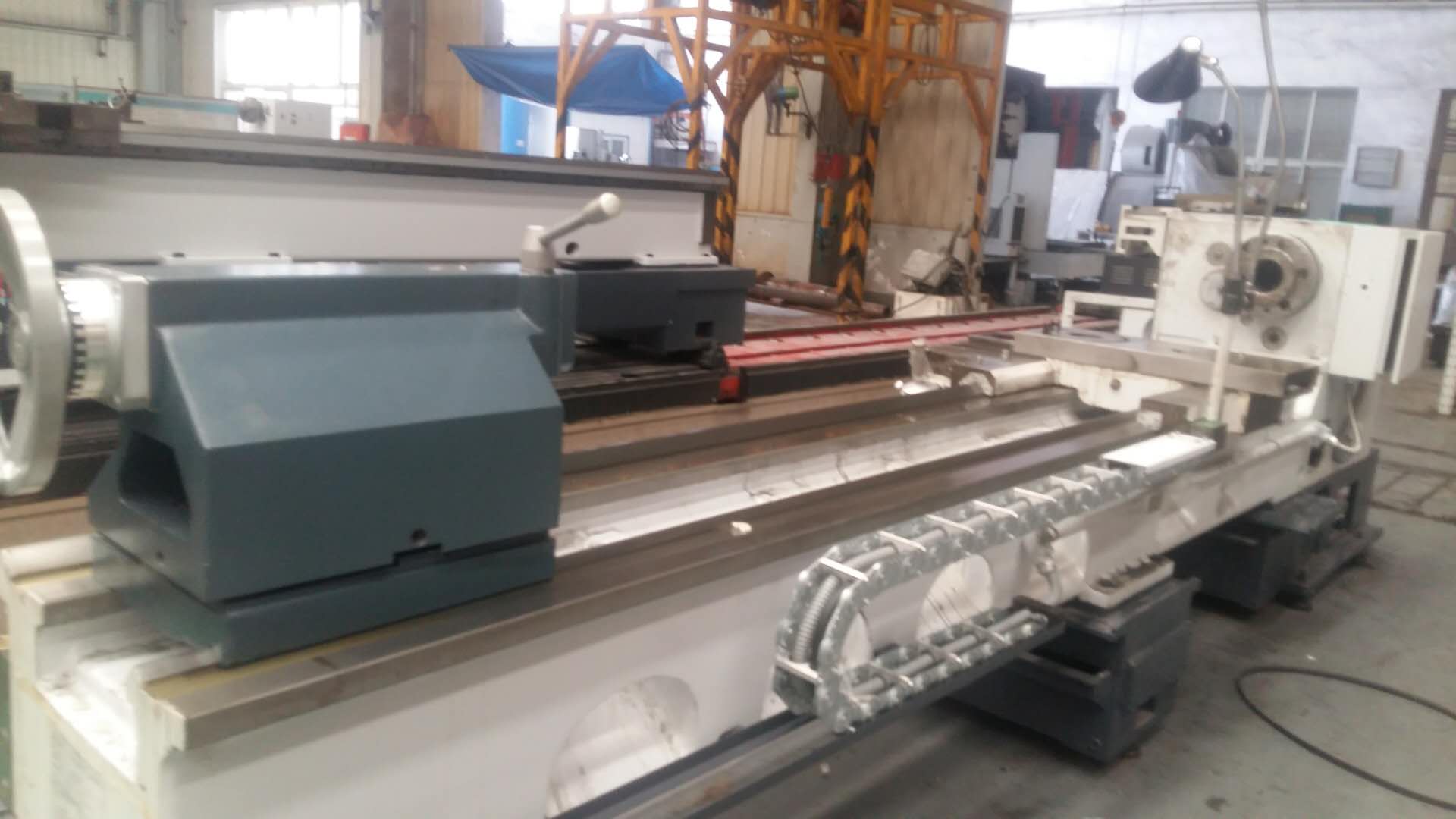

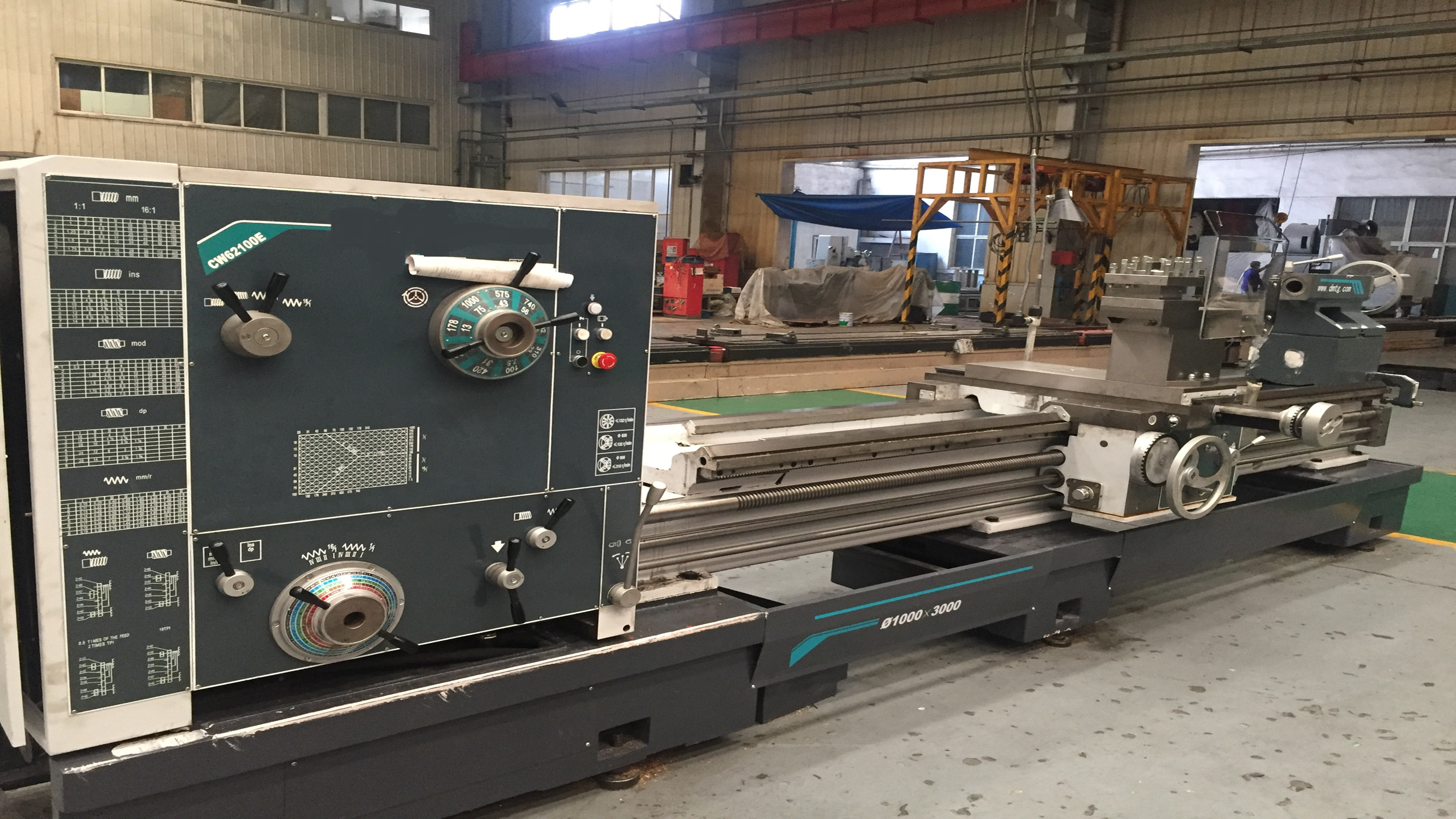

1. MACHINE PICTURES

2. SPECIFICATION

CW-E SEREIS LATHE
ITEM	UNIT	CW6163E	CW6263E	CW6180E	CW6280E	CW61100E	CW62100E
Swing diameter over bed	mm	630		800		1000
Swing diameter over carriage	mm	350		480		710
Swing diameter in gap	mm	—	800	—	1000	—	1230
Max workpiece length	mm	1000/1500/2000/3000/4000/5000/6000
Workpiece Wight
Spindle bore		105
Spindle hole Taper		D11
Spindle Speed	rpm	7.5-1000
Tailstock Sleeve Diameter	mm	100
Tailstock sleeve travel	mm	250
Tailstock sleeve taper		Morse No.6

3. MACHINE FEATURE

THE STRUCTURE DESIGN

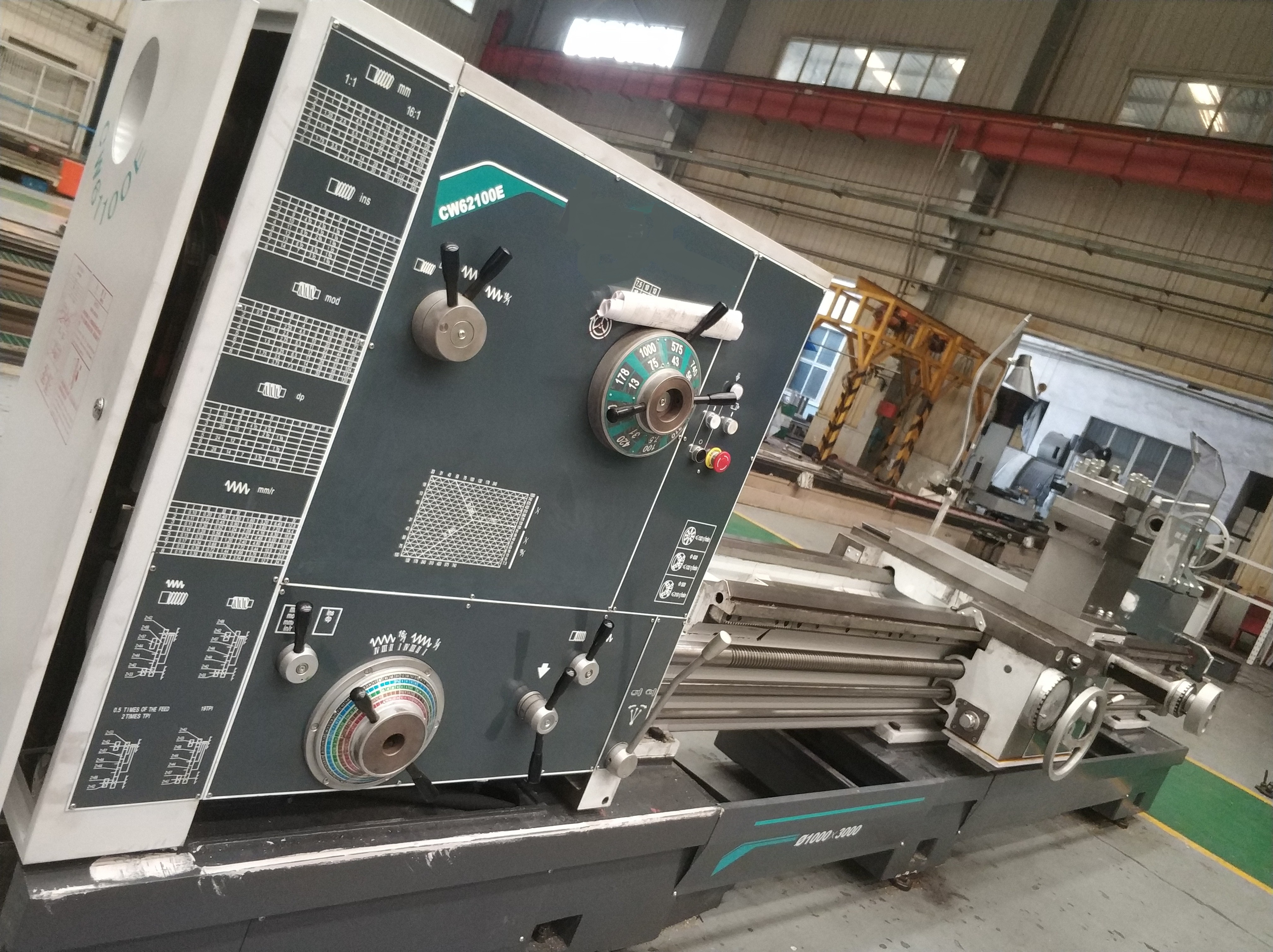

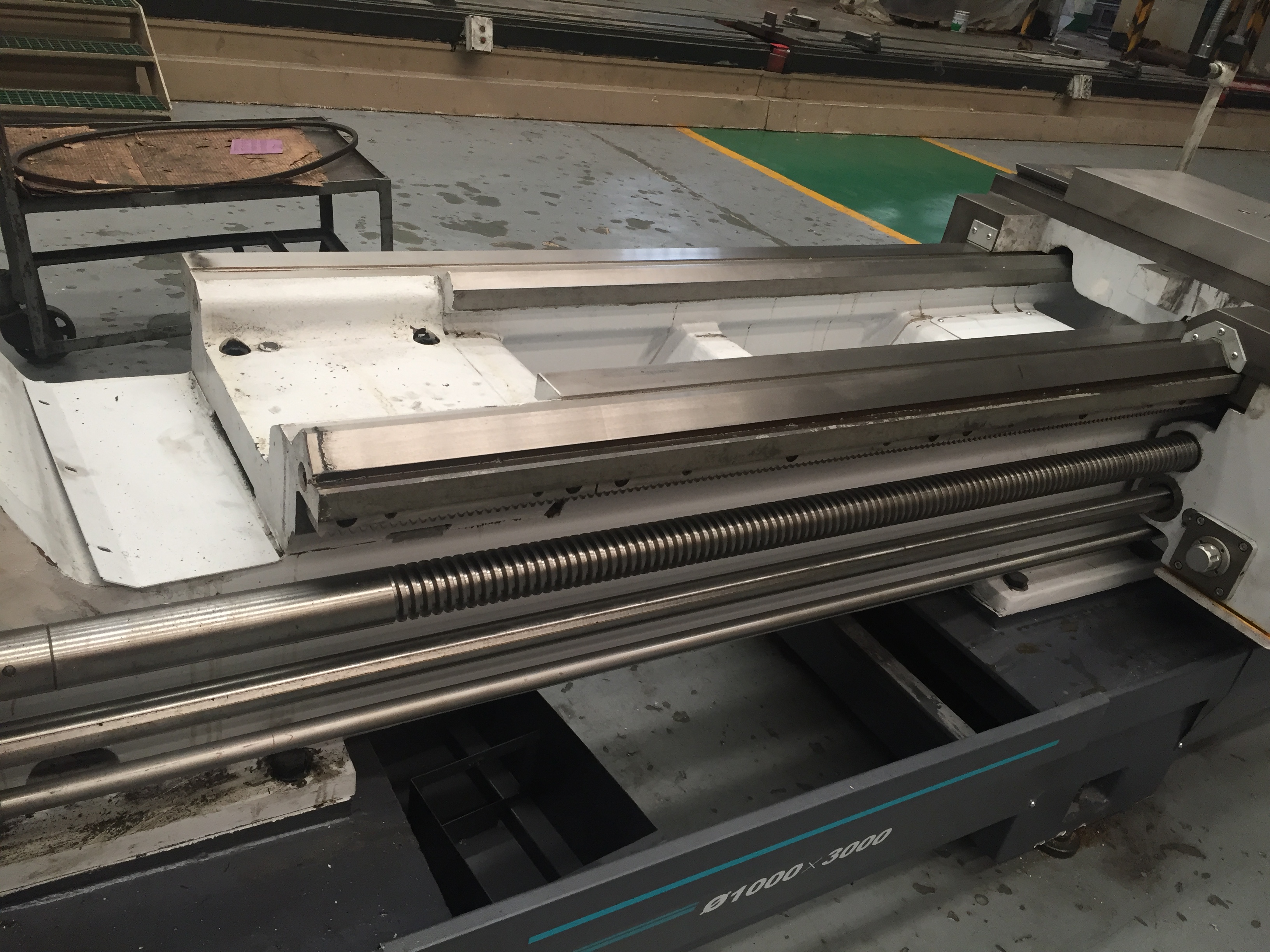

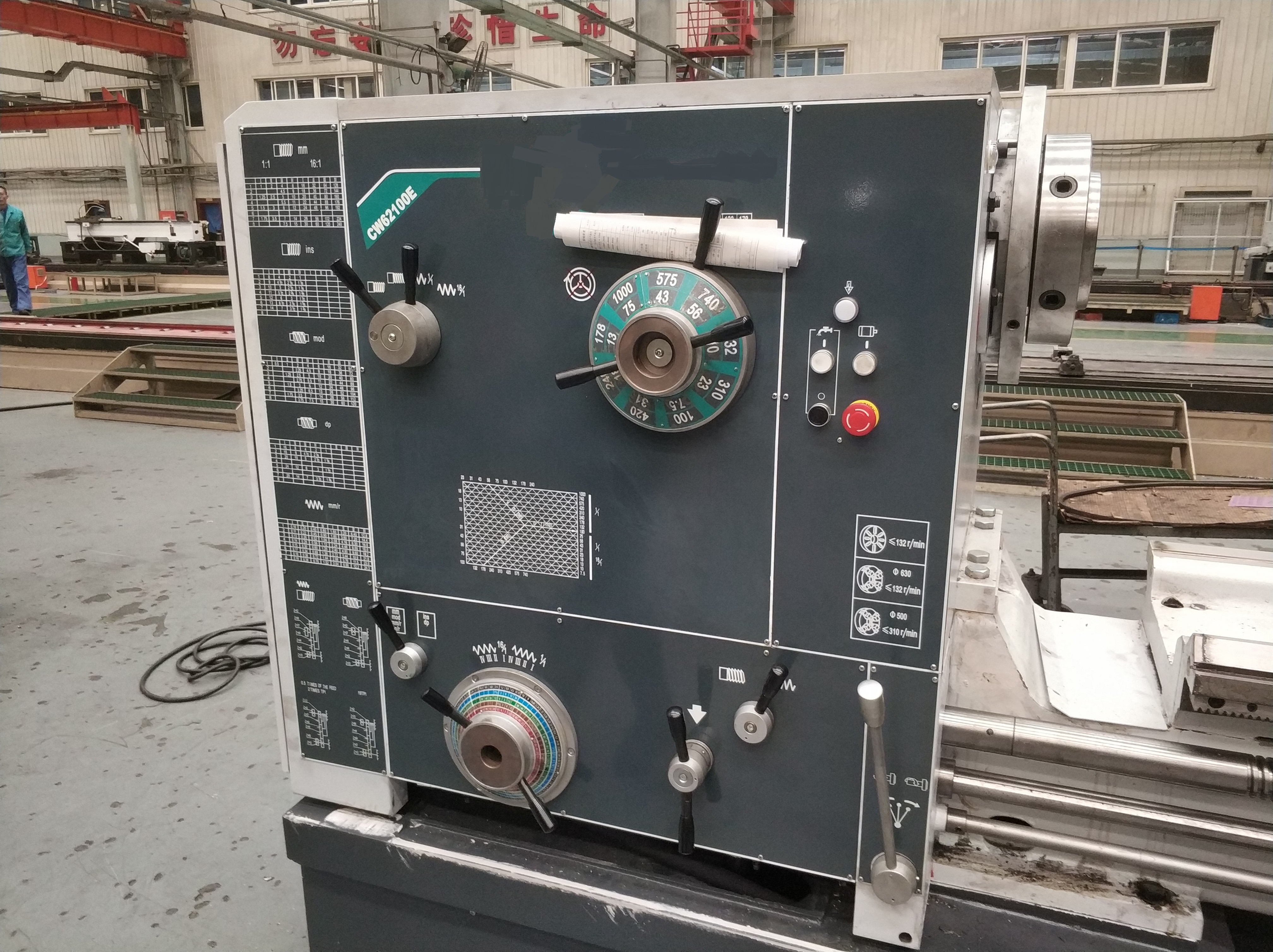

	Lathe bed after surface hardening, grinding, quenching hardness HRC50; Headstock gears after quenching, precision grinding processing, high-speed gear precision can reach level 5;Headstock spindle is used by either three support, good rigidity; The headstock handle adopt centralized operation. The feed box gear also USES gear quenching
HIGH EFFICIENCY AND VERSATILE DESIGN
	Turning on the machine can be cylindrical parts, inner hole and end face, and can drilling, reaming, processing can be all kinds of the metric threads, the inch thread, modulus, diametral pitch, users put forward special orders can also pitch screw thread processing, processing of the machine is particularly suitable for small batch production workshop and mechanical repair workshop use. The machine can processing steel, cast iron, non-ferrous metals, non-metallic materials, etc. In the dimensional accuracy of parts on the machine can achieve IT7 level, the surface roughness can reach 1.6.
COMPLETE SAFETY PROTECTION DEVICE
	For users to choose…Back Protection,Chuck protection,Faceplate protectionThree poles protection

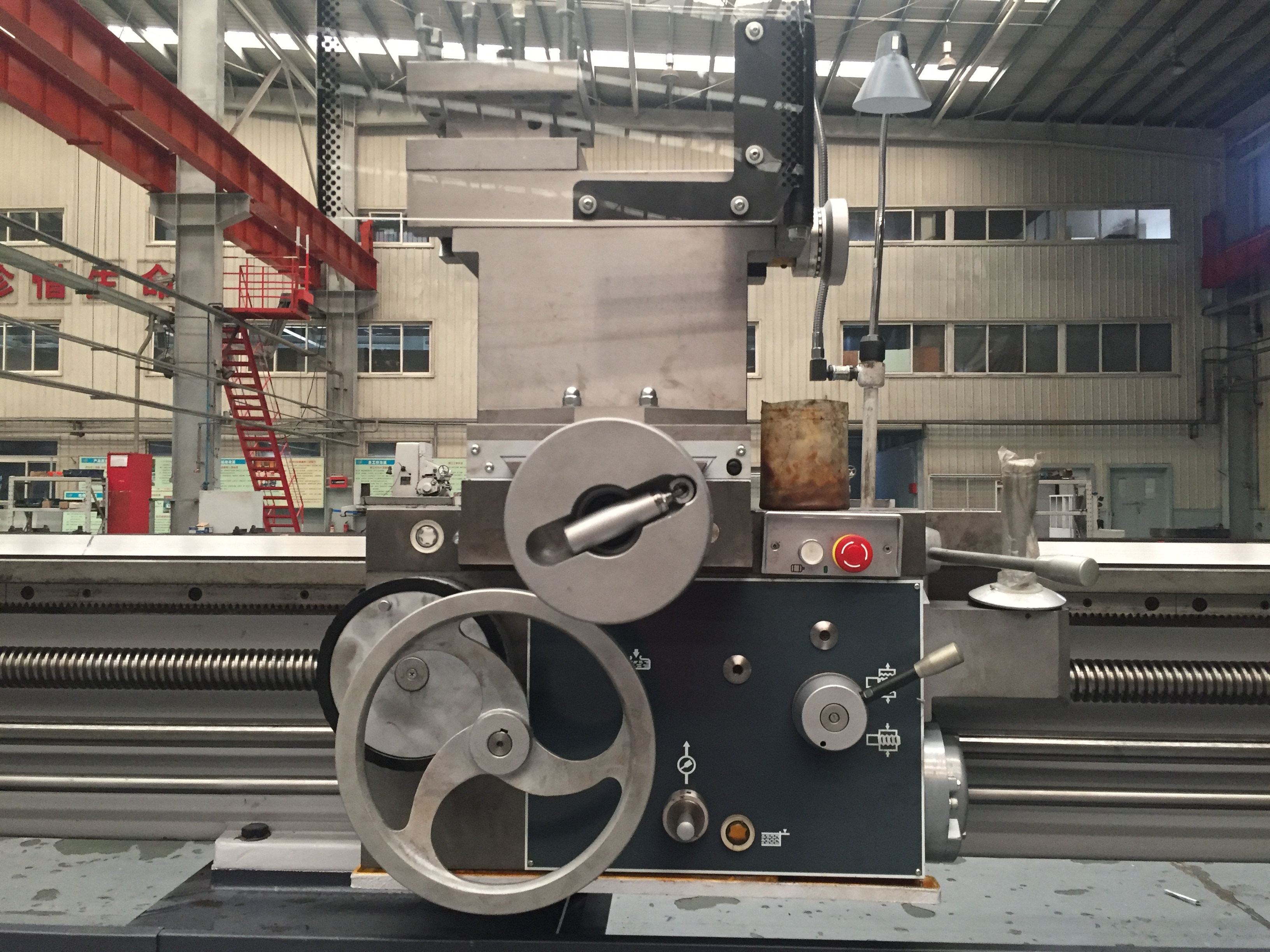

THE STRUCTURE OF THE SLIP BOARD BOX
	Machine slip board box is equipped with fast moving device, overload safety device, longitudinal and cross control lever handle half nuts.
