Damping Absorption Capacitor

Short Description:

CRE provides all kinds of snubber capacitors

1. Innovative damping absorption capacitors are designed and manufactured by CRE

2. CRE is the leader in film capacitor design and manufacturing.

3. If you require unique damping absorption capacitor specifications, head over to our design center for a customized capacitor.

Applications:

They’re primarily used to limit the rate of voltage rise in circuits that areexcessive, to protect the switching and protection of semiconductors in powerelectronics; filtering and energy storage.The main application areas are rectifiers, SVCs, locomotive power supplies, etc.

Send email to us

Product Detail

Product Tags

Application

They’re primarily used to limit the rate of voltage rise in circuits that are
excessively, to protect the switching and protection of semiconductors in power
electronics; filtering and energy storage.
The main application areas are rectifiers, SVCs, locomotive power supplies, etc.

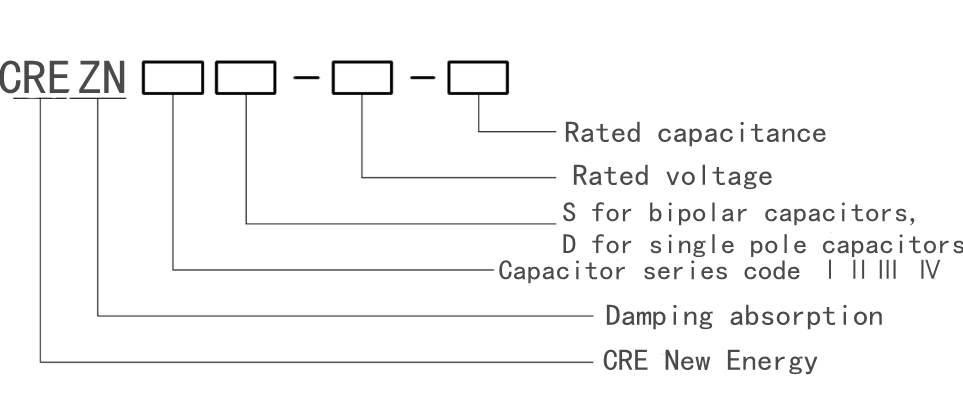

Type and Diagram

damping absorption capacitor lable

Specification table

Capacity （µF）	I_MAX（Arms）	Iˆ （kA）	I_S （kA）	DimensionsD×H	Bottombolts	Model
UN 1000V AC UNDC 1700V DC US 2500V UBB 1500V AC UBG 2400V AC
0.1µF	10	0.2	1.2	50×55	M8	CREZN-1kVAC-0.1µF
0.22µF	10	0.2	1.6	50×55	M8	CREZN-1kVAC-0.22µF
0.33µF	10	0.2	1.6	50×55	M8	CREZN-1kVAC-0.33µF
0.47µF	10	0.2	1.6	50×55	M8	CREZN-1kVAC-0.47µF
0.5µF	10	0.2	1.6	50×55	M8	CREZN-1kVAC-0.5µF
1µF	18	0.2	1.6	50×75	M8	CREZN-1kVAC-1µF
2µF	18	0.3	2	50×75	M8	CREZN-1kVAC-2µF
3µF	18	0.5	2.8	60×90	M12	CREZN-51kVAC-3µF
4µF	18	0.7	3	60×122	M12	CREZN-1kVAC-4µF
6µF	18	0.9	3.5	60×152	M12	CREZN-1kVAC-6µF
10µF	18	1.2	4	76×152	M12	CREZNIIS-500VAC/1kVAC-10µF
UN 1600V AC UNDC 2500V DC US 3800V UBB 2400V AC UBG 3300V AC
0.1µF	10	0.2	1.2	50×55	M8	CREZN-1.6kVAC-0.1µF
0.22µF	10	0.2	1.6	50×55	M8	CREZN-1.6kVAC-0.22µF
0.33µF	10	0.2	1.6	50×75	M12	CREZN-1.6kVAC-0.33µF
0.47µF	18	0.2	1.6	50×75	M12	CREZN-1.6kVAC-0.47µF
0.5µF	18	0.2	1.6	50×75	M12	CREZN-1.6kVAC-0.5µF
1µF	18	0.2	1.6	60×90	M8	CREZN-1.6kVAC-1µF
2µF	18	0.3	2	60×122	M12	CREZN-1.6kVAC-2µF
3µF	18	0.5	2.8	60×152	M12	CREZNIIS-1.6kVAC-3µF
4µF	18	0.7	3	76×122	M12	CREZNIIS-1.6kVAC-4µF
6µF	18	0.9	3.5	76×152	M12	CREZNIIS-1.6kVAC-6µF
10µF	18	1.2	4	96×152	M16	CREZNIIS-1.6kVAC-10µF
UN 2000V AC UNDC 3000V DC US 4500V UBB 3000V AC UBG 3800V AC
0.1µF	10	0.2	1.2	50×55	M8	CREZN-2kVAC-0.1µF
0.22µF	10	0.2	1.6	50×55	M8	CREZN-2kVAC-0.22µF
0.33µF	10	0.2	1.6	50×75	M8	CREZN-2kVAC-0.33µF
0.47µF	18	0.2	1.6	50×75	M12	CREZN-2kVAC-0.47µF
0.5µF	18	0.2	1.6	50×75	M12	CREZN-2kVAC-0.5µF
1µF	18	0.2	1.6	60×90	M12	CREZN-2kVAC-1µF
2µF	18	0.3	2	76×122	M12	CREZNIIS-2kVAC-2µF
3µF	18	0.5	2.8	76×122	M12	CREZNIIS-2kVAC-3µF
4µF	18	0.7	3	76×152	M12	CREZNIIS-2kVAC-4µF
6µF	18	0.9	3.5	86×152	M12	CREZNIIS-2kVAC-6µF

10µF	18	1.2	4	106×152	M16	CREZNIIS-2kVAC-10µF
UN 2500V AC UNDC 4000V DC US 6000V UBB 3750V AC UBG 4500V AC
0.1µF	10	0.2	1.4	60×60	M12	CREZN-2.5kVAC-0.1µF
0.22µF	10	0.2	1.8	60×60	M12	CREZN-2.5kVAC-0.22µF
0.33µF	10	0.2	1.8	60×90	M12	CREZN-2.5kVAC-0.33µF
0.47µF	18	0.2	1.8	60×90	M12	CREZN-2.5kVAC-0.47µF
0.5µF	18	0.2	1.8	60×90	M12	CREZN-2.5kVAC-0.5µF
1µF	18	0.2	1.8	60×122	M12	CREZNIIS-2.5kVAC-1µF
2µF	18	0.4	2.2	76×122	M12	CREZNIIS-2.5kVAC-2µF
3µF	18	0.6	3	76×152	M12	CREZNIIS-2.5kVAC-3µF
4µF	18	0.8	3.5	86×152	M16	CREZNIIS-2.5kVAC-4µF
6µF	18	1	4	106×152	M16	CREZNIIS-2.5kVAC-6µF
10µF	18	1.5	4.5	116×182	M16	CREZNIIS-2.5kVAC-10µF
UN 3000V AC UNDC 4500V DC US 6750V UBB 4500V AC UBG 5200V AC
0.1µF	18	0.4	1.6	60×60	M12	CREZN-3kVAC-0.1µF
0.22µF	18	0.6	2	60×60	M12	CREZN-3kVAC-0.22µF
0.33µF	18	0.6	2	60×60	M12	CREZN-3kVAC-0.33µF
0.47µF	18	0.6	2	60×90	M12	CREZN-3kVAC-0.47µF
0.5µF	18	0.6	2	60×122	M12	CREZN-3kVAC-0.5µF
1µF	18	0.7	2	76×122	M12	CREZNIIS-3kVAC-1µF
2µF	18	1.5	4	76×152	M12	CREZNIIS-3kVAC-2µF
3µF	18	1.8	6	96×152	M16	CREZNIIS-3kVAC-3µF
4µF	18	3.5	8	106×152	M16	CREZNIIS-3kVAC-4µF
6µF	18	4	12	106×182	M16	CREZNIIS-3kVAC-6µF
10µF	18	5	14	116×272	M16	CREZNIIS-3kVAC-10µF
UN 4000V AC UNDC 5000V DC US 7500V UBB 6000V AC UBG 6600V AC
0.1µF	18	0.5	1.8	76×122	M12	CREZNIIS-4kVAC-0.1µF
0.22µF	18	0.7	2.2	76×122	M12	CREZNIIS-4kVAC-0.22µF
0.33µF	18	0.7	2.2	76×122	M12	CREZNIIS-4kVAC-0.33µF
0.47µF	18	0.7	2.2	76×122	M12	CREZNIIS-4kVAC-0.47µF
0.5µF	18	0.7	2.2	76×122	M12	CREZNIIS-4kVAC-0.5µF
1µF	18	0.8	2.4	86×152	M12	CREZNIIS-4kVAC-1µF
2µF	18	1.7	5	106×152	M16	CREZNIIS-4kVAC-2µF
3µF	18	2	7	106×182	M12	CREZNIIS-4kVAC-3µF
4µF	18	3.7	11	106×272	M16	CREZNIIS-4kVAC-4µF
UN 5000V AC UNDC 8000V DC US 12000V UBB 7500V AC
0.1µF	18	1	2	76×122	M12	CREZNIID-5kVAC-0.1µF
0.22µF	18	1.2	2.5	76×122	M12	CREZNIID-5kVAC-0.22µF
0.33µF	18	1.2	2.5	76×152	M12	CREZNIID-5kVAC-0.33µF
0.47µF	18	1.2	2.5	76×152	M12	CREZNIID-5kVAC-0.47µF
0.5µF	18	1.2	2.5	76×152	M12	CREZNIID-5kVAC-0.5µF
1µF	18	1.5	4	106×152	M12	CREZNIID-5kVAC-1µF
2µF	18	2	6	116×182	M16	CREZNIID-5kVAC-2µF
3µF	18	2.4	9	116×272	M12	CREZNIID-5kVAC-3µF
UN 6000V AC UNDC 9000V DC US 13500V UBB 8000V AC
0.1µF	18	1.2	2.5	76×122	M12	CREZNIID-6kVAC-0.1µF
0.22µF	18	1.5	3	76×152	M12	CREZNIID-6kVAC-0.22µF
0.33µF	18	1.5	3	76×152	M12	CREZNIID-6kVAC-0.33µF
0.47µF	18	1.5	3	76×152	M12	CREZNIID-6kVAC-0.47µF
0.5µF	18	1.5	3	86×152	M12	CREZNIID-6kVAC-0.5µF
1µF	18	2	6	106×152	M12	CREZNIID-6kVAC-1µF
2µF	18	3	6	116×202	M16	CREZNIID-6kVAC-2µF
UN 7000V AC UNDC 10000V DC US 15000V UBB 10500V AC
0.1µF	18	1.8	4	76×122	M12	CREZNIID-7kVAC-0.1µF
0.22µF	18	2.2	6	76×152	M12	CREZNIID-7kVAC-0.22µF
0.33µF	18	2.2	6	86×152	M12	CREZNIID-7kVAC-0.33µF
0.47µF	18	2.2	6	86×152	M12	CREZNIID-7kVAC-0.47µF
0.5µF	18	2.2	6	86×152	M12	CREZNIID-7kVAC-0.5µF
1µF	18	4	12	106×182	M12	CREZNIID-7kVAC-1µF
2µF	18	6	12	116×272	M16	CREZNIID-7kVAC-2µF
