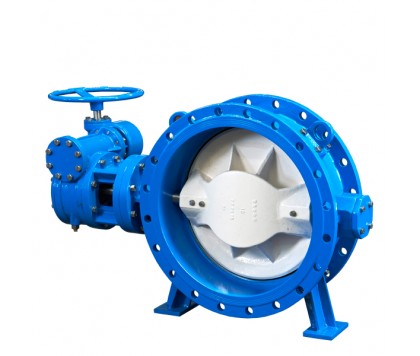

DC Series flanged eccentric butterfly valve

Short Description:

Size:DN 100~DN 2600Pressure:PN10/PN16Standard:Face to face:EN558-1 Series 13/14Flange connection:EN1092 10/16,ANSI B16.1Top flange:ISO 5211

Send email to us

Product Detail

Product Tags

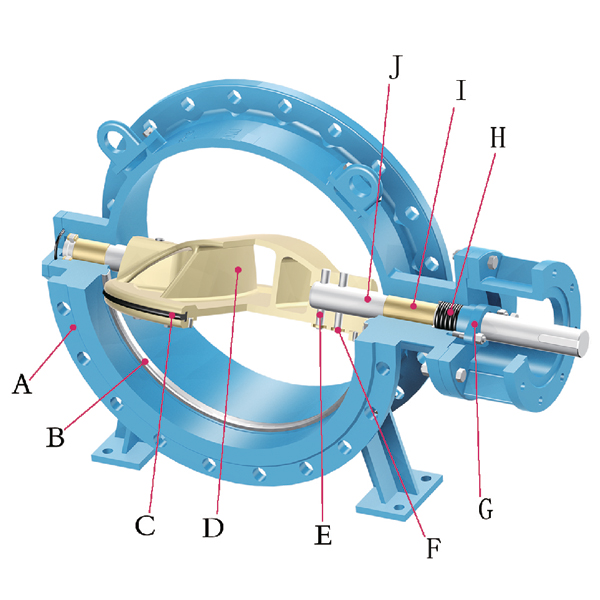

Description:

DC Series flanged eccentric butterfly valve incorporates a positive retained resilient disc seal and either an integral body seat. The valve has three unique attributes: less weight, more strength and lower torque.

Characteristic:

1. Eccentric action reduces torque and seat contact during operation extending valve life
2. Suitable for on/off and modulating service.
3. Subject to size and damage, the seat can be repaired in the field and in certain cases, repaired from outside the valve without disassembly from the main line
4. All iron parts are fusion bonded expoxy coated for corrosion resistance and long life.

Typical application:

1. Water works and water resource project
2. Enviroment Protection
3. Public Facilities
4. Power and Public Utilities
5. Building industry
6. Petroleum/ Chemical
7. Steel. Metallurgy

Dimensions:

DN	Gear Operator	L	D	D1	d	n	d0	b	f	H1	H2	L1	L2	L3	L4	Φ	Weight
100	XJ24	127	220	180	156	8	19	19	3	310	109	52	45	158	210	150	19
150	XJ24	140	285	240	211	8	23	19	3	440	143	52	45	158	210	150	37
200	XJ30	152	340	295	266	8	23	20	3	510	182	77	63	238	315	300	51
250	XJ30	165	395	350	319	12	23	22	3	565	219	77	63	238	315	300	68
300	4022	178	445	400	370	12	23	24.5	4	630	244	95	72	167	242	300	93
350	4023	190	505	460	429	16	23	24.5	4	715	283	110	91	188	275	400	122
400	4023	216	565	515	480	16	28	24.5	4	750	312	110	91	188	275	400	152
450	4024	222	615	565	530	20	28	25.5	4	820	344	473	147	109	420	400	182
500	4024	229	670	620	582	20	28	26.5	4	845	381	473	147	109	420	400	230
600	4025	267	780	725	682	20	31	30	5	950	451	533	179	138	476	400	388
700	4025	292	895	840	794	24	31	32.5	5	1010	526	533	179	138	476	400	480
800	4026	318	1015	950	901	24	34	35	5	1140	581	655	217	170	577	500	661
900	4026	330	1115	1050	1001	28	34	37.5	5	1197	643	655	217	170	577	500	813
1000	4026	410	1230	1160	1112	28	37	40	5	1277	722	655	217	170	577	500	1018
1200	4027	470	1455	1380	1328	32	40	45	5	1511	840	748	262	202	664	500	1501
