Production Description

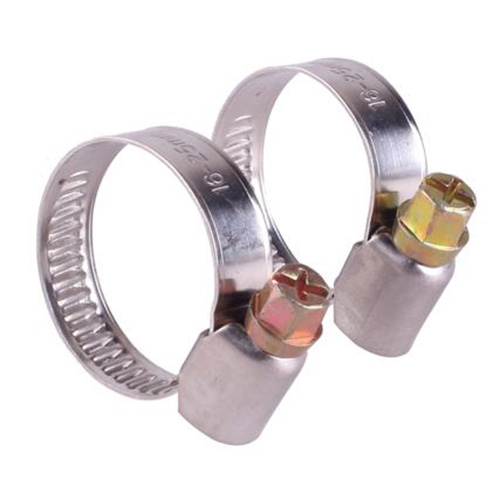

DIN 3017 German Type Worm Drive Hose Clamp consist of a band, often galvanized or stainless steel, into which a screw thread pattern has been cut or pressed.One end of the band contains a captive screw. The clamp is put around the hose or tube to be connected, with the loose end being fed into a narrow space between the band and the captive screw. When the screw is turned, it acts as a worm drive pulling the threads of the band, causing the band to tighten around the hose (or when screwed the opposite direction, to loosen). Screw clamps are normally used for hoses 1/2 inch diameter and up, with other clamps used for smaller hoses.
DIN 3017 German Type Worm drive hose clamp components include band,housing and screw.You also could see this product simple drawing,As follow picture showing:
NO. |
Parameters | Details |
1. |
Bandwidth*thickness | 1) zinc plated :9/12*0.7mm |
2) stainless steel:9/12*0.6mm | ||
2. |
Size | 8-12mm to all |
3. |
Screw Wrench | 7mm |
3. |
Screw Slot | “+” and “-” |
4. |
Free/Loading Torque | ≤1N.m/≥6.5N.m |
5. |
Connection | welding |
6. |
OEM/ODM | OEM /ODM is welcome |
Components
Material
TO Part No. |
Material |
Band |
Housing |
Screw |
TOGM |
W1 |
Galvanized steel |
Galvanized steel |
Galvanized steel |
TOGMS |
W2 |
SS200/SS300 Series |
SS200/SS300 Series |
Galvanized steel |
TOGMSS |
W4 |
SS200/SS300 series |
SS200/SS300 series |
SS200/SS300 series |
TOGMSSV |
W5 |
SS316 |
SS316 |
SS316 |
Tightening Torque
The DIN 3017 German type worm drive hose clamp recommended installation free torque is less than 1Nm,load torque is 6.5Nm.
Application
DIN 3017 German type worm drive hose clamp is widely used in automobiles, tractors, forklifts, locomotives, ships, mines, petroleum,chemicals,pharmaceuticals,agricultures and other water,oil,steam,dust etc
You can see some usage scenario in below picture.
And German type hose clamp main features as follows:
Product List

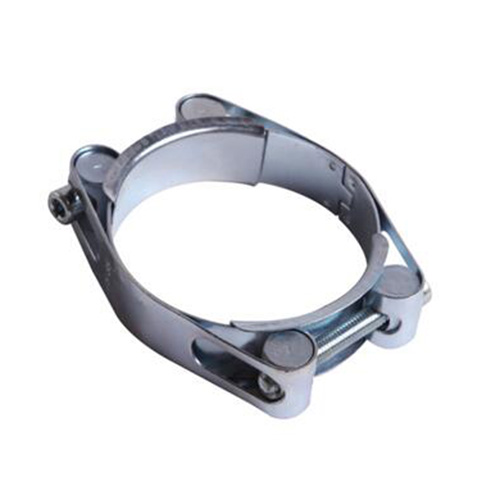

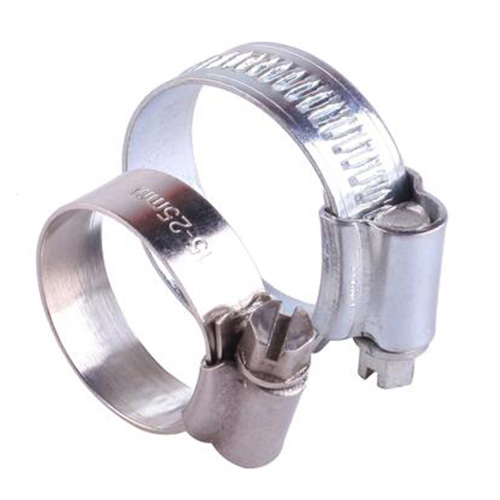

Robust Pipe Clamp | Double Bolt Pipe Clamp | German type Hose Clamp | German Type Hose Clamp With Handle | British Type Hose Clamp |

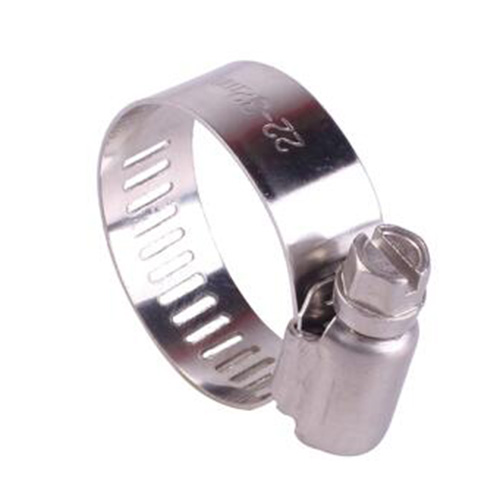

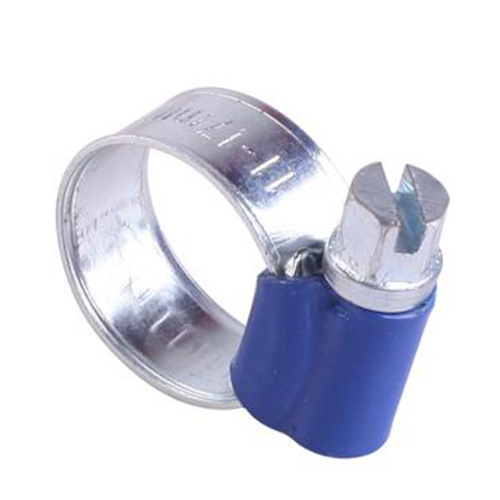

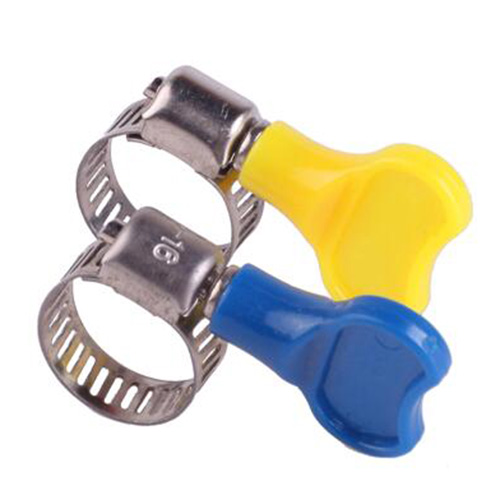

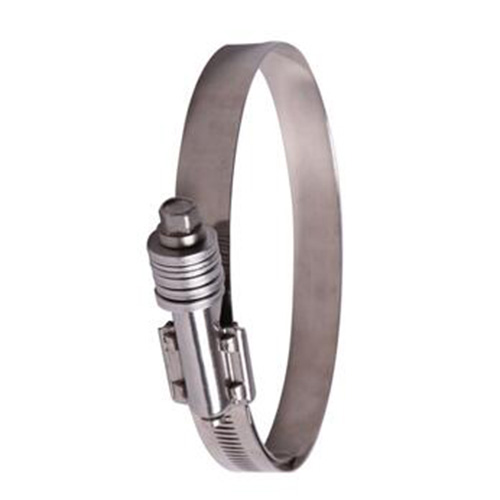

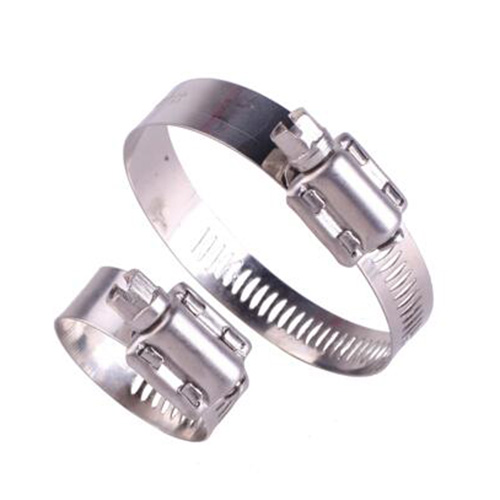

American Type Hose Clamp | American Type Hose Clamp With Handle | European Type Hose Clamp | Heavy Duty American Type Hose Clamp | Blue Housing British Type Hose Clamp |

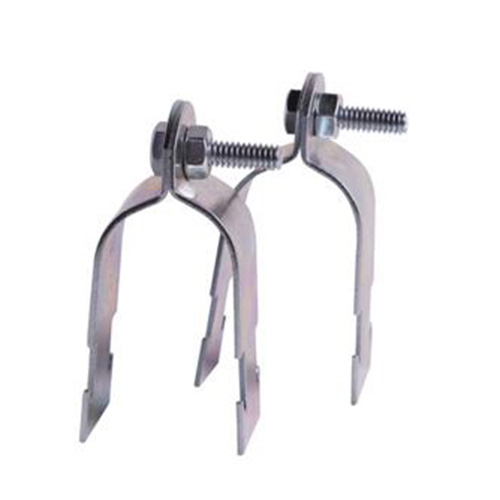

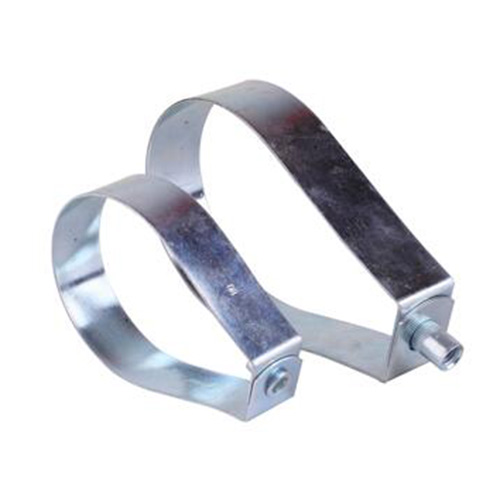

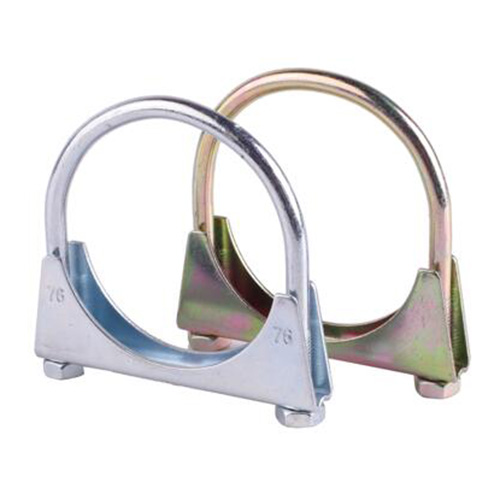

U Bolt Clamp | T Type Pipe Clamp | Strut Channel Pipe Clamp | Pipe Clamp With Rubber | Loop Hanger |

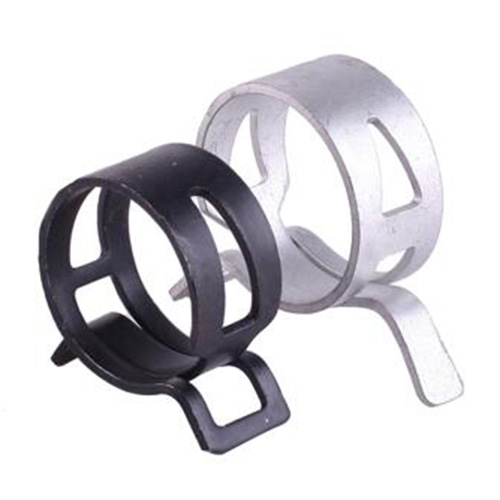

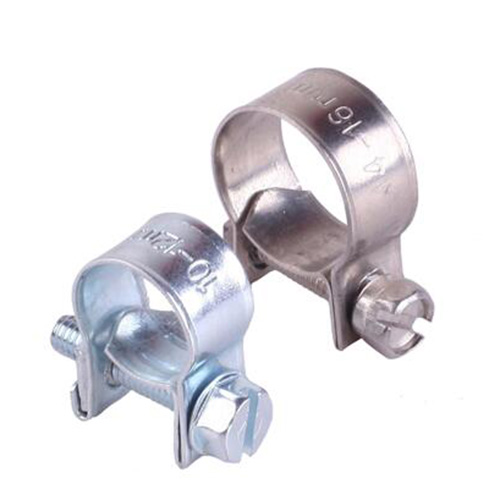

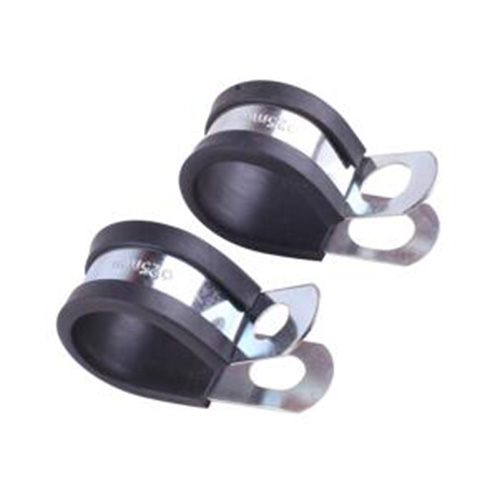

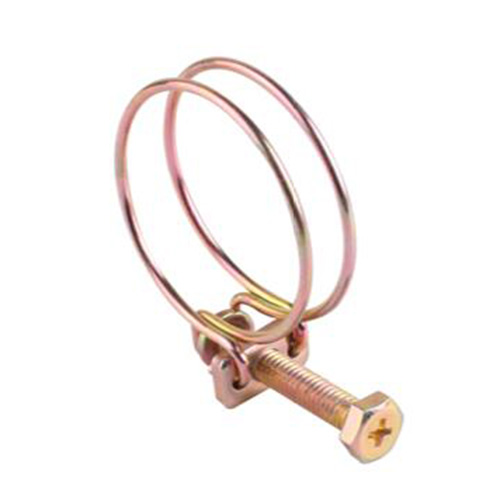

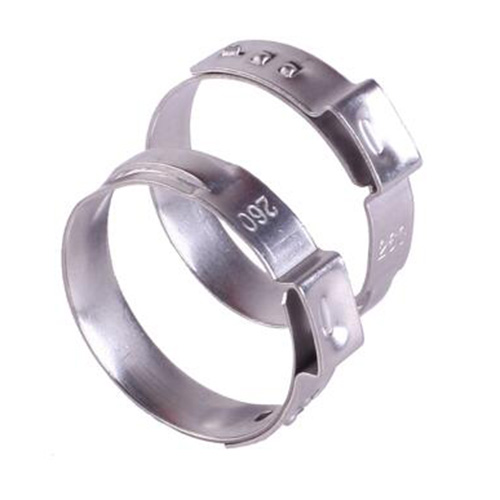

Ear Hose Clamp | Spring Hose Clamp | Rubber Clamp | Double Wire Hose Calmp | Mini Hose Clamp |
