double-shed Anti-pollution Suspension Insulator XWP-70kn/100kn/120kn/160kn/210kn/300kn

Short Description:

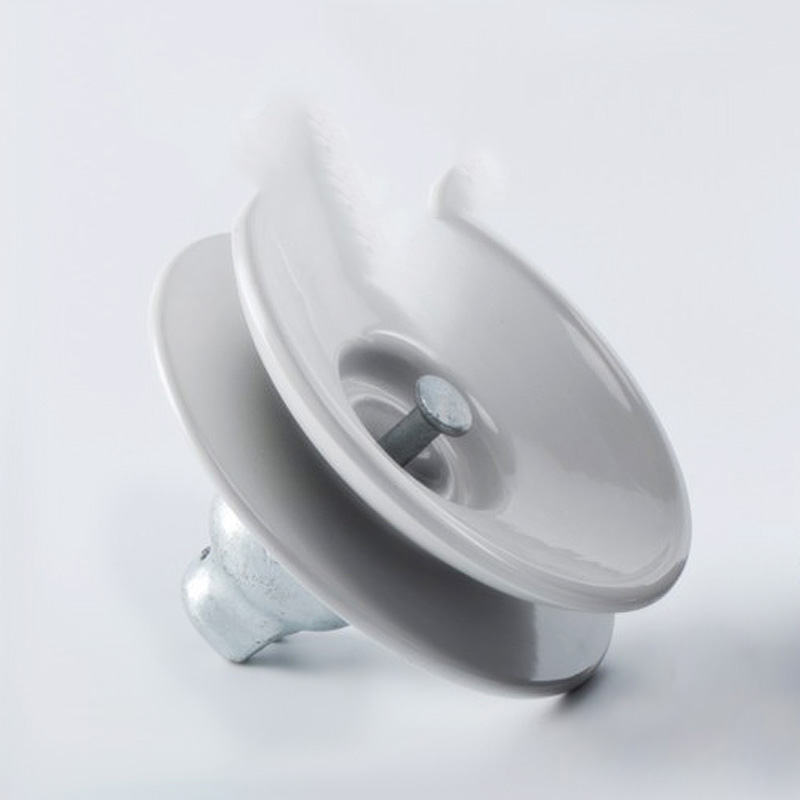

Anti-pollution (double-shed) Porcelain Suspension Insualtors,this conductor is suspended at the bottom end of this string while the top end is secured to the cross-arm of the tower,and the most important is that his function is anti-pollution.U160bm Ceramic Insulator

Send email to us

Product Detail

Product Tags

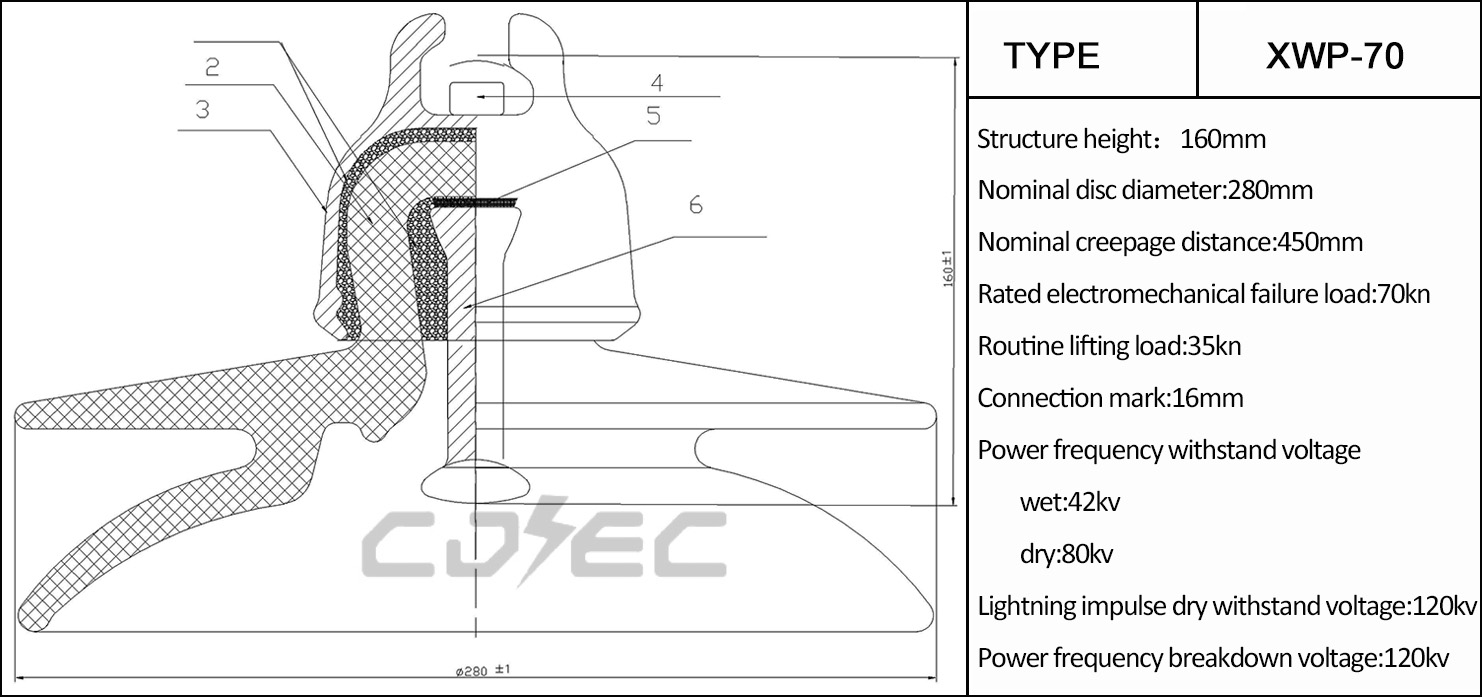

Product Design Drawings

Product Technical Parameters

Anti-pollution type suspension porcelain insulators( IEC Class )
Type		XWP-70	XWP-100	XWP-120	XWP-160	XWP-210	XWP-300
ICE Class		U70BLP	U100BLP	U120BP	U160BP	U210BP	U300BP
Coupling size		16	16	16	20	20/24	24
Dimensions
Diameter(D)	mm	255/280	280	280	300/330	300	330
Spacing(H)	mm	146/160	146/160	146/160	155/170	170	195
Creepage distance	mm	400/450	450	450	450	450	505
Mechanical Values
combined M&E strength	kn	70	100	120	160	210	300
Impact strength	nm	6	7	10	10	11.3	11.3
Routine proof test load	kn	35	50	60	80	105	150
Electrical Values
Power frequency dry withstand voltage	kv	80	80	80	80	80	85
Power frequency wet withstand voltage	kv	42	45	45	45	45	47
Dry lightning impulse withstand voltage	kv	120	120	120	130	130	130
power frequency puncture voltage	kv	120	120	120	120	130	130
Radio influence Voltage Data
Test voltage RMS to ground	kv	10	10	10	10	10	10
Maximum RIV at 1000kHz	μv	50	50	50	50	50	50
Packing and Shipping Data
Net weight,approximate	kg	5.9/6.7	7.9/8.5	8.3/8.5	8.9/9.1	12.5	14.8

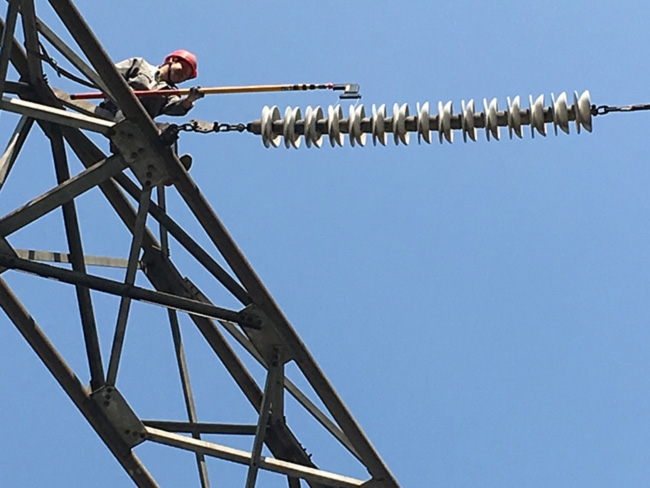

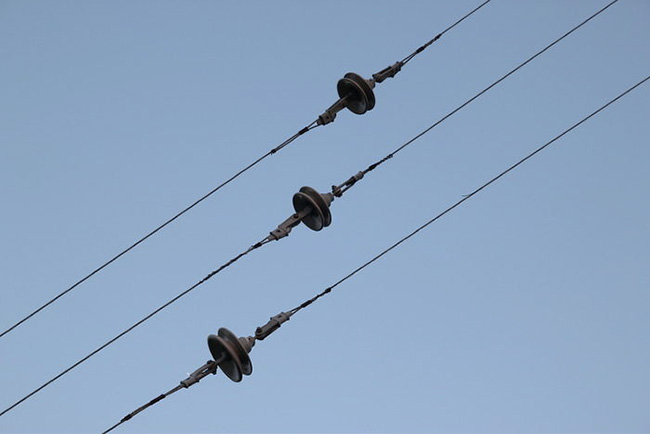

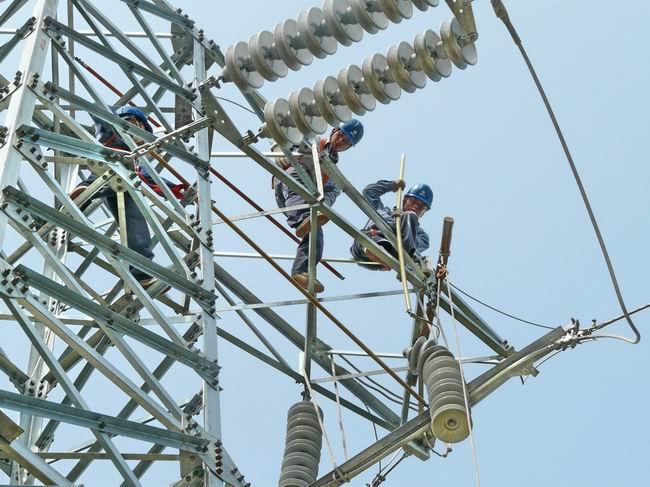

Product Application

双伞1

Pictures from the Internet

High voltage line pollution resistant disc suspension insulator is suitable for industrial dust, chemical industry, saline alkali, coastal and foggy areas. It is generally assembled into insulator strings for power lines in different voltage levels and different pollution areas.

According to its shape, pollution resistant insulators are divided into double-layer umbrella type, bell jar type and straw hat type. Double umbrella pollution resistant insulator has large creepage distance, open umbrella, smooth inside and outside skirt, low ash deposition rate and good wind and rain self-cleaning performance; The bell jar type pollution resistant suspension insulator has good antifouling performance by using the different periods of moisture in the umbrella and the discharge inhibition effect of the high edge under the umbrella; The diameter of straw hat type pollution resistant suspension insulator is large. Generally, it is placed at the top of suspension string, which plays a good role in preventing bird damage and penetrating icing
