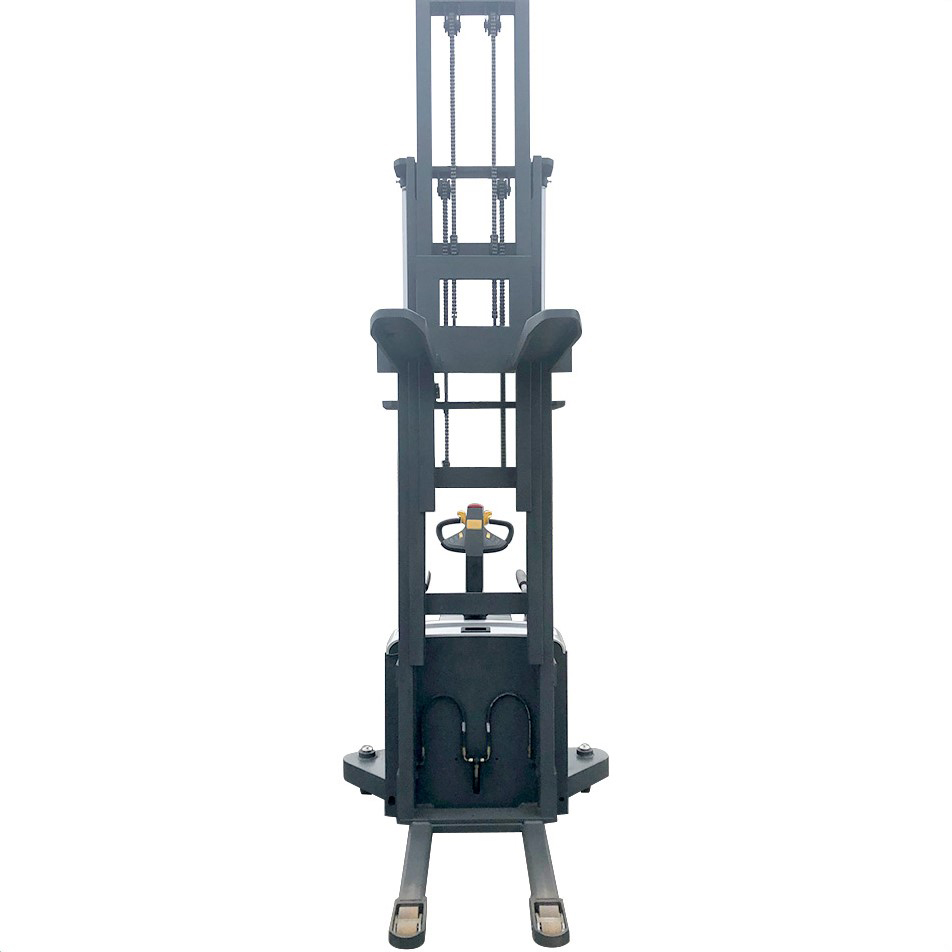

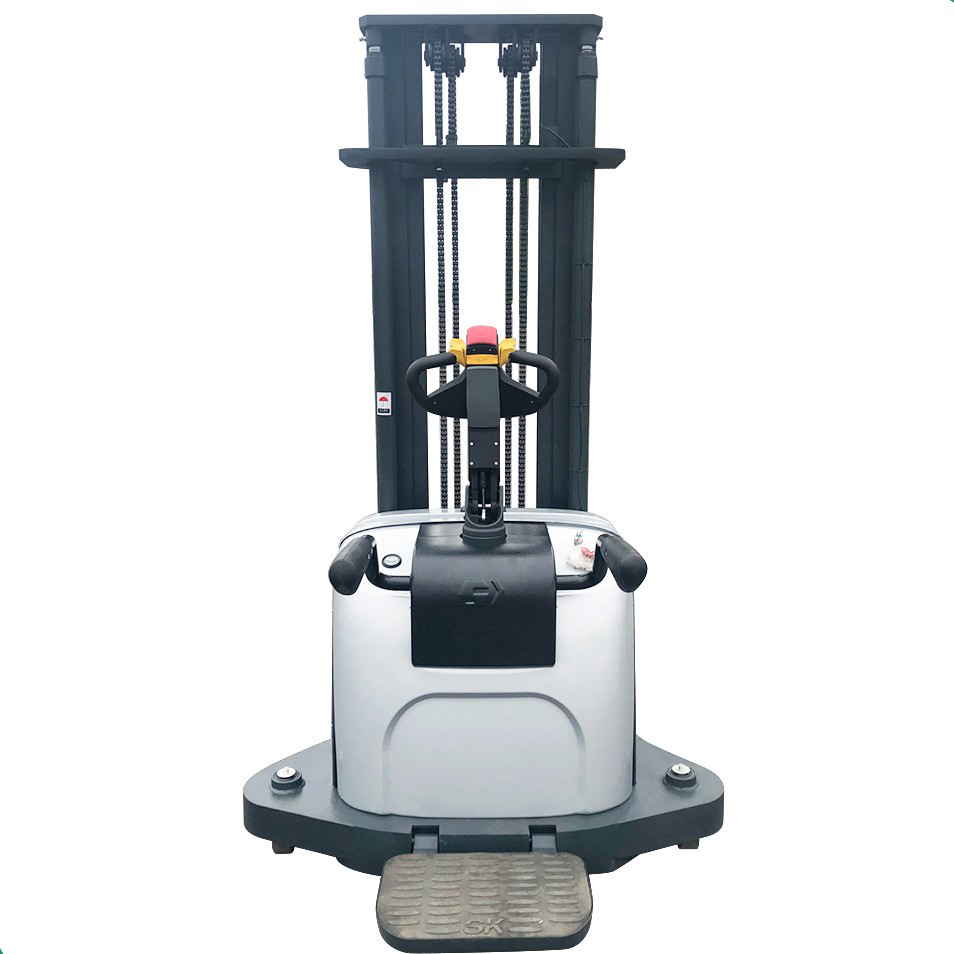

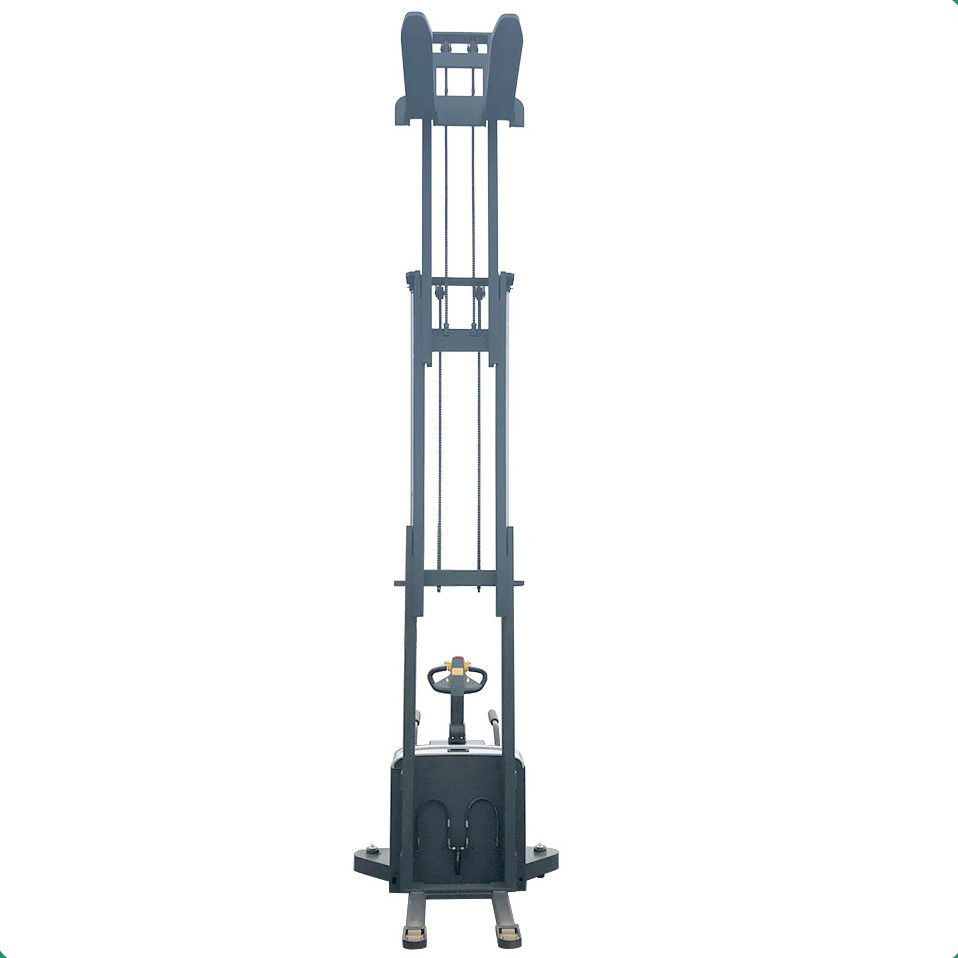

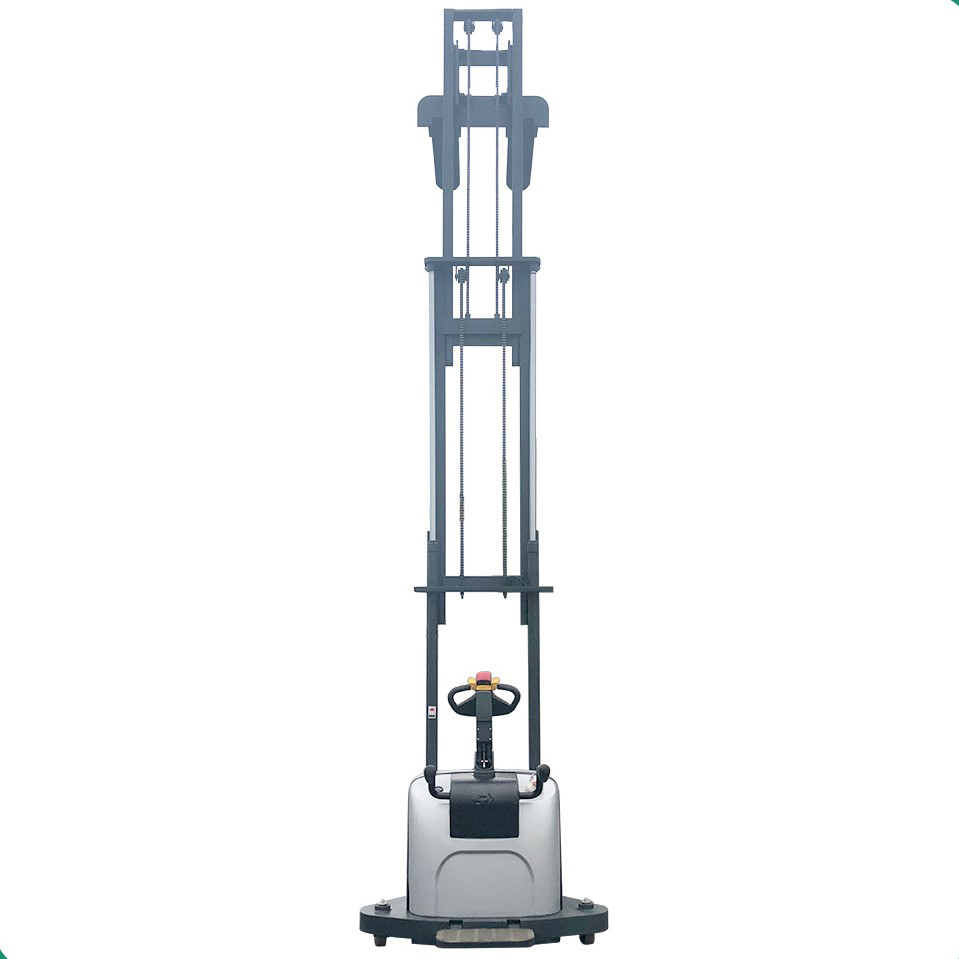

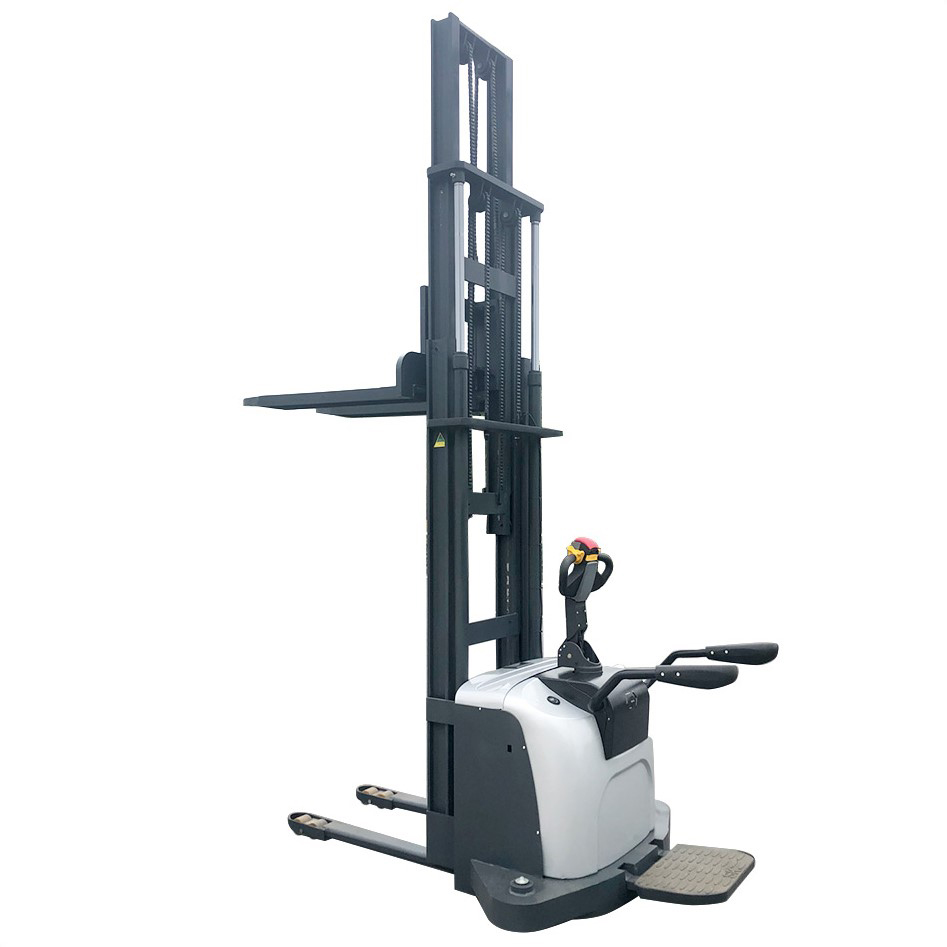

electric stacker electric forklift electric forklift truck battery forklift the electric stacker can lifting 5000mm
1. Emergency reverse device;
2. Straddle leg design，adjustable fork for handling closed pallet；
3. Powerful AC driving motor；
4. The built-in unloading valve protects the stacker from overloading and improves the reliability of the stacker;
5. Emergency power off switch;
6. Turtle-shaped slow speed switch;
7. Infinitely variable speeds control;
8. Foldable, thickened pedals and guard bar,make operator more comfortable and safety;
9. The side cylinder ensures wide field of view operation and stability of the stacker;
10 The balance wheel of the spring adjustment structure is hard-wearing and has good stability.
|
Model |
Unit |
CDD-B15 |
|
Rated load |
Kg |
1500 |
|
Load center distance |
C(mm) |
500 |
|
Front overhang |
X(mm) |
960 |
|
Wheel tread |
Y(mm) |
1555 |
|
Weight(with battery) |
Kg |
1150 |
|
Wheel material |
|
PU |
|
Front wheel size |
(mm) |
φ250*80 |
|
Rear wheel size |
(mm) |
φ80*70 |
|
Additional wheel size |
(mm) |
φ100*50 |
|
Number of wheels(X=driving wheel) |
|
1X+2/4 |
|
Front-wheel track |
B10(mm) |
886 |
|
Rear-wheel track |
B11(mm) |
525 |
|
Lifting height of fork above ground |
H3(mm) |
5000 |
|
Height of the gantry is lowed |
H1(mm) |
2257 |
|
Maximum height of forklift work |
H4(mm) |
5590 |
|
Min. height of fork above ground |
H13(mm) |
90 |
|
Overall length |
L1(mm) |
2140 |
|
Fork size |
s/e/l(mm) |
60*170*1100 |
|
Overall width |
B1(mm) |
1160 |
|
Fork width |
B5(mm) |
690 |
|
Channel width(1000*1200mm tray) |
Ast(mm) |
2464 |
|
Channel width(800*1200mm tray) |
Ast(mm) |
2401 |
|
Radius of turning circle |
Wa(mm) |
1600 |
|
Driving speed, full load/no load |
Km/h |
4/5.6 |
|
Lifting speed, full load/no load |
m/s |
0.08/0.1 |
|
Falling speed, full load/no load |
m/s |
0.09/0.12 |
|
Service brake |
|
Electromagnetic brake |
|
Driving motor power |
kw |
1.5 |
|
Lifting motor power |
kw |
2.2 |
|
Battery 24v |
Ah |
210 |
|
Noise level according to DIN12053 |
DB(A) |
<70 |
1. quality
our products meet CE certificate and other certificate so you can get high quality products from our company
2. price
we are the company which has near 20years experience in this industry，so we can provide the competitive price and high quality product for our customers
3. packing
we can do according to the customer’s requirement
4. transport
usually the products can be shipping by sea
5. service
we offer specialized logistic service including export declaration，customs clearance and every detail during shipment，so that we can make us able to offer you one-step service from order to the products to your hand
WHY CHOOSE US
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
