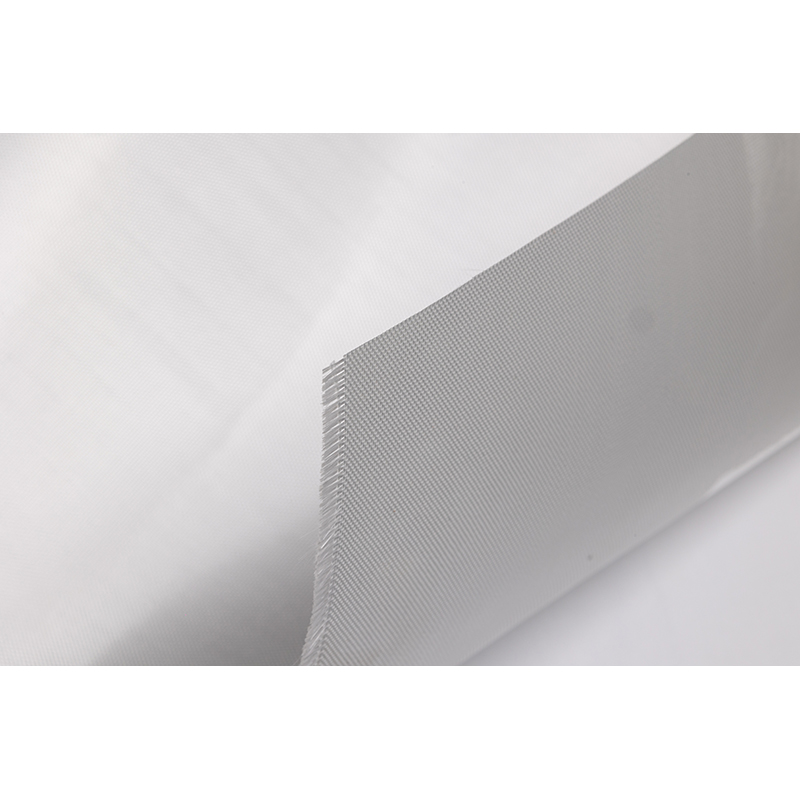

Electronic cloth

Short Description:

Glass fiber is a kind of inorganic non-metallic material with excellent performance. It has many kinds of advantages, such as good insulation, strong heat resistance, good corrosion resistance and high mechanical strength, but its disadvantages are brittle and poor wear resistance. Glass fiber is usually used as reinforcement material in composite materials, electrical insulation material and thermal insulation material, circuit board and other fields of national economy.


Product Detail

Product Tags

Product Description

Glass fiber is a kind of inorganic non-metallic material with excellent performance. It has many kinds of advantages, such as good insulation, strong heat resistance, good corrosion resistance and high mechanical strength, but its disadvantages are brittle and poor wear resistance. Glass fiber is usually used as reinforcement material in composite materials, electrical insulation material and thermal insulation material, circuit board and other fields of national economy.
Electronic cloth is the general term of electronic grade glass fiber cloth used in electronic industry. It is an electronic grade glass fiber cloth in the high-grade products. The main specifications are 7637, 7630, 7628, 7615, 1506, 2116, 2113, 3313, 1080, 106, 104, mainly used in the manufacture of copper clad plates.

NAME 7637 7630 7628M 7628L 7615 7615H
THE WARP ECG75 1/0 ECG67 1/0 ECG75 1/0 ECG75 1/0 ECG75 1/0 ECG75 1/0
WEFT ECG37 1/0 ECG67 1/0 ECG75 1/0 ECG75 1/0 ECG150 1/0 ECG1501/0
JINGMI 44±2 42±2 44±2 42±2 44±2 44±2
WEIMI 20±2 33±2 33±2 32±2 33±2 43±2
WElGHT( g/m2) 228±5 220±5 210±5 198±5 160±4 178±4
THIKNESS 0.210± 0.185±0.02 0.180±0.02 0.173±0.012 0.135±0.012 0.140±0.012



NAME 1506 2116 2113 3313 1080 106
THE WARP ECE110 1/0 ECE225 1/0 ECE225 1/0 ECDE300 1/0 ECD450 1/0 ECD900 1/0
WEFT ECE110 1/0 ECE225 1/0 ECD450 1/0 ECDE300 1/0 ECD450 1/0 ECD900 1/0
JINGMI 48±2 60±2 56±2 60±2 47±2 56±2
WEIMI 44±2 58±2 78±2 62±2 47.5±2.5 56±2
WElGHT(g/) 164±3 105±3 78±3 81.4±2.5 47.5±2.5 24.5±2.5
THICKNESS 0.150±0.012 0.100±0.012 0.079±0.012 0.084±0.012 0.055±0.012 0.033±0.012

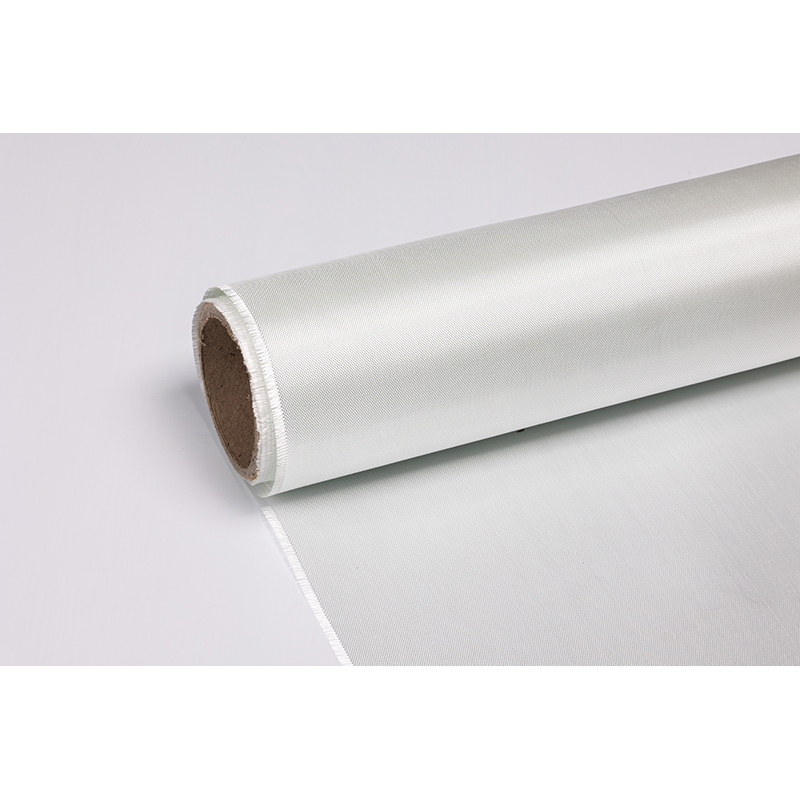

BAI_8800(1)
BAI_8806(1)

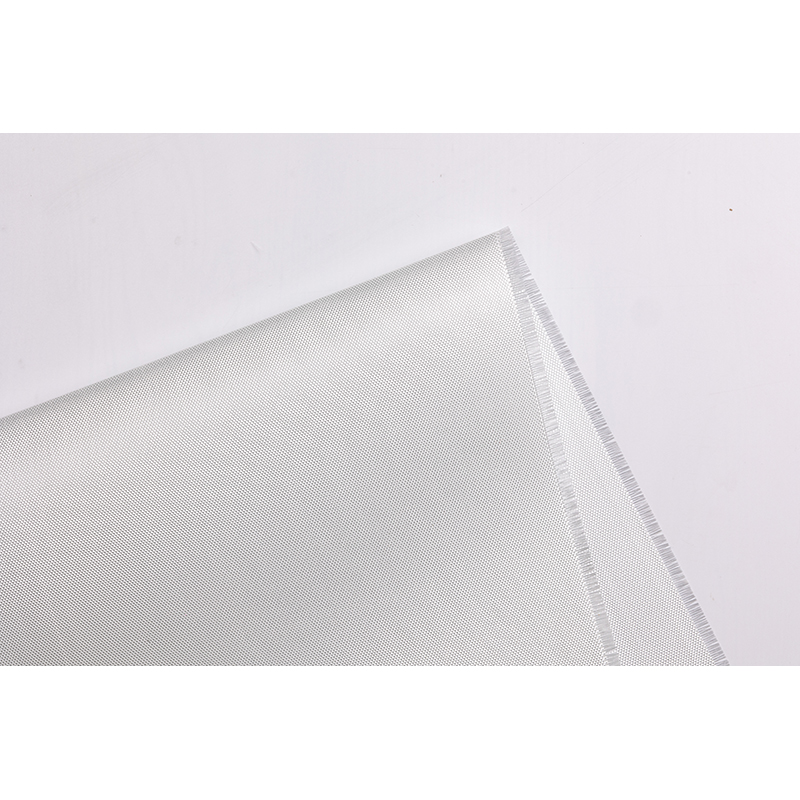

BAI_8812(1)

Advantage

E-Glass Fiberglass cloth is a light weight woven composite material that is commonly used in industrial, marine, and aerospace applications.  Fibreglass E-glass cloth is considered the industry standard and provides an excellent balance between cost and performance.  It has excellent drapability and is much cleaner to work with compared to chop strand fiberglass mat, and is less expensive than S-Glass clothdue to decreased strength in a side by side comparison. This woven fiberglass is manufactured here in the China manufacturers, so that we can provide you with a consistent product that has been manufactured to the highest standards that you can rely on.

Advantage

1. Are you a factory or trading company?
A: We are a professional manufacturer.

2. How can we guarantee quality?
A: Always a pre-production sample before mass production. Always final Inspection before shipment.

3. Can you produce the product according to customers’ requirements?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.

4. Why should you buy from us not from other suppliers?
A: Changzhou jiashun new materials Co., Ltd., established in 2000, is a scientific and technological enterprise specializing in the operation of various kinds of fiber glass cloth, fire blanket and so on
