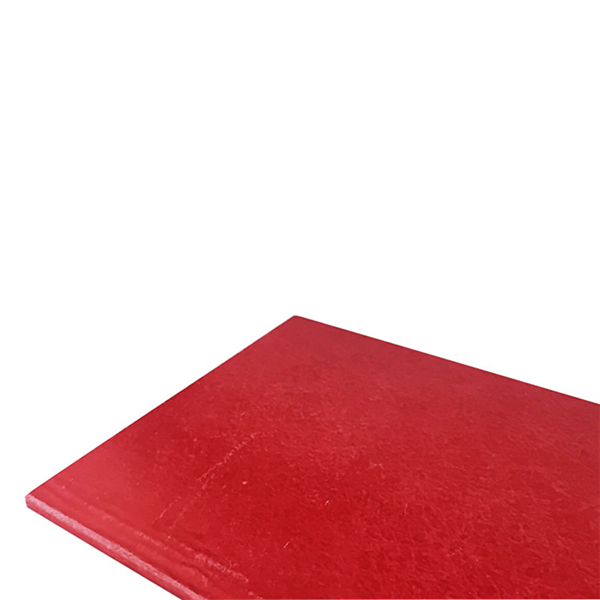

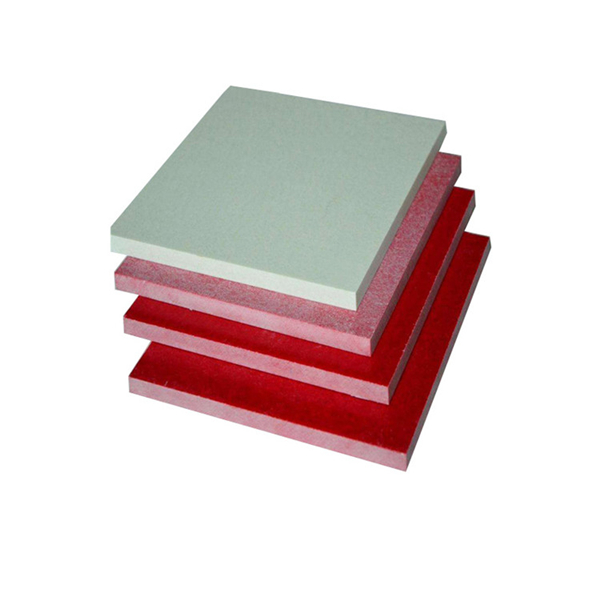

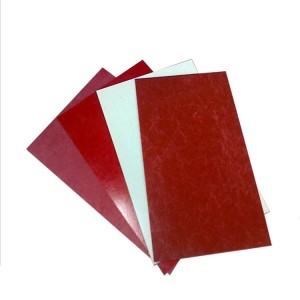

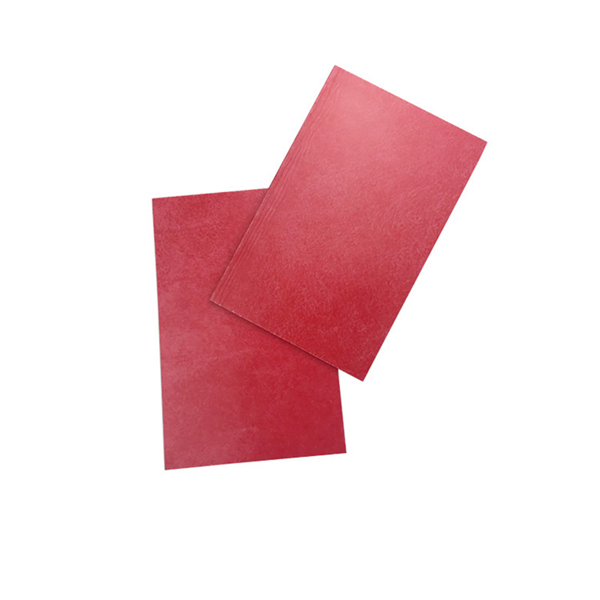

Epoxy Glass Mat Sheet GPO3 UPGM203
Overview
Example Pics
GPO-3 is alkali-free fiberglass mat dipped into unsaturated polyester resin adding relevant chemical agent as the basic material pressed under high temperature into rigid panel insulating material.
It is also called as UPGM203 and suitable for mechanical and electrical usage.
GPO-3 has good electrical property under high humidity and high mechanical property under medium temperature, fire retardant property, good arc resistance and tracking resistance.
Its widely used in the low voltage electrical industry in the European and American countries.
Features and Benefits of GPO3….
Links
- High mechanical strength, mechanical applications and impact resistance.
- Can be easily processed by standard mechanical processing equipments.
- Available for punching, drilling, mechanical processing, and shearing.
- Stable size and small tolerance in thickness, could meet tolerance requirements without granding.
- Good electrical performance in high humidity,CTI>300V, good arc resistance(>150 seconds),excellent heat resistance, distortion temperature>240°C,Grade F hear resistance, flame resistance,America UL94V0 rating standard,no halogen, less smoke on fire,various types and specifications,
- Groove shape,horn,square tubes,square sticks,pipe,round rods
- Available in medium and high voltage inverter,converter,high-voltage switchgear service such as main insulation materials
- Used as pillar, beams,cable trough etc.
- Breaker safety baffle,safety cover board,interval liner,alternate with clapboard,arc plate of arcing chamber etc.
- Motor armature components and self-sealing cover-plate,slot wedge stator,calm gaskets,thin gasket,carbon brush stands,and so on.
- The front-end switchgear, and back-end,top and bottom,alternate with clapboard,etc.
- Structural parts for arc resistance and insulation support pieces.
▪ Technical Data
