Farms Paddy Grain Corn Feed Storage Silo Bins
The Difference Of Grain Bins and Silos
Grain bins and silos are not synonymous, though few people make a distinction.
When you are looking to buy more storage for your farm, it’s crucial to understand the difference and purchase the right structure for your needs. Grain bins can’t do the work of silos, and silos can’t do the work of grain bins.
The Difference Starts with What They Store:
Grain bins and silos do not store the same products.
Grain bins store dry grain that will be used for animal feed, human consumption, or fuel. This includes, but is not limited to: shelled corn, soybeans, wheat, oats, barley, sunflower seeds, and flax seeds.
Silos store silage–typically something like green grass or chopped corn–which is fairly moist and is fed to livestock. The grasses or corn are more or less “pickled” so that they can keep for a long time and feed the livestock during dry seasons or other times when they have no other food to eat.

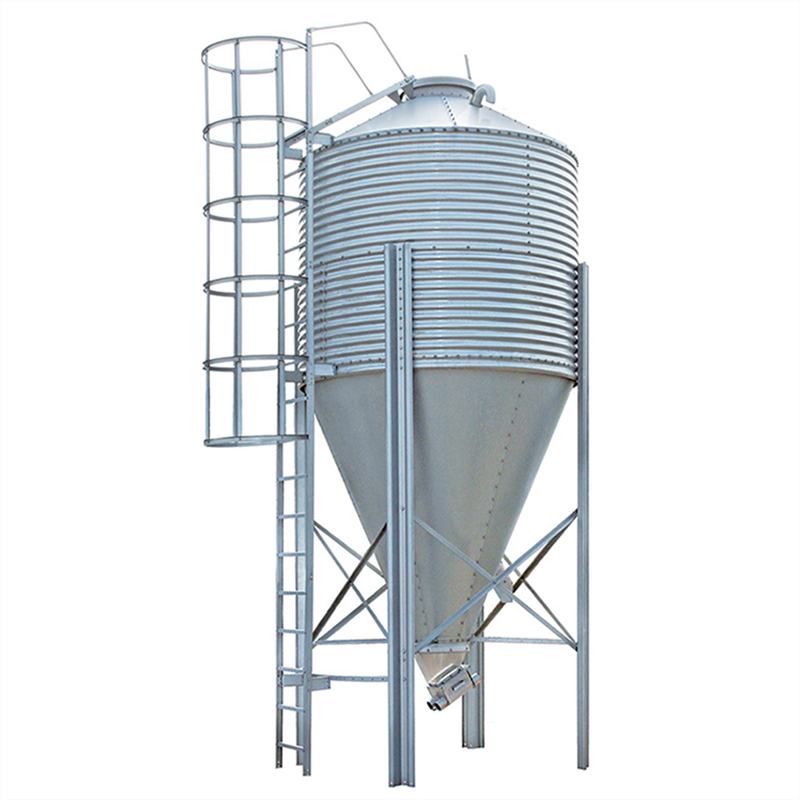

Silo Parameter
| Feed Silo(Bin) Parameter | ||||||||||||||
| No. | Itme No. | Description | Capacity (based on density 0.6/m3) |
Thickness of upper T Cone (mm) | Thickness of corrugated plate (mm) | Rings of corrugated plate | Thickness of lower T Cone (mm) | Thickness of the leg（mm） | Number of legs | Weight （kg） |
Maximum Height （mm） |
|||
| upper | middle | lower | Rings | Details | ||||||||||
| 1 | 60010001 | silos 2.7m3/Φ1530 | about 1.7T | 1.0 | 1.2 | 1 | 2 | 1.0 | 2.0 | 4 | 238 | 3800 | ||
| 2 | 60010002 | silos 4.1m3/Φ1530 | about 2.7T | 1.0 | 1.0 | 1.2 | 2 | upper2+lower2 | 1.0 | 2.0 | 4 | 282 | 4616 | |
| 3 | 60010003 | silos 6.4m3/Φ2140 | about 3.6T | 1.0 | 1.2 | 1 | 2 | 1.2 | 2.5 | 4 | 370 | 4705 | ||
| 4 | 60010004 | silos 9.3m3/Φ2140 | about 5.4T | 1.0 | 1.0 | 1.2 | 2 | upper2+lower2 | 1.2 | 2.5 | 4 | 434 | 5521 | |
| 5 | 60010005 | silos 12.2m3/Φ2140 | about 7.3T | 1.0 | 1.0 | 1.0 | 1.2 | 3 | upper2+middle2+lower2 | 1.2 | 2.5 | 4 | 495 | 6337 |
| 6 | 60010006 | silos 15.8m3/Φ2750 | about 10.5T | 1.2 | 1.2 | 1.2 | 2 | upper3+lower3 | 1.2 | 2.5 | 6 | 637 | 5716 | |
| 7 | 60010007 | silos 20.6m3/Φ2750 | about 13.8T | 1.2 | 1.2 | 1.2 | 1.2 | 3 | upper3+middle3+lower3 | 1.2 | 2.5 | 6 | 730 | 6532 |
| 8 | 60010008 | silos 25.5m3/Φ2750 | about 17.1T | 1.2 | 1.2 | 1.2 | 1.2 | 4 | upper3+middle6+lower3 | 1.2 | 2.5 | 6 | 820 | 7348 |
| 9 | 60010009 | silos 32.1m3/Φ3669 | about 22T | 1.5 | 1.2 | 1.2 | 2 | upper4+lower4 | 1.5 | 2.5 | 8 | 1082 | 6780 | |
| 10 | 60010010 | silos 40.6m3/Φ3669 | about 27T | 1.5 | 1.2 | 1.2 | 1.2 | 3 | upper4+middle4+lower4 | 1.5 | 2.5 | 8 | 1221 | 7596 |
| 11 | 60010011 | silos 49.1m3/Φ3669 | about 32T | 1.5 | 1.2 | 1.2 | 1.2 | 4 | upper4+middle8+lower4 | 1.5 | 2.5 | 8 | 1360 | 8412 |

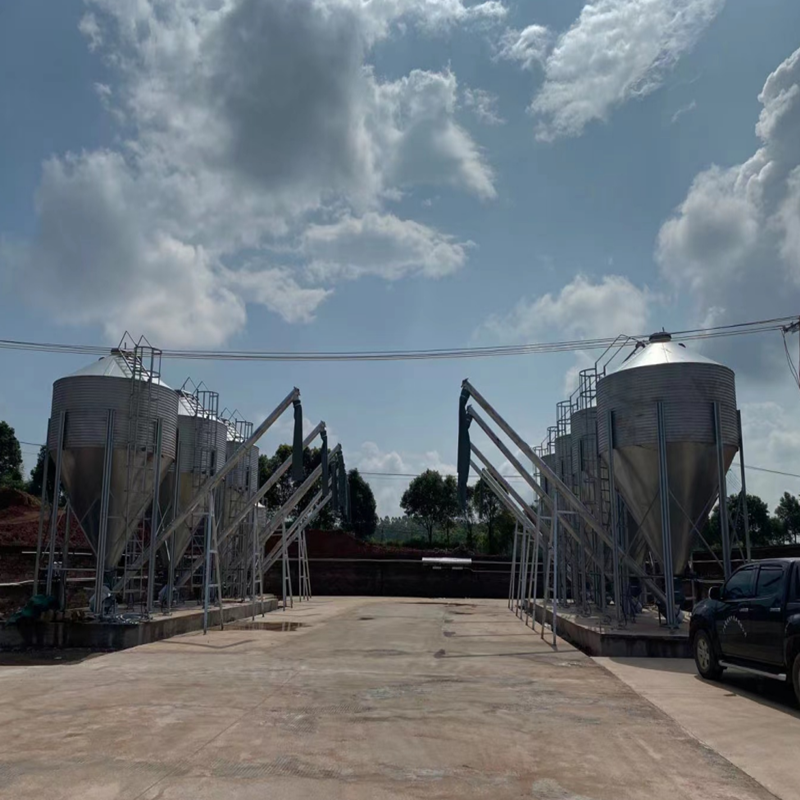

Application
Feed Storage Silo widely applied in husbandry feed storage
Grain Silo Application
production process
Function Determines Silo bin Look
Farm structures are part of the look and feel of every rural area in the world. If you haven’t worked on a farm, you’ve still driven by many and have seen the fields, the farmhouses, the big equipment, and yes, the silos and grain bins.
Grain bins come in varying heights and diameters. Grain bins are metal cylinders with peaked metal roofs. They typically have staircases or ladders on the outside.
Some farmers set up long rows of multiple grain bins which are attached to a series of catwalks that lead from one bin to the next from an elevator.
Their goal is to keep the grain at a specific temperature, but more on that later.
Silos, are also cylindrical but can be made of concrete, concrete blocks, bricks, metal, and sometimes even wood. Their tops are usually dome-shaped and they tend to be narrower and taller than grain bins.
As with the grain bins, sometimes farmers have many of them side by side–though typically silos are all one height in this configuration, and grain bins can be in various shapes and sizes.

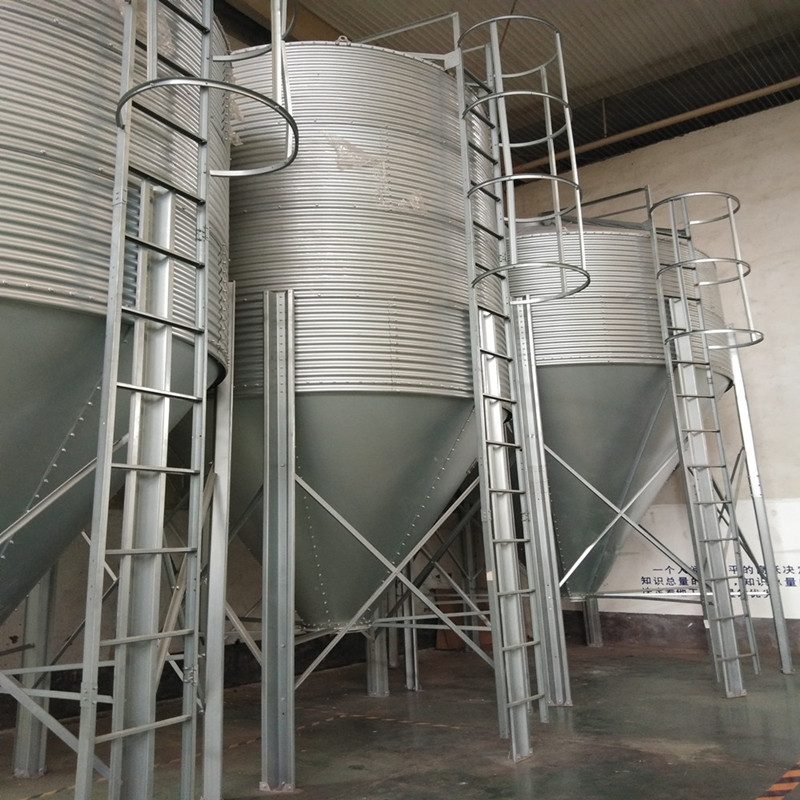

Silo Installation
Advantage
CNC machining, high precision
275g galvanized plate, high corrosion resistance and long performance life
Cutting angle design reasonable, ensuring feed drop smoothly.
Observation ports facilitate checking feed capacity level.
The cone has good strength and tightness by pressure folding technic.
Laminated corrugated plate effectively avoid scratching during installation and transportation.
Double layer anti seepage seal, bolt hole equipped with waterproof gasket.
Packing and transportation
Loading Port:Qingdao, China
Leading Time:Normally within 20 days after get deposit.
Payment Term:
-40% T/T downpayment, balance against copy of B/L.
-By irrevocable L/C at sight.
Company profile
As subsidiary of Kaiming machinery Co., which established in 2003,locates in Linyi, China, Shengao (Qingdao) Co.,is a professional manufacturer of livestock equipment such as husbandry silo, dry/wet feeder for pig, piglet feeder, pig drinking bow, pig feeder trough,etc.
After nearly 20 years development and with 10 technicians,120 workers, 133200 M2 workshops, 500 sets silos annual production capacity, we have been a quality supplier for many customers from the world.
Strictly accordance with DIN EN ISO 1461-1999,our products has been exporting to North America, Europe, South America, Australia,East Asia,Southeast Asia,etc. and are enjoying a high prestige in the markets.
We attach great importance to reputation, innovation,quality and services and are committed to provide more technique support and solutions on basis of customers’ requests
