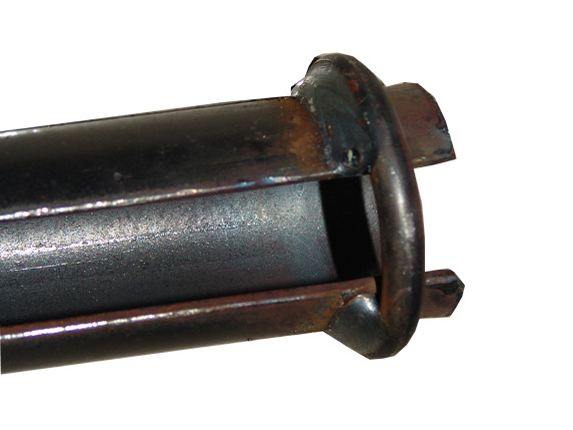

FB-33 SPLIT SET BOLT (Friction Stabilizer)
DOME PLATE
As a kind of ground support Split Set Bolt used in applications, Dia.33mm also has a C shape pipe of bolt body which can offer an instant frictional forces that holds the rocks together, so it is also widely used in mines, tunnels and slopes etc. However meanwhile, the material strength and characteristic and the welds quality between ring and the C tube, become critical points on the bolt.
FB-39 Split Set bolt is the smallest ground support bolt used in the application, which usually used as temporary ground support. However, the material welds quality is still very important to make sure it could have reach the support requirements. By using the same rollformers and welders to make FB-33 Split Set Bolt, we can get a more effective capacity in our production.

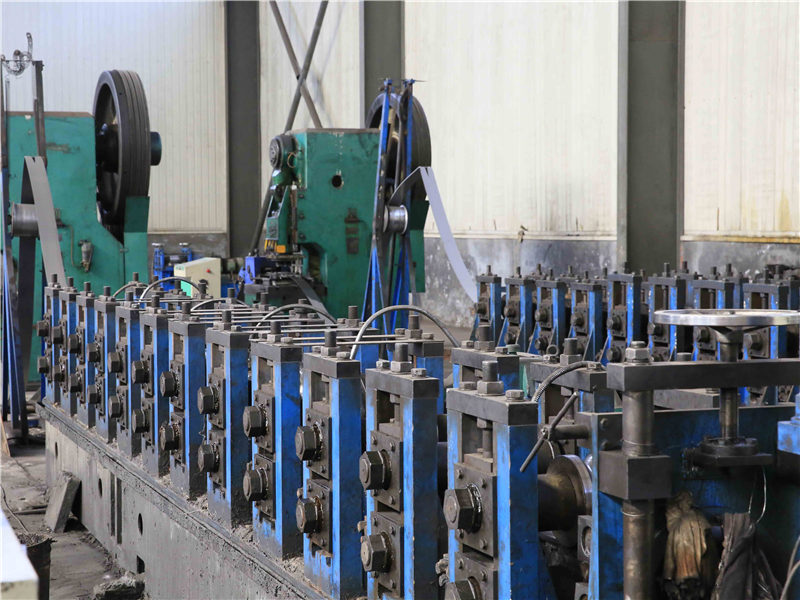

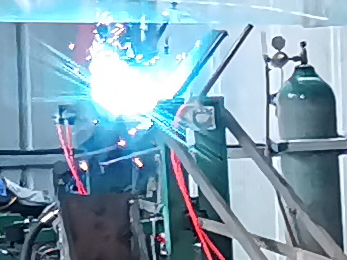

By using our advantage PLC-Controled Rollformer and Auto Welders, We follow the same quality control system to make the FB-33 Split set bolth even it is not for main ground support bolt, and black and galvanizing split set bolt are both available to meet different requirements of customers come from different area of the world.

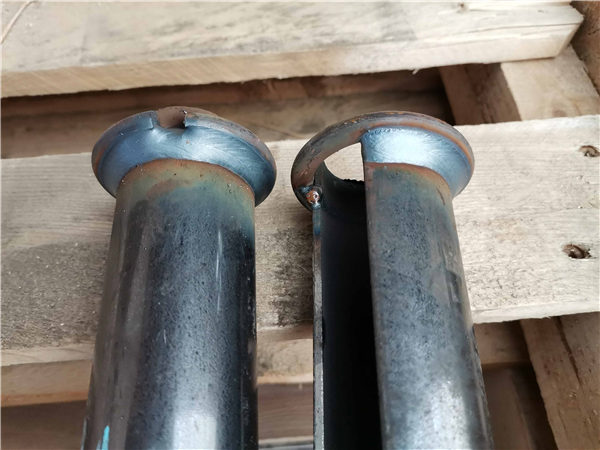

The critical point for FB-33 split set bolt (Friction Bolt Stabilizers) is still the quality of welds, which will affect the performance of the bolt while used in ground support. We have a routine quality mornitoring and warning system to get a consistance and stable perfect welds quality, and a job traveller with pull testing records will go through the whole processes to avoid any accidents in the production

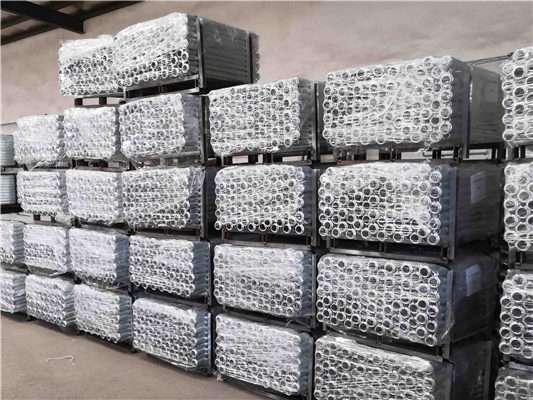

If customer required a galvanizing FB-33 split set bolt, the zinc coating is still a critical point, low level of Si & P in raw mateiral is very important to keep good zinc coating surface to have a better performance when it is used in corrosive environment. The standard packing for FB-33 Split set bolt is 300 untis per wooden or metal pallet.
FB-33 SPLIT SET BOLT SPECIFICATION AND MECHANICAL PROPERTY
| Dimensions | Physical Properties | Technical Data | ||||||||||
| Bolt Diameter | A | 33mm | Yield Strength | Min. 345 Mpa (70KN) | Recommended Normal Bit Size | 31-33mm | ||||||
| Bolt Length | B | 0.6-1.8m | Typical 445Mpa(95KN) | |||||||||
| Taper End Diameter | C | 28mm | Tube Ultimate Tensile Strength | Min. 470 Mpa (100KN) | Typical Breaking Capacity | 107KN | ||||||
| Taper Slot Wide | D | 2mm | Typical 530Mpa(115KN) | |||||||||
| Taper Length | E | 65mm | Mass per Meter | 1.67 Kgs | Min. Breaking Capacity | 71KN | ||||||
| Bolt Slot Wide | F | 12mm | ||||||||||
| Ring Location | G | 3mm | Cross Section Area | 212 mm² | Recommended Initial Anchorage | 3-6 Tons (27-53 KN) | ||||||
| Material Guage | H | 2/2.5mm | ||||||||||
| Ring Wire Guage | I | 6mm | Hole Diameter Range | 30-32mm | Ultimate Axial Strain | Typical 21% (Thk<16mm) | ||||||
| Ring Open Gap | J | 5-6mm | ||||||||||
| Code | Bolt Description | Diameter | Length | Surface Finish | Weight | Packing QTY/Pallet | Ring ColorID | |||||
| (mm) | (mm) | (Kgs) | ||||||||||
| FB33-0600 | Split Set Bolt 33-600 | 33 | 600 | Untreated | 1.00 | 300 | - | |||||
| FB33-0900 | Split Set Bolt 33-900 | 33 | 900 | Untreated | 1.50 | 300 | - | |||||
| FB33-1200 | Split Set Bolt 33-1200 | 33 | 1200 | Untreated | 2.00 | 300 | - | |||||
| FB33-1500 | Split Set Bolt 33-1500 | 33 | 1500 | Untreated | 2.50 | 300 | - | |||||
| FB33-1800 | Split Set Bolt 33-1800 | 33 | 1800 | Untreated | 3.00 | 300 | - | |||||
| FB33-0600G | Split Set Bolt 33-600 HDG | 33 | 600 | Hot Dip Galvanized | 1.05 | 300 | - | |||||
| FB33-0900G | Split Set Bolt 33-900 HDG | 33 | 900 | Hot Dip Galvanized | 1.58 | 300 | - | |||||
| FB33-1200G | Split Set Bolt 33-1200 HDG | 33 | 1200 | Hot Dip Galvanized | 2.10 | 300 | - | |||||
| FB33-1500G | Split Set Bolt 33-1500 HDG | 33 | 1500 | Hot Dip Galvanized | 2.63 | 300 | - | |||||
| FB33-1800G | Split Set Bolt 33-1800 HDG | 33 | 1800 | Hot Dip Galvanized | 3.15 | 300 | - | |||||
FB-33 SPLIT SET BOLT FEATURES
● Made by different grade of steel strip, depends on different use environment and the different requirements from customers which could be fexible to control the cost of ground support in the application.
● Though it used as a kind of temporary split set bolt for ground support, it has the same C shape body with other support bolts and have the same function and characteristics to provid an instant full length ground support all the way to the hole, using together with mesh and plate to get a quick assemble
● Galvanizing and untreated Split Set Bolts are both available
● Full range of accessories available
FAQ of FB-33 SPLIT SET BOLT
1. What is FB-33 Split Set and how does it make ?

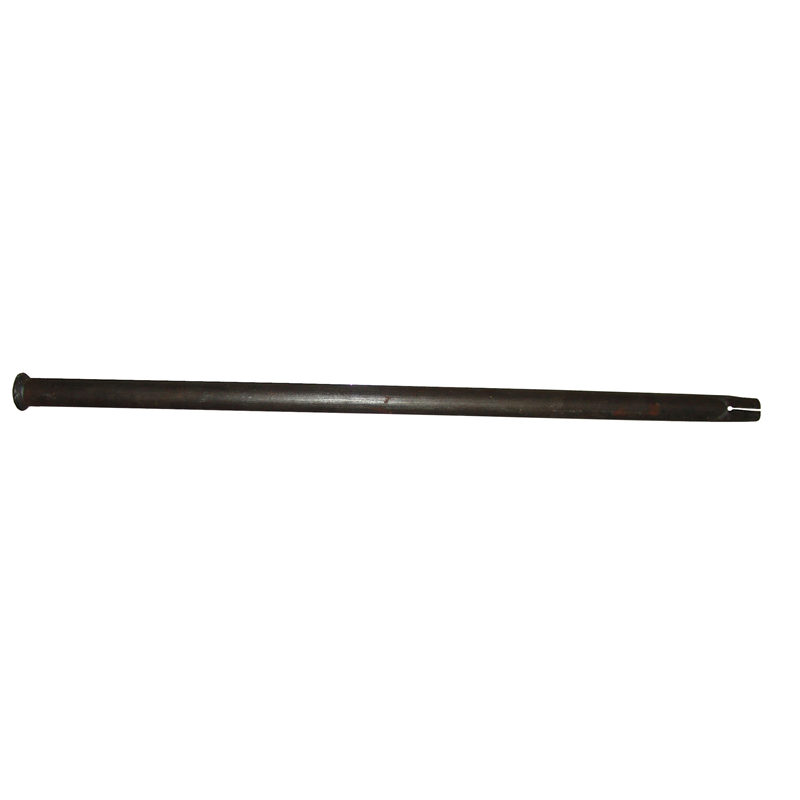

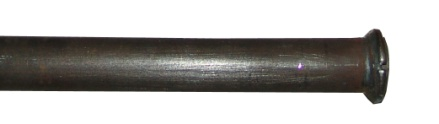

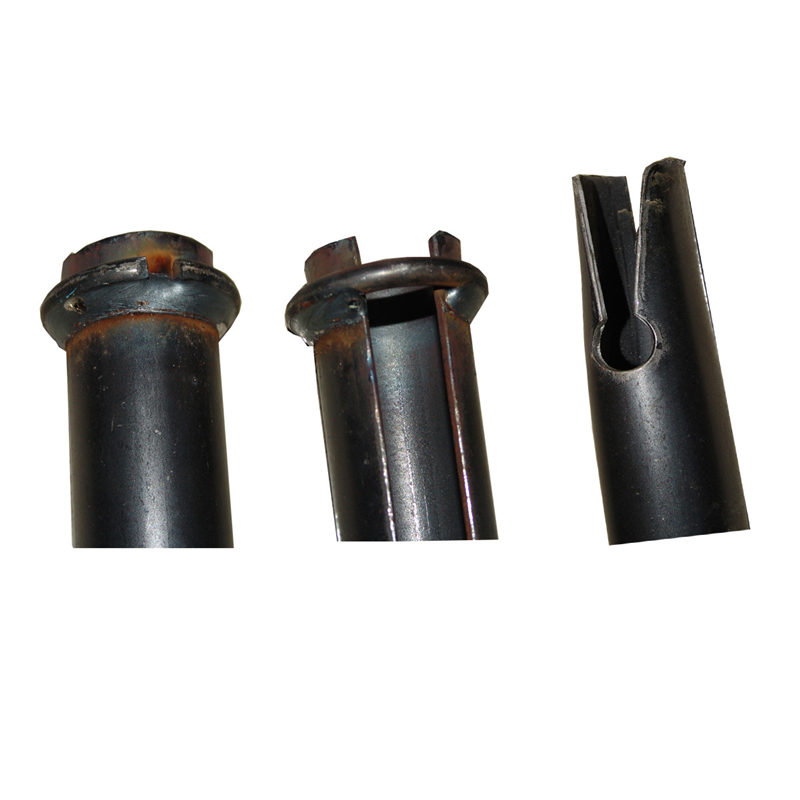

The FB-33 Split Set Bolt are made by different grade of steel strip, which is roll-formed into a longitudinal slot C shape tube along its entire length. A steel ring is full welded on the end of the tube by automatic welding device, which is to hold the plates to the rock surface.
2. What is FB-33 Split Set function and how to get a ground support ?

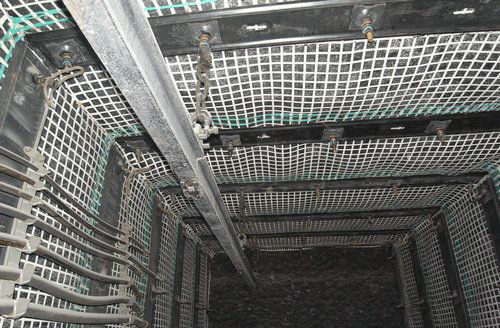

The tubular C shape of the bolt generates a load transfer from the steel to the rock when installed into a slightly smaller diameter hole, and results in a frictional resistance pull-out load of the tube from the hole, and creating a full length radial pressure to the hole by increasing the contact surface of the steel to the rock due to its tubular shape, and when install onto the plate, it establishes a compressive force against the rock. When additional load bearing capacity is required, friction bolt can be grouted by cement grouts.
2. How to use and assemble ?
A pull collar fixing at the ring end enables load testing during the bolt installation. The tapered end of friction bolt can be easily inserted into the drilled holes. Friction bolt can be installed with hand held equipment.
