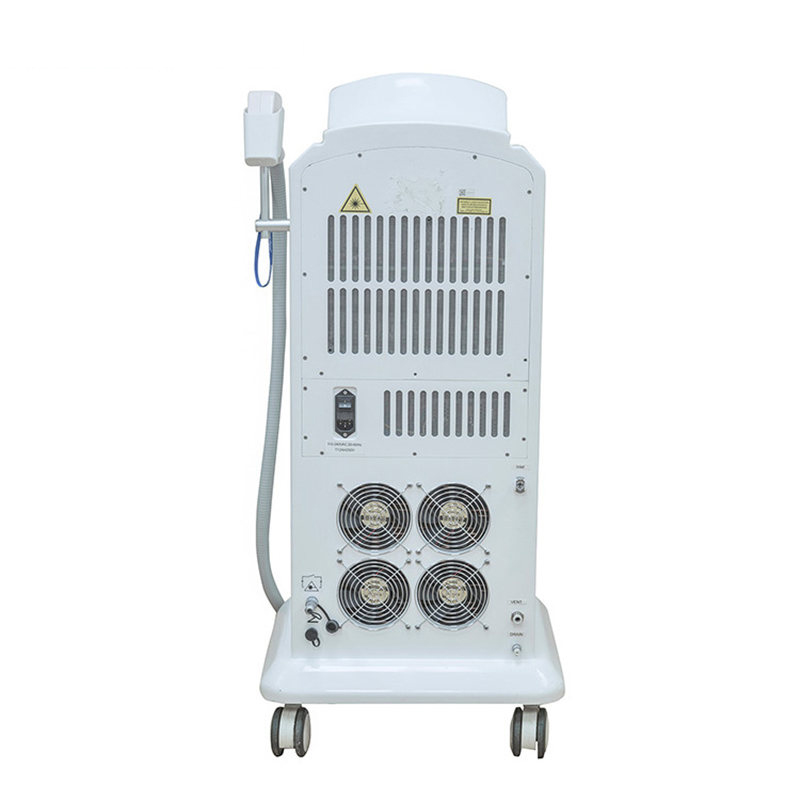

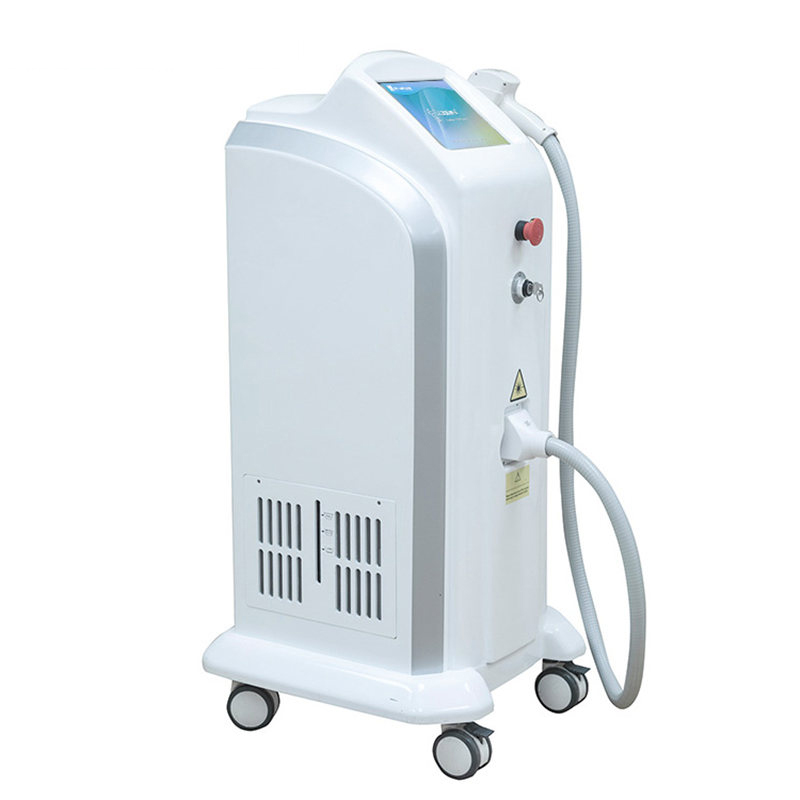

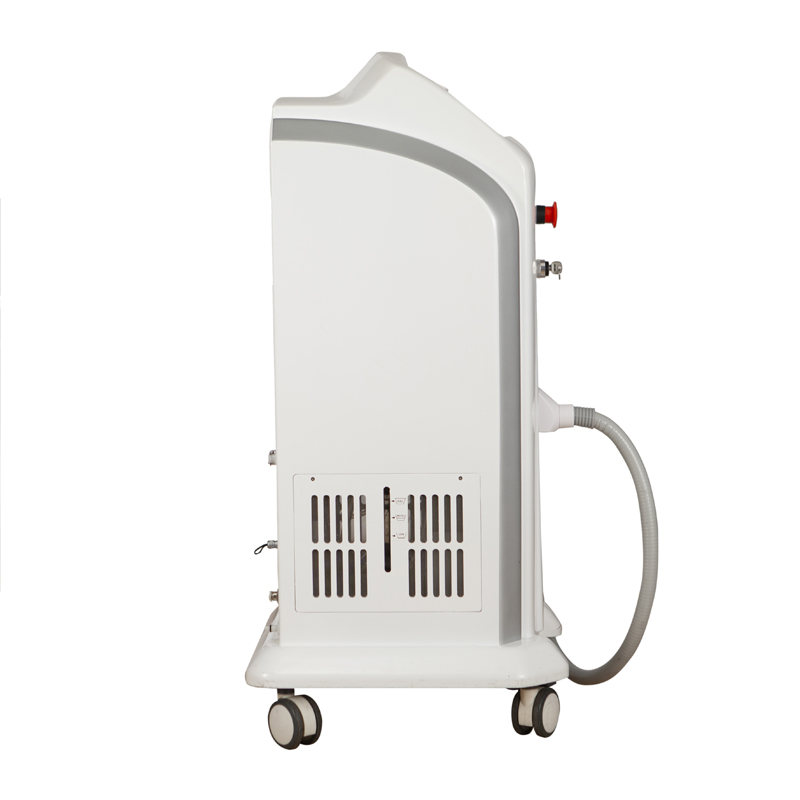

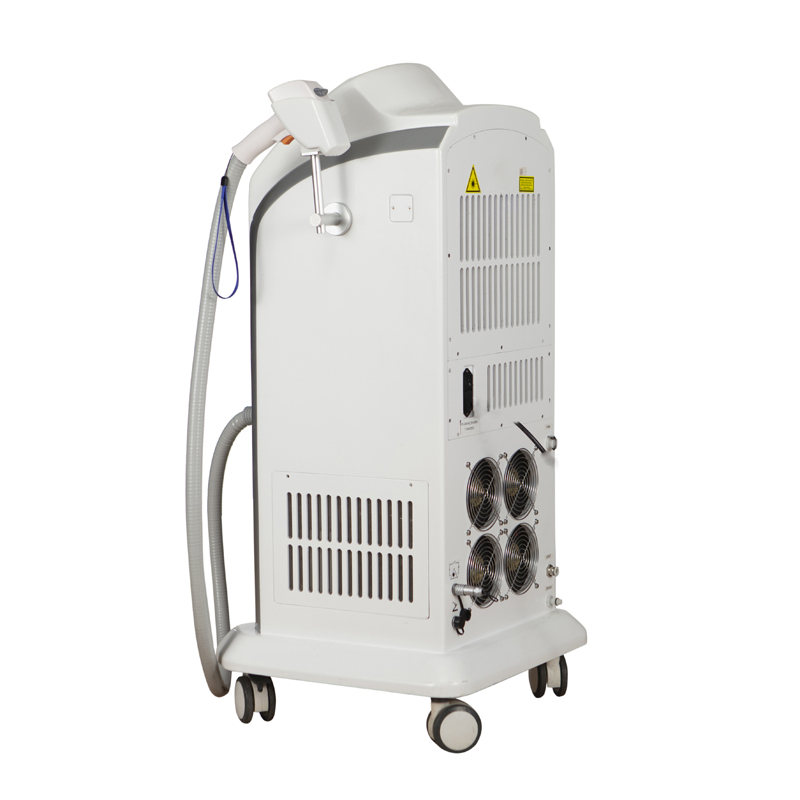

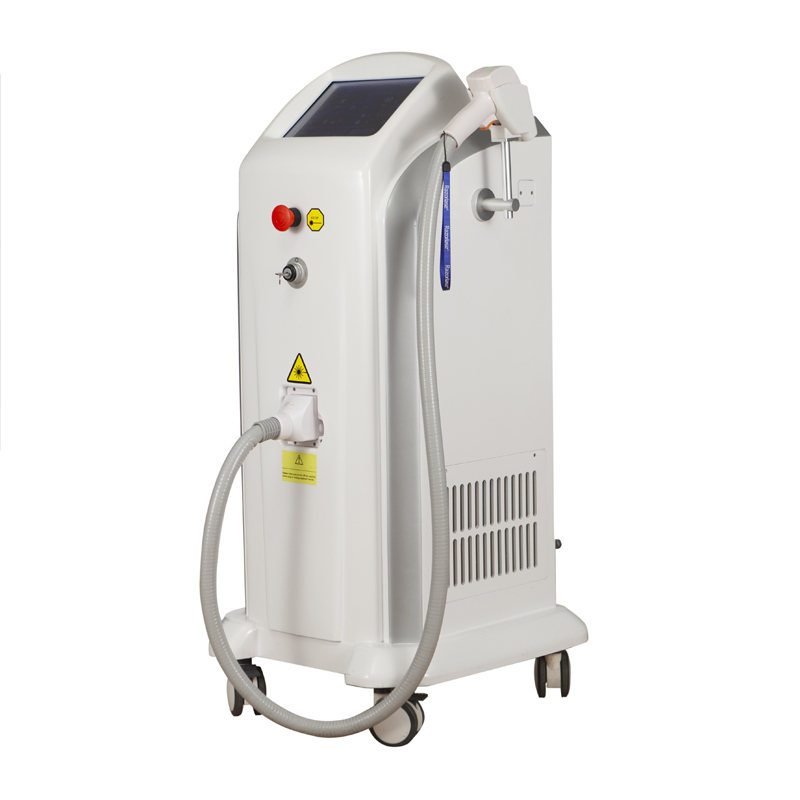

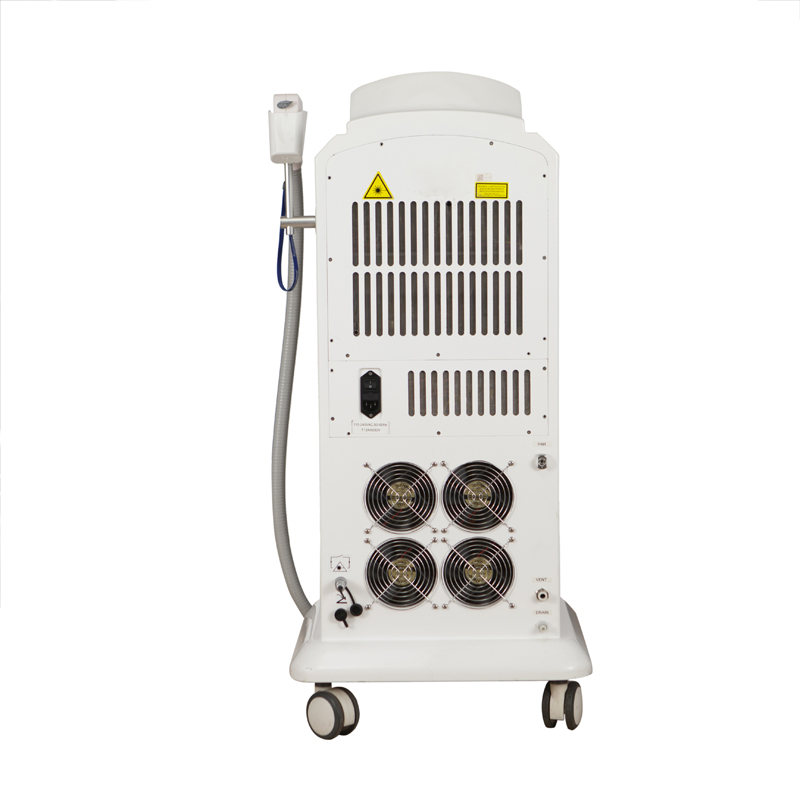

FDA and TUV Medical CE approved 3 wavelength diode laser

Short Description:

755NM WAVELENGTH: The 755nm wavelength offers more powerful energy absorption by the melanin chromophore, making it ideal for the light-colored and fine hair. With more superficial penetration, the 755nm wavelength targets the Bulge of the hair follicle and is especially effective for superficially embedded hair in areas such as the eyebrows and upper lip.

808NM WAVELENGTH:  The classic wavelength in laser hair removal, the 808nm wavelength,offers deep penetration of the hair follicle with high average power, a high repetition rate and a large 2cm spot size for fast treatment. The 808nm has a moderate melanin absorption level making it safe for ALL skin types. Its deep penetration capabilities target the Bulge and Bulb of the hair follicle while moderate tissue depth penetration makes it ideal for treating the arms, legs, cheeks and beard.

1064NM WAVELENGTH: 1064nm wavelength is characterized by lower melanin absorption, making it a focused solution for darker skin types. At the same time, the 1064nm offers the deepest penetration of the hair follicle, allowing it to target the Bulb and Papilla, as well as treat deeply embedded hair in areas such as the scalp, arm pits and pubic areas. With higher water absorption generating a higher temperature, the incorporation of the 1064nm wavelength increases the thermal profile of the overall laser treatment for most effective hair removal.


Product Detail

Product Tags

808

Applications

For fast, safe, painless and permanent hair removal on all 6 skin types, including dark skin. Suitable for any unwanted hairs on areas like face, arms, armpits, chest, back, bikini, legs…

U4e8b774120ef4bccaec26e4b95c6d8273

Advantages

1.Multi-Language: User-friendly and multi-language operation screen.

2.Treatment Specification:6 skin types , 5 treatment area 30 clinical data for reference and option.
3.Perfect Performance:High Energy density up to 120J/cm2 and Long pulse 400MS,Precise Energy Density error range <0.5J/cm2,Precise Cooling temperature error range less than 1 degree.
4.System Protection:5 items safety checking system

Parameters

Laser source

Diode stack

Laser wavelength

755nm/808nm/1064nm

Laser category

Class 4

Electric Security Classification

Type B ClassⅠ

Pulse width

5ms-400ms

Frequency

1Hz-10Hz

Laser aperturesize

14mm×12mm

Spot size

12mm×10mm,12mm×16mm for optional

Fluence

0-120J/cm2

Cooling methods

Air cooling, water cooling and semi-conductor cooling

Input power

1300VA

Power source

110-240VAC,50-60Hz

Treatment Effect

72294432_2392691280993046_5495834907806531584_n
120072643_149879183467838_1039617832230936949_n
10830727_10152963825928023_786315165427392212_o
