Typical Specification of Moulding Machine

Production information:

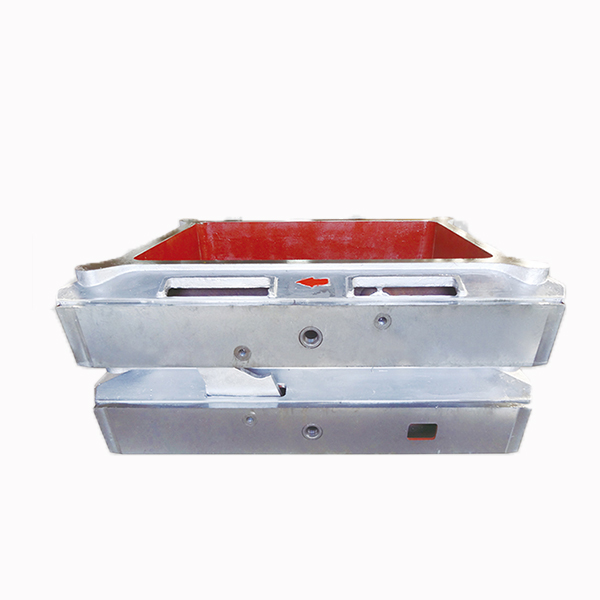

SF horizontal parting and flask-striped shooting-squeezing molding line adopt the sand shooting, with horizontal parting, slip flask and weight. Easy core setting, easy operation, high automation, the molding lines are widely used in mass-production for small-sized castings. The whole line consist of molding machine, sand conveyor line, slip flask and weight taking and droping device, indexing transport and cushioning device, synchronous cooling belt, pouring machine, etc..

SF Series Green Sand Automatic Foundry Casting Horizontal Parting Flaskless Molding Machine -This is automatic molding machine which is alternative to hand-shape and high degree of automation, convenient, secure under the core, the effective rate of the two-sided template. Manufacturers through the introduction of automated molding machine, and effectively advancing the production efficiency and stability of the casting quality, it is compact bodies, small form factor and does not require pit, the most suitable for the transition from manual modeling to automation customers. In addition, the models on the basis of previous horizontal molding machine insttutional improvements. Top, bottom, middle, lower box at the same time fixed in the four pillars to ensure the accuracy of the co-box. Solve the problem of the wrong box. The aircraft can be equipped with molding line is more flexible, and can be hand-pushed rolling conveyer methods and automatic co-car roller conveyer.It has compact structure and high safety performance, easy to operate, cover small floor space and make low noise.

Application:
Widely used in castings, machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc .
More competitive for those products require inner sand core.

The molding machine uses double-sided template, the strength of boiling water add sand; sand hardness uniform, high precision box, sand box thickness adjustable; template replacement is convenient; hydraulic oil temperature control to ensure the best equipment operation; the machine easy to operate, double security Protection, visible sand type, user-friendly operating procedures. Effectively improve productivity.
Green Sand Flaskless Automatic Horizontal Sand Moulding Machine for Casting.
